Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

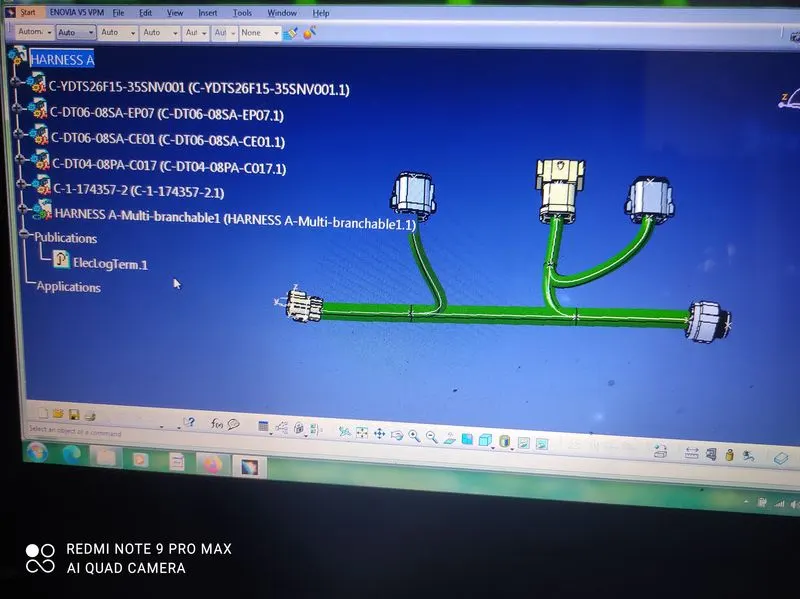

use giving connector take that go to elctrical part design define all connectors after got to electrical harness assembly take multibranchable command routing the all connectors finally complete the harnnes a routing.

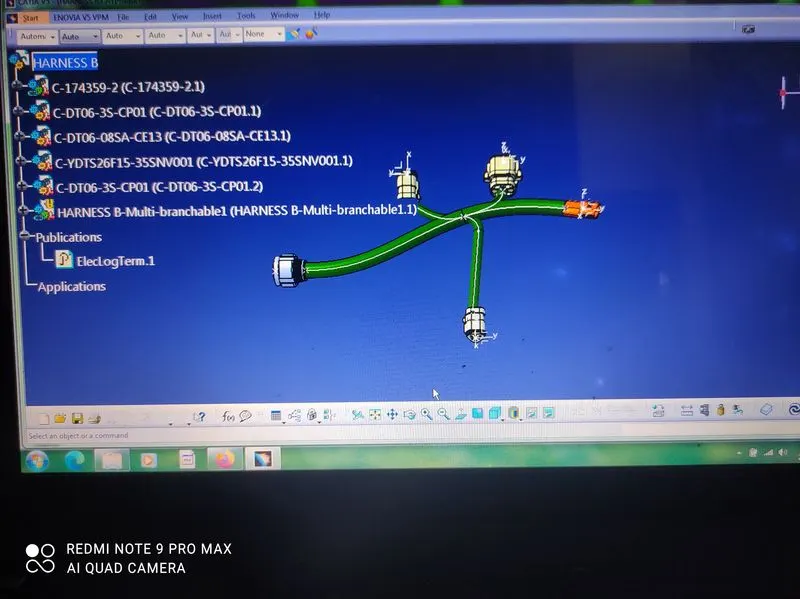

use giving connector take that go to elctrical part design define all connectors after got to electrical harness assembly take multibranchable command routing the all connectors finally complete the harnnes b

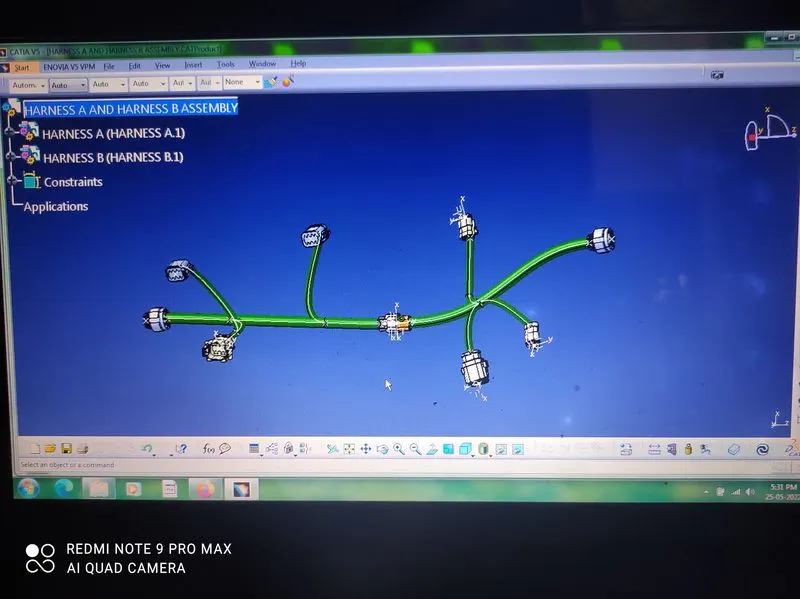

finally we goto the harness assembly design copy the harness a and harness b goto the join command click the male and female connectors finally joined

routing.
