Week 9 - Attachment Feature Creation - Challenge 1

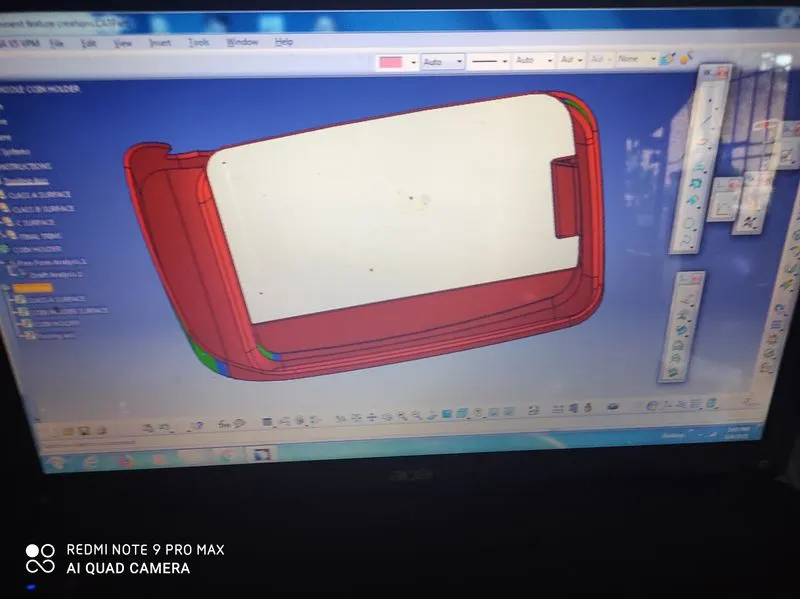

first extract the bottom

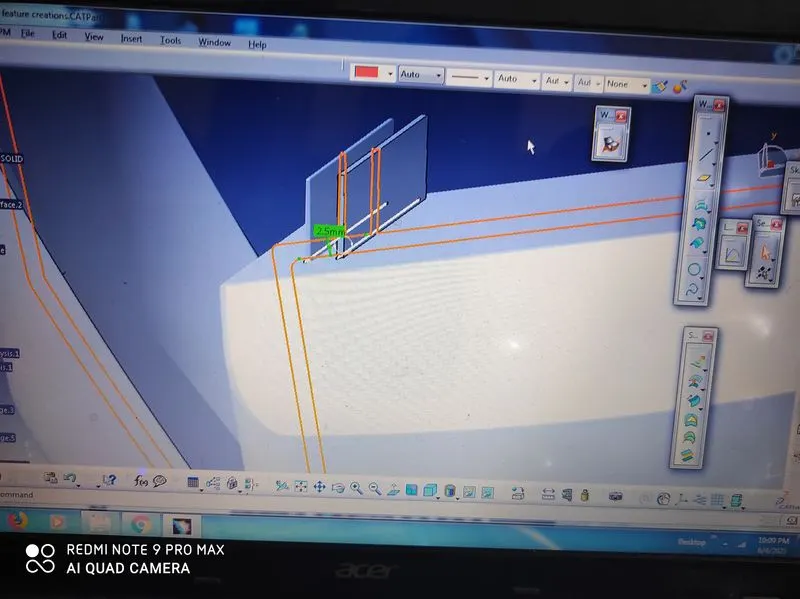

take line give the correct dimensions and extrude 12.5 mm above ,1mm below

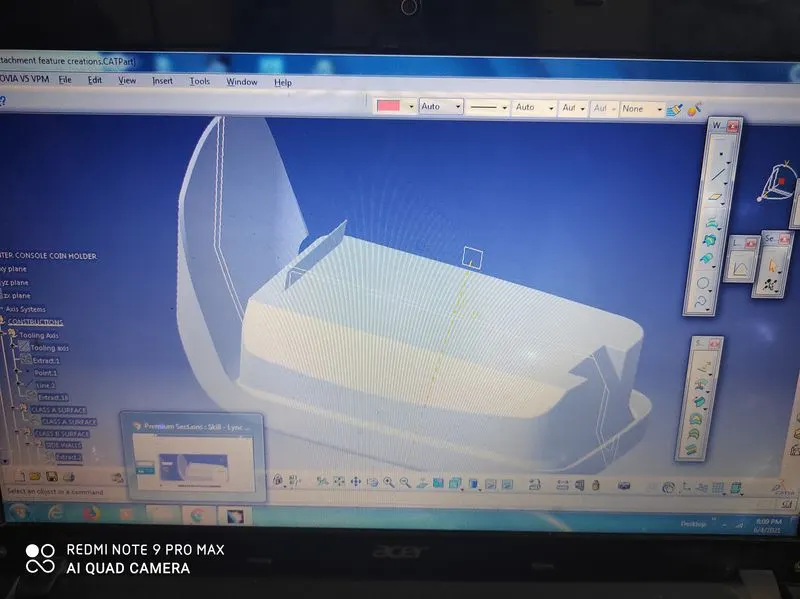

and goto part design use draft select both sides and give the 0.5 degree

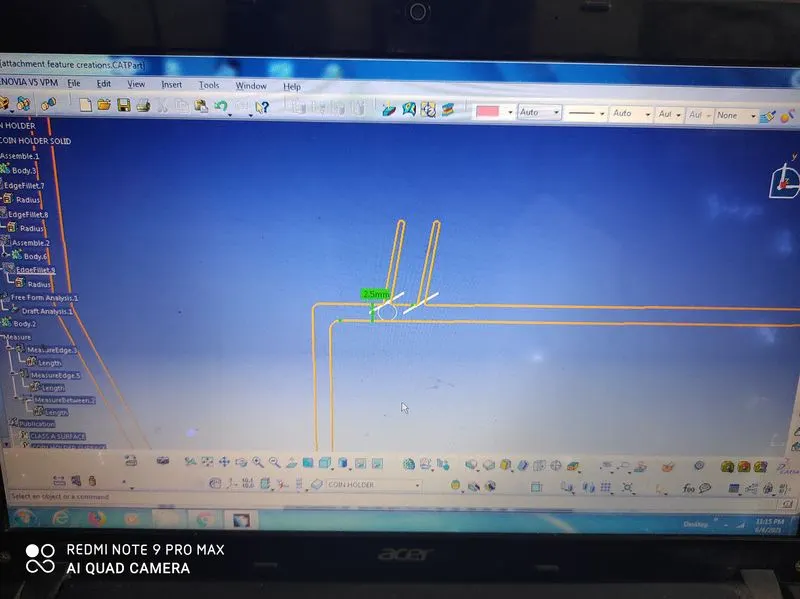

give the intes ection part body

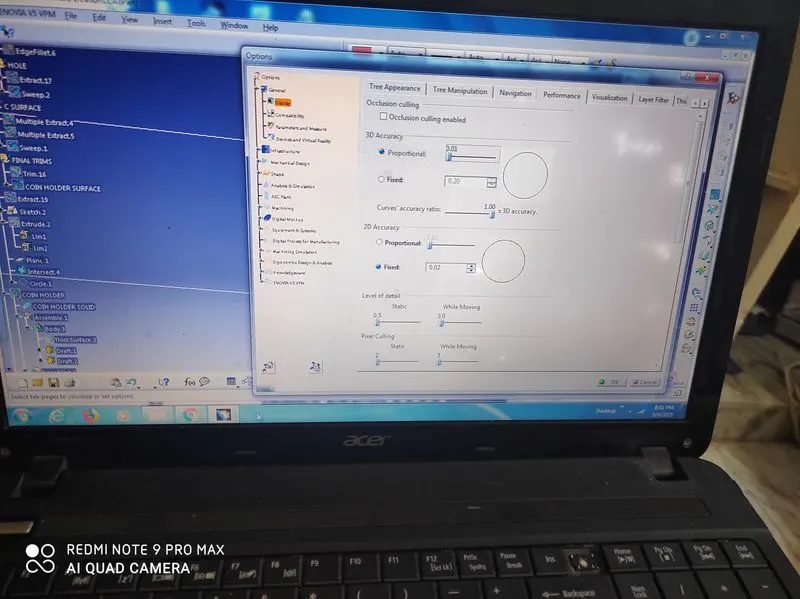

after goto the tools and options set this settings

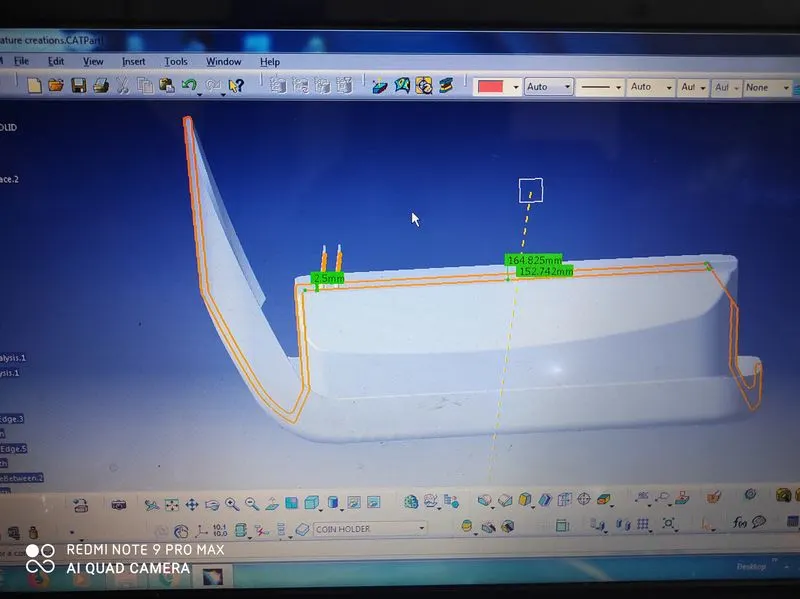

same another rib will be genarate the same process

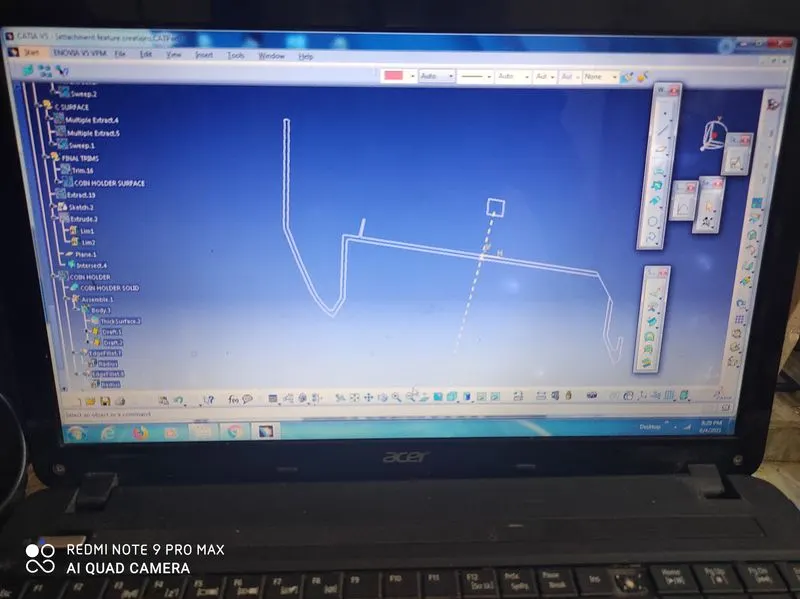

we get another rib ,we gerate two rib in perefect measurements after give edge fillets .25 all sides

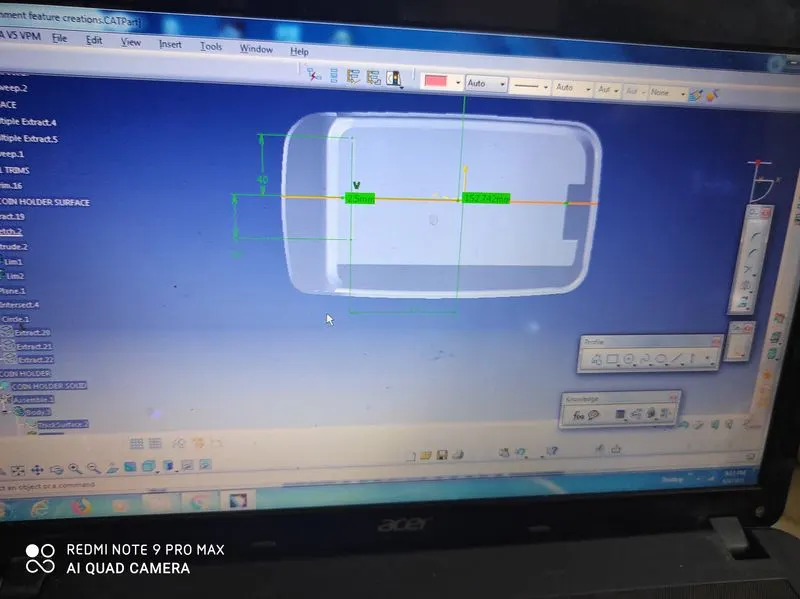

finally we get this perfect shape
