Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

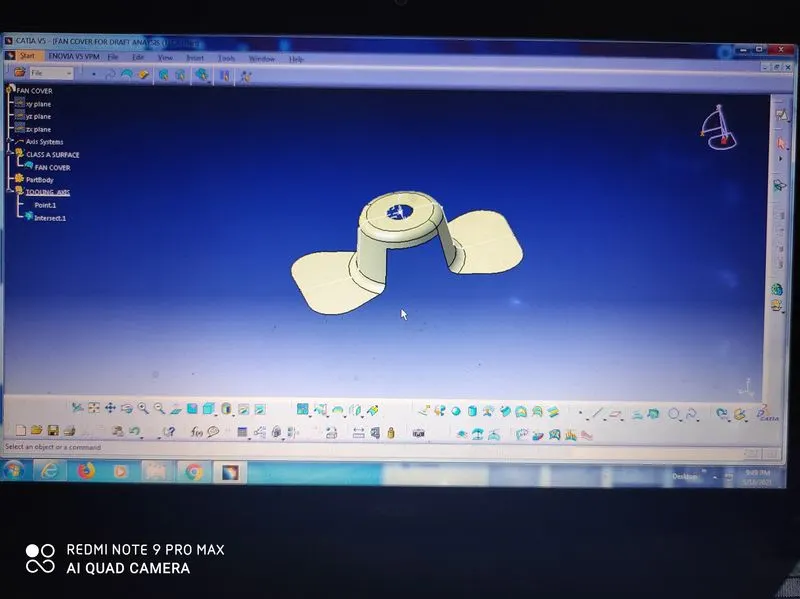

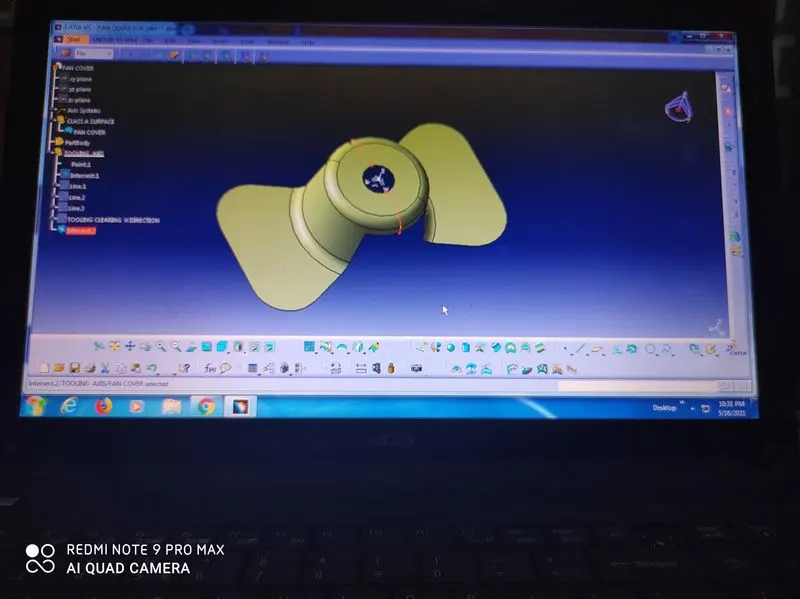

take geometrical set crate point at the center and the create the axis system at the point and the click the zx plane and intersect tool ,select the fan

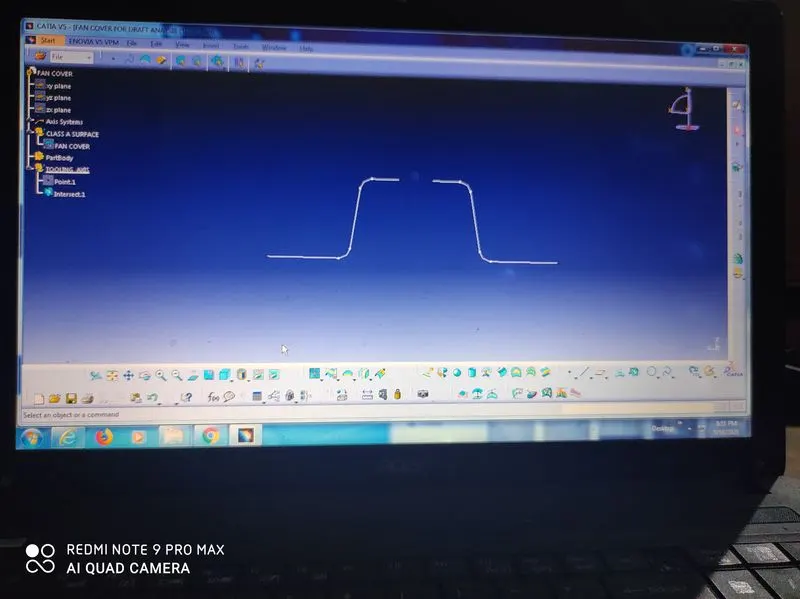

and ,we get result the two lines

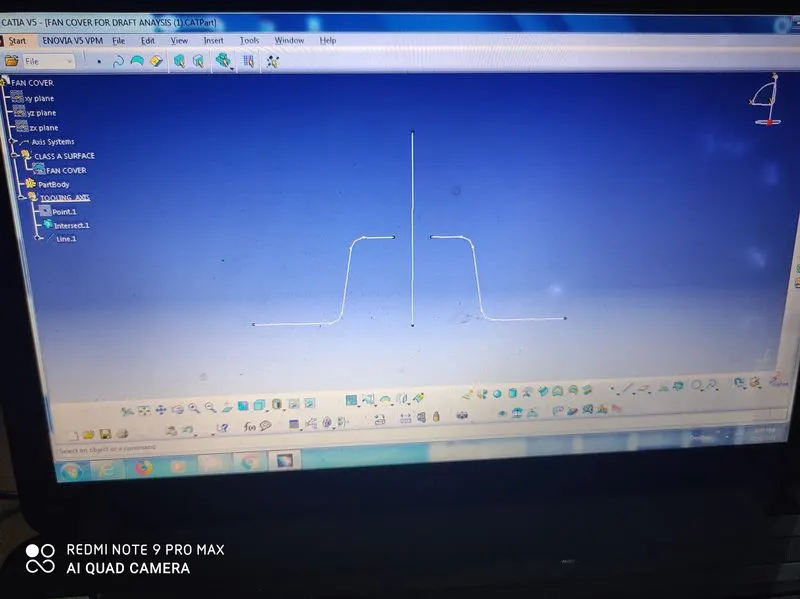

take line tool select the point and click the z direction

to crate point to point line and hide the tooling axis

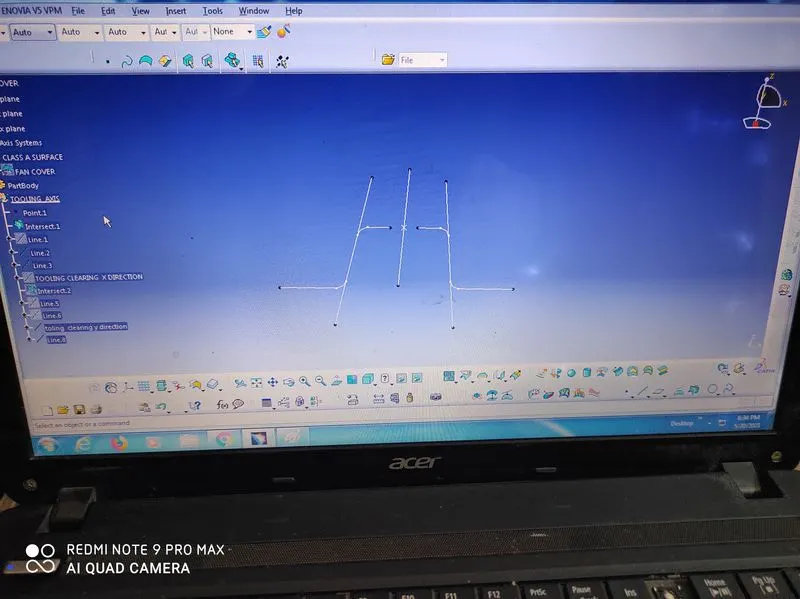

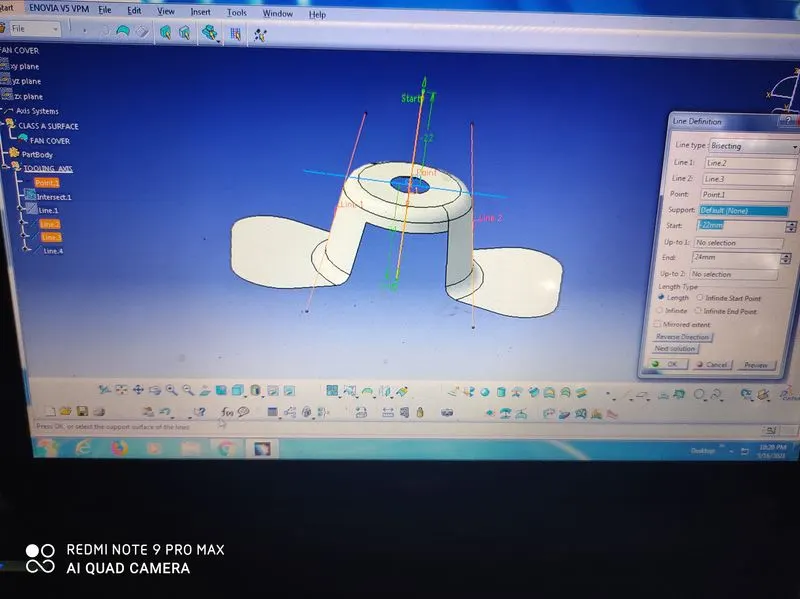

bisect the two lines tooling have x direction is correct

and click the zy direction and click the intersection

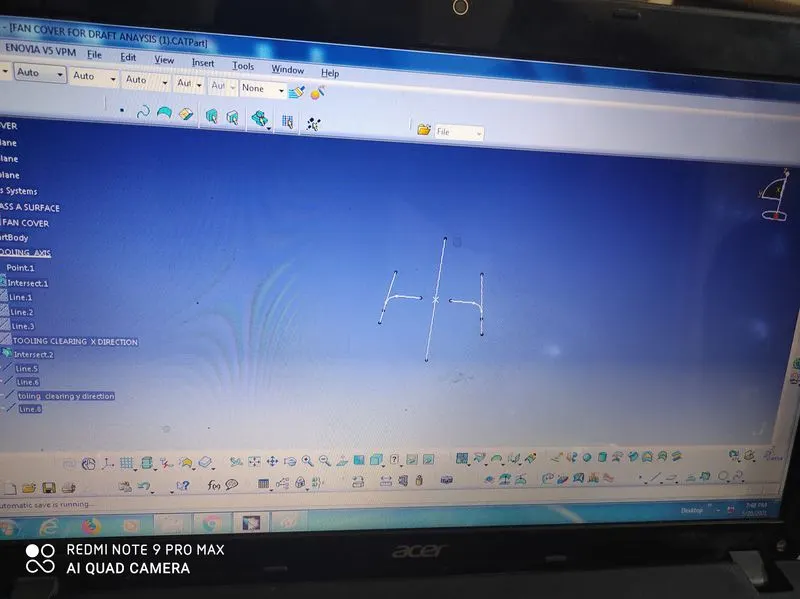

we get the two line and crate the point to point direction

bisect the two lines select the point tooling clearing y direction

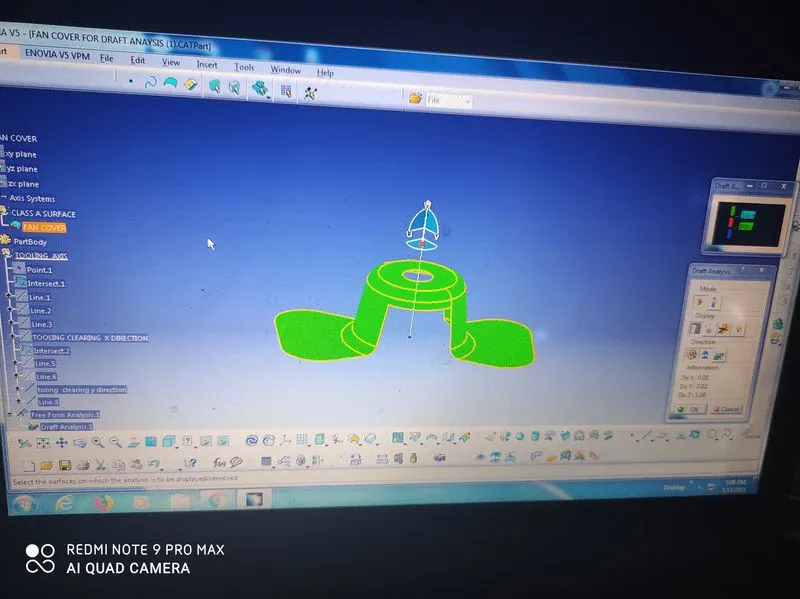

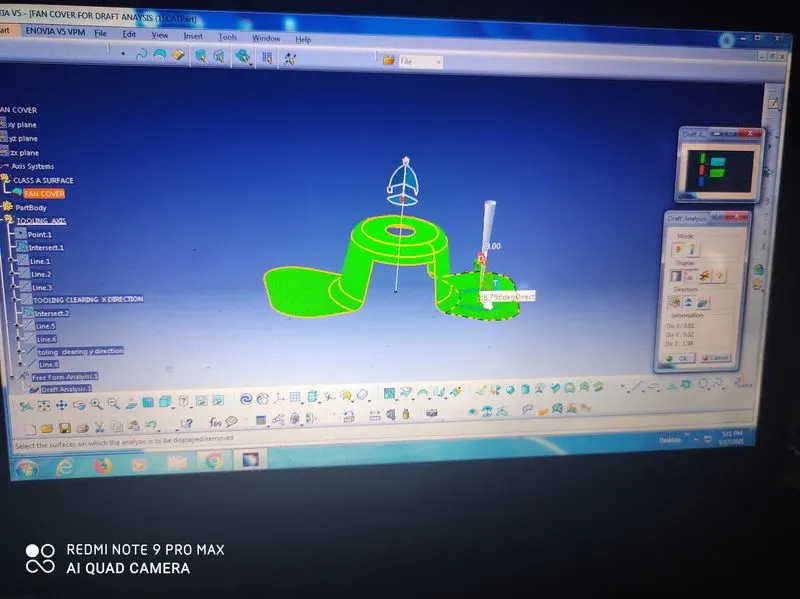

and go to the insert and analayis go to fatured draft analaysis

and select the fan componenet go to custamize and click the material and select the

compass to the center line

and select the analaysis the rining point ,slect the point in fancover in roun shape they show the 90 degrees.

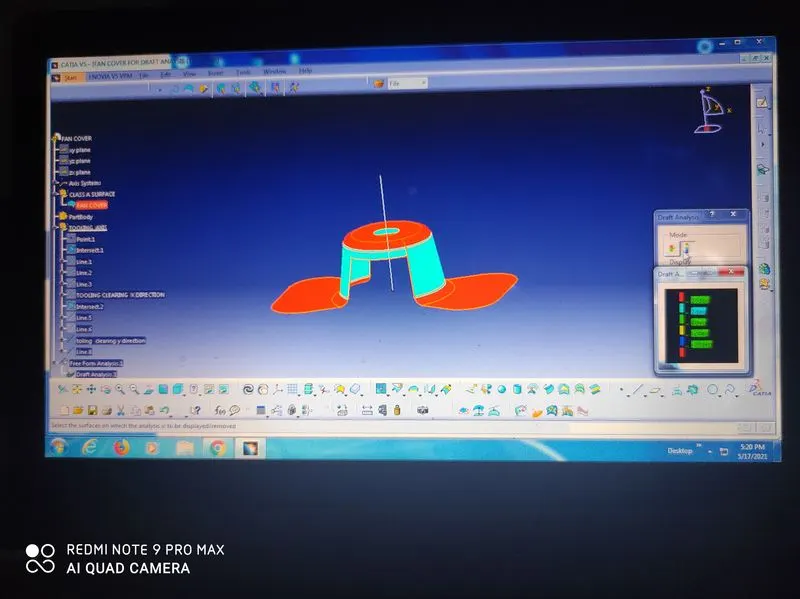

switch on full analysis mode and we get this ressult totally complete this tooling
