Week 8 - Challenge 2 - Base Bracket Design

first we go to click the analyasis and click the feature draft analyasis and click the componenet and take the compass and click the center line and click the runing point

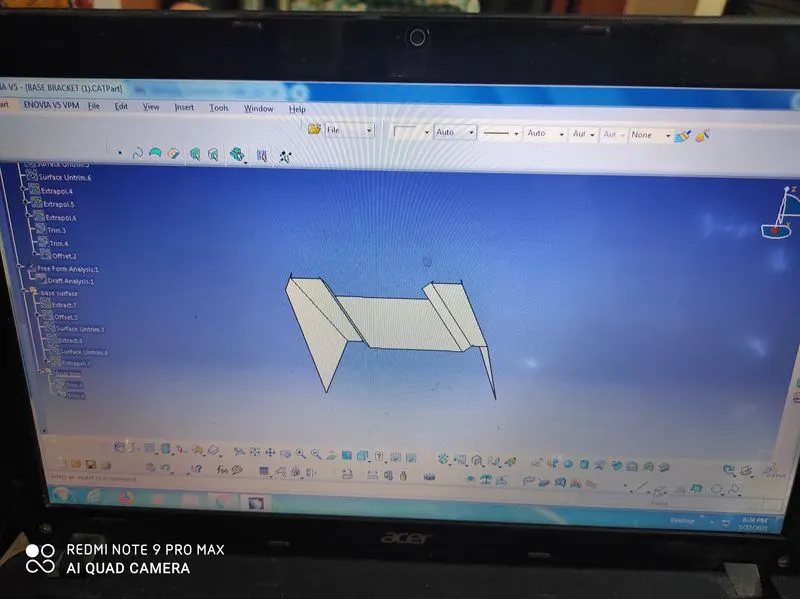

extract this shapes we get this new component

extract this shape also we get this new component

total extract this and extrapolate this two shape and trim this finally we get this componenet

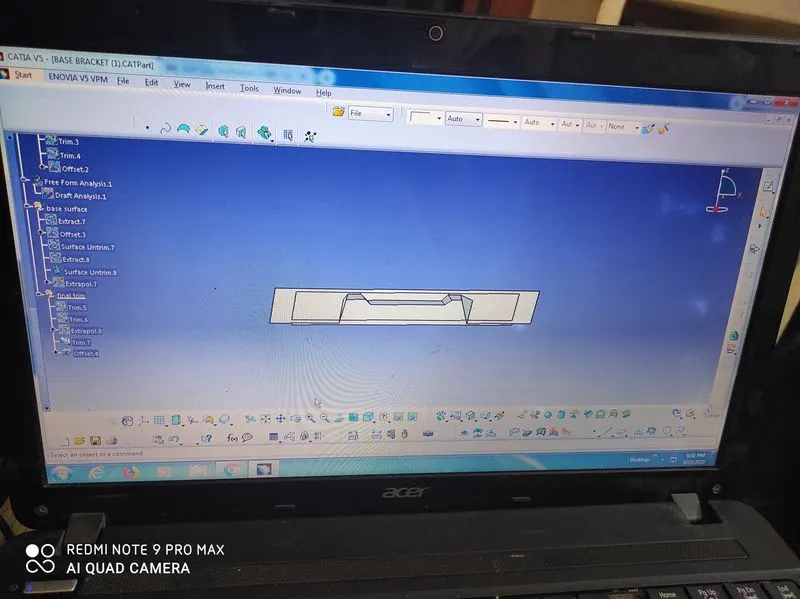

trim this both side we this shape

offset component above 3mm and below 3mm

select this boudaries and extrudes this shape

extrude this holes aloso and jion this total body we get this component

offset this below 3mm

trim this offset we get finall component and go to part design
