Week 8 - Challenge 5 - Core & Cavity Design

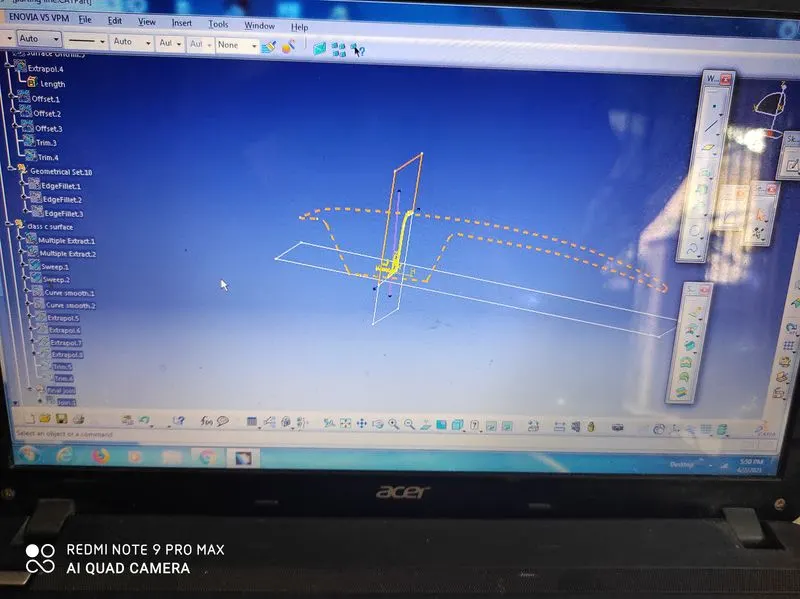

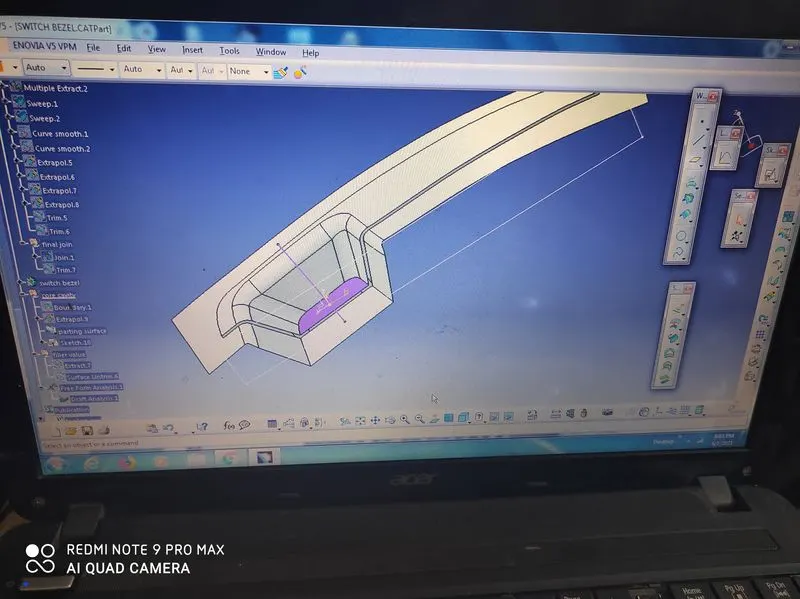

take class a and take base edge fillet

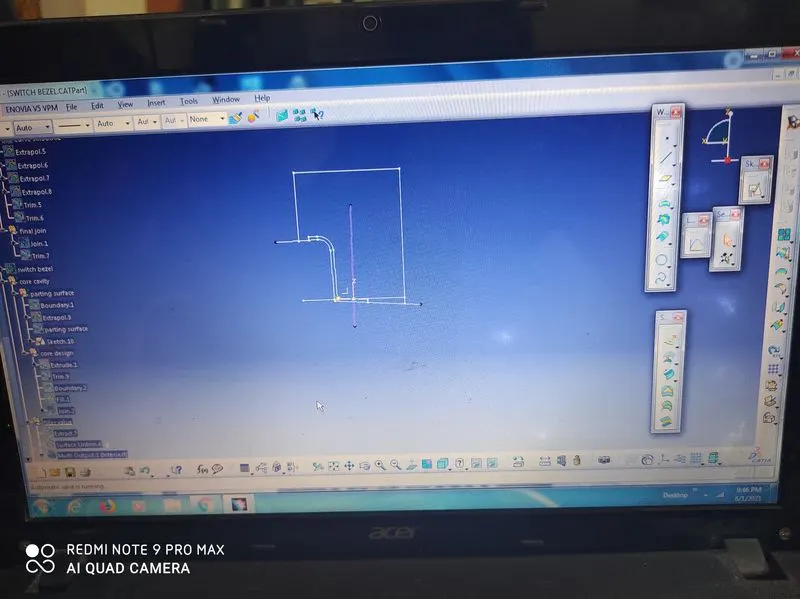

take rectangle comand give this value 100x400

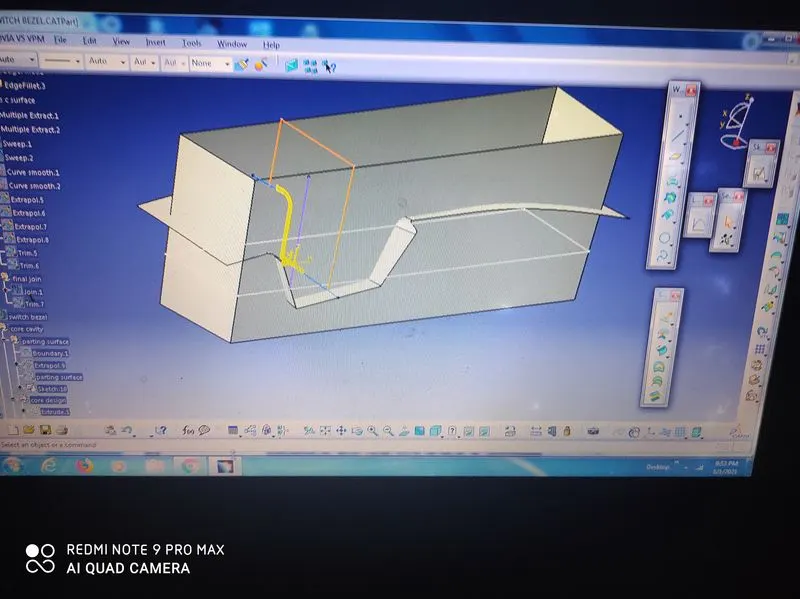

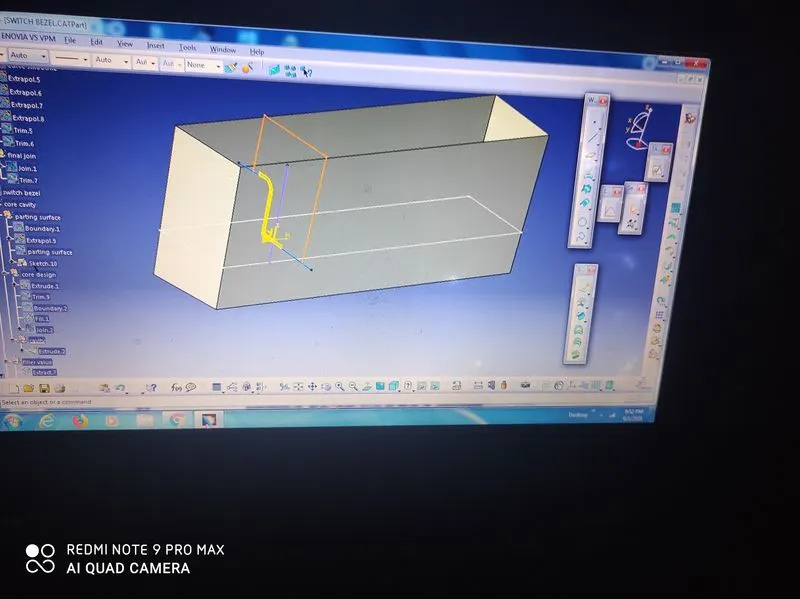

extrude the ractangular area

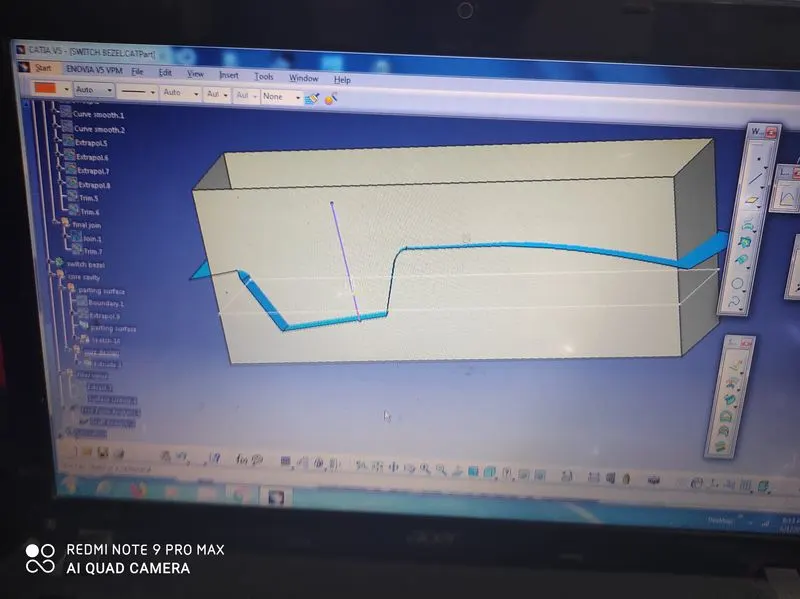

trim the below side weget this core part

take y direction use extrude comand give up ward direction

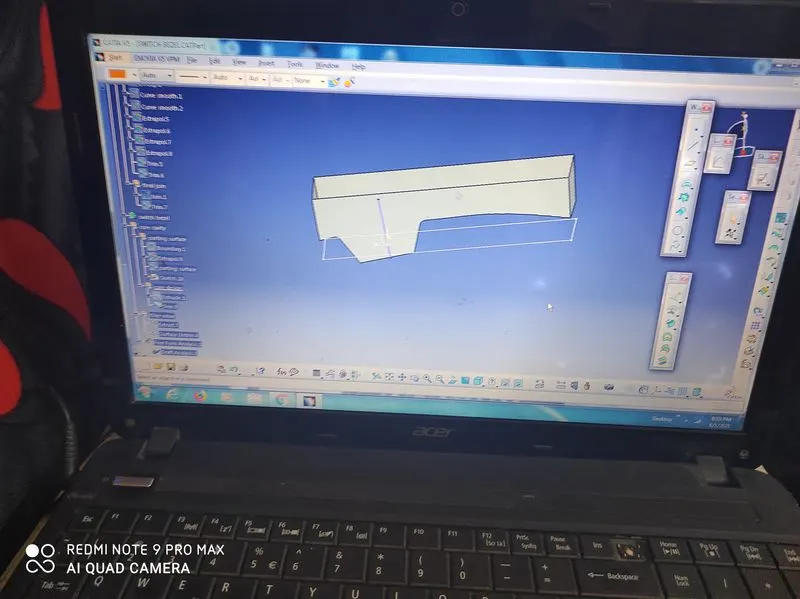

we get this extrude shape after

again take base ede fillet in to this part

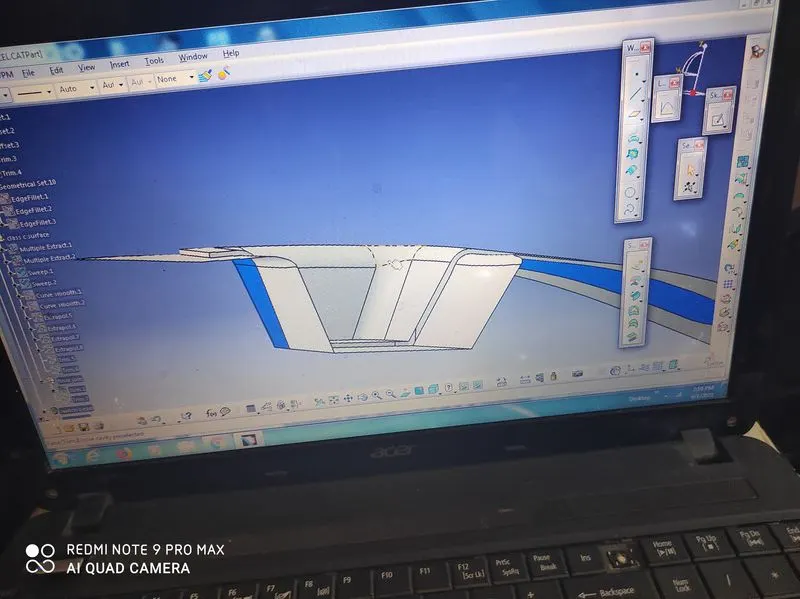

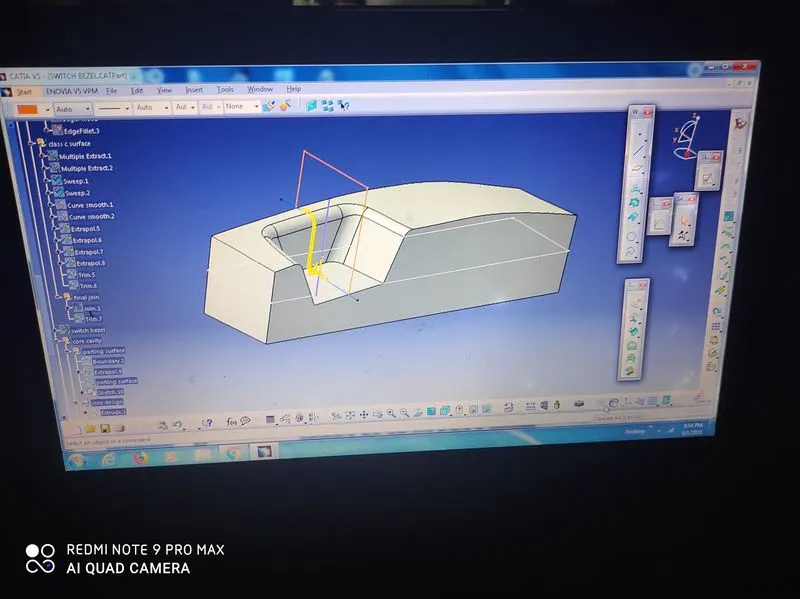

trim up side part we get this cavity part

fibally we get this core and cavity after

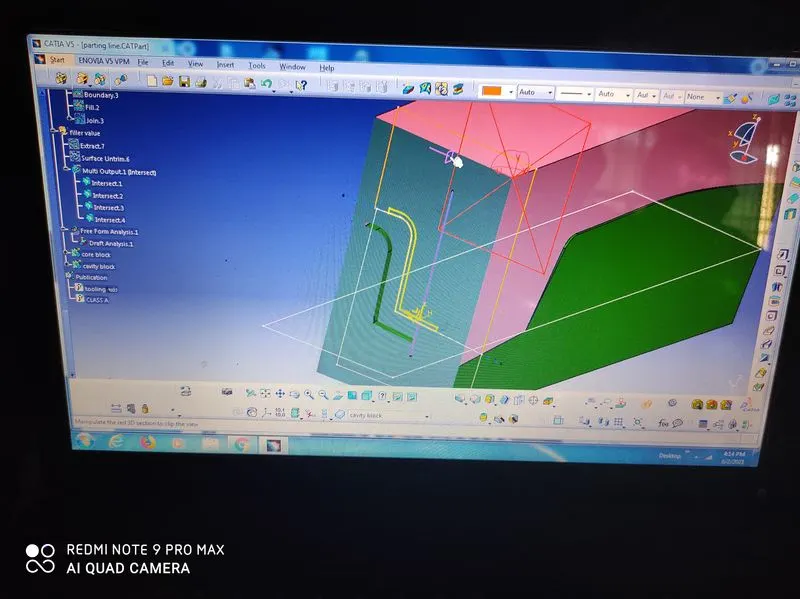

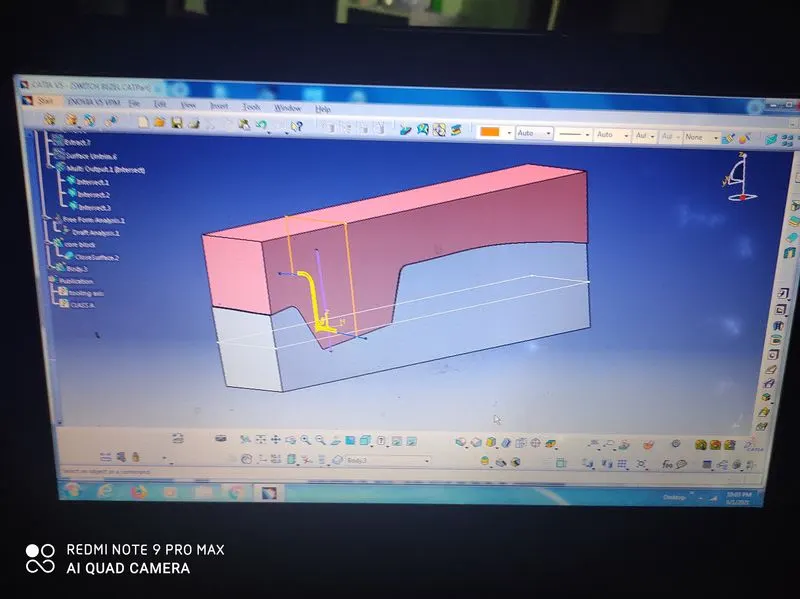

take section view see this part

we create parting line intersect the both

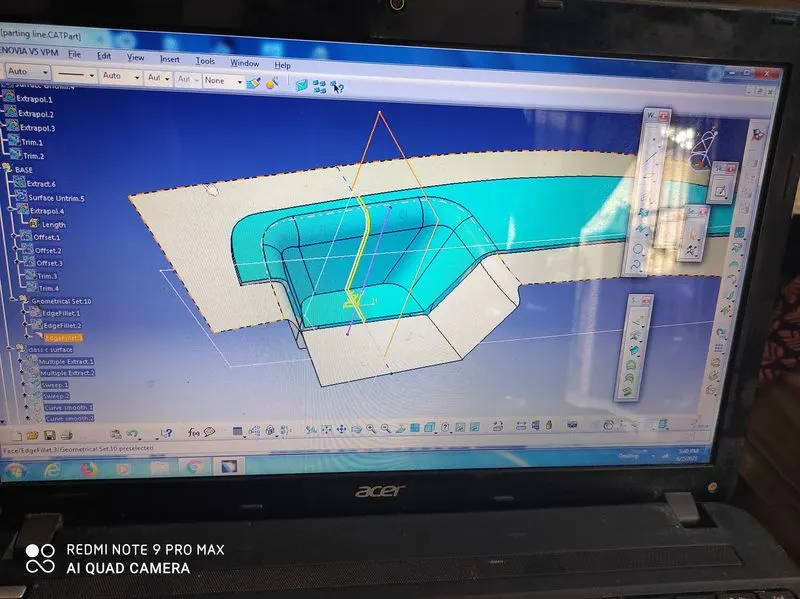

finally we get this parting line after

after we go to part design

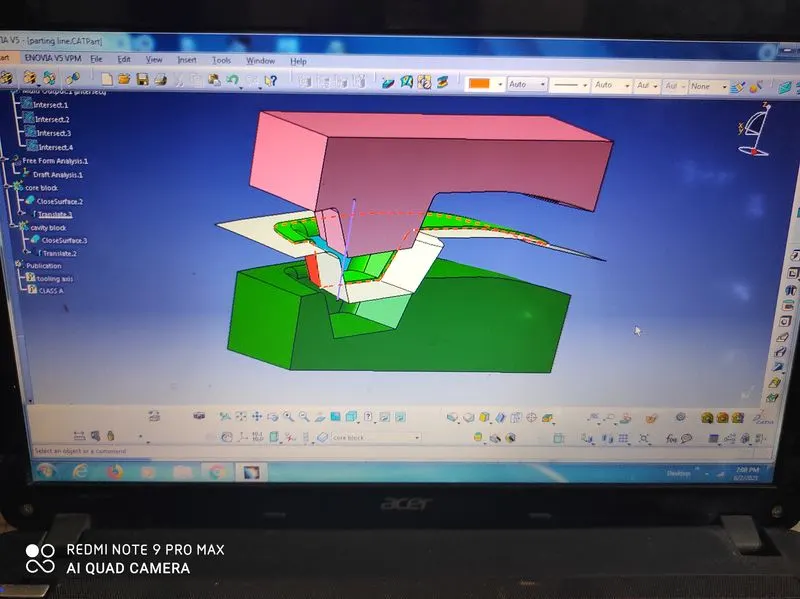

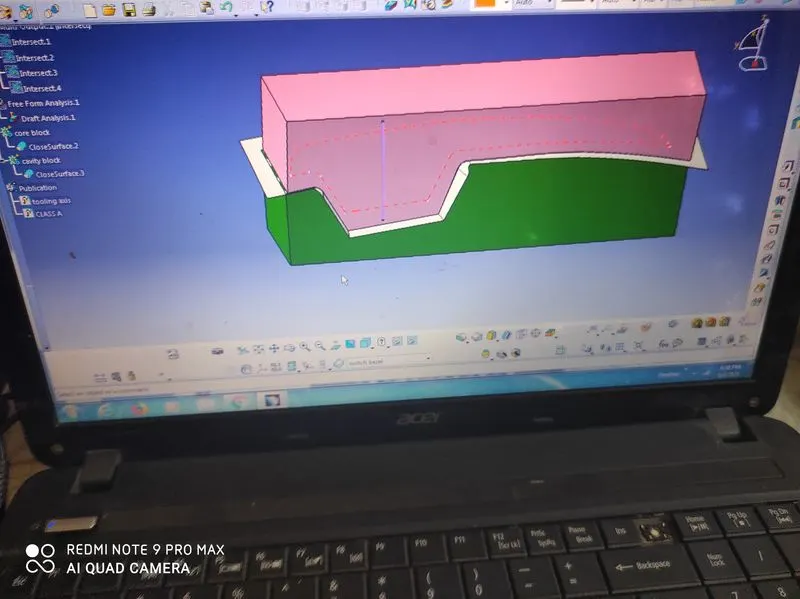

after go to define work bench both cavity and core use transalate command core move to 50 mm up and -50 mm cavity down .
