Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge
First of all the given components are electricaly and then placed in the assmbly.
The Given Components for Harness A and Harness B are as followes.
HARNESS A

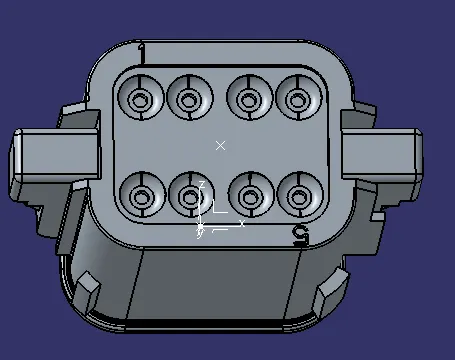

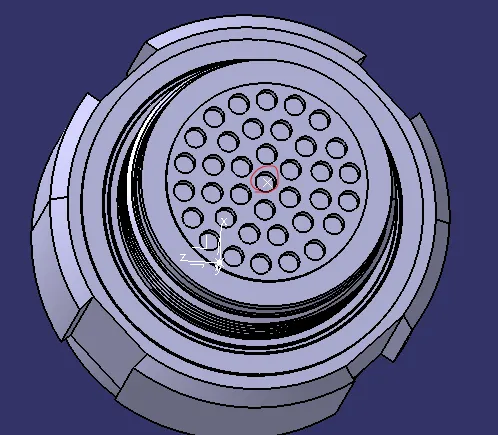

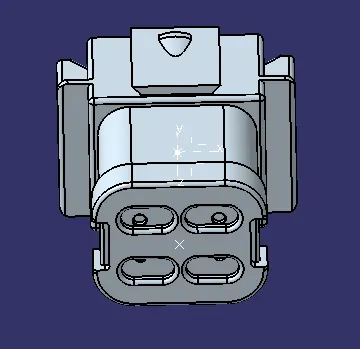

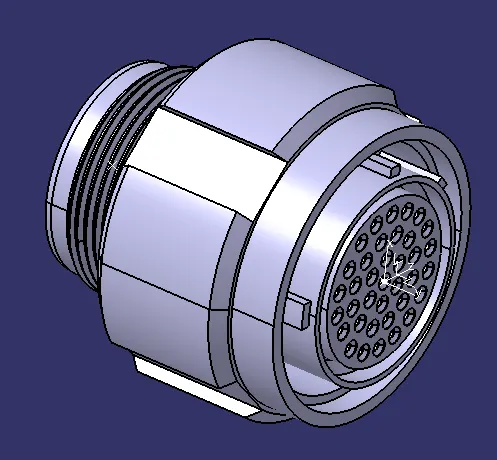

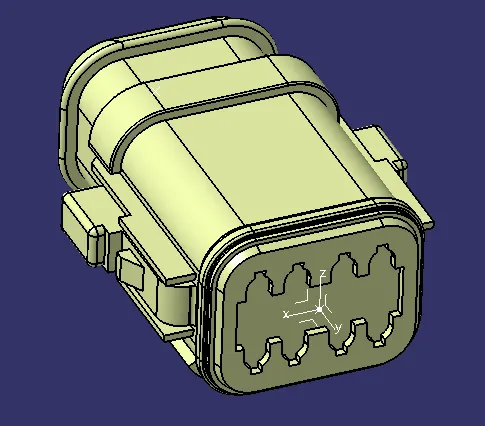

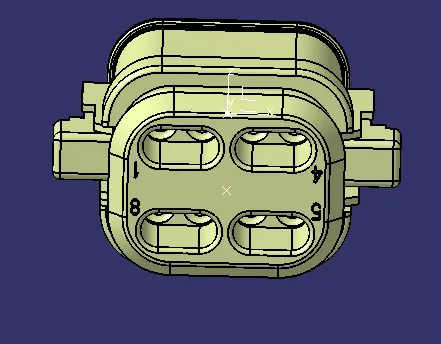

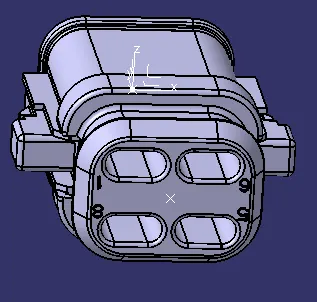

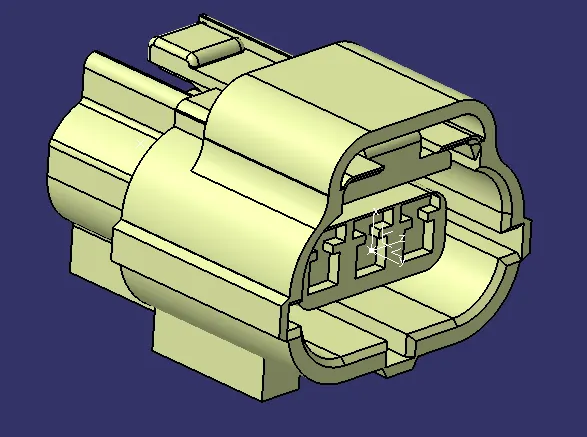

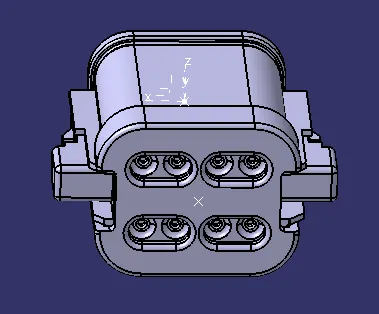

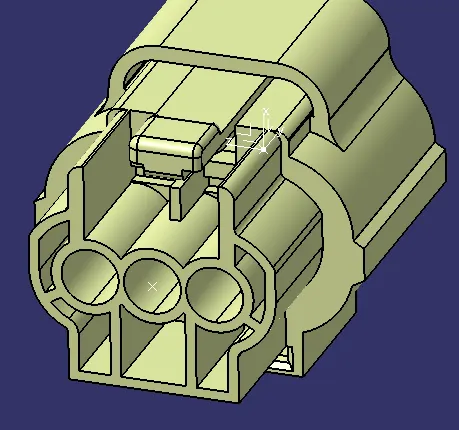

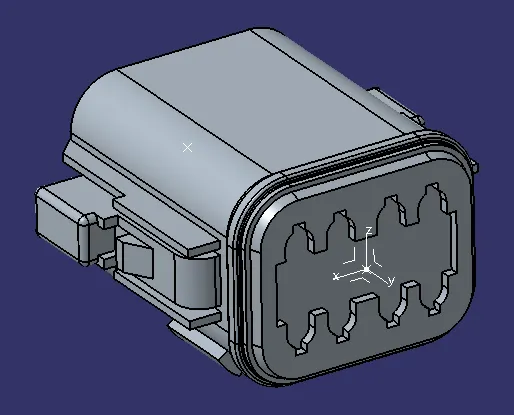

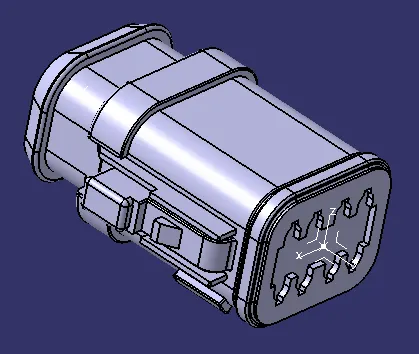

Connector 6
Connector Connection Point
Bundle Entry Point
Connector 7
Connector Connection Point
Bundle Entry Point
Connector 8
Connector Connection Point
Bundle Entry Point
Connector 9
Connector Connection Point
Bundle Entry Point
Connector 10
Connector Connection Point
Bundle Entry Point

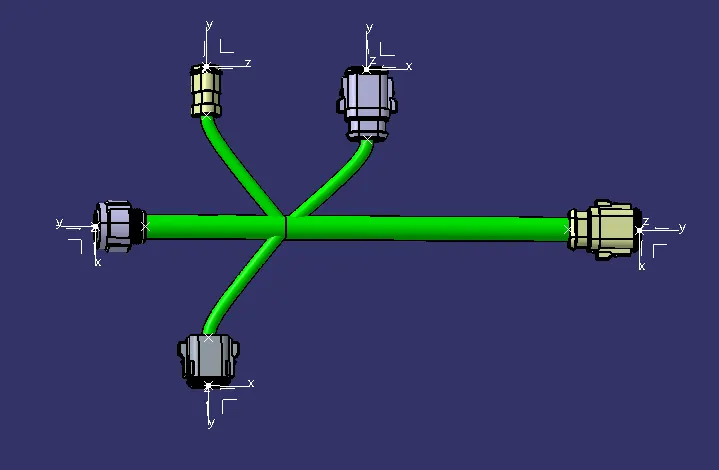

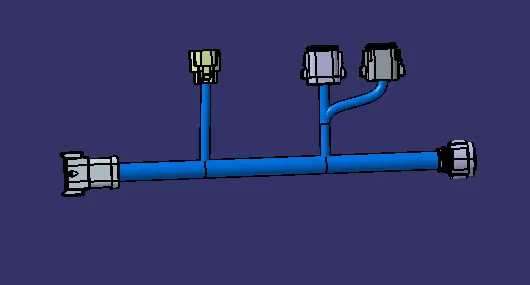

Final Harness
HARNESS B

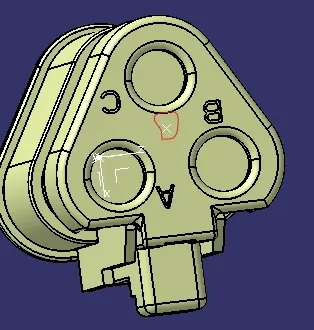

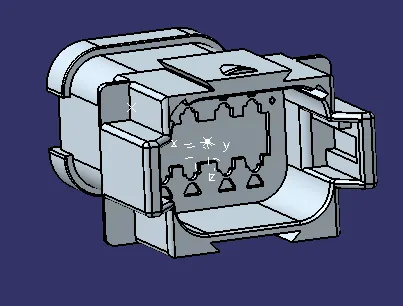

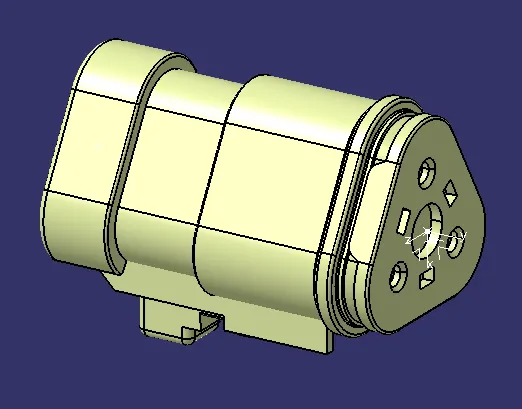

Connector 1
Connector Connection Point
Bundle Entry Point
Connector 2
Connector Connection Point
Bundle Entry Point
Connector 3
Connector Connection Point
Bundle Entry Point
Connector 4
Connector Connection Point
Bundle Entry Point
Connector 5
Connector Connection Point
Bundle Entry Point
Final Harness

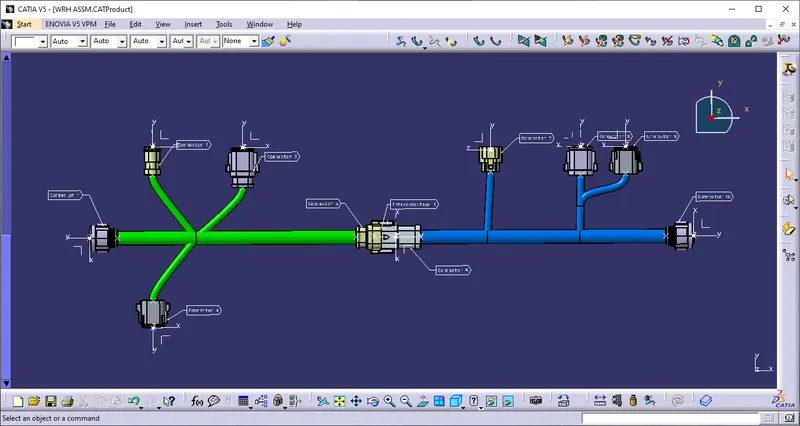

Final Harness Assmbly

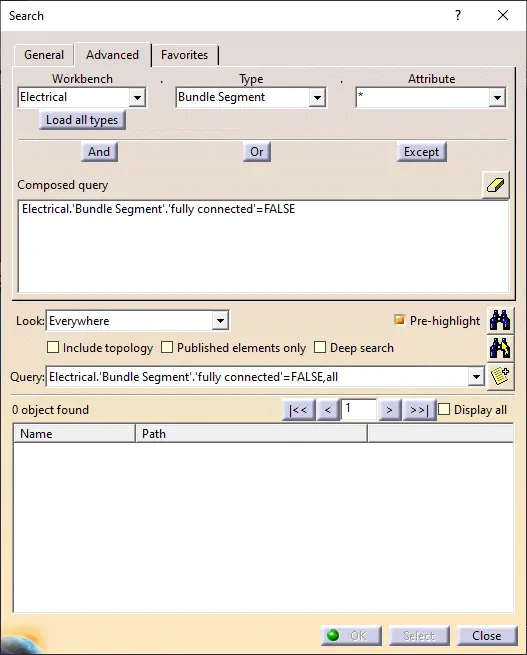

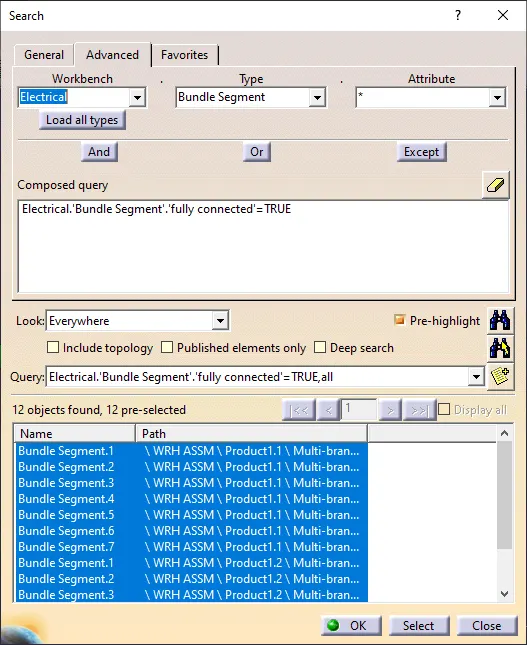

The final harness assmbly was checked for electrical connectevity
Lastly all the connectors and the interconnect were anotated in the CATIA V5 and as for ease of handeling of the assmbly the CatProduct is converted into CatPart and then sved in igs format.
