Week 8 - Challenge 2 - Base Bracket Design

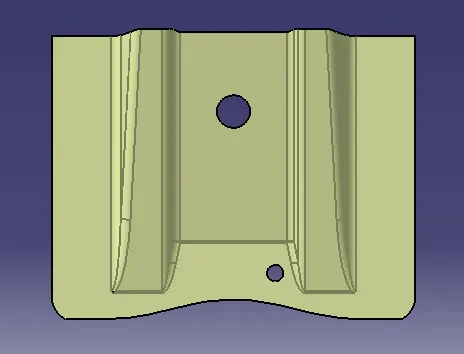

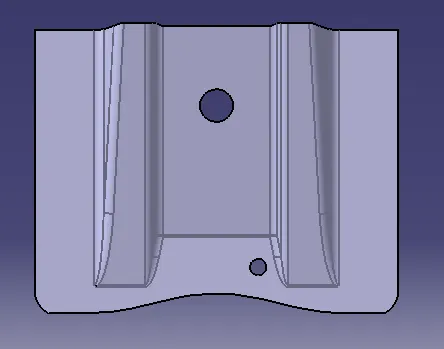

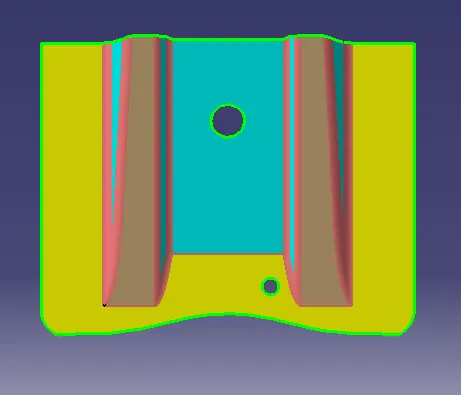

The Guven Class A Surface

Procedure To Creat A Tooling Axis

• First The given class A surface is imported to the catia v5 software.

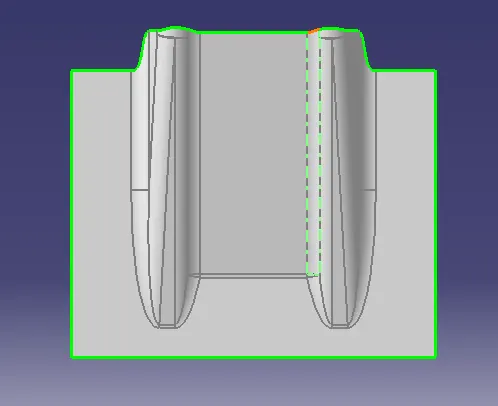

• By using boundary option the suface is checked for any discotunity(Can also done by using join option).

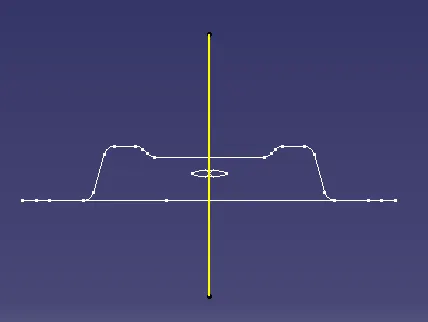

• A dummy Tooling Axis was created to give a better visualisation about the possible tooling axis.

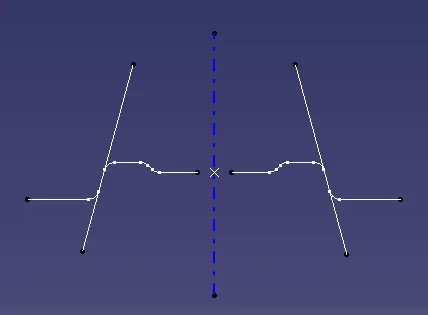

• By using axis system and intersecting comand intersect was created through using YZ plane.
• Then the lines are extended using point to point line command and then an axis was created for each intersect separetly using bisecting line comand.
• Then the toling Axis was created with respect to the both the axises created.
  Publication

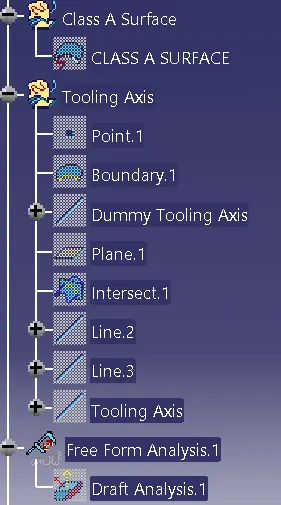

• The tooling axis and the Class A surface are publishied for furter easy referance.Tool->Publication

Performing Draft Analysis

• Insert->Analysis->Feature Draft Analysis

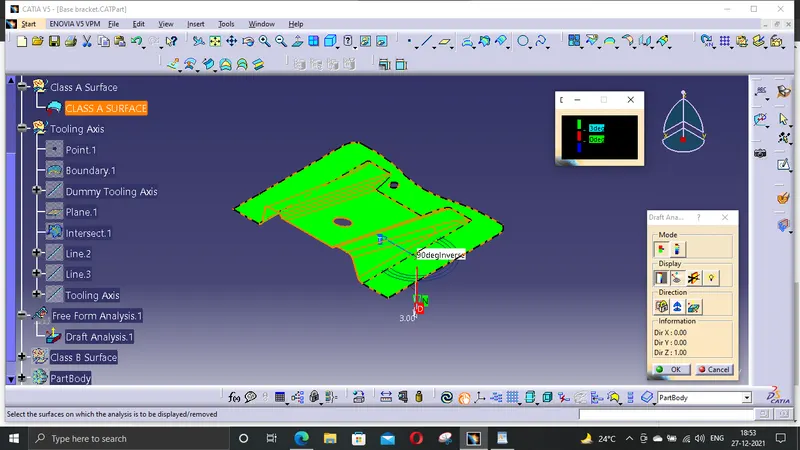

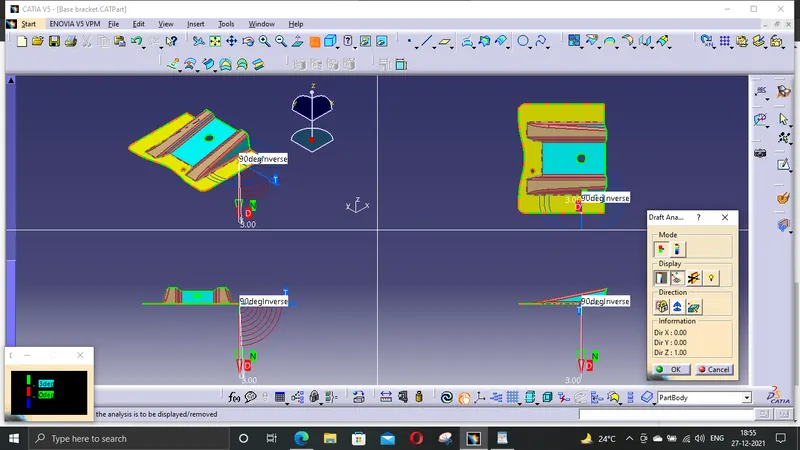

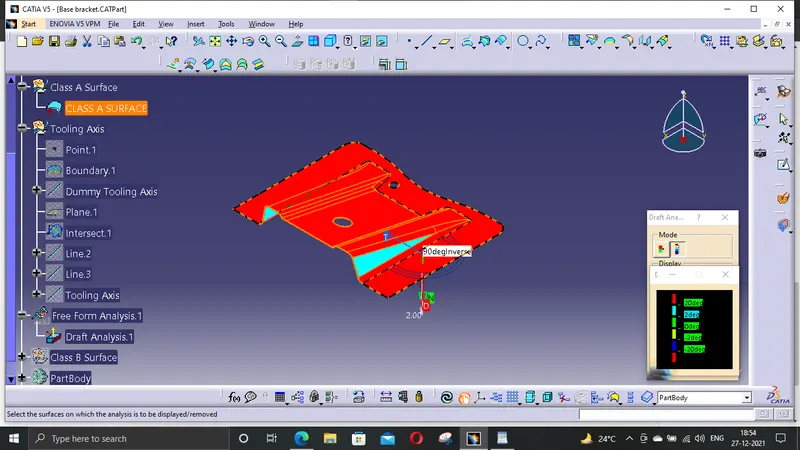

• Draft analysis was carried out by placeing the copass over the tooling axis And locked to a specific direction.

• If the surface is green then it passes the requirements or else further operation needed to be carried out.

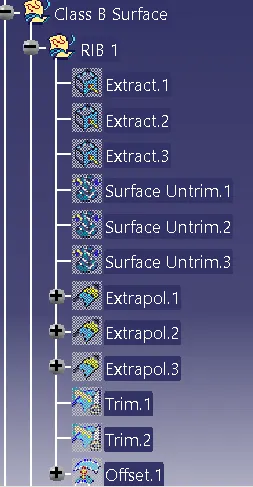

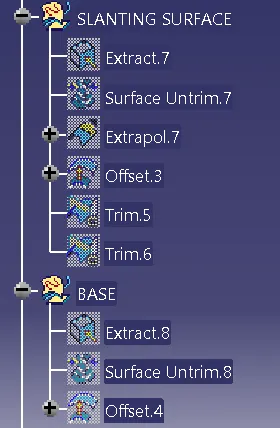

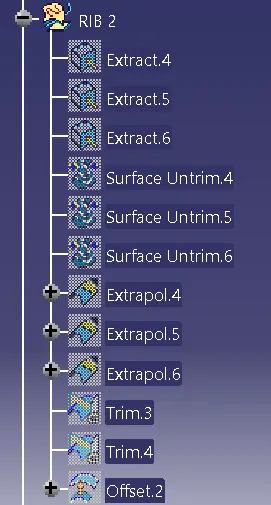

Class B Surface

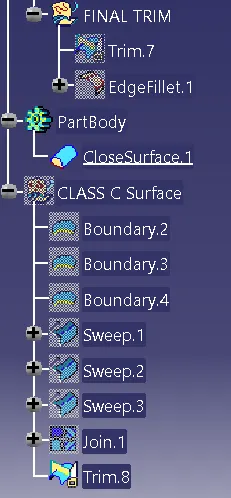

Class C Final Trim

Close Surface
