Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Aim:

Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided.

Steps:

1. We know how to route the bundle and download the necessary connector which we have done that in last challenge.

2. Same thing we are do that again with respect to above diagrams that is harness B and harness A

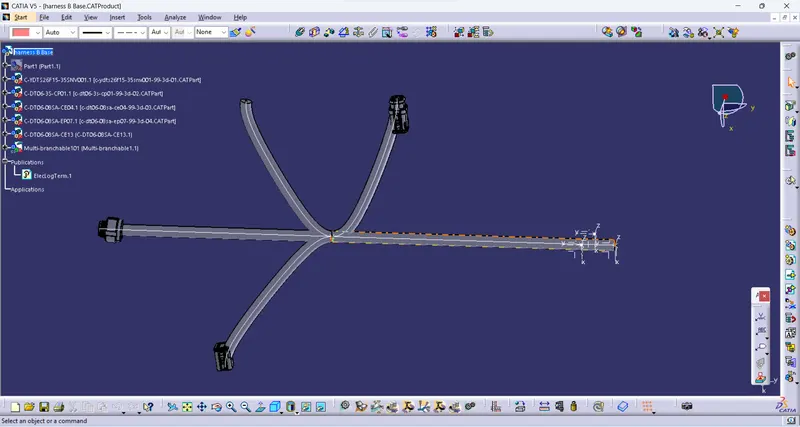

3. Lets start with harness B

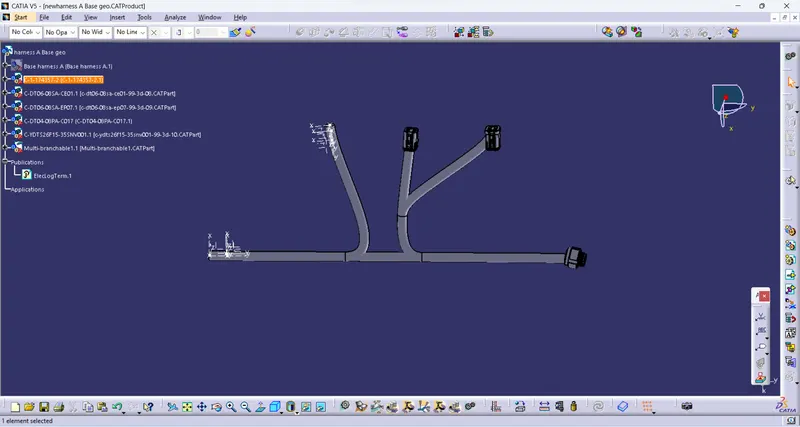

4. And the harness A

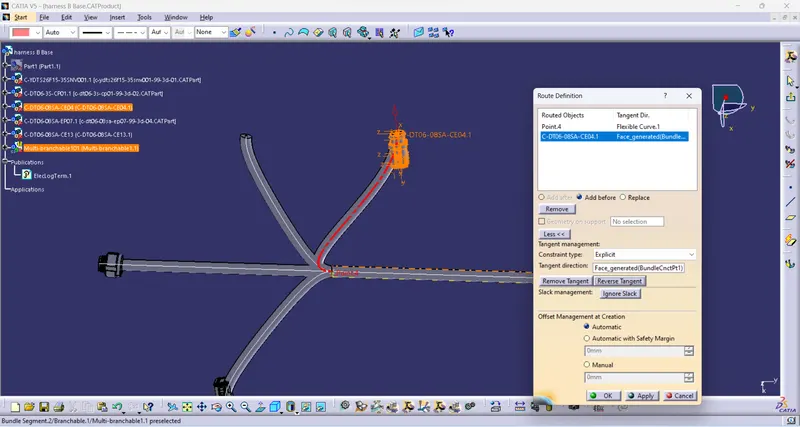

here is the bundle error that we resolve by changing the direction

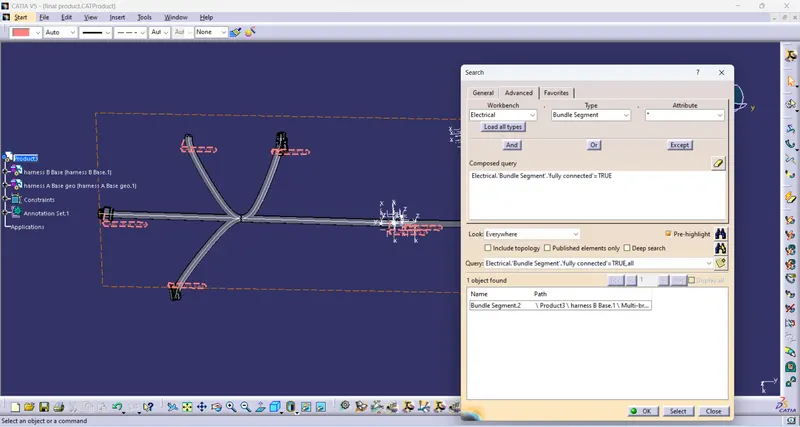

After we connect the connector let check the bundle connection. with true.

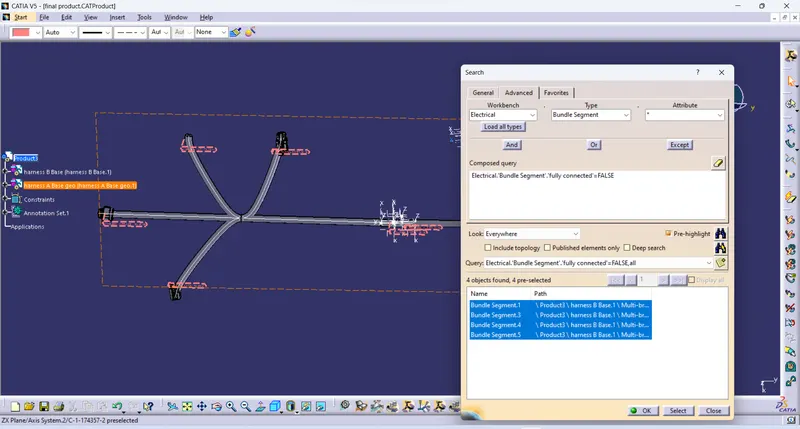

with false.

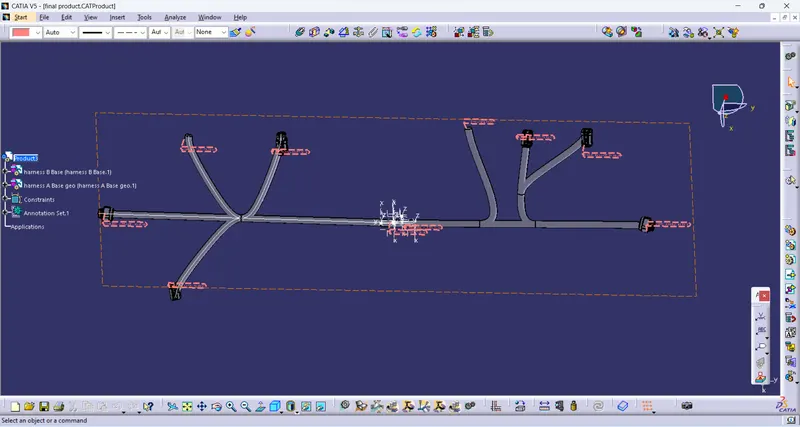

After connection and joined the harness B and harness A.

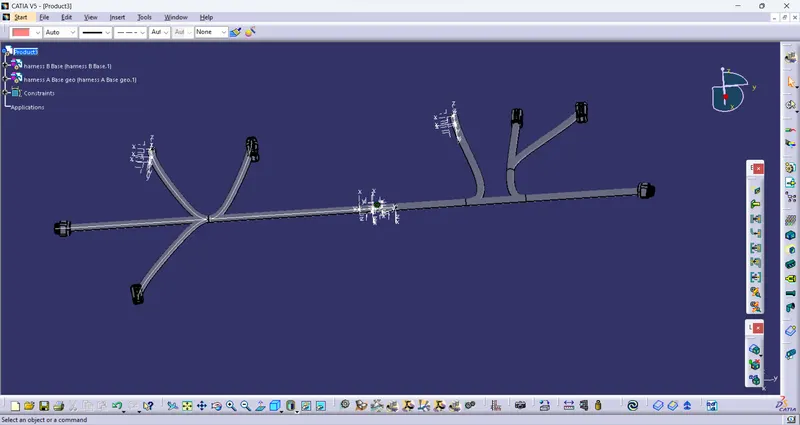

Applying annotations.

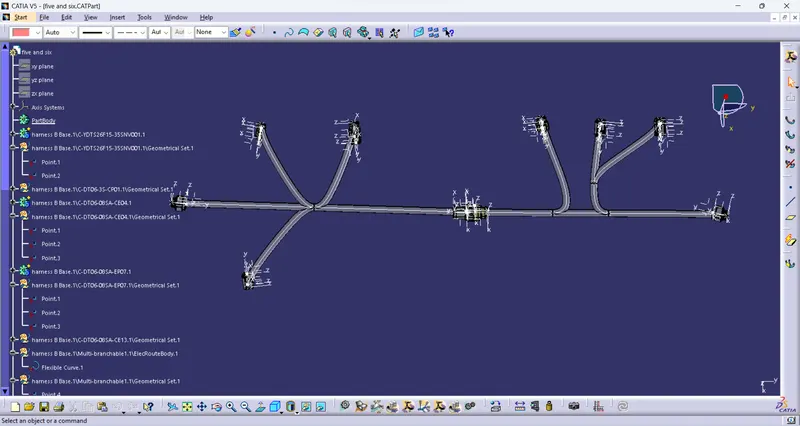

Changing the file into CATpart file and finally into stp file.
