Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA

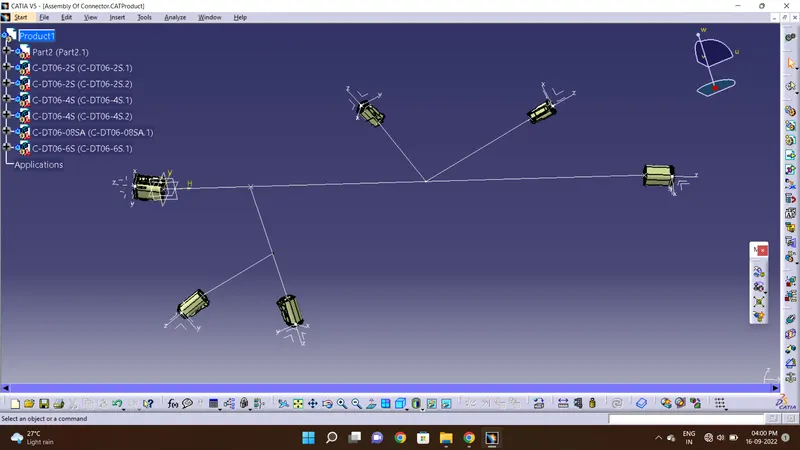

Convecting the Mechanical part into the Electrical part

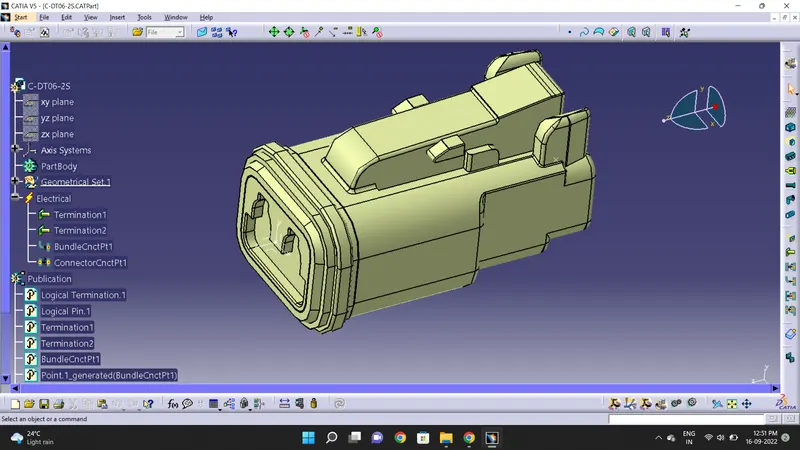

- DT06-2S

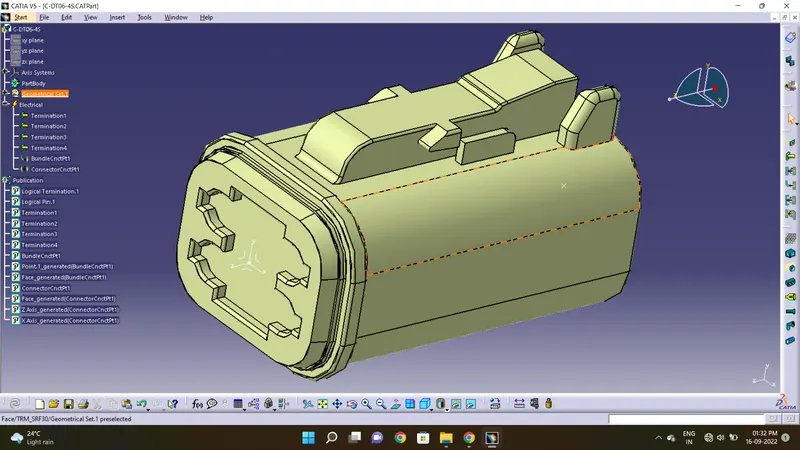

- DT06-4S

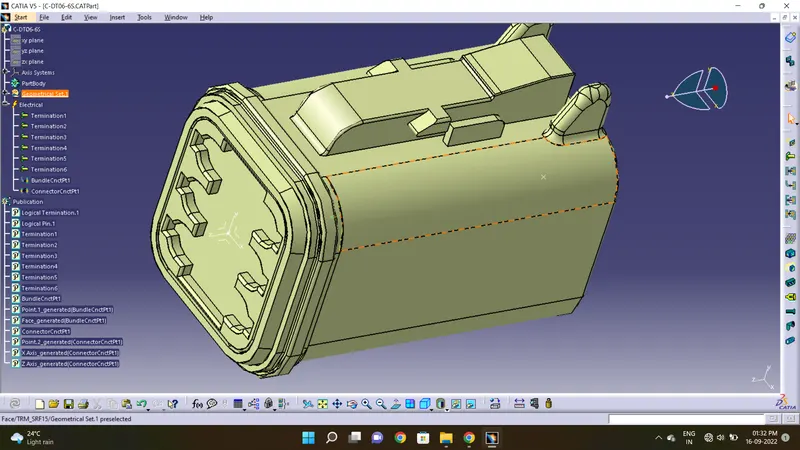

- DT06-6S

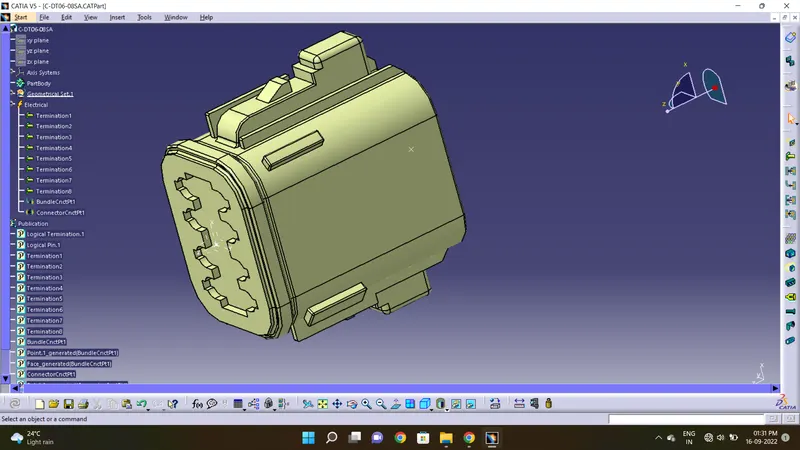

- DT06-08SA

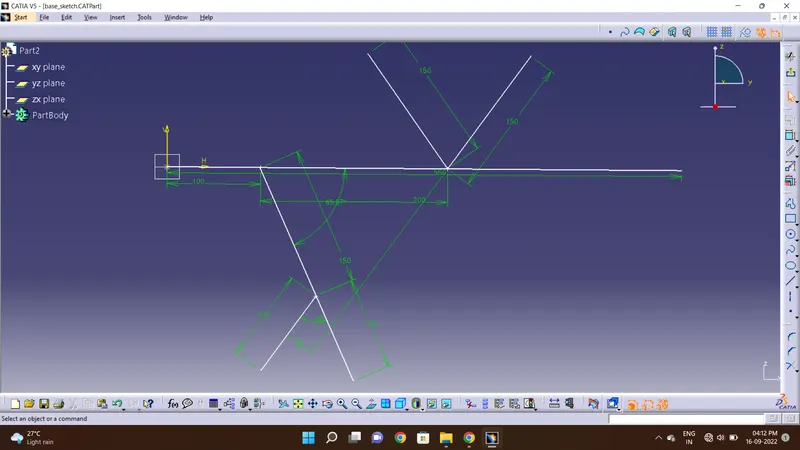

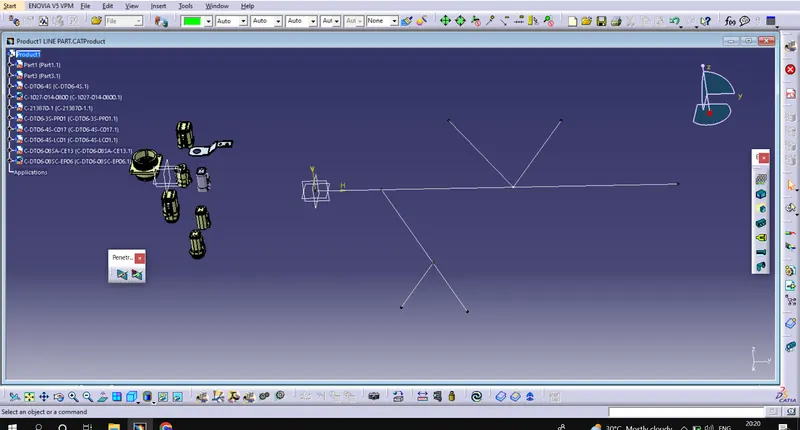

Creating the path

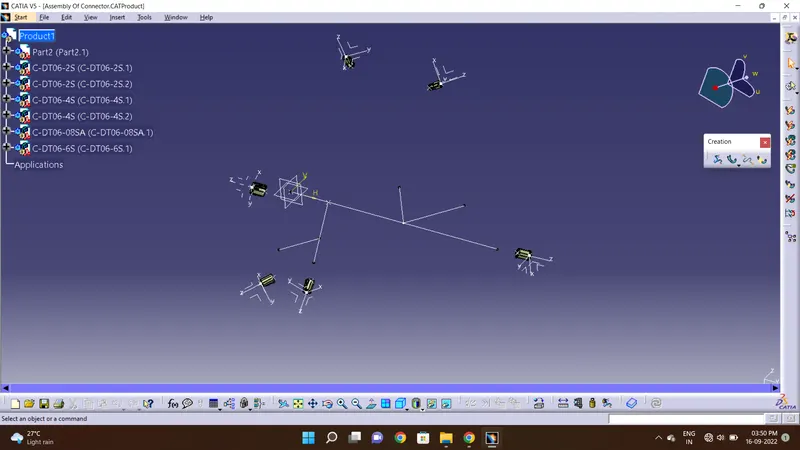

Connect All Connectors To Given Path

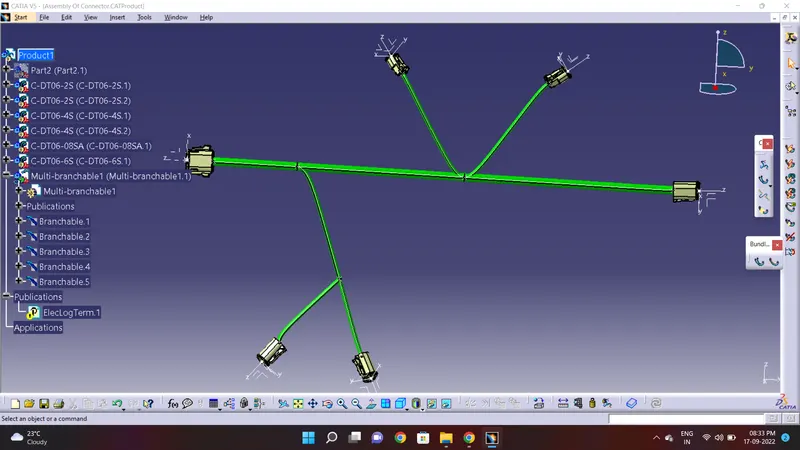

Connection To Be Done

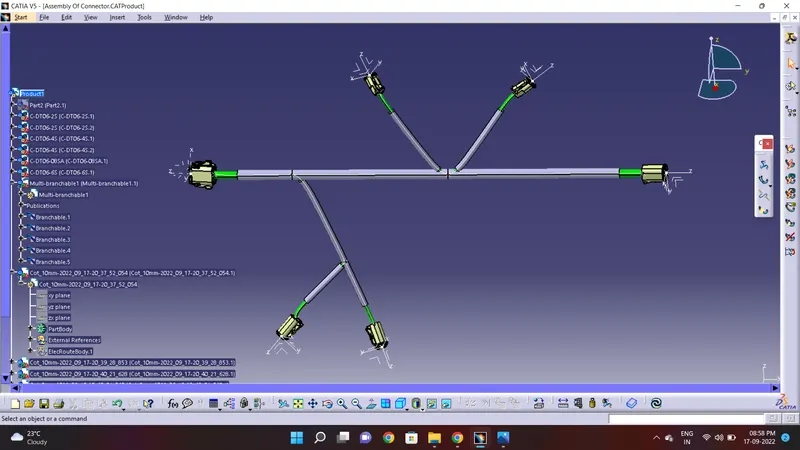

Protective covering on all branches connected to connectors
conclusion
Routing of the electrical harnesses as per the given layout was achieved and interconnection between them as a single harness
