Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

WEEK 4 CHALLENGE 2

Aim:

To route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters & Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end).

Given CAD Data:

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

Layout Design:

Pic.1

Steps to be followed:

1.Download connectors 3D data from www.te.com

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

2.Converting the Mechanical part into the Electrical part

Pic.2

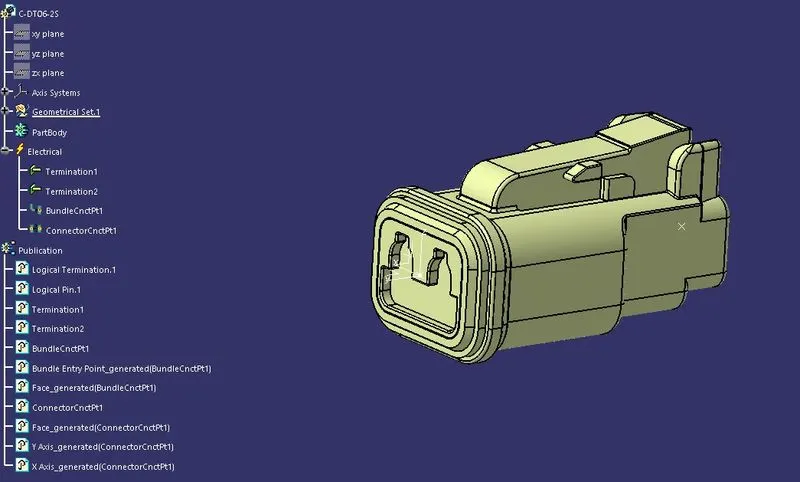

DT06-2S

Pic.3

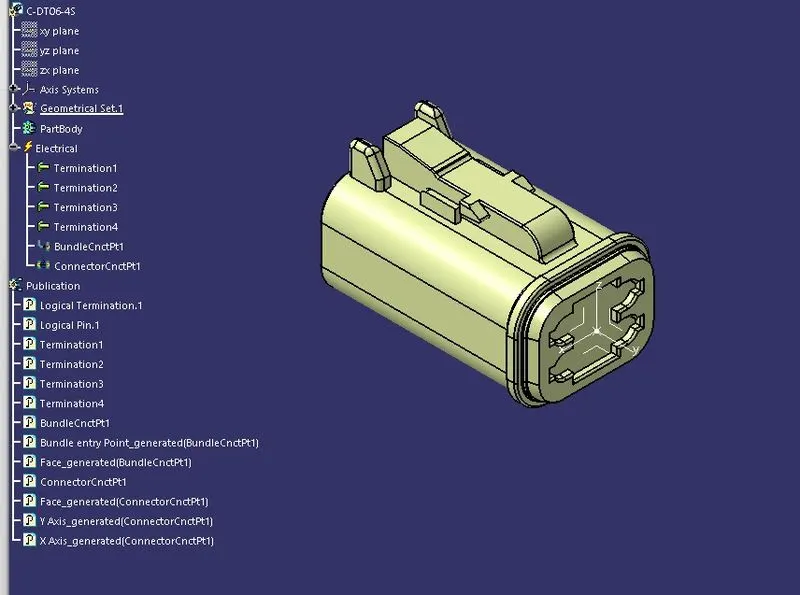

DT06-4S

Pic.4

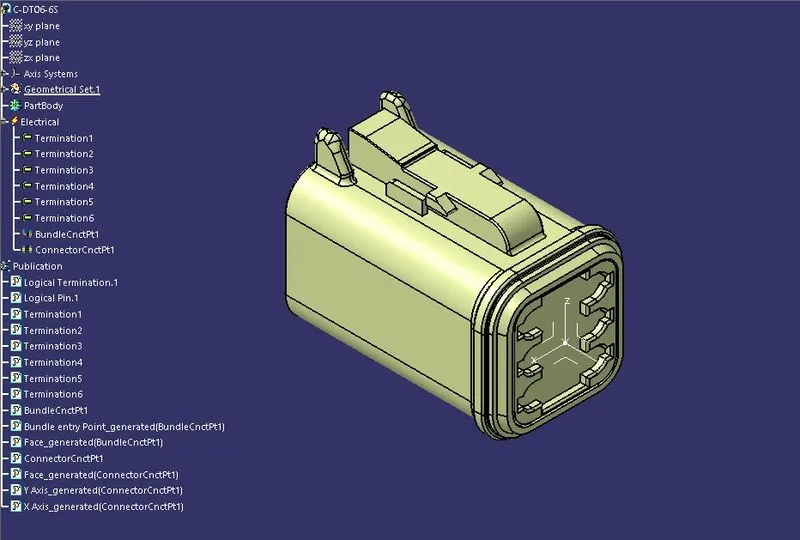

DT06-6S

Pic.5

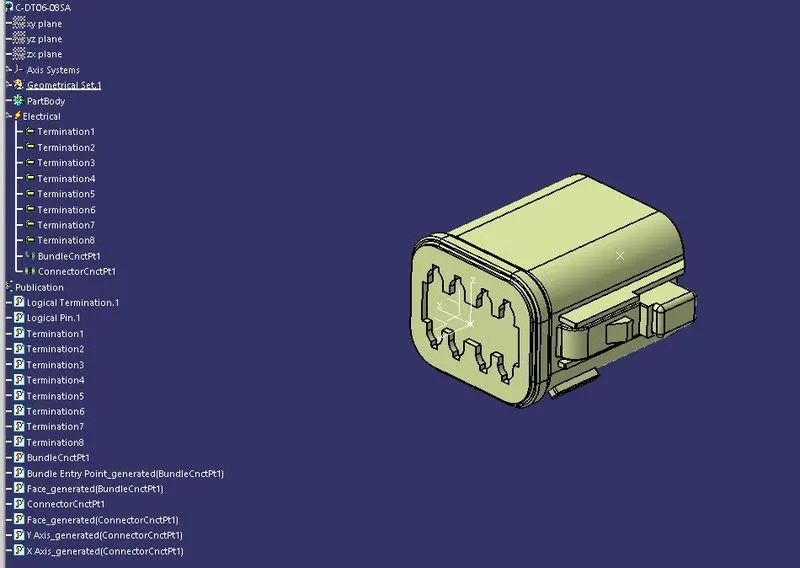

DT06-08SA

Pic.6

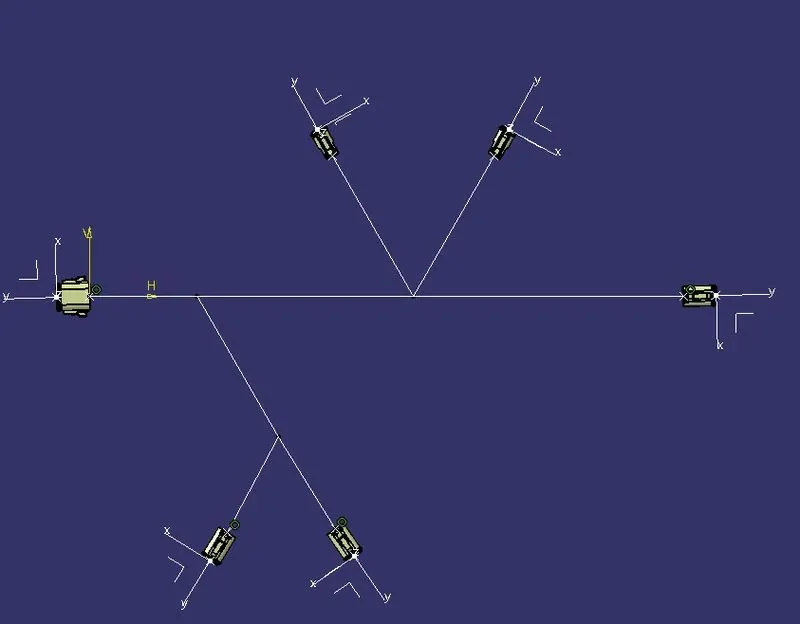

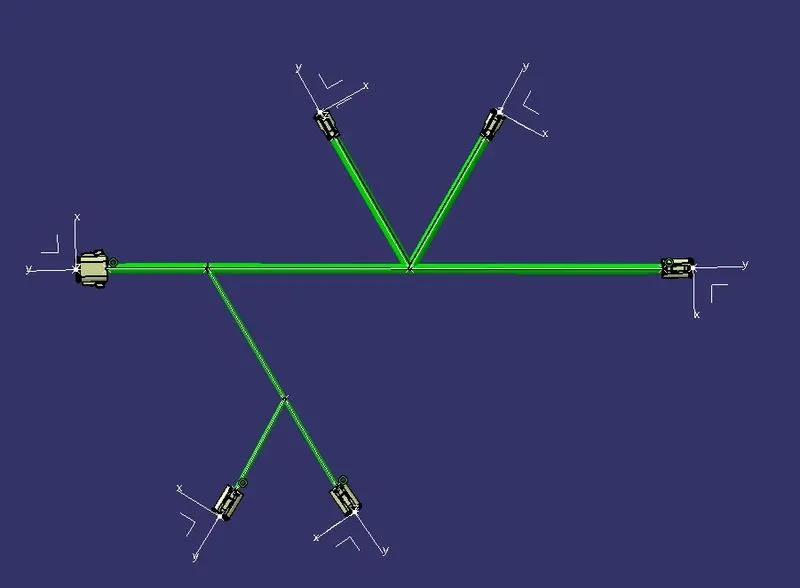

3.Arranging the Connectors by following the Layout

Pic.7

Pic.8

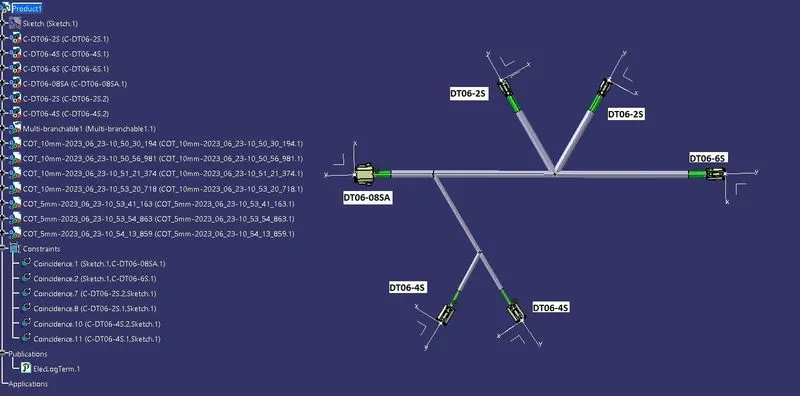

4.Creating a protective covering with end extremity of 30mm.

Pic.9
