Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Report

Above listed connecors are downloaded and converted to electriacal parts.

they are saved in a cataogue named connectors.

A metal plate is taken as support.

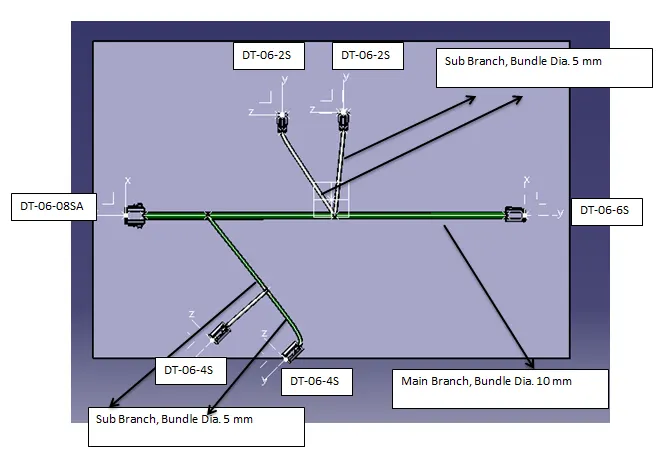

On this plate, as per given dimensions, connectors are positioned.

Multi-branchable is created first for main branch, with diameter 10 mm.

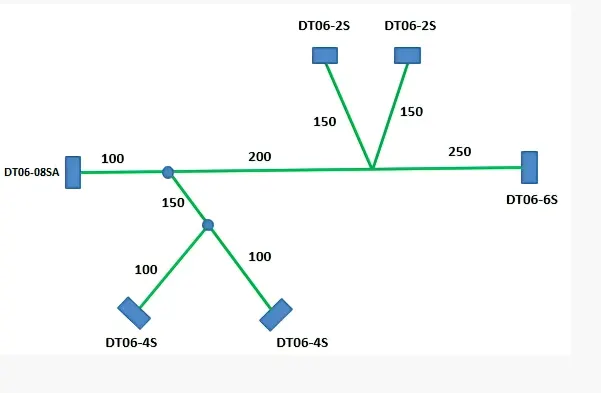

other brances are created as per given branch location and bundle diameter 5 mm.

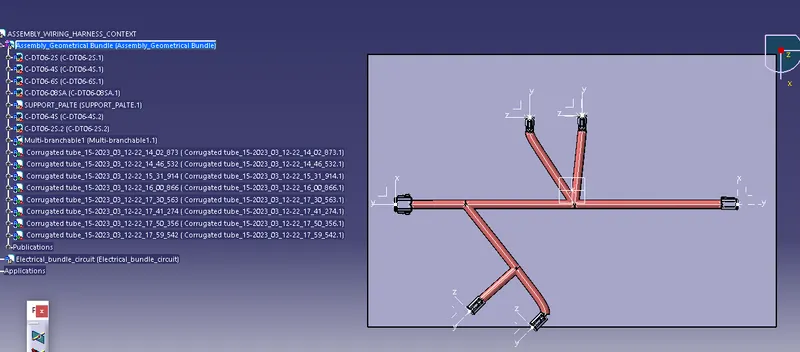

All over the bundle corrugated tube is applied as protective cover.

Application of Protective Covering

NOTE-

I am unable to adjust the extreme entry and exit distance as my existion software is CATIAV5-2018.

This option is not available in this version.
