Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Desing Method;-

1. Define cavity connecction point
2. define connector as a elctrical component
3. create a product file which is "Assembly_Wiring_Harness_context"
4. Inside Assembly_Wiring_Harness_context I have create one more product file which is "Different_Connector_wiring"
5. Copy all connector inside Different_Connector_wiring

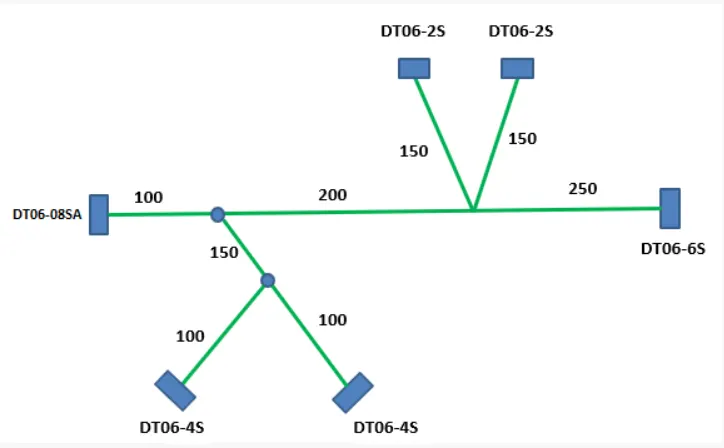

6. Arrange the all connecctor accordind to Shown daigram
7. Convert "Different_Connector_wiring" product as geometrical bundle
8. Creating routing through multi branchable document
9. adding branch point where required
10. create cataloge for protective covering
11. Add the cot tube where challenge said

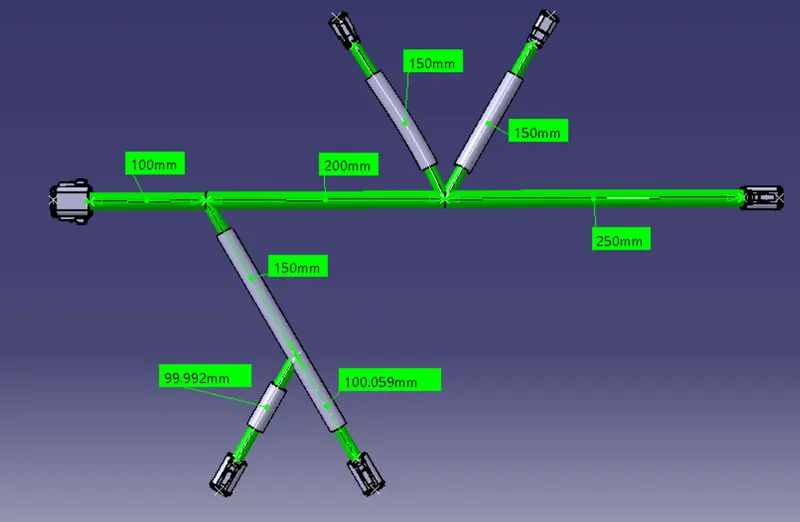

12. using measure command measure the bundle length which is shown in image
