Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

To define the following connectors and clips as electrical using electrical part design workbench

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

   Software used:
   Catia v5

   wiring harness assembly structure
   create / download connector 3d
   create required geometrical parameters
   define part as the connector
   define bundle connection
   define connection point
   define cavity connection point


   DEUTSCH DT06 :

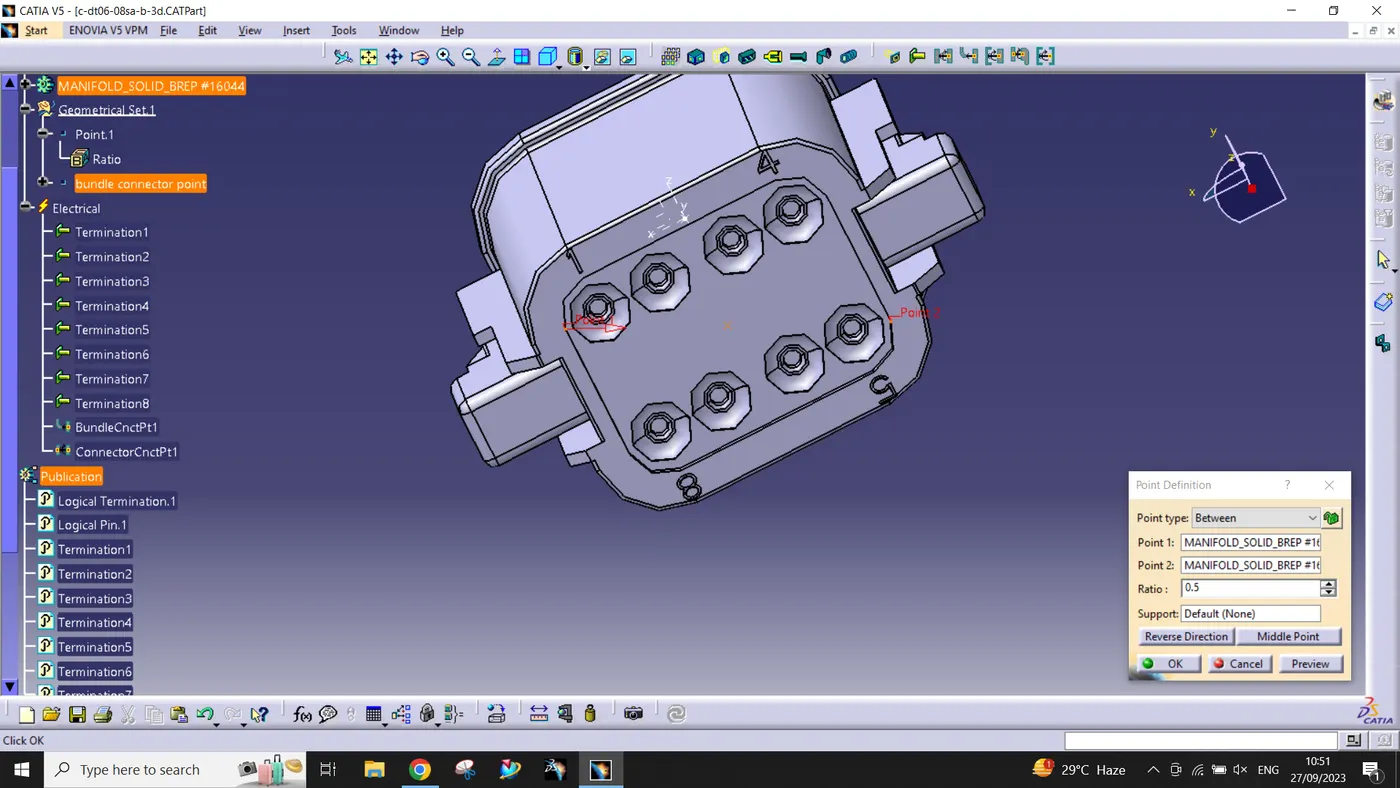

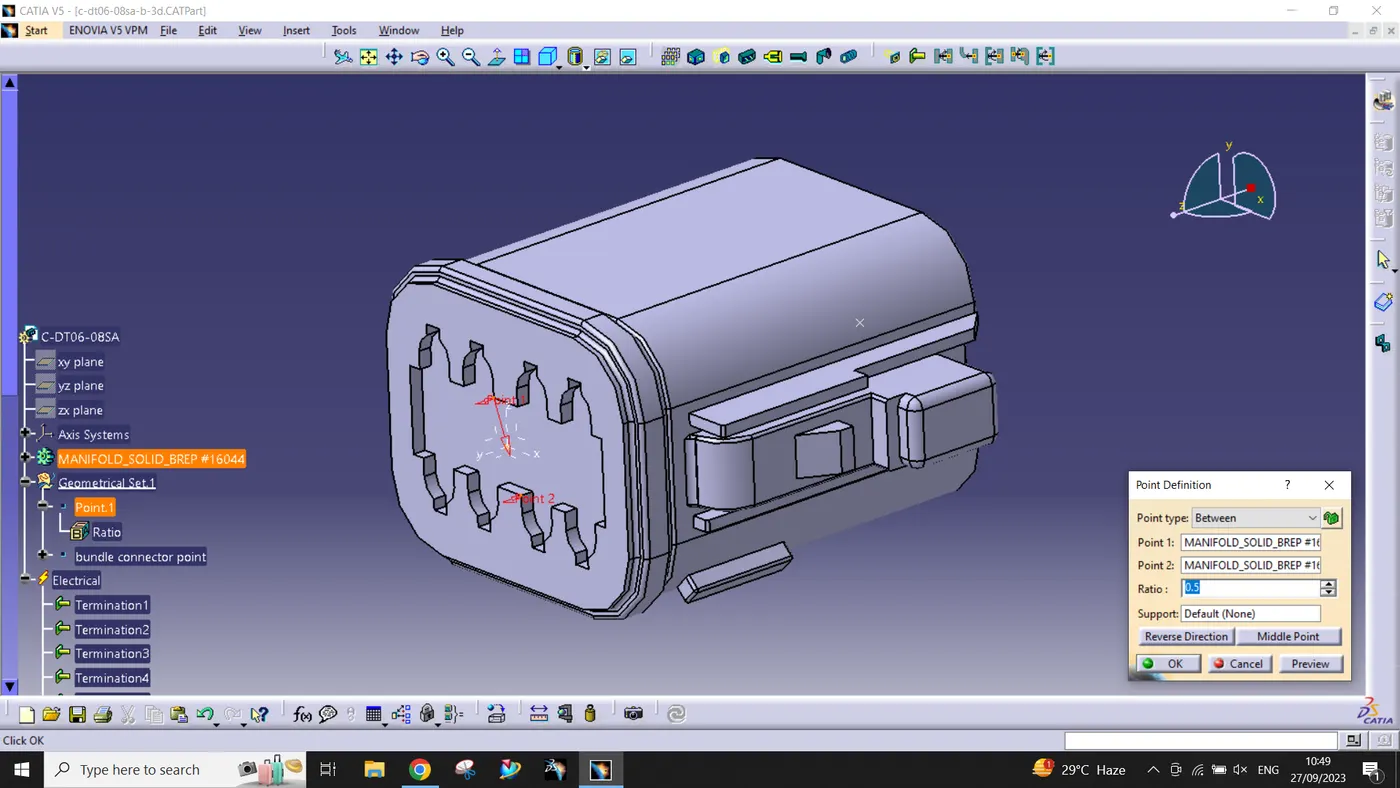

   CREATE A MIDPOINT ON THE CONTACT FACE WHICH WILL BE NORMAL FOR WIRE BUNDLE INSERTION

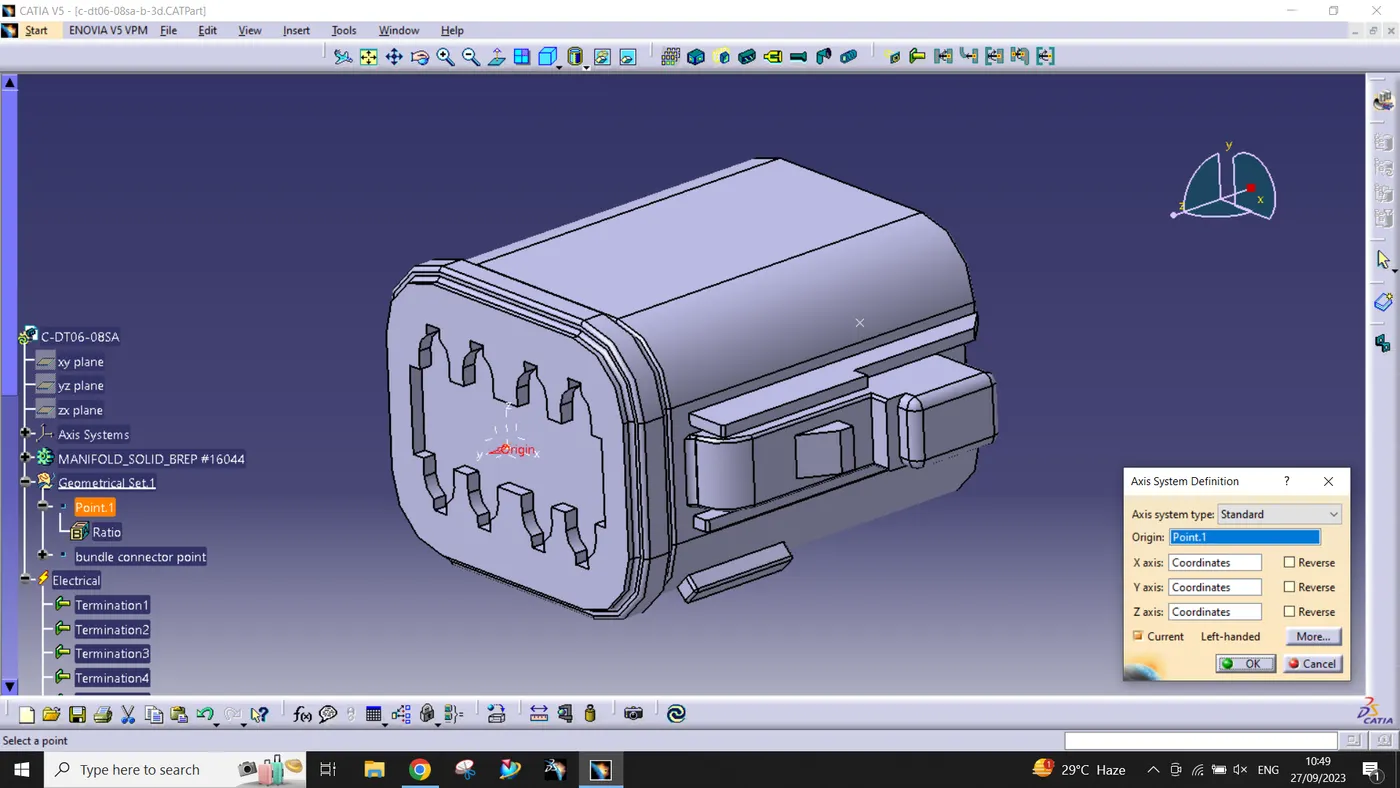

   CREATE AN AXIS SYSTEM IN THE MID-POINT

   Z AXIS SHOULD BE POINTING ACROSS THE CONNECTOR FROM LEFT TO RIGHT
   Y-AXIS SHOULD BE POINTING TOWARD THE FRONT FACE OF THE CONNECTOR
   X-AXIS SHOULD BE POINTING IN THE DIRECTION OF THE LOCKING MECHANISM OF THE CLIP

   CREATE THE BUNDLE CONNECTION POINT
   BUNDLE CONNECTION POINT IS CREATED IN THE OTHER SIDE OF THE CONNECTOR


 NOW WE HAVE TO SWITCH TO THE ELECTRICAL PART DESIGN

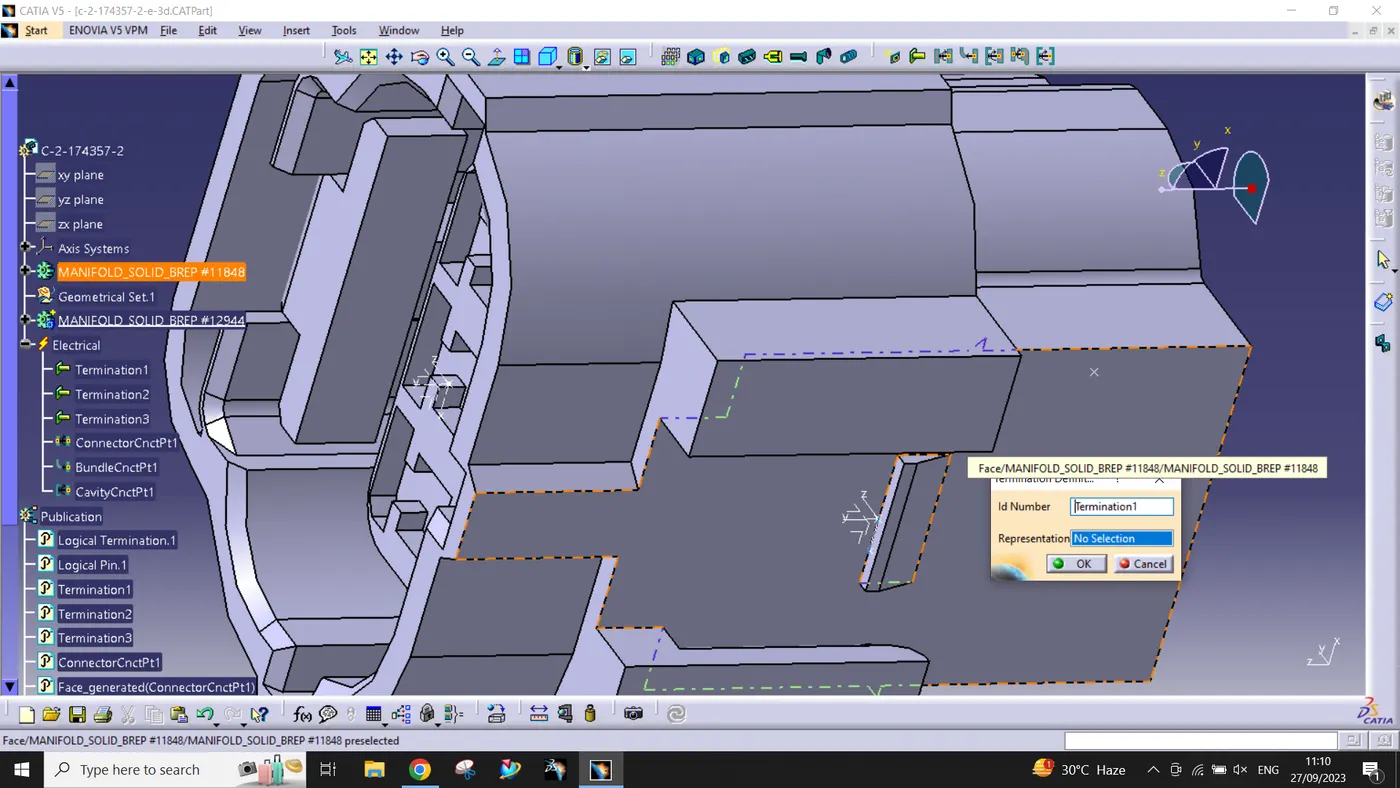

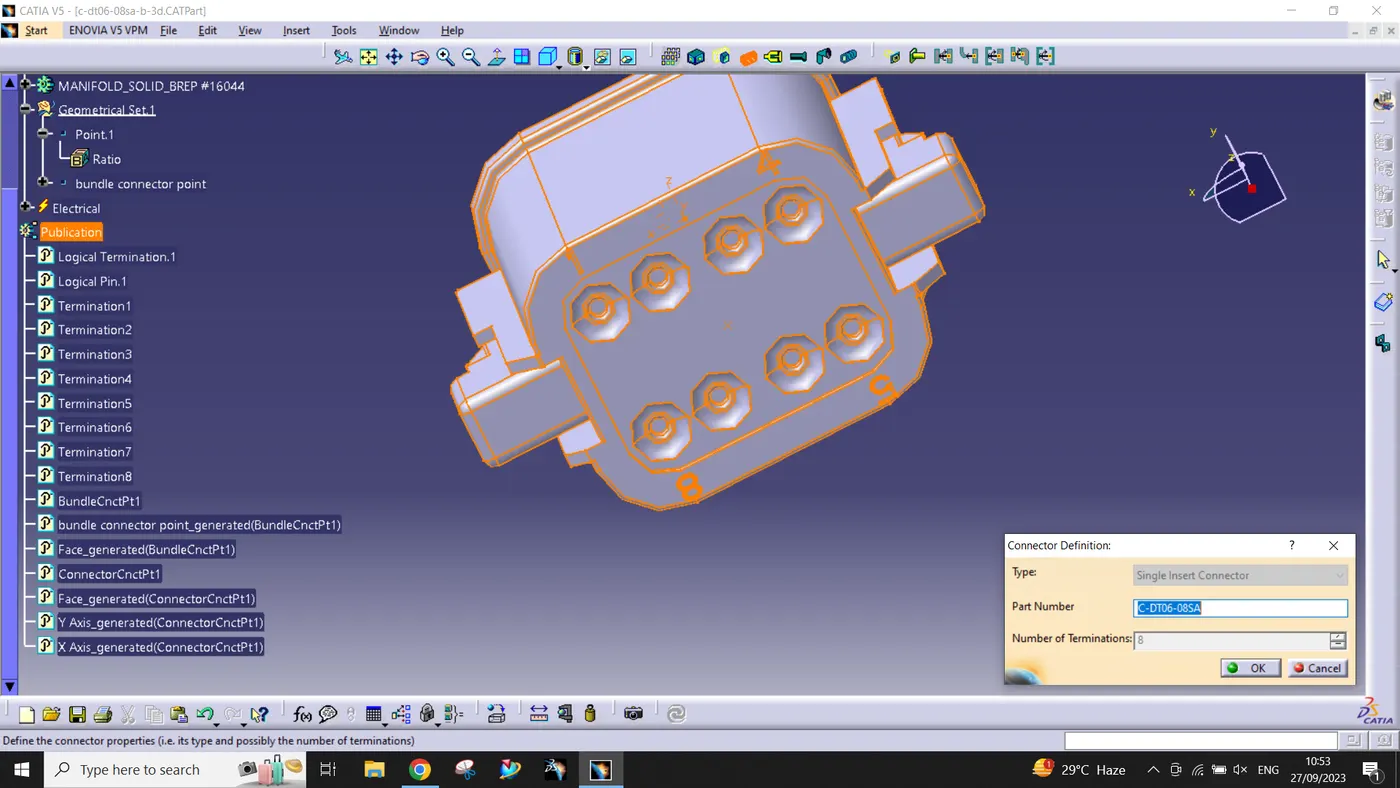

NOW DEFINE THE PARTS AS CONNECTOR IN CATIA , AND SPECIFY THE NO OF TERMINALS

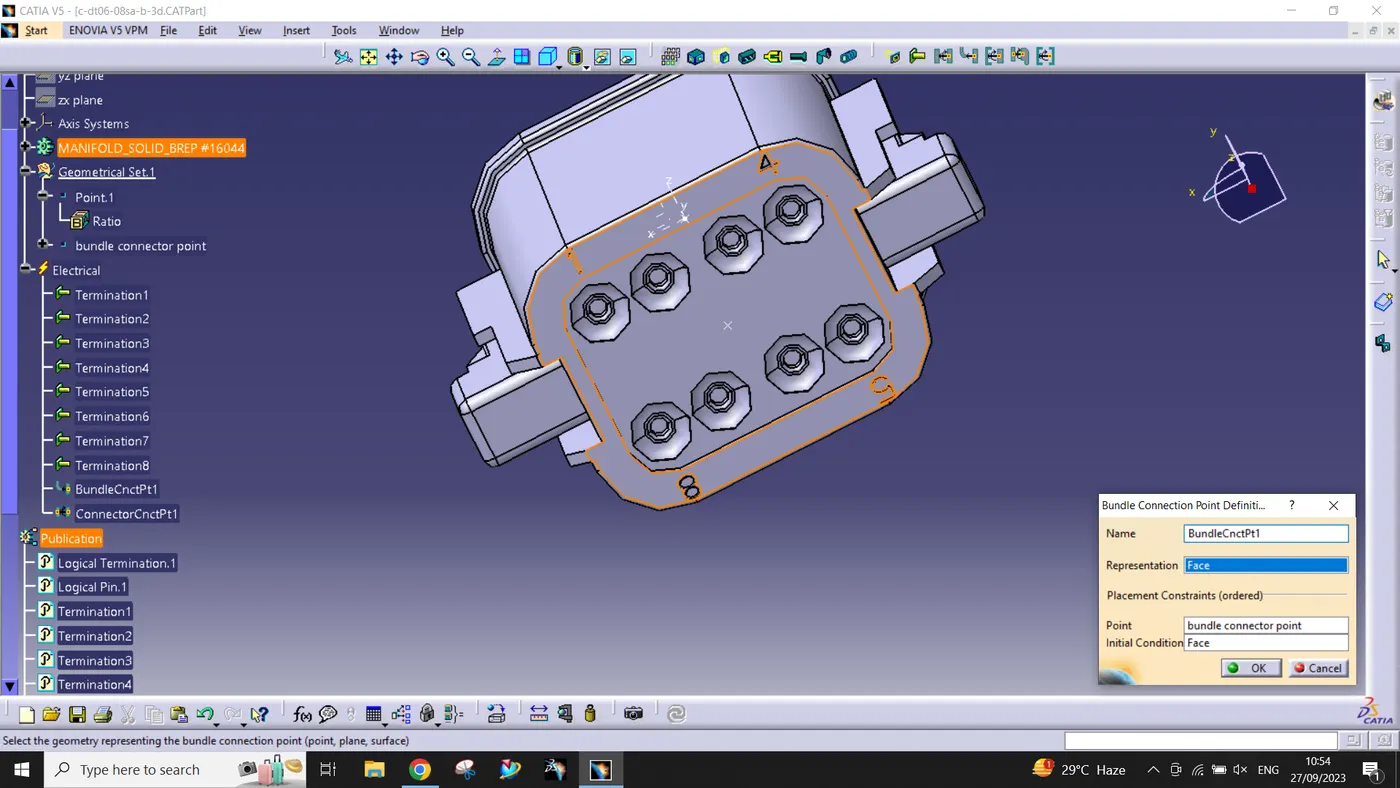

 DEFINE BUNDLE CONNECTION POINT IN ELECTRICAL PART WORKBENCH

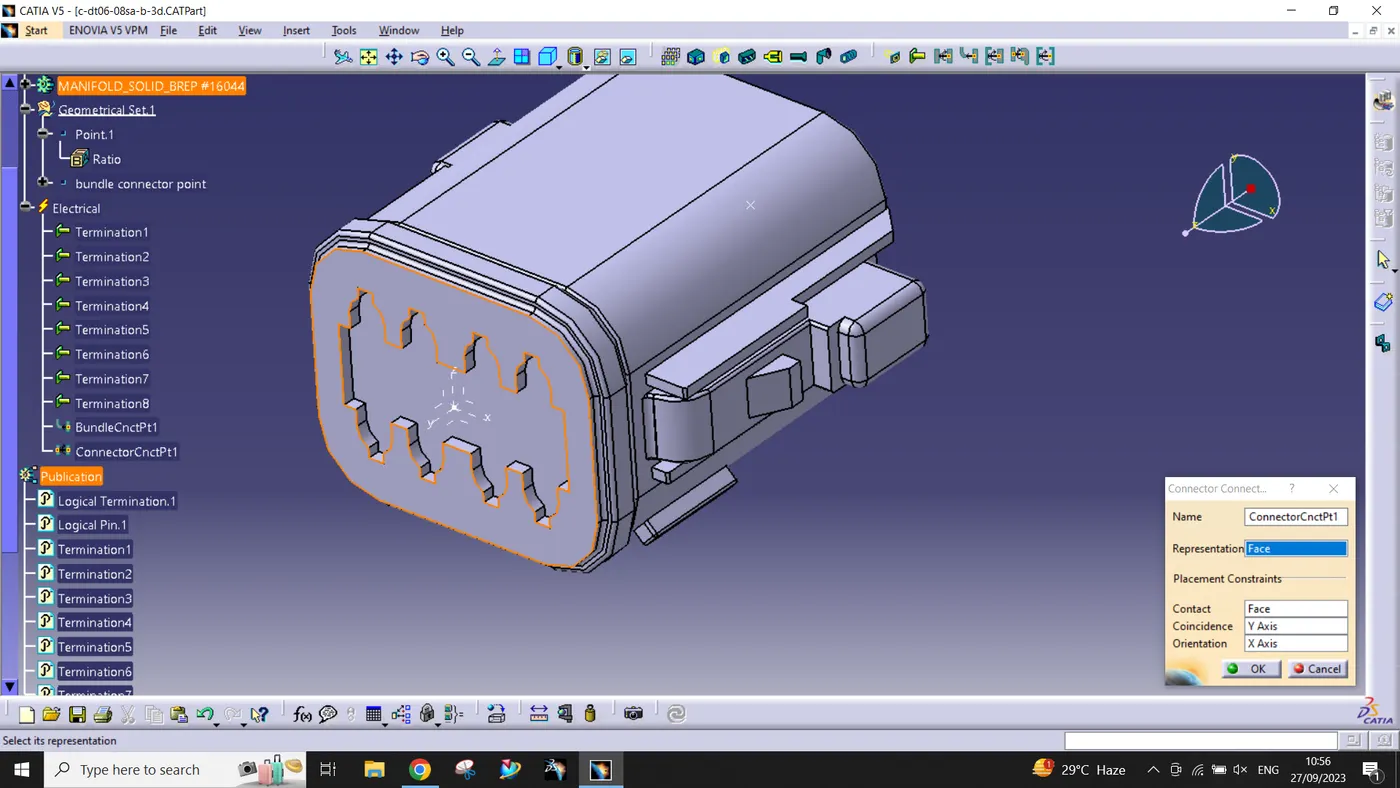

DEFINE CONNECTOR CONNECTION POINT


NOW WE HAVE DEFINED THE MODEL AS AN ELECTRICAL CONNECTOR


2)TYCO174357-2

CREATE MIDPOINT
CREATE CONNECTOR CONNECTION POINT
CREATE CONNECTOR CONNECTION AXIS SYSTEM
CREATE CAVITY CONNECTION POINT

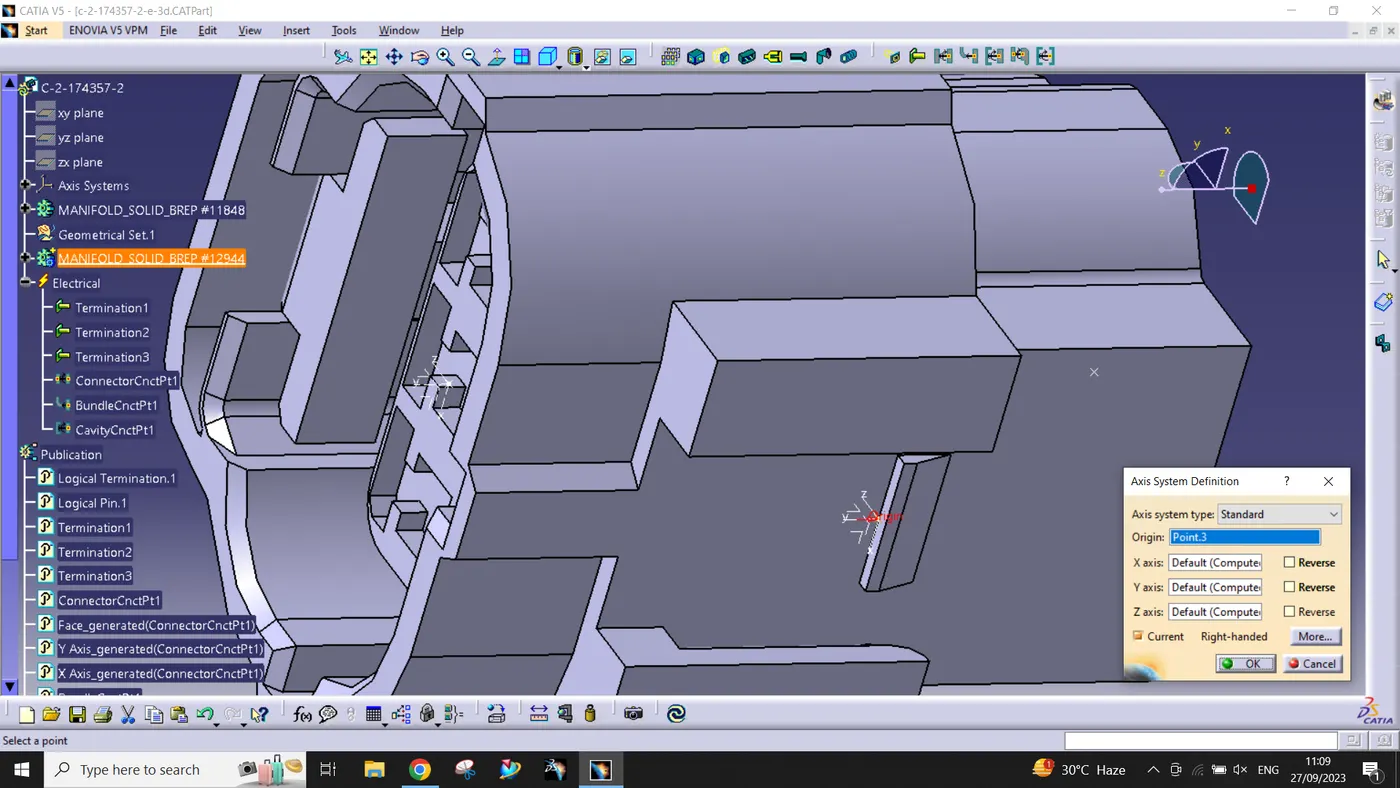

CREATE CAVITY CONNECTION SYSTEM

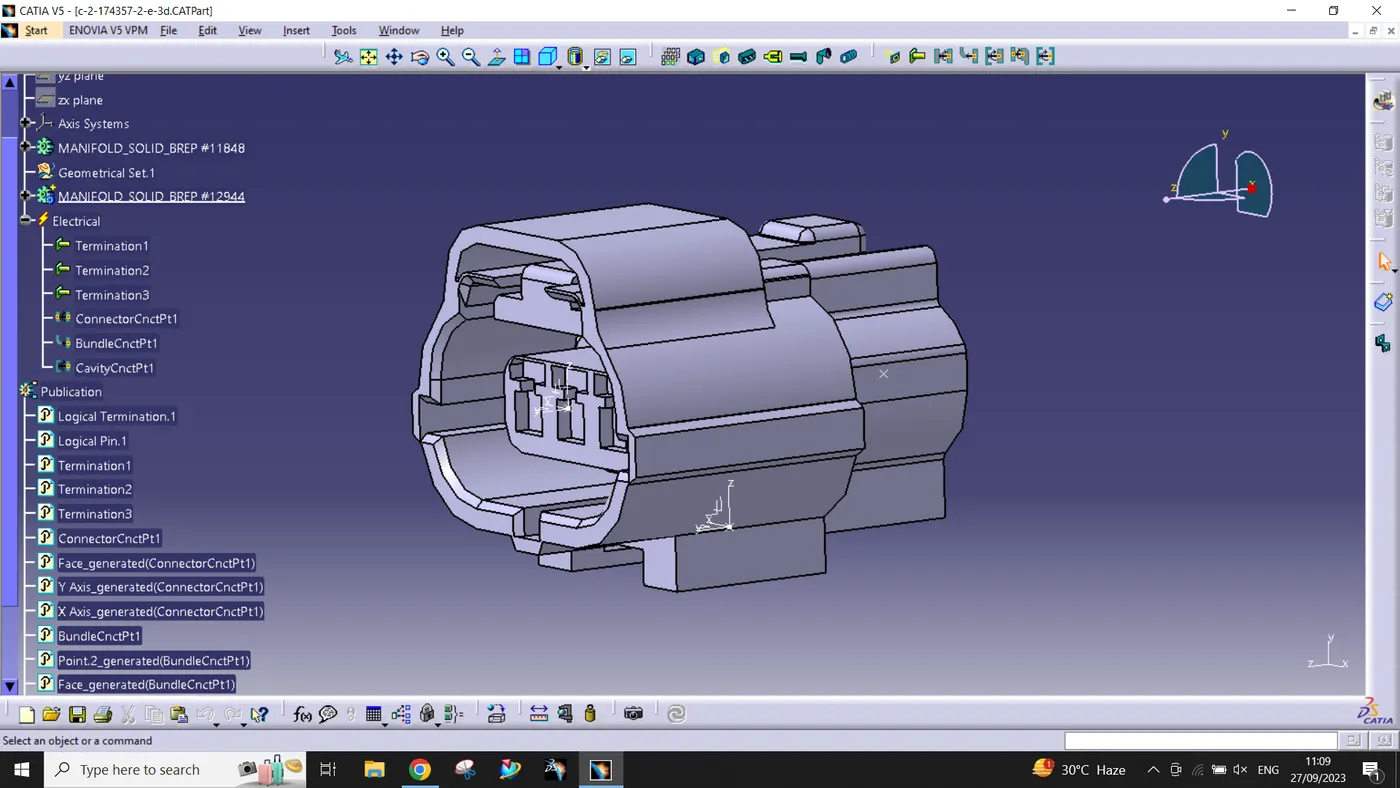

SWITCH TO THE ELECTRICAL PART DESIGN AND DEFINE THE PART AS A CONNECTOR
DEFINE CONNECTOR CONNECTION POINT AND CAVITY CONNECTION POINT








3)  TYCO 85229-1:
CREATE MIDPOINT

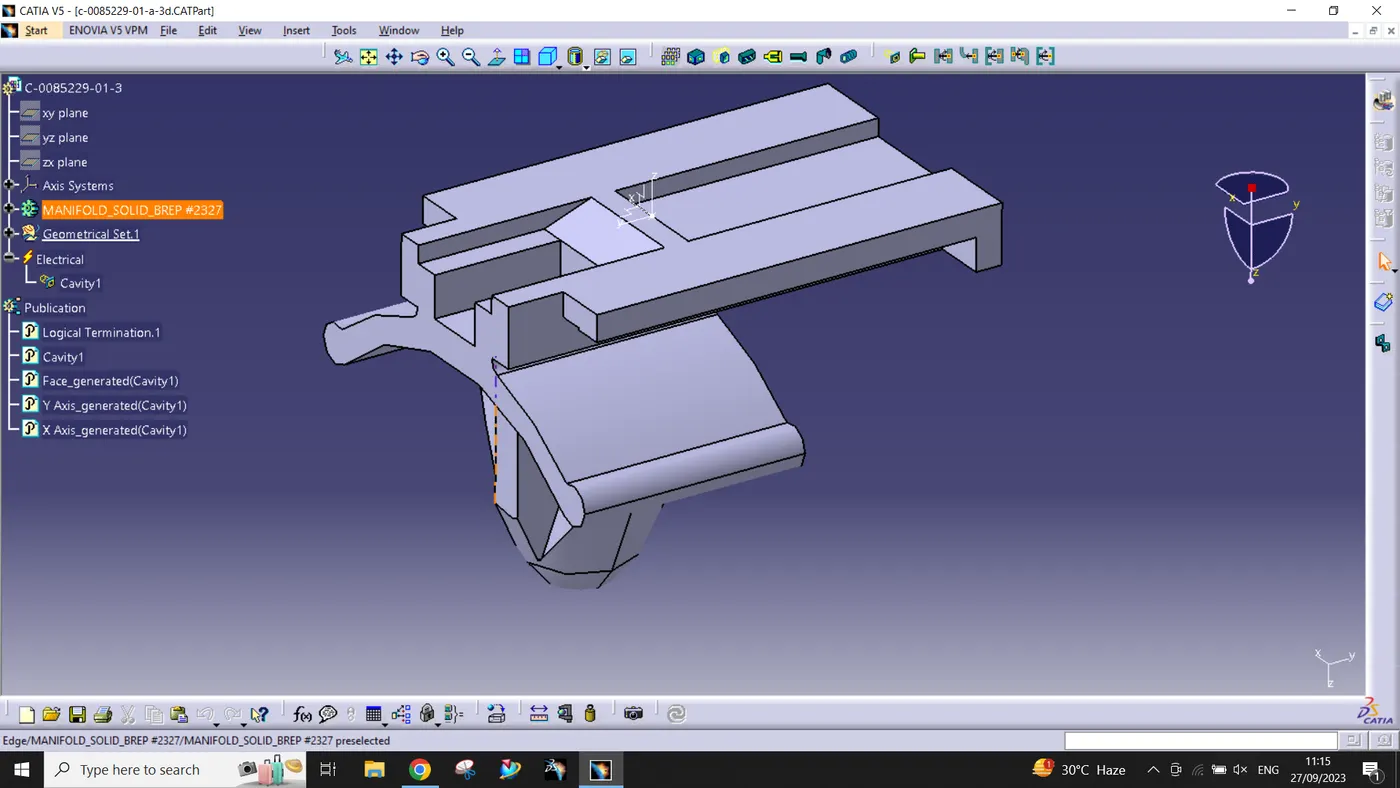

CREATE CAVITY CONNECTION POINT
CREATE CAVITY CONNECTION AXIS SYSTEM AND ORIENTATION SHOULD BE SAME AS IN CONNECTION
SWITCH TO ELECTRICAL PART DESIGN AND DEFINE PART AS MOUNTING EQUIPMENT

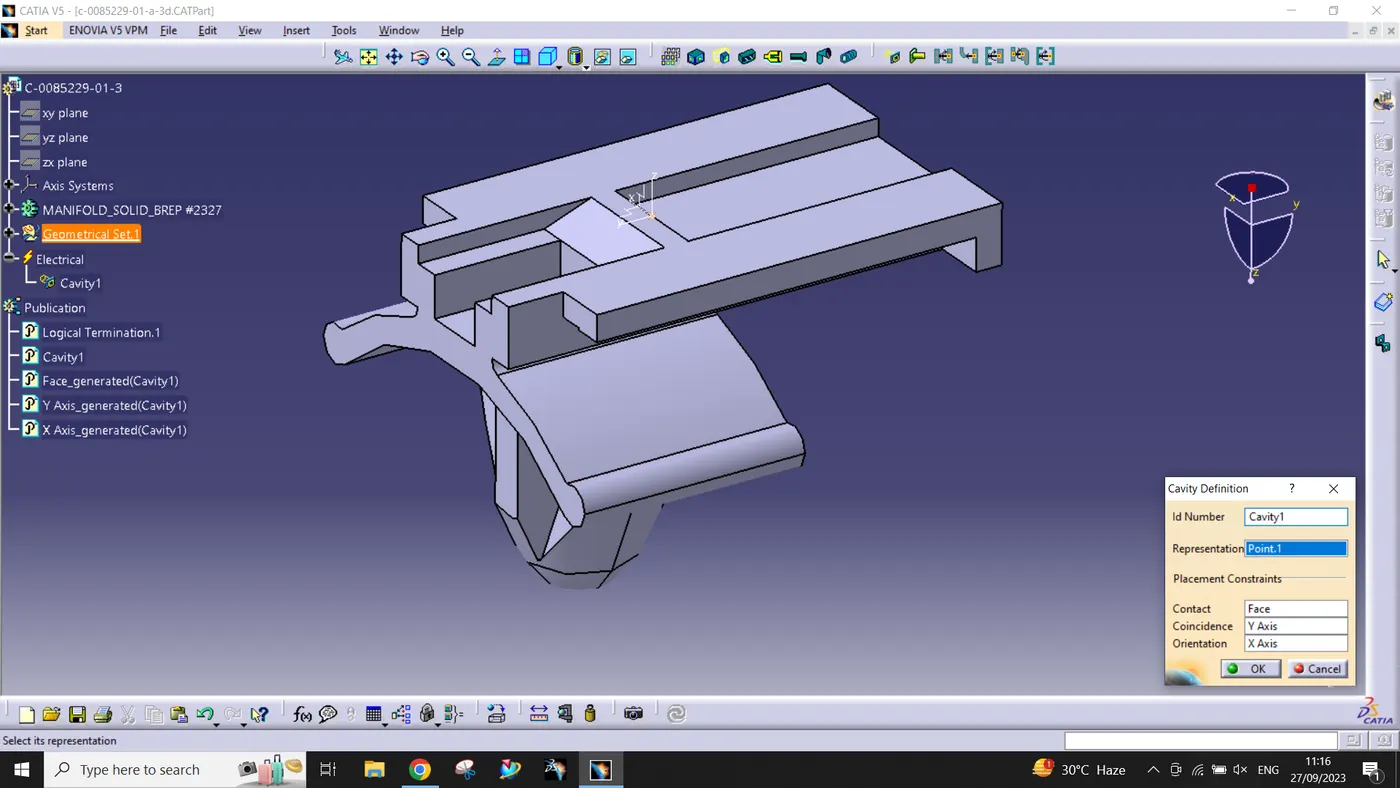

DEFINE IT AS CAVITY

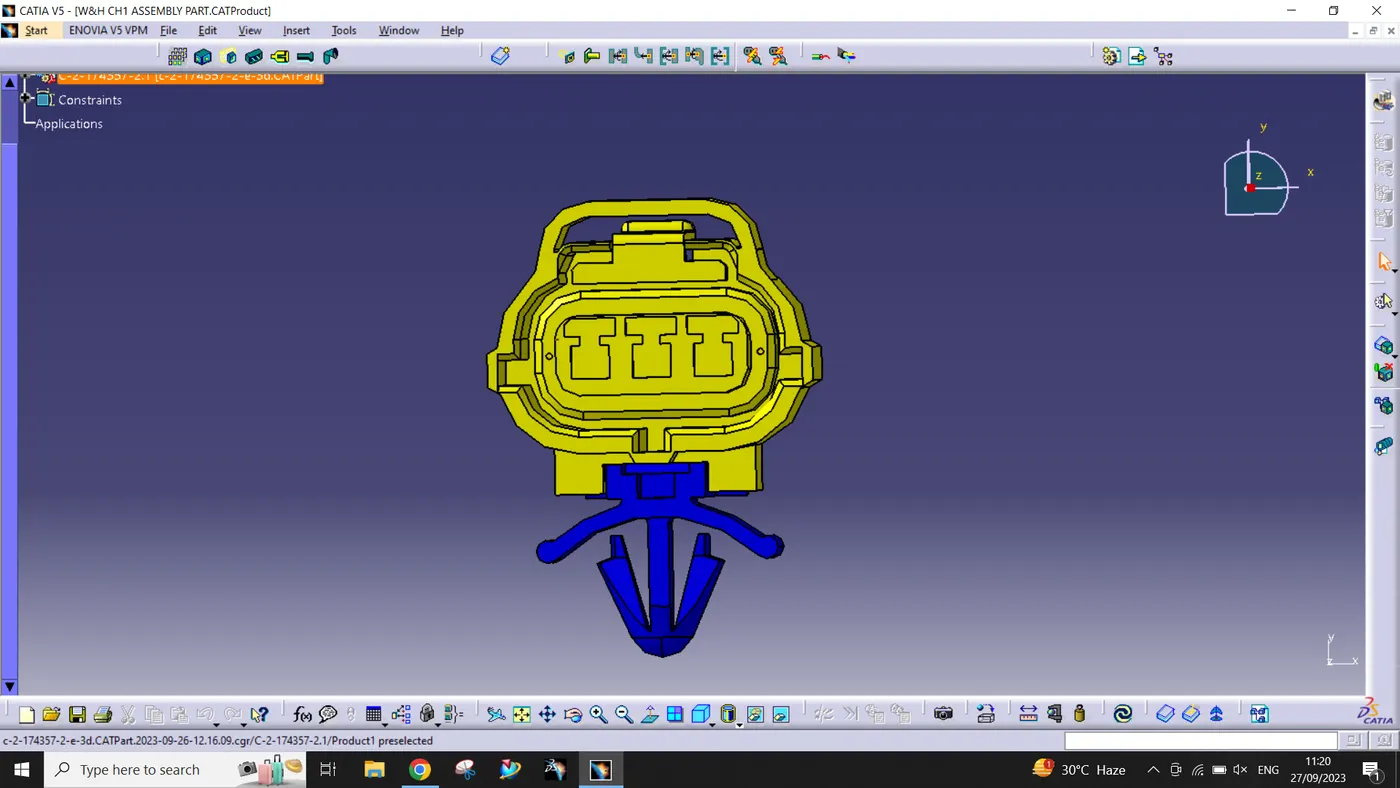

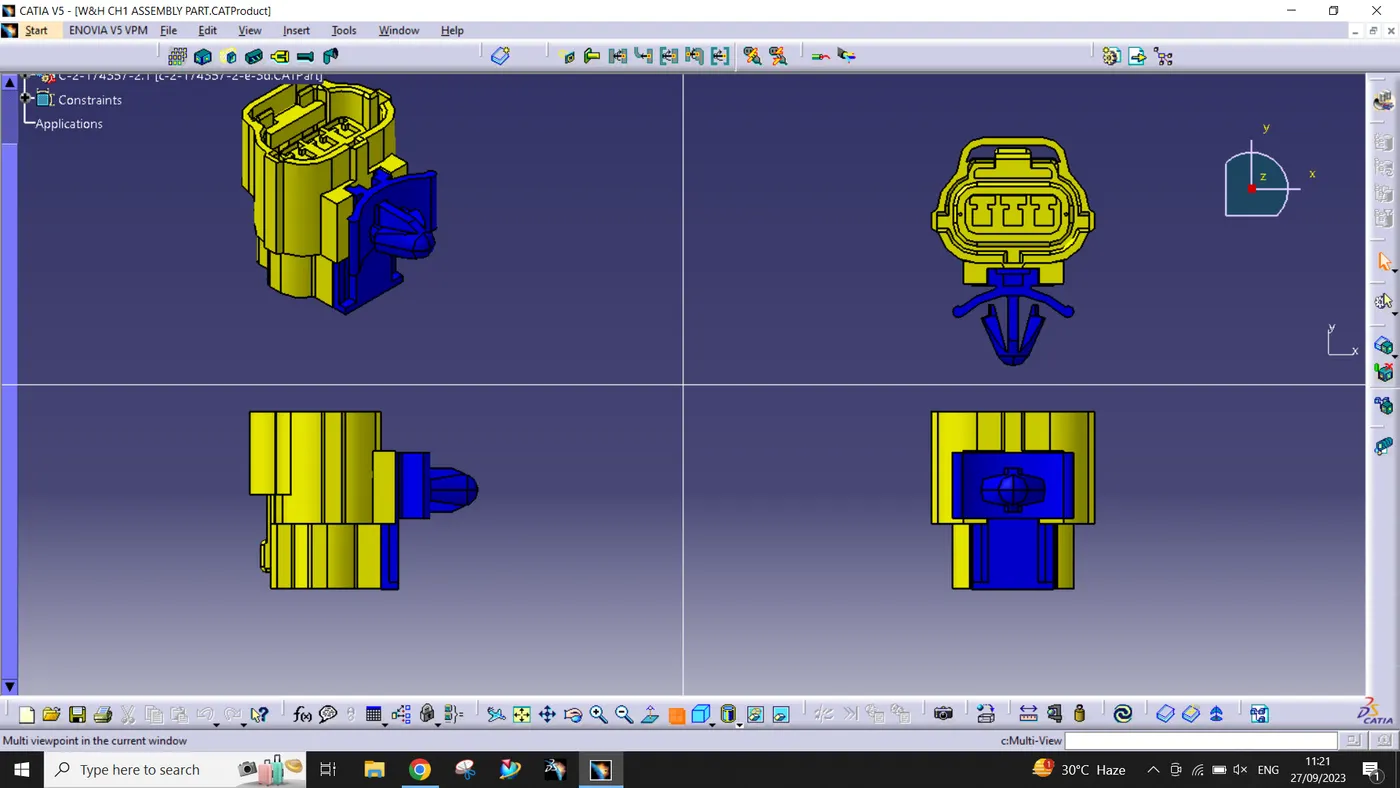

ELECTRICAL ASSEMBLY DESIGN
IMPORT CONNECTOR AND CAVITY  MOUNTING CLIP

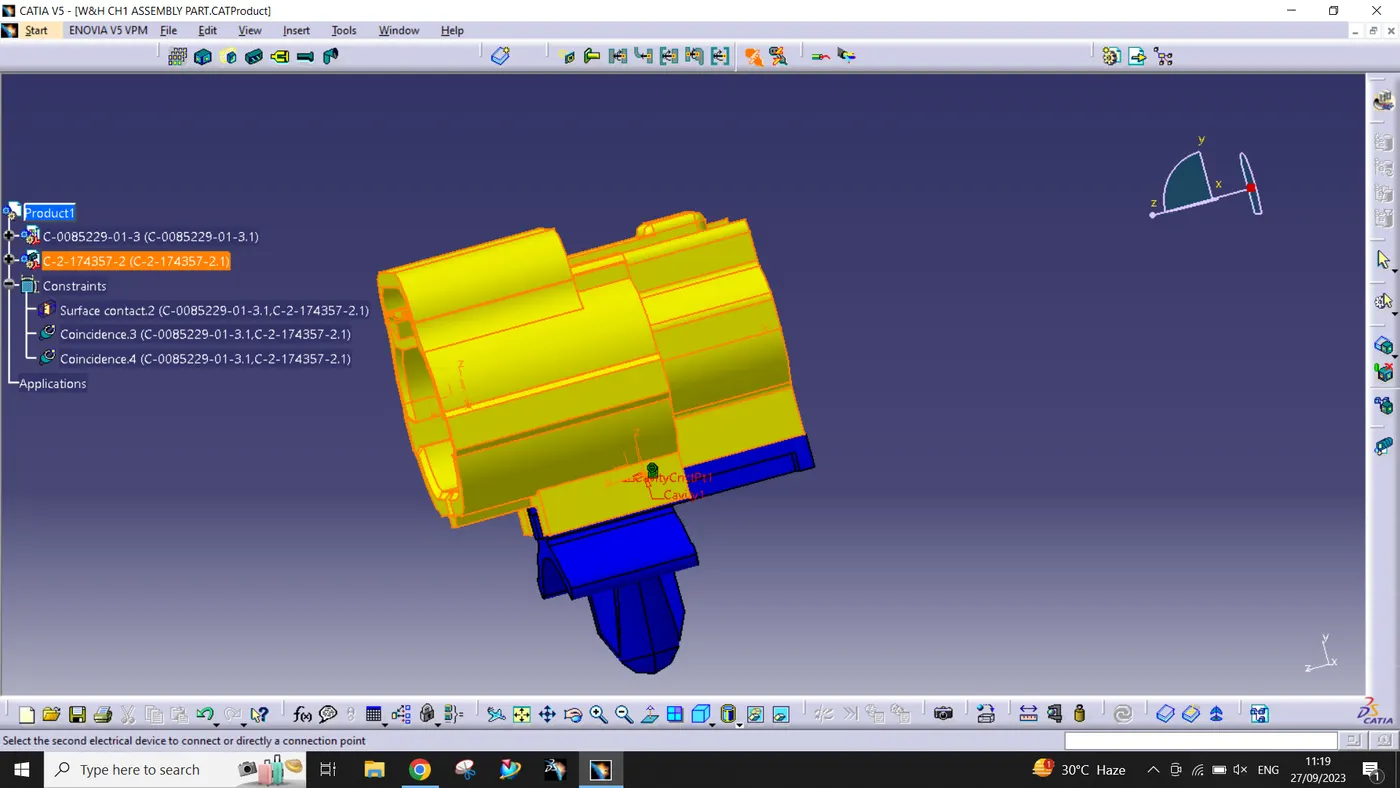

SELECT DEFINE ELECTRIC CONNECTION
SELECT CAVITY AND THEN CONNECTOR





0



CONCLUSION : SO WE HAVE DEFINED THE ELECTRICAL PARTS AND DEFINED ITS NECESSARY PROPERTIES
