Week 8 - Challenge 4 - Bumper
AIM: TO CREATE BUMPER OF CLASS B AND C WITH REQUIRED THICKNESS OF 3MM

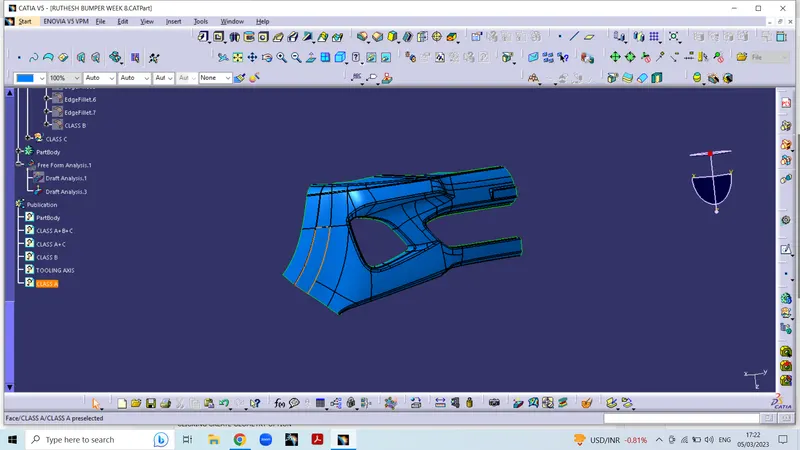

GIVEN CLASS A SURFACE
TOOLING AXIS:

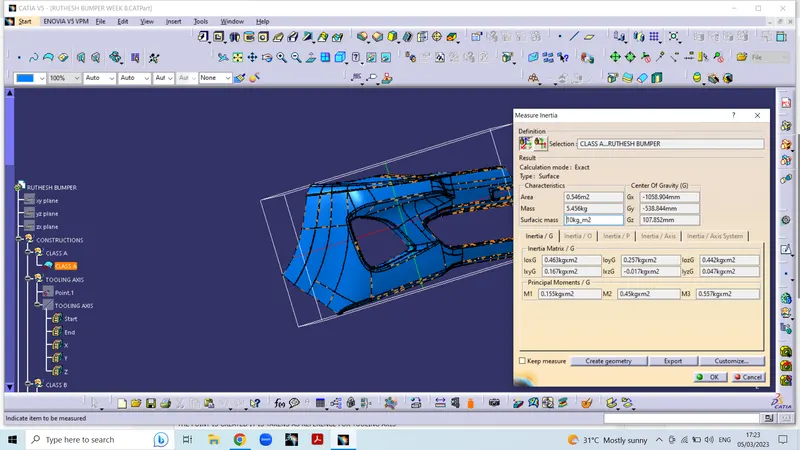

USING MEASURE INERTIA OPTION SELECT CLASS A SURFACE
CLICK CREATE GEOMETRY IN MEASURE INERTIA WINDOW
SELECT NON ASSOCIATIVE GEOMETRY
AND CLICK CENTRE OF GRAVITY
CLICKING CREATE GEOMETRY OPTION
THE POINT IS CREATED IT IS TAKENS AS REFERENCE FOR TOOLING AXIS
THE INERTIA POINT IS CREATED
AND CHECKING THE CLASS A COMPONENT IN ALL DIRECTION

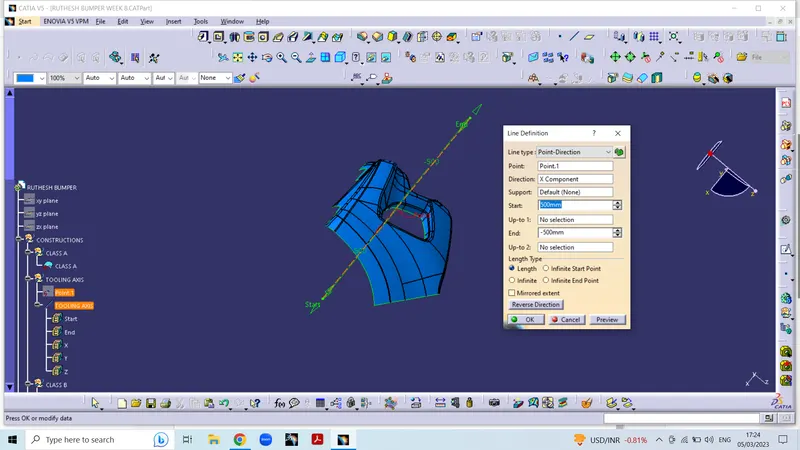

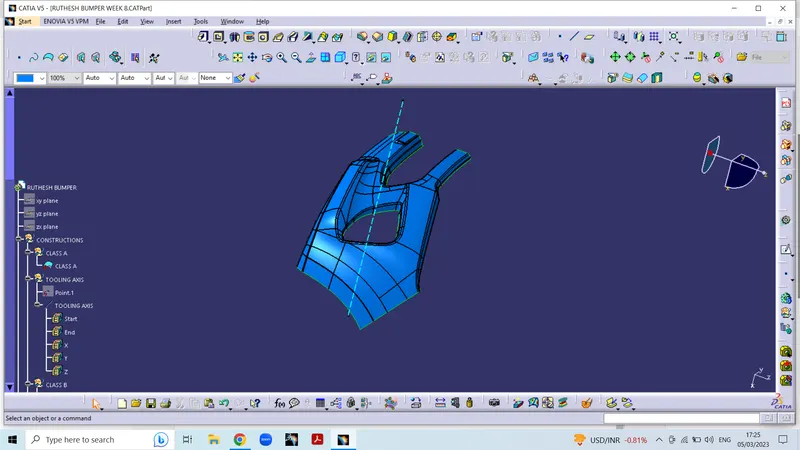

AND USING X DIRECTION THE TOOLING AXIS IS CREATED USING LINE OPTION

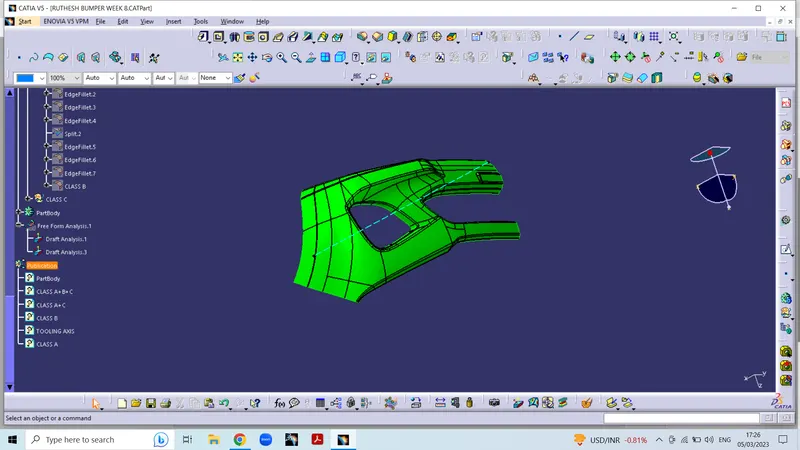

DRAFT ANALYSIS FOR CLASS A :
DRAFT ANALYSIS OF THE SURFACE IS KNOWN TO CHECK THE SURFACE OR PART CAN BE MANUFACUTRED WITH REQUIRED DRAFT ANGLE
CHANGE THE VIEW MODE TO MATERIAL AND CLICKING DRAFT ANALYSIS ICON
MOVING THE COMPASS TOWARDS THE TOOLING AXIS AND CLCIKING OF SURFACE ITS IS BEEN ANALYSIZED
CLASS B SURFACE

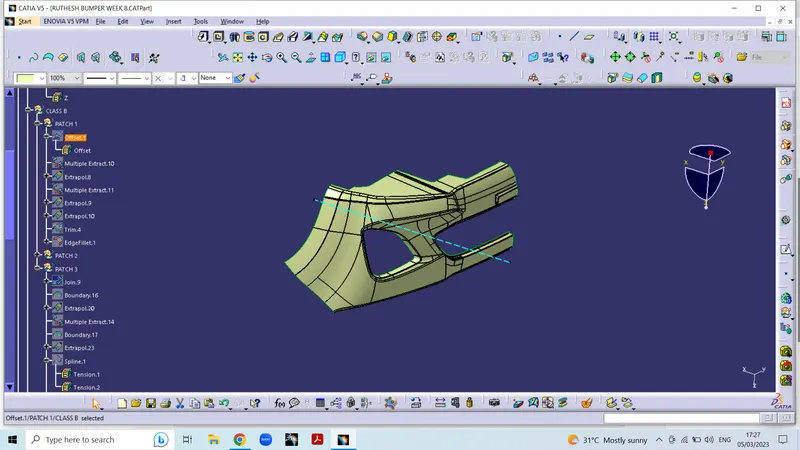

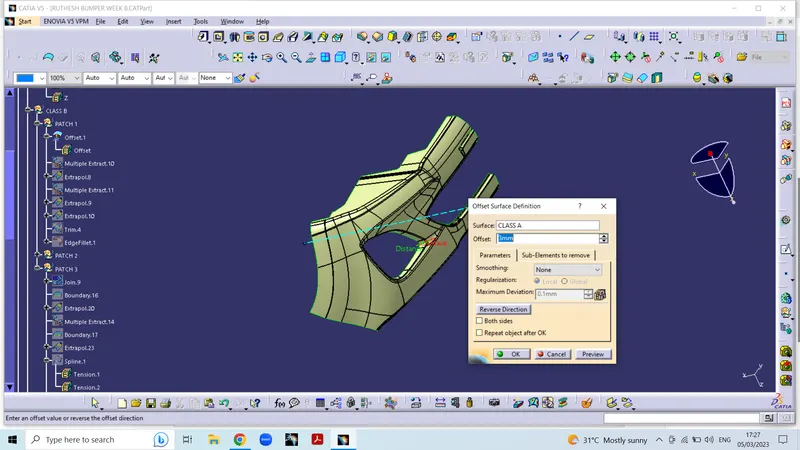

THE CLASS A SURFACE IS OFFSETTED TO 3MM AS PER THE REQUIREMENT
THE OFFESETED SURFACE HAD SOME ISSUES MISSING PATCHES
USING EXTRACT , EXTRAPOLTE , SURFACE UNTRIM COMMANDS THE UNCLEARED PATCHED ARE CLEARED USING THIS OPTIONS
CLASS B SURFACE IS CREATED AND USING FILLET OPTION THE FILLETS IS GIVEN FOR THE FINAL CLASS B SURFACE
CLASS C SURFACE

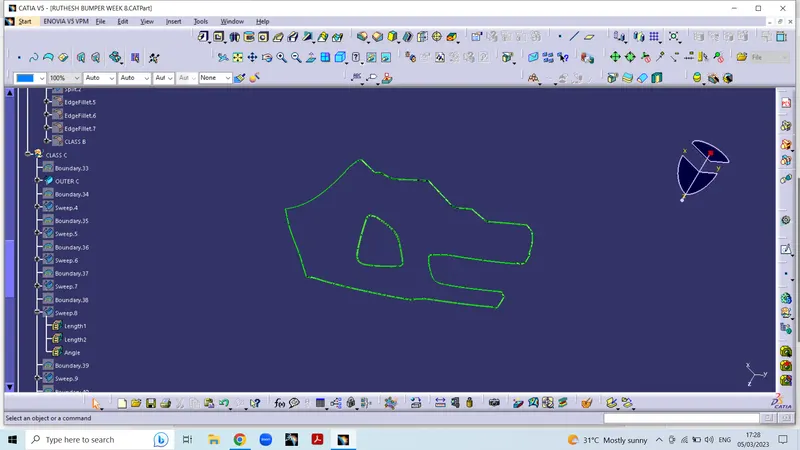

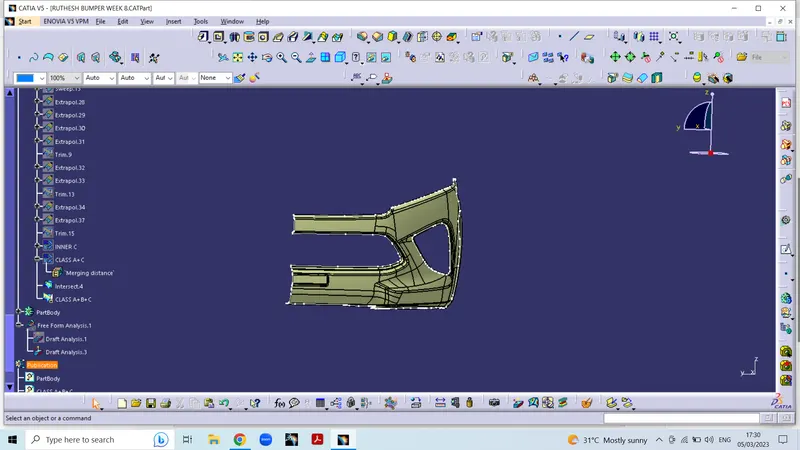

USING BOUNDARY , SWEEP , JOIN , EXTRAPOLTED , TRIM OPTIONS THE CLASS C SURFACE IS CREATED
SURFACE WHICH ARE PERPENDICULAR TO TOOLING AXIS SWEEP COMMAND IS USED WITH REFERNACE SURFACE WITH 90DEGREE
FOR PARALLEL TO TOOLING AXIS SWEEP IS CREATED WITH DRAFT DIRECTION WITH 3 DEGREE

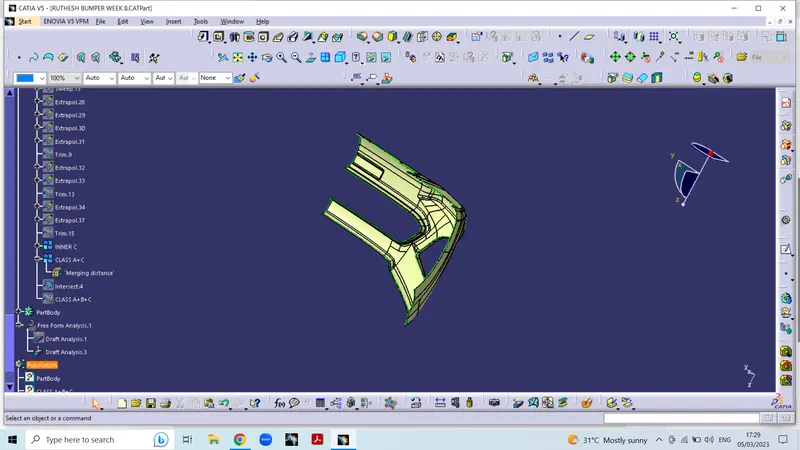

AND JOINING ALL THE SWEEP WITH CLASS A CLASS A +C SURFACE IS CREATED
AND WITH CLASS A AND C THE CLASS B SURFACE IS FIANLLY TRIMMED WITH IT
AND USING INERSECTION COMMAND SURFACE IS CHECKED IS THERE ANY ISSUE OR NOT

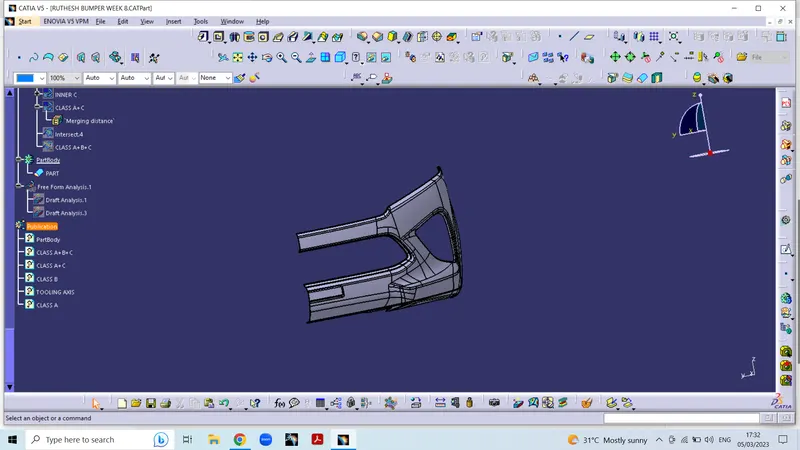

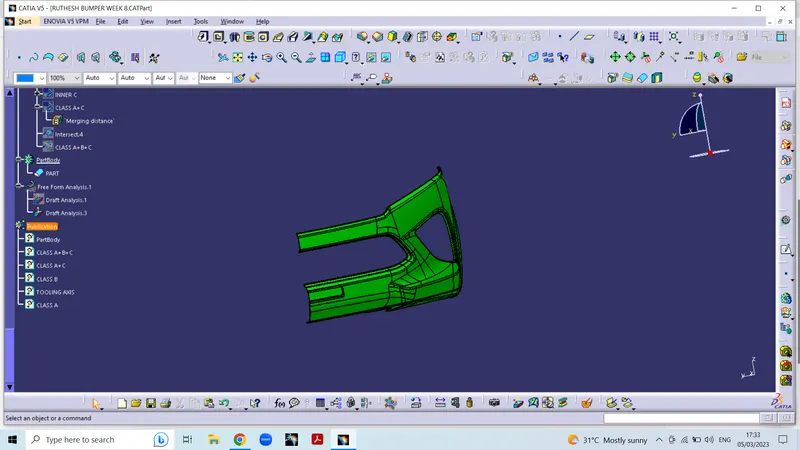

AND FINALLY USING CLOSE SURFACE THE FINAL OBJECT IS CREATED AND IT IS TAKEN FOR DRAFT ANALYSIS
DRAFT ANALYSIS FOR CLOSE BODY
SAME METHOD FOR CLASS A OF DRAFT ANALYSIS IS FOLLOWED
CHANGE THE VIEW MODE TO MATERIAL AND CLICKING DRAFT ANALYSIS ICON
MOVING THE COMPASS TOWARDS THE TOOLING AXIS AND CLCIKING OF SURFACE ITS IS BEEN ANALYSIZED
