Week 8 - Challenge 2 - Switch Bezel Design

AIM:

TO the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface

THICKNESS OF THE COMPONENT :2.5MM

CLASS A:

THIS IS THE GIVEN CLASS A SURFACE WHICH IS DONE IN ALIAS

OUR AIM IS TO CREATE PLASTIC COMPONENT WITH 2.5MM THICKNESS

TOOLING AXIS :

IN ORDER TO PERFORM CLASS C SURFACE WE NEED TO CREATE TOOLING AXIS FOR DRAFTING ANGLE

RESPECTED TO CLASS A SURFACE THE BOTTOM IS SELECTED AND EXTRACTED AND CREATED A MIDPOINT ON THE SURFACE AND WITH HELP OF THE POINT 2 SKETCH ARE CREATED

SKETCH 1 AND SKETCH 2 ARE SELCTED AND A NEW BISCET LINE IS CREATED AND ITS NAMED AS TOOLING AXIS

CLASS B:

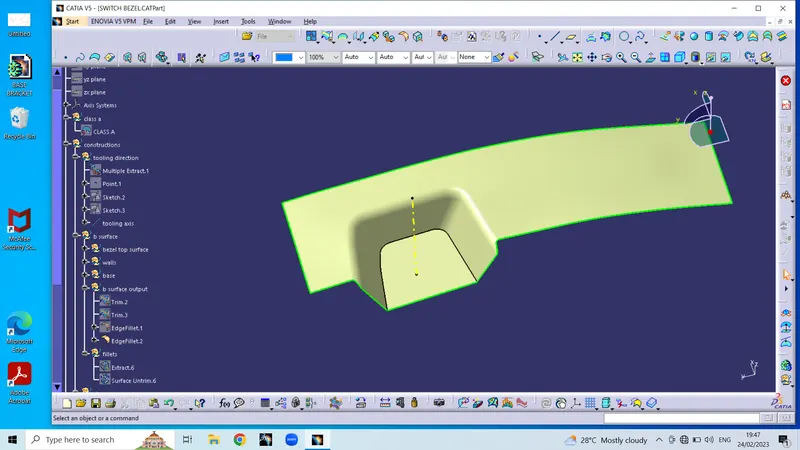

USING CLASS A SURFACE WE HAVE EXTRACTED THE CLASS A SURFACE AND UNTRIMED AND EXTRAPOLATED WITH RESPECTING BOUNDARY

AND USING TRIM OPTION THE DESIRED CLASS B SURFACE IS ACHIEVED

CLASS C:

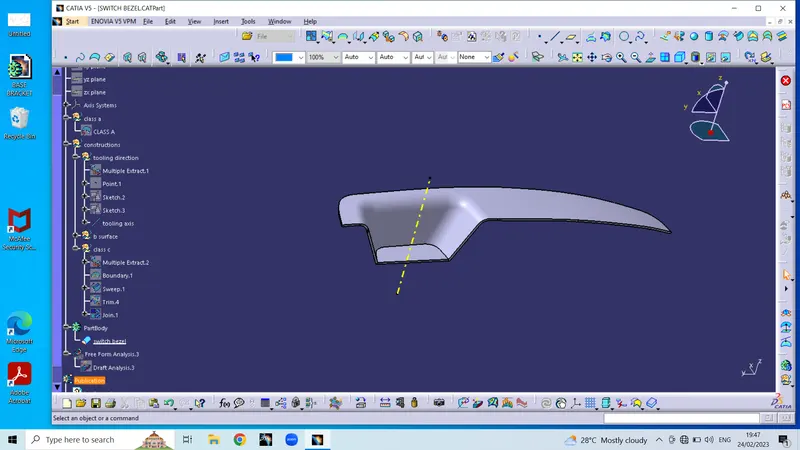

IN ORDER TO CREATE CLASS C SURFACE WE HAVE TO USE CLASS A SURFACE AND USING BOUNDARY OPTIONS TAKE THE BOUNDARY AND USING SWEEP COMMAND SWEEP IT TO DOWNWARD DIRETION AND JOIN THE CLASS A SURFACE WITH SWEEP OUTPUT AND TRIM THE JOIN WITH CLASS B SO DESIRED CLASS C WILL BE ACHEVIED

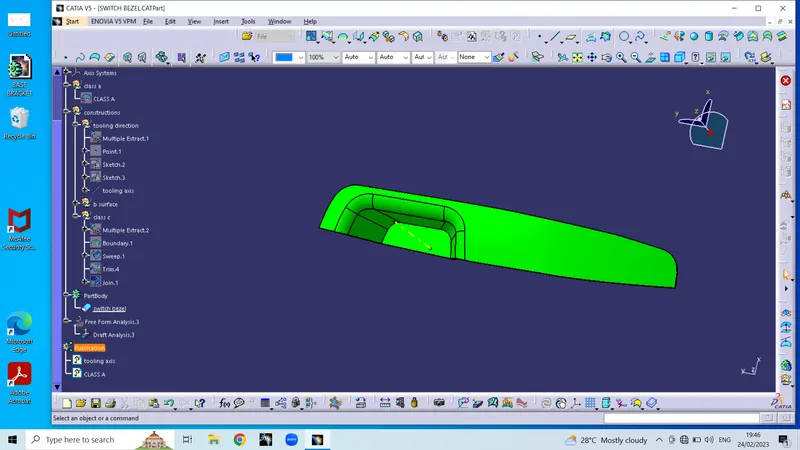

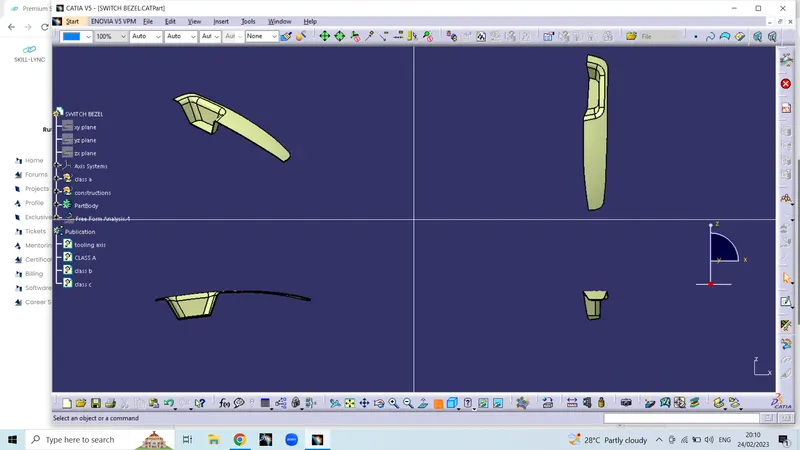

HENCE THE REFERANCE IMAGES ARE ATTACHED

PART:

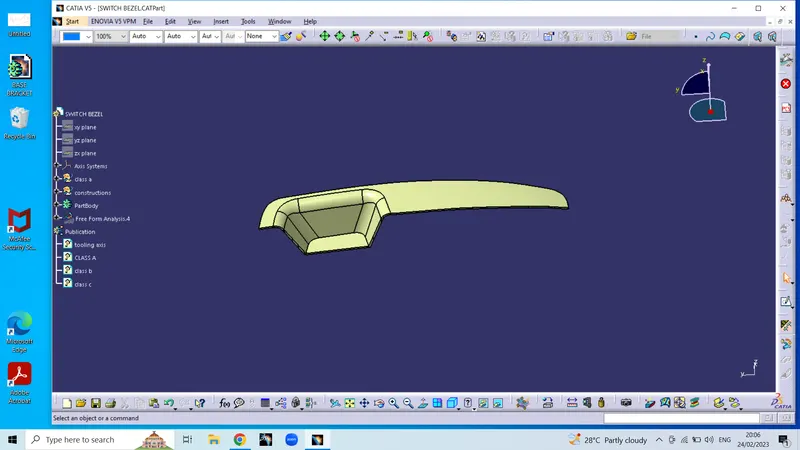

ONCE THE CLASS C IS ACHEVIED SWITCH IT TO PART WORK BENCH AND USING CLOSE SURFACE COMMAND THICKEN THE CLASS C AND DESIRED PLASTIC COMPONENT DESIGN IS ACHEVIED

:

DRAFT ANALYSIS:

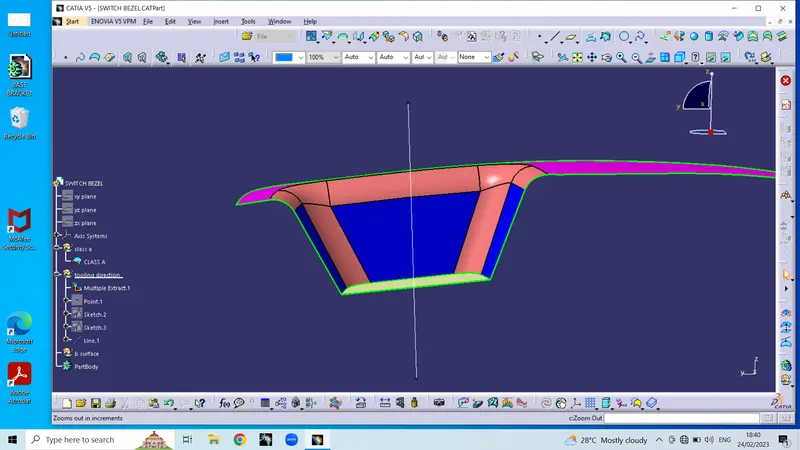

ONCE THE PART DESIGN IS ACHEVIED USING MATERIAL VIEW OPTION I HAVE DONE THE DRAFT ANALYSIS WITH RESPCTED CLASS C SURFACE AND USING COMPASS I MOVED THE COMPASS DIRECTION ON THE TOOLING AXIS AND LOCKED THE COMPASS, NEXT SELECTED THE SURFACE ON THE CLASS C AND DRAFTING ANALYSIS IS DONE
