Week 8 - Challenge 3 - Coin Holder Design

AIM:

TO CREATE THE COIN HOLDER PLASTIC COMPONENT THROUGH GIVEN CLASS A SURFACE

THICKNESS OF COMPONENT IS 2.5MM

CLASS A :

CLASS A SURFACE IS A COIN HOLDER DESIGN WHICH I NEED TO CREATE AS PLASTIC COMPONENT

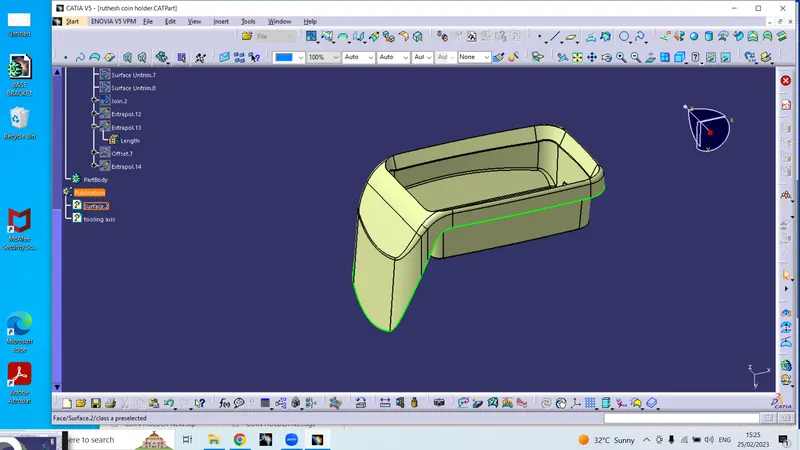

TOOLING AXIS:

USING THE CLASS A SURFACE THE BASE IS EXTRACTED AND USING THE SURFACE AS REFERNCE CREATED THE POINT AND LINE IS CREATED ALONG Y DIRECTION

CLASS B:

USING EXTRACT

UNTRIM

EXTRAPOLATE

AND TRIM COMMAND

THE CLASS A SURFACES IS SEPERATED AND USING THESE COMMAND THE CLASS B SURFACE IS CREATED

AND OFFSETTED TO 2.5MM, THE REQUIRED THICKNESS IS ACHEVEIED

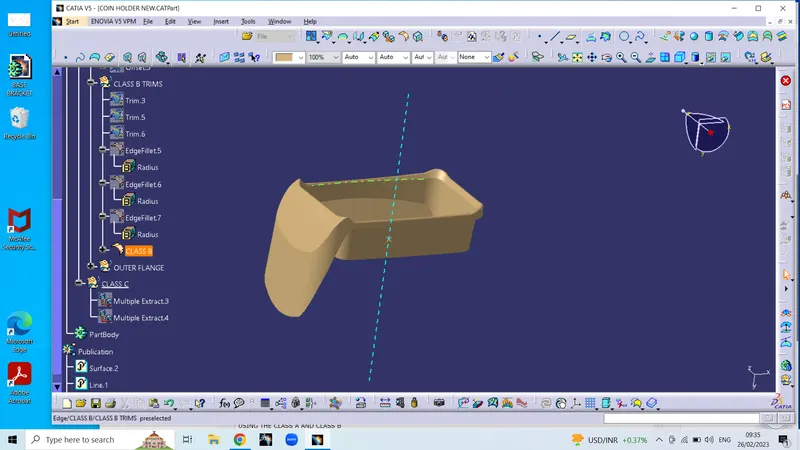

CLASS C:

USING THE CLASS A AND CLASS B

WITH REFERANCE OF EXTRACT AND BOUNDARY

THE SWEEP COMMAND IS DONE WITH GUIDE CURVE AND REFERNCE SURFACE

SWEEP AND CLASS A IS JOINED TOGETHER WITH REPECTED TO THE JOIN TRIM COMMAND IS USED WITH A+C -B

AND THE FINAL CLASS C SURFACE IS ACHEVIED

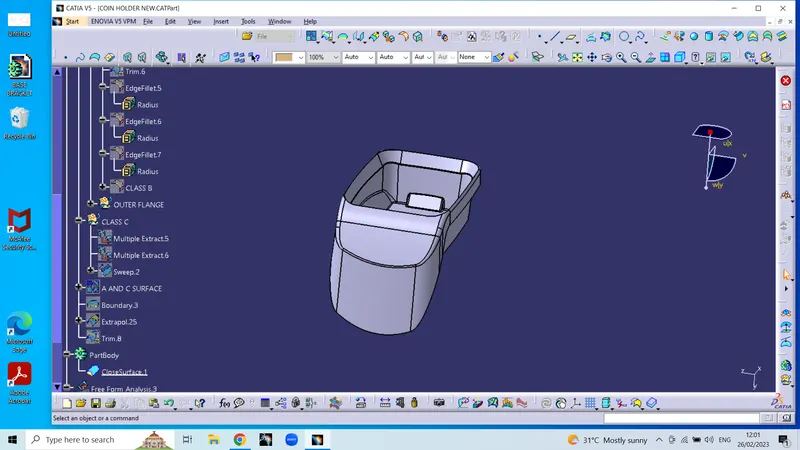

PART:

WITH RESPECTED TO CLASS C SURFACE THE PART IS SELCTED AND CLOSE SURFACE COMMAND IS ACTIVATED AND THE DESIRED OUTPUT IS GENERATED

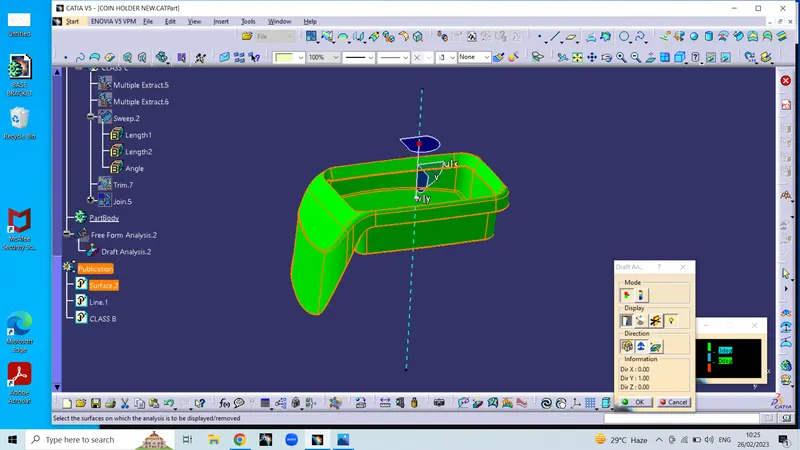

DRAFT ANALYSIS:

ONCE ALL THE OPERATION IS DONE DRAFTANALYSIS IS DONE

FIRST IT IS DONE FOR CLASS A THEN THE FINAL COMPONENT

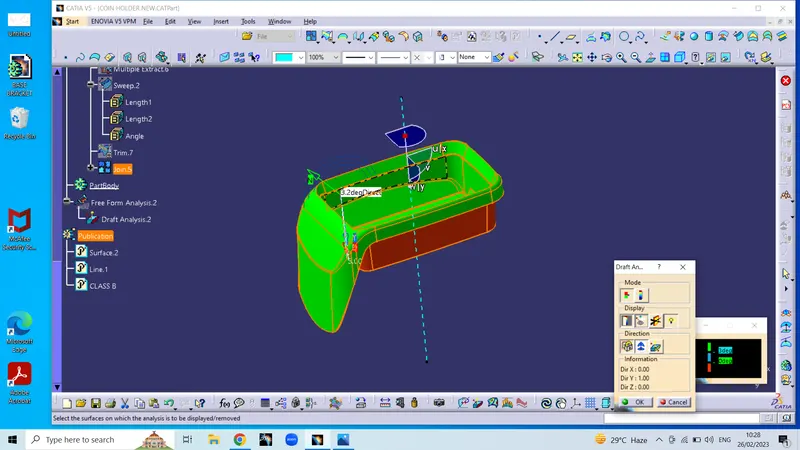

USING MATERIAL VIEW MODE THE COMPASS IS MOVED TO THE TOOLING AXIS THE DRAFT ANALYSIS IS DONE

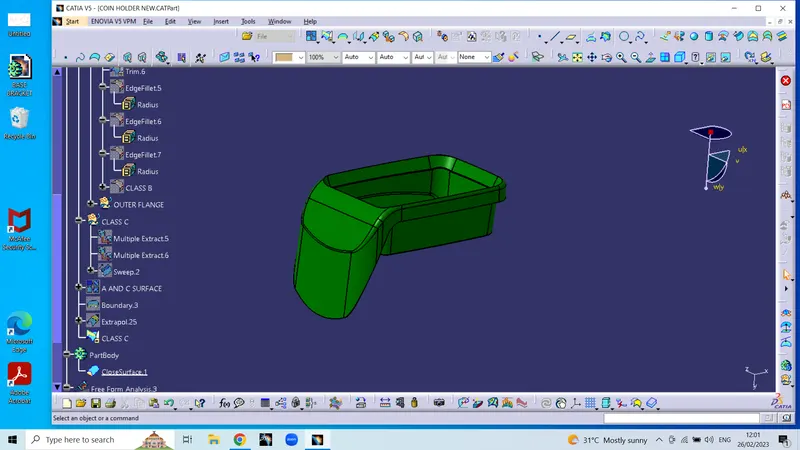

ONCE CLASS IS A OVER NOW THE FINAL COMPONENT

HAVE TO MOVE THE COMPASS TO TOOLING AXIS AND USING DRAFT ANALYSIS HAVE TO CHECK ALL THE AREAS

WHERE IT IS DRAFTED PROPELRY OR NOT
