Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

WIRING HARNESS CHALLENGE WEEK 2 - REPORT

OBJECTIVE :

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

• Deutsch DT06-08SA (https://www.te.com/usa-en/product-DT06-08SA.html)
• Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
• Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

SOFTWARE USED :

• CATIA V5

WIRING HARNESS ASSEMBLY STRUCTURE - CONNECTOR DEFINITION :

CONNECTOR DEFINITION :

Following parameters are required to define any connector -

• Geometry Parameters - Points & Co-ordinate system (Axis)
• Connector connection points - This point is used for the connection of one connector to another connector.
• Harness bundle entry point - This point defines where the harness bundle segment point will end when routed to the electrical connector.
• Cavity connection point (Optional) - This point is used to define the connection of a connector to a connector clip. This only applies to connectors which have the mounting feature for a connector clip.

CONNECTOR DEFINITIONS IN CATIA V5 :

1. Deutsch DT06-08SA :

Connector Mating Side:

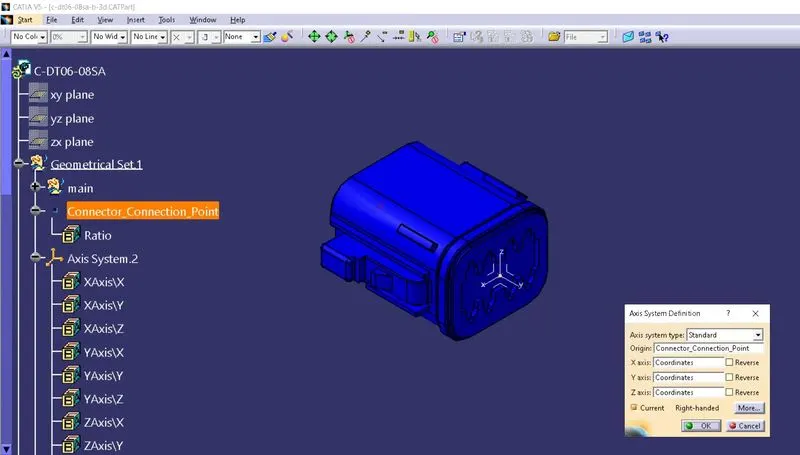

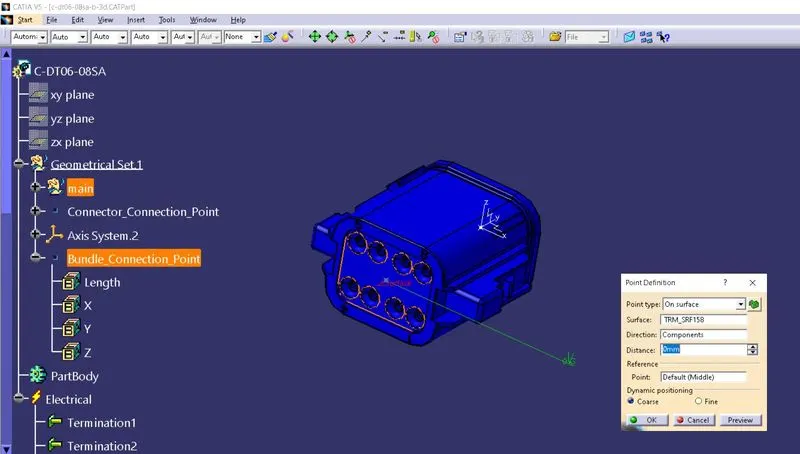

• Create midpoint on the contact face of mating side of Connector in Mechanical Part Design

• Create an axis system on this point with direction defined as shown in below image.

Wire Bundle Entry Side:

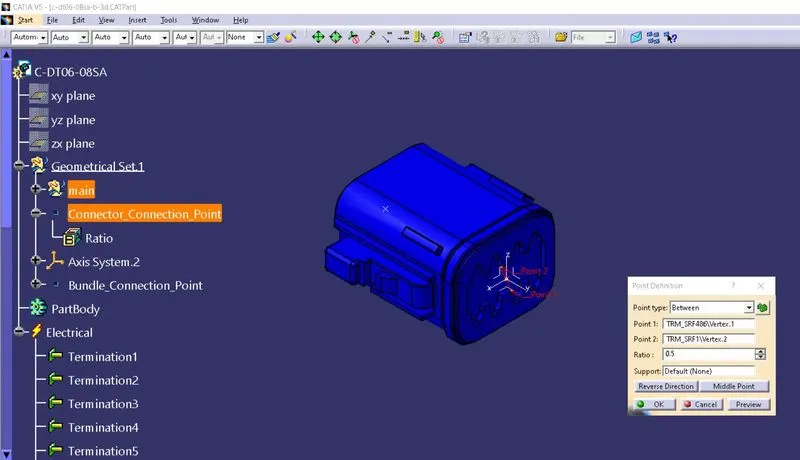

• Create midpoint on the contact face of wire bundle entry side as per the image.

• Define the part as electric part.

Define as Electric Part:

• Choose ‘Electric Part Design’ workbench.

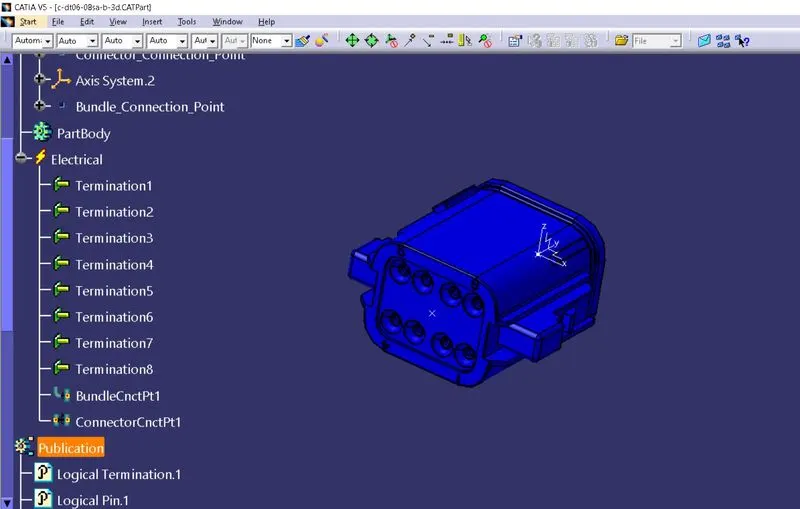

• Define the part as CONNECTOR in this workbench & give name of part and number of terminals as 8 according to image.

• Define Bundle Connection Point by selecting face and point.

• Define Connector Connection Point by selecting face, point as well as Y & X axis as shown in figure.

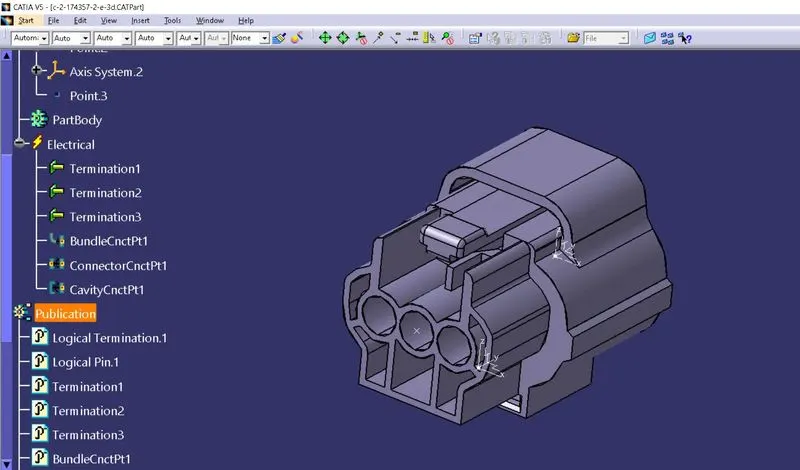

2. Tyco 174357-2 :

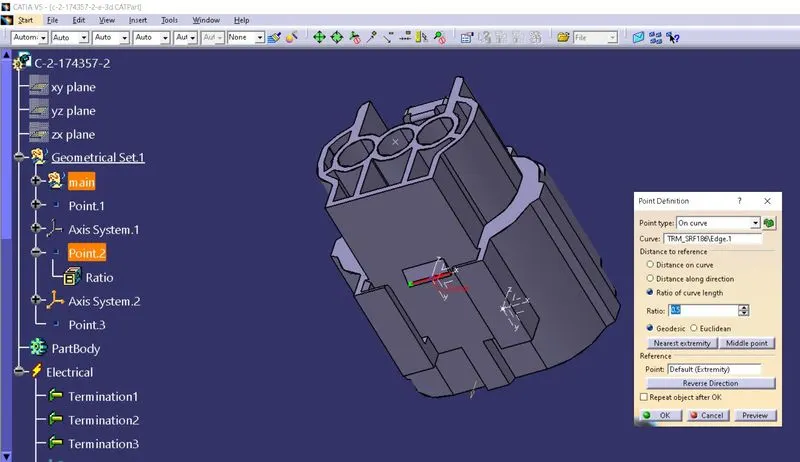

Bundle Connection Point :

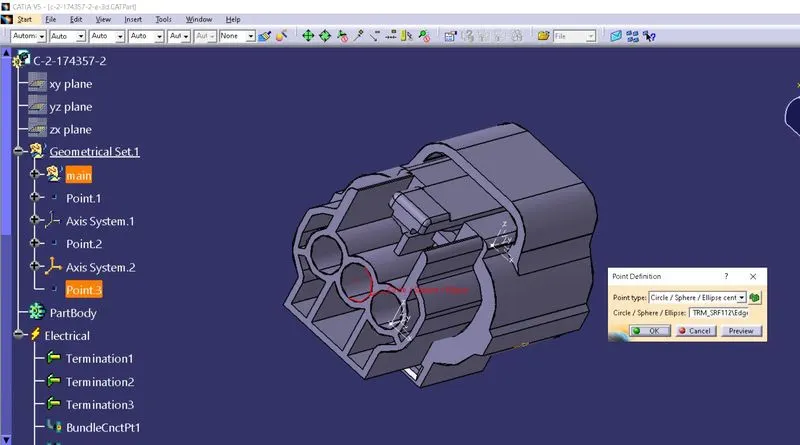

Connector Connection Point :

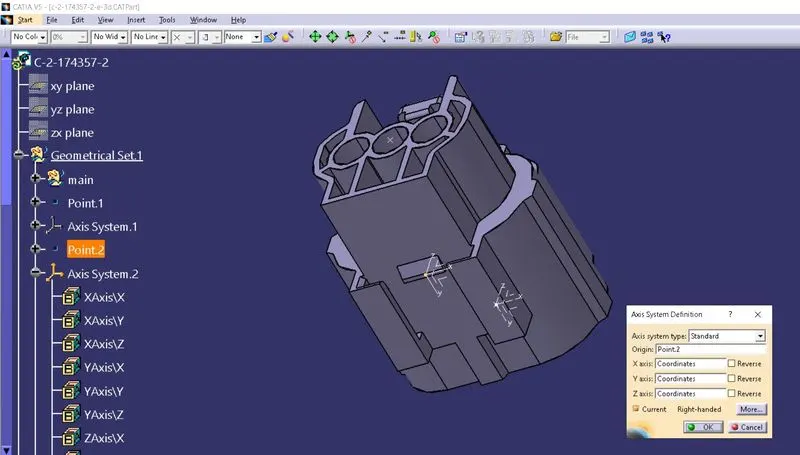

Connector Point Axis System :

TERMINALS :

• Follow same procedure as mentioned above to define this connector.

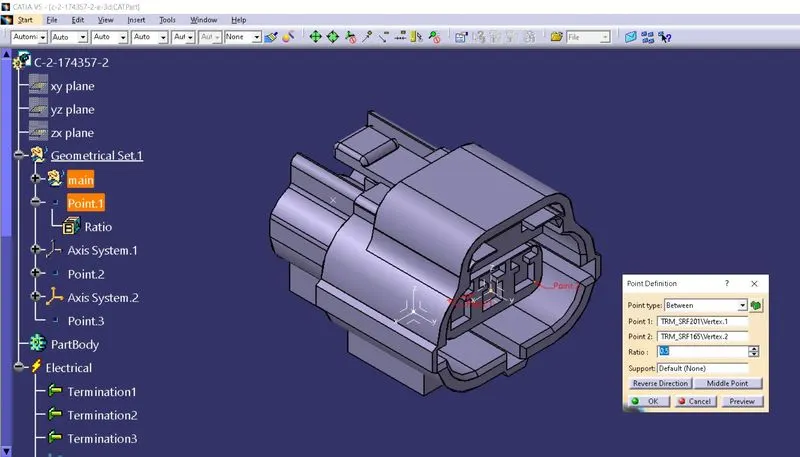

• Here one new thing to define which is Cavity Connection Point.

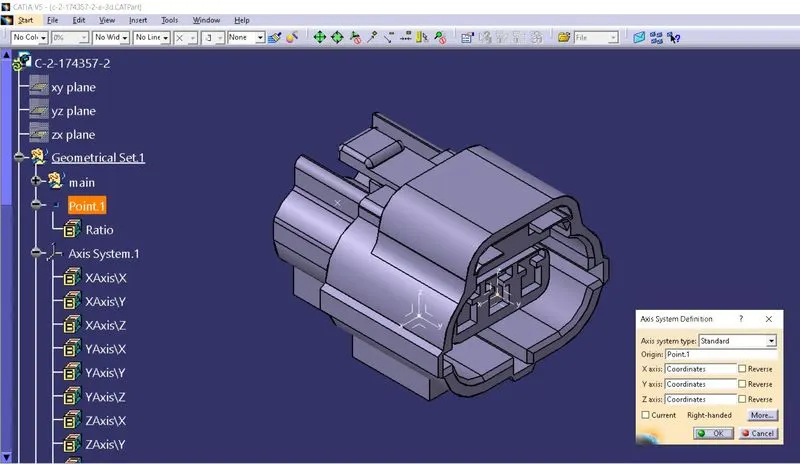

• Create a point on mating face and insert a new axis system.
• Define Cavity Connection Point by selecting the given point, face and Y & X axis as shown in figure.

3. Tyco 85229-1 :

Cavity :

• Follow same procedure as mentioned above to define this connector.
• Here one new thing to define which is Cavity.

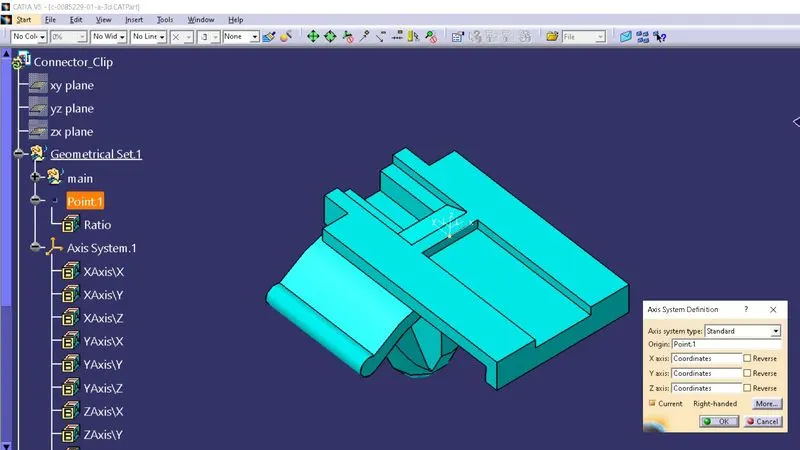

• Create a point on mating face and insert a new axis system by comparing it with the mating Connector.

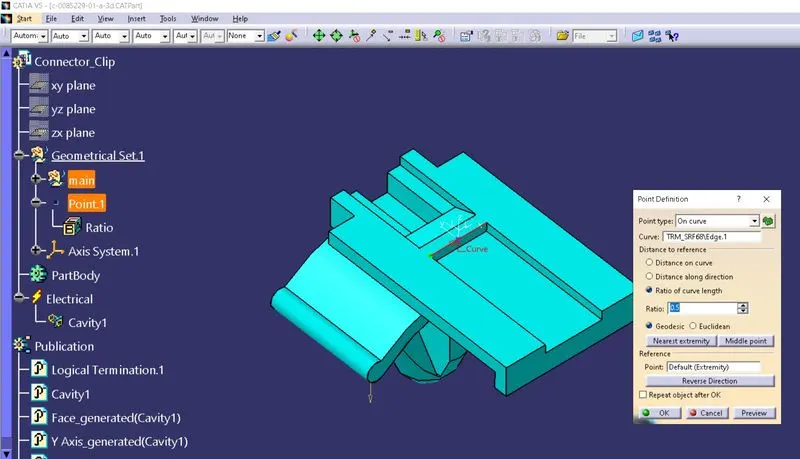

• Define Cavity Connection Point by selecting the given point, face and Y & X axis as shown in figure.

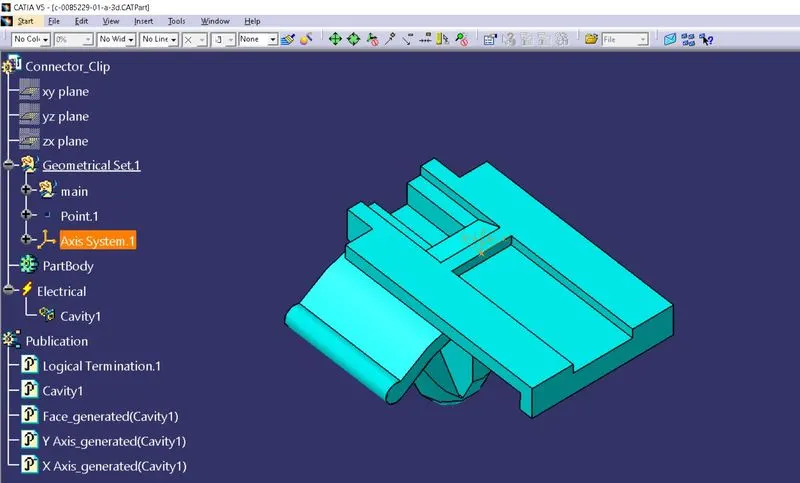

Cavity Axis System :

CREATION OF CONNECTOR & CLIP ASSEMBLY :

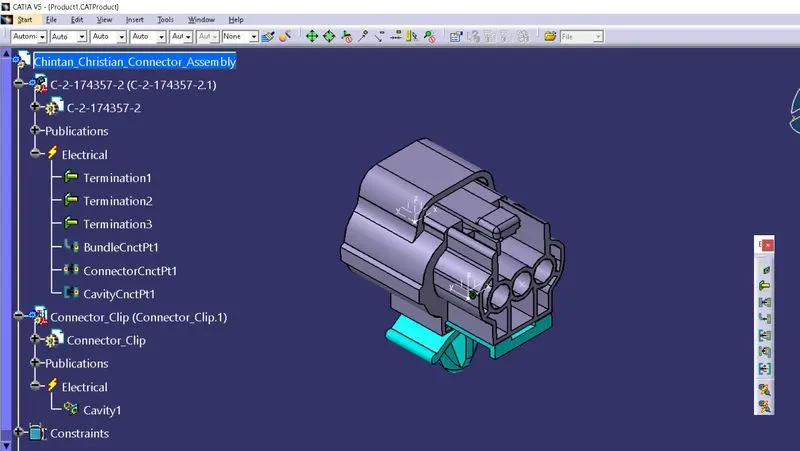

• Import Connector and Connector clip to a new assembly file. Arrange both parts as per required orientation.
• Go to Electrical Assembly Design
• Use Connect Electric Connection.
• First choose Clip and then Connector.
• Both will automatically connected as per given constraints.

CONCLUSION :

I have learned about how to define connectors and clips as electrical parts as well as I have also learned about how to define assembly as Electrical and how apply to Electrical Connections with different parts from this presented challenge.
