Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

ANSWER:

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

From the above-provided link, we have downloaded the part

We have created a bundle connection point for the bundle entry.

Bundle connection point:

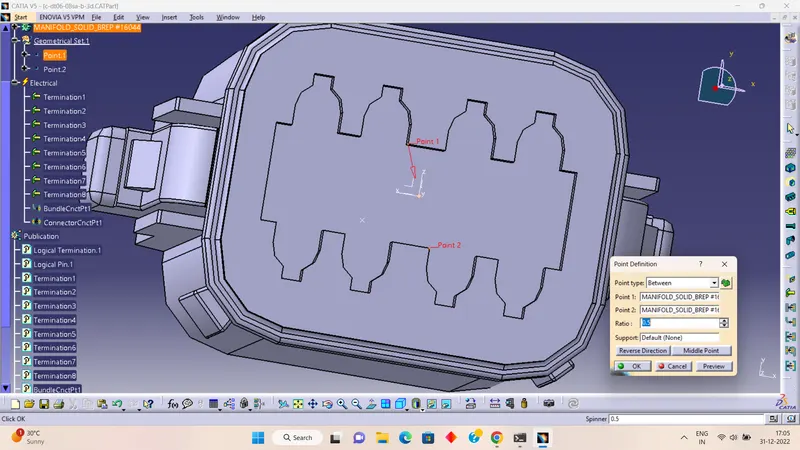

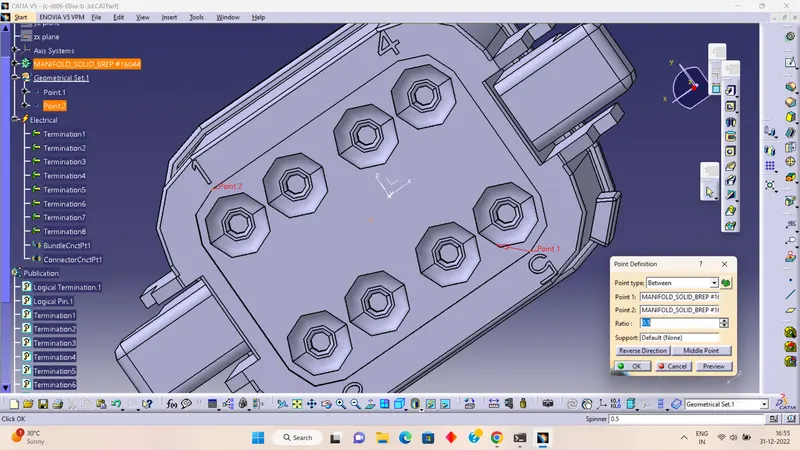

We have created the Bundle connection point by defining the middle point on the entry side.

Switch to 'Electric Part Design'

Define the part as a connector in CATIA, and give the no. of termination as 8 because we have 8 entry points for wire.

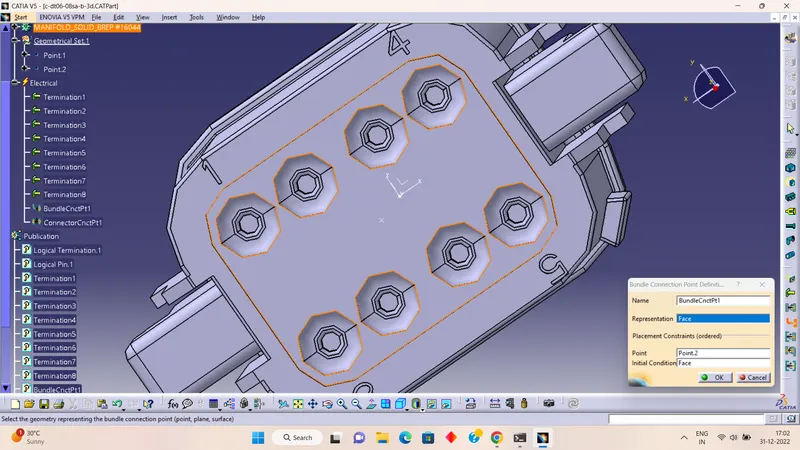

Define Bundle connection point;

By selecting the bundle connection definition option we define the point

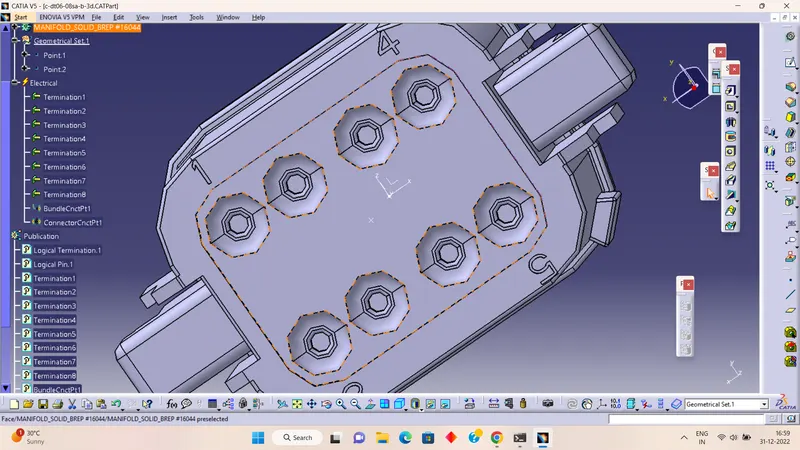

Define connector connection point:

By selecting the connector connection definition option we define the point;

2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

From the above-provided link, we have downloaded the part

2. Tyco 174357-2 :

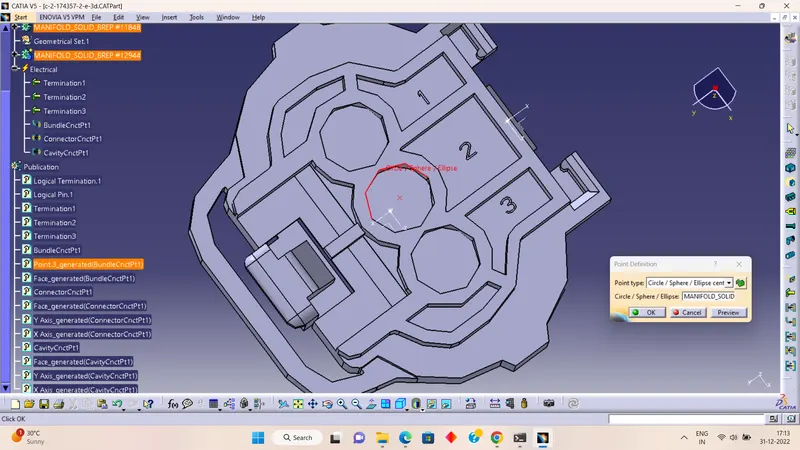

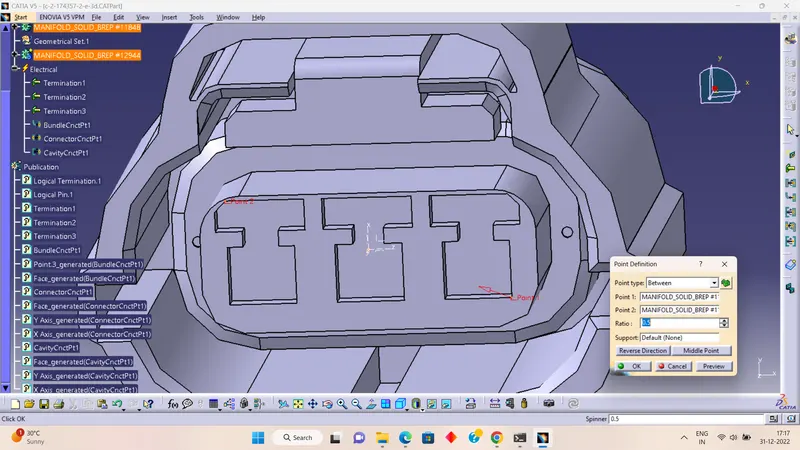

• Create midpoint
• create a Connector connection point

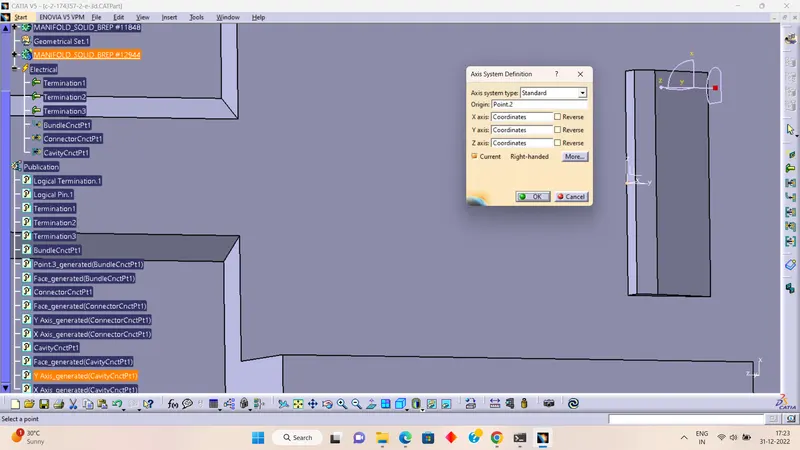

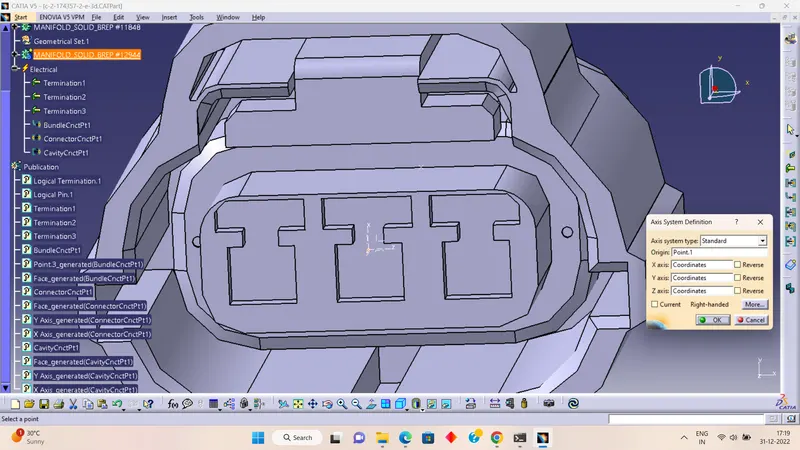

• create a Connector connection axis system
• create a cavity connection point
• create a cavity connection axis system
• Switch to an Electric part design and define the part as a connector
• Define Connector connection point and cavity connection point

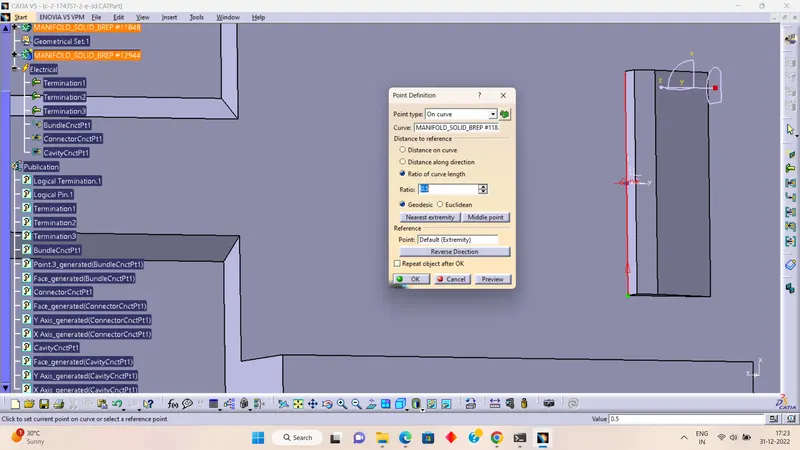

created the point on the

• create a Connector connection point

• create a Connector connection axis system

• create a cavity connection axis system

3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

From the above link, we have downloaded the part for design.

3. Tyco 85229-1 :

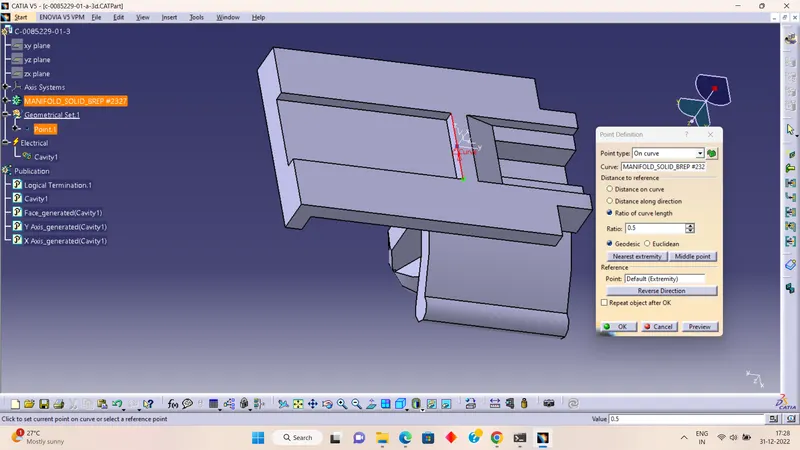

• Create midpoint
• create a cavity connection point

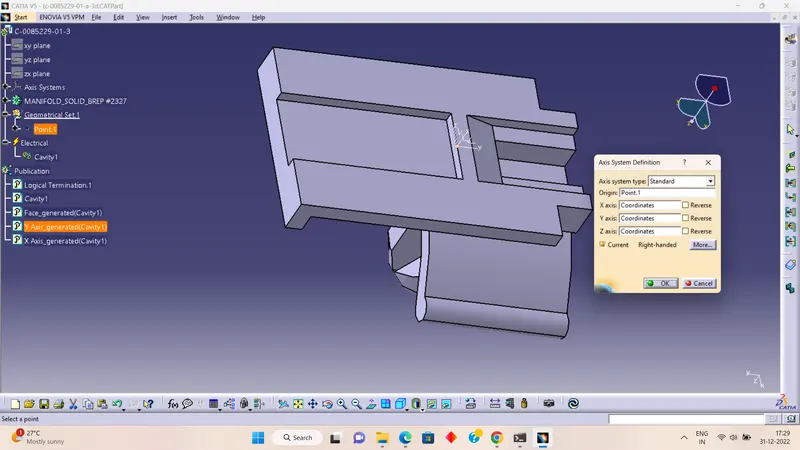

• create a cavity connection axis system and orientation should be the same as in the connector

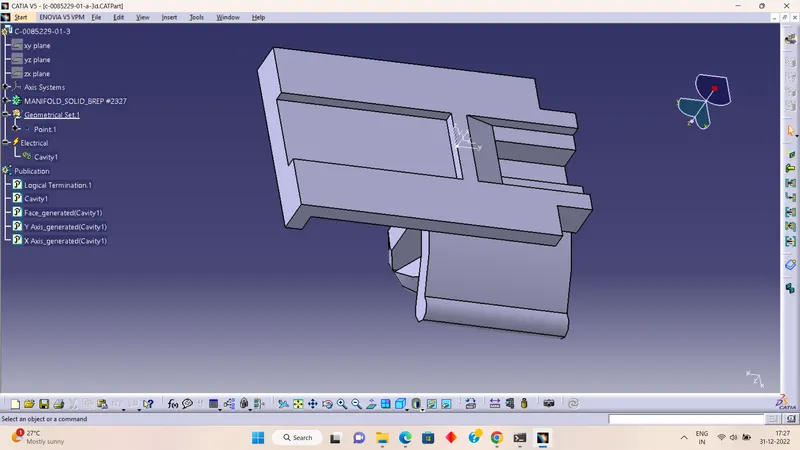

• Switch to an Electric part design and define the part as Mounting Equipment
• Define cavity connection point

• create a cavity connection point
• create a cavity connection axis system and orientation should be the same as in the connector
• Switch to an Electric part design and define the part as Mounting Equipment

Electric Assembly Design

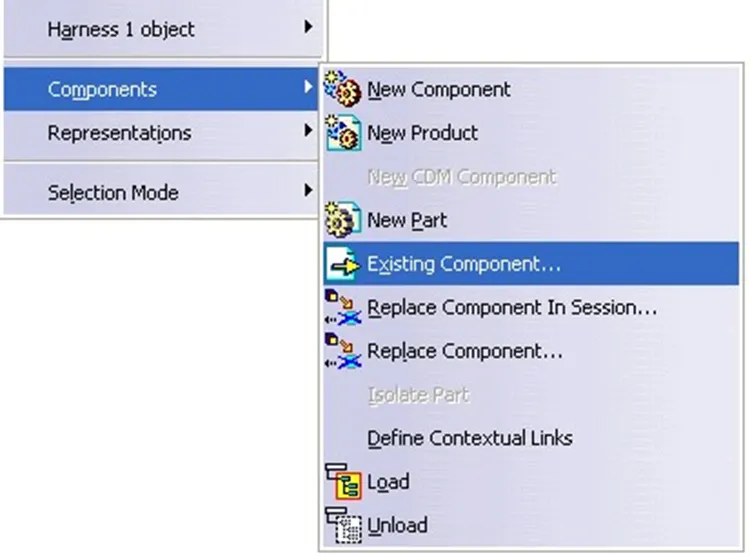

• Import Connector and cavity/mounting clip.
• Select Defining Electric connection
• select cavity and then connector.

we have added the parts in a single product file to perform the assembly

imported the existing developed parts into a single product file

by selecting the parts we assembled with the electrically connected option

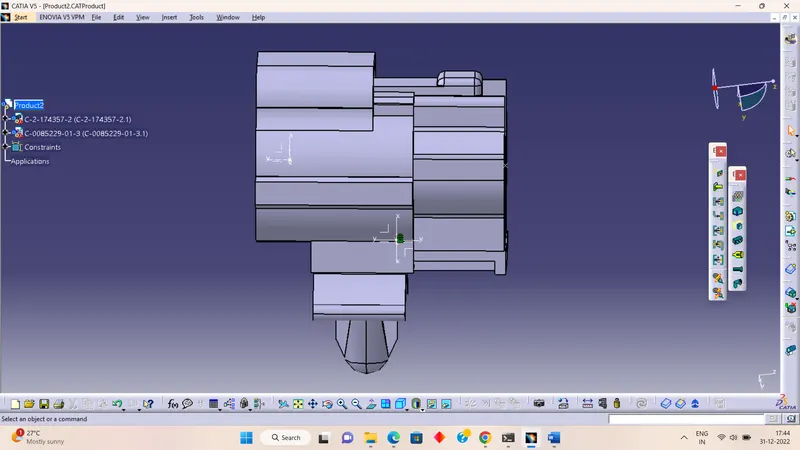

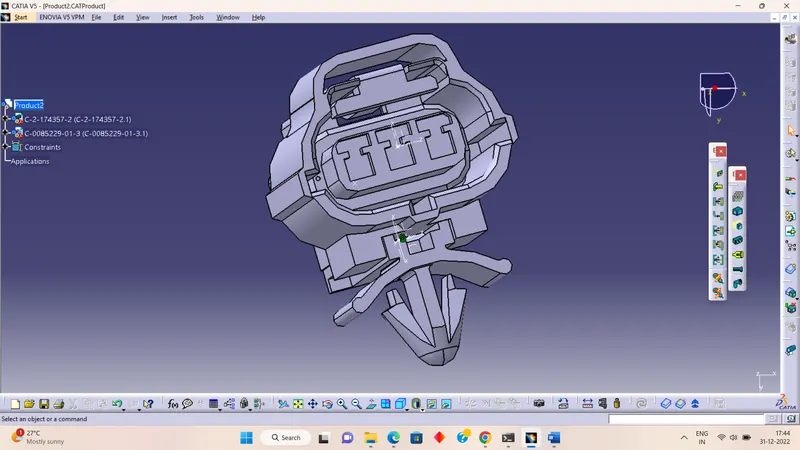

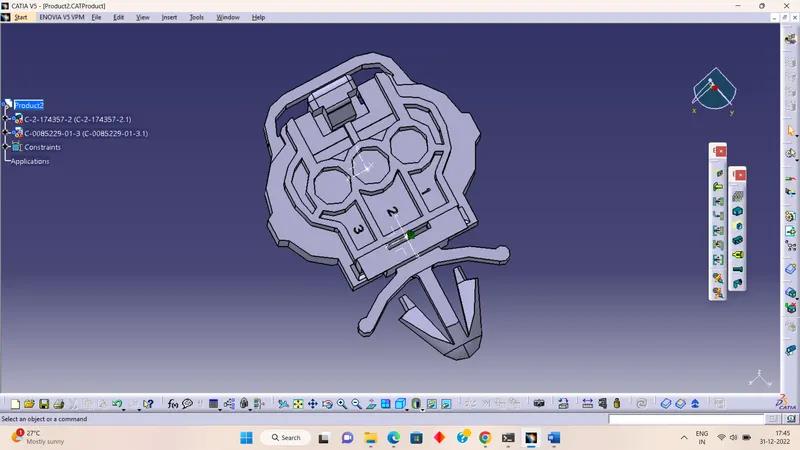

We completed the assembly as shown above.
