Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Wiring harness design in CATIA V5 - 3D modelling Week 2 Challenge

Aim:

Download the following connectors & Connector clip cad data from the given link & define it as Electrical Connector using Electrical Part design Workbench.

Define all the necessary properties of Connectors & clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

2. Tyco 174357-2- (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

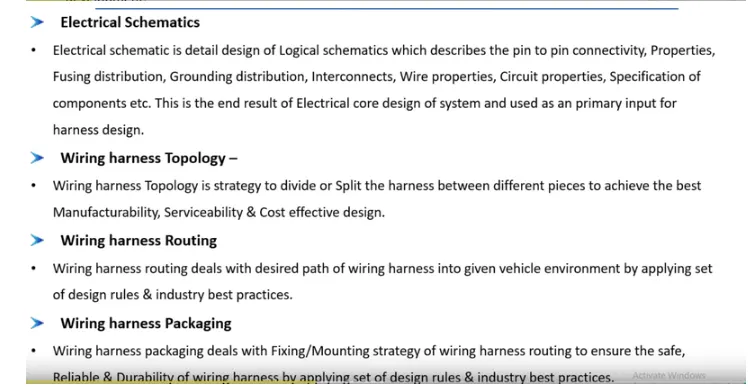

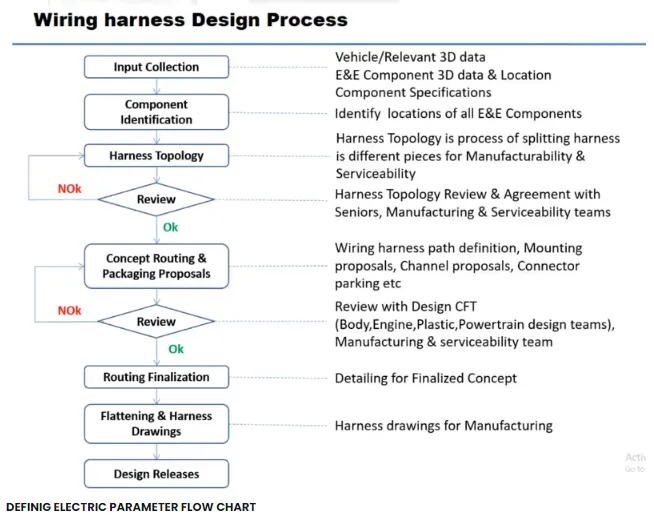

Introduction about wiring harness:

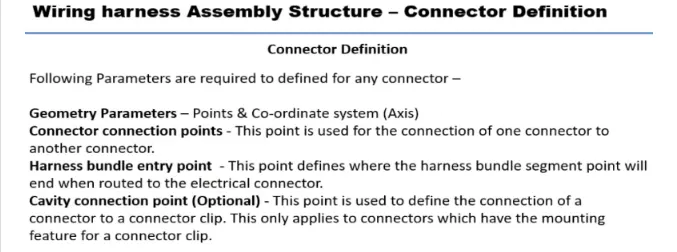

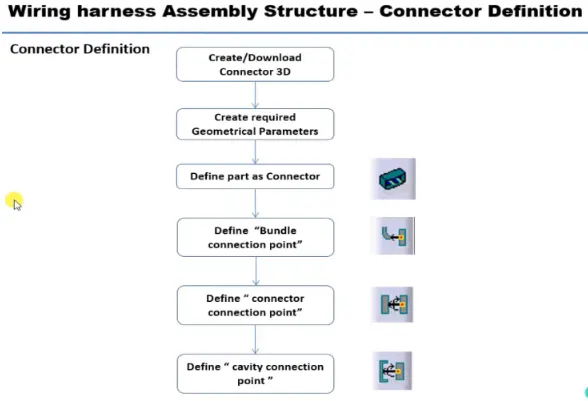

Connector definitions in CATIA V5

Deutsch DT06 – 08SA

Connector connection point:

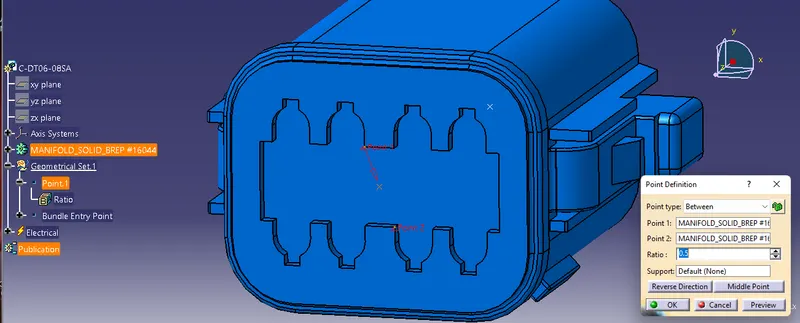

Creating a midpoint on the contact face will be normal to the wiring bundle insertion.

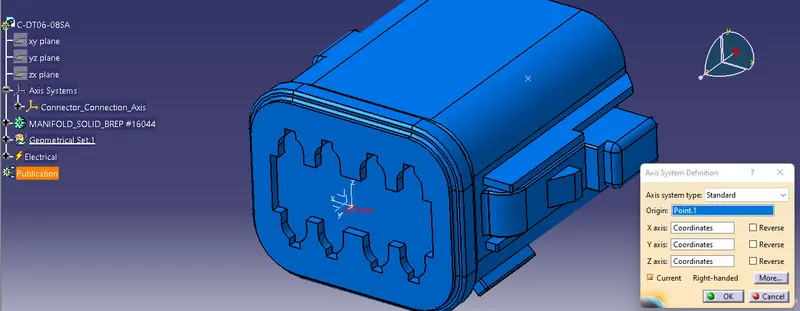

Create Axis System with respect to the point and define the axis direction as shown below.

Bundle connection point:

Switch to Electric Part Design

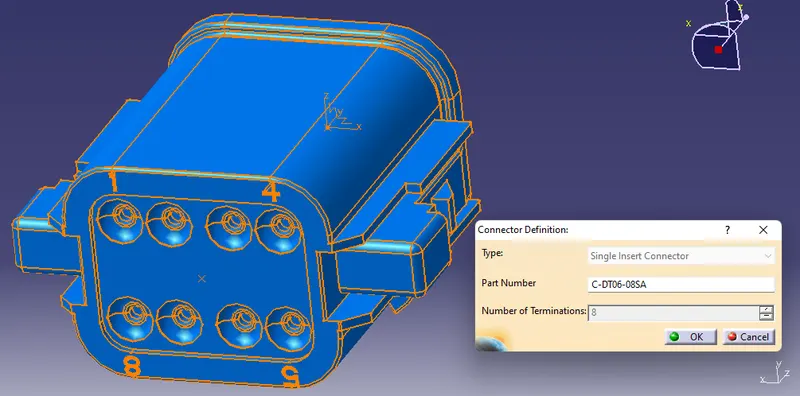

Defining the part like a connector in CATIA, give no of termination as 8 because we have 8 entry points for wire.

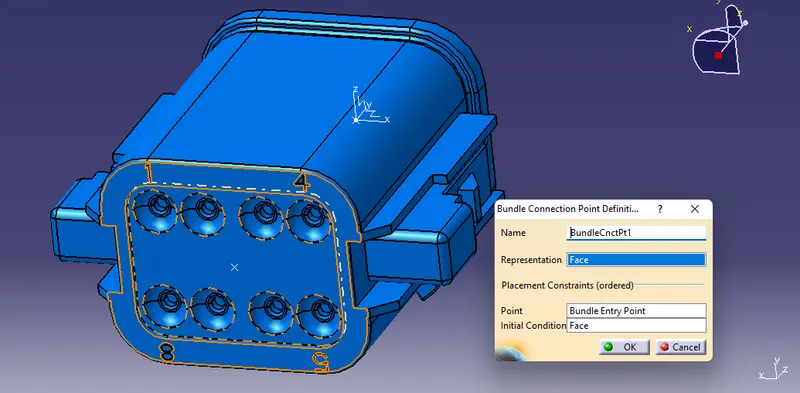

Define Bundle connection point

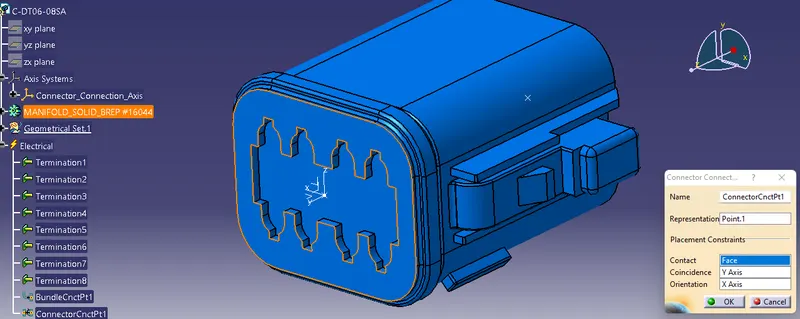

Define connector connection point:

2. Tyco 174357-2 :

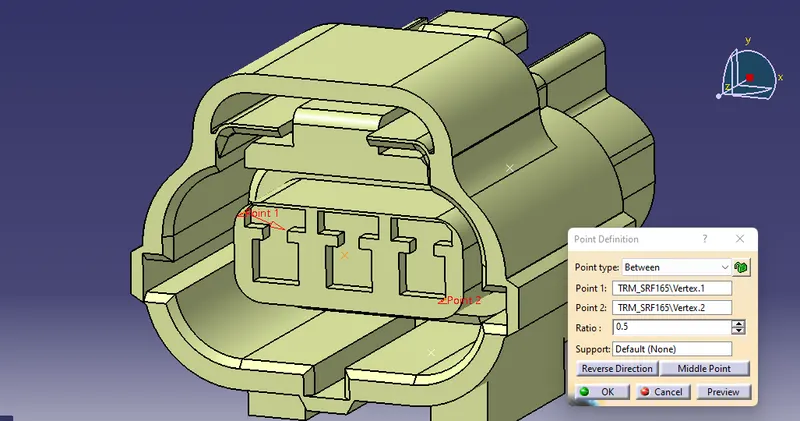

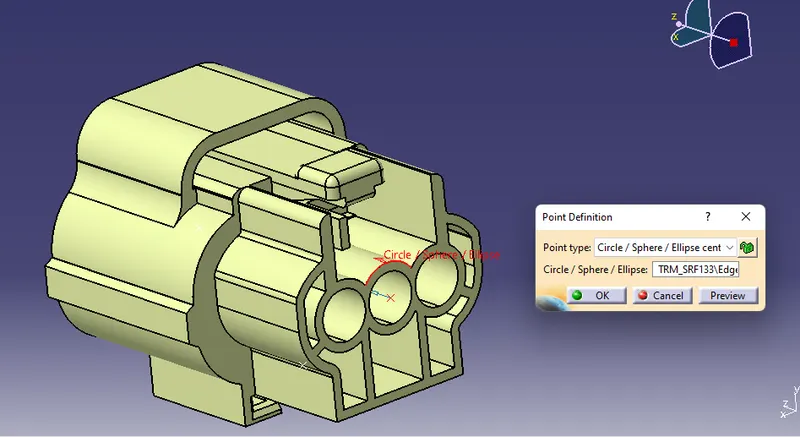

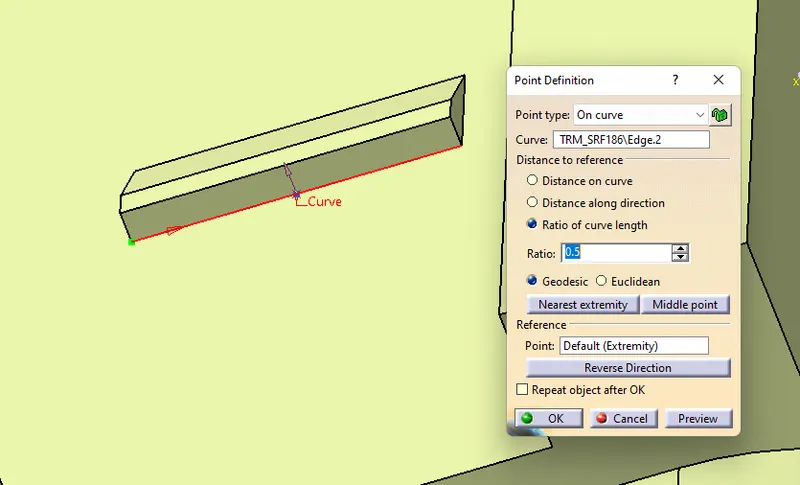

Create a midpoint

Create a Connector connection point

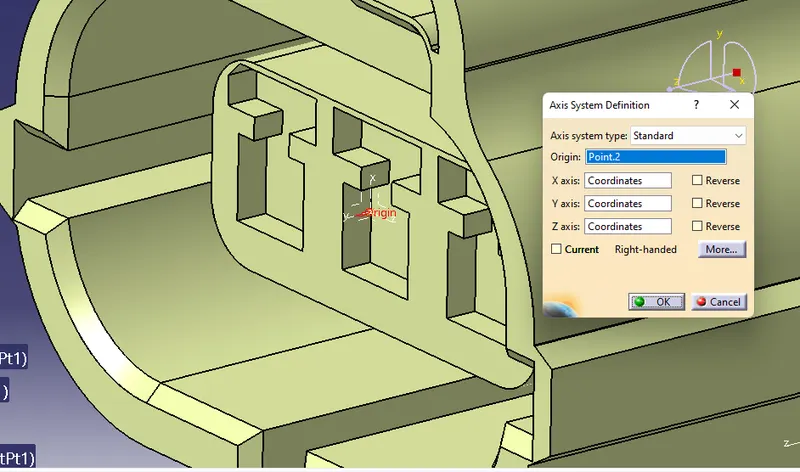

Create a Connector connection axis system

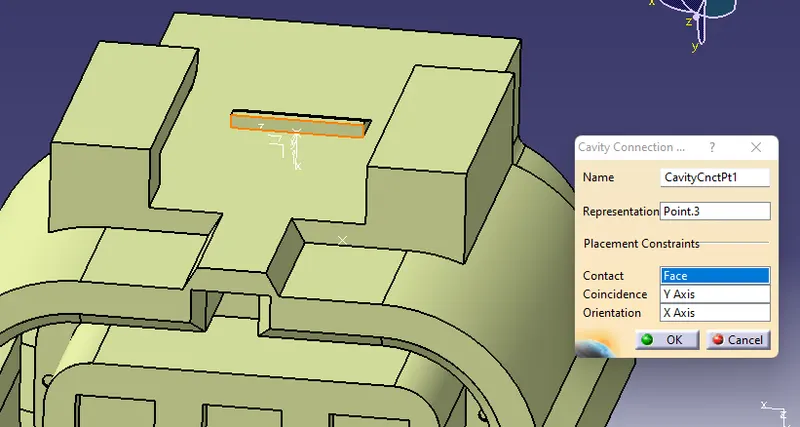

Create a Cavity connection point

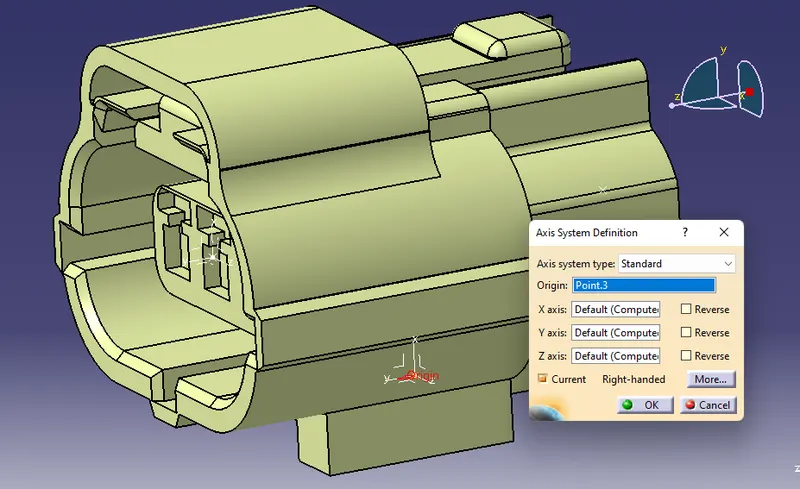

Create a Cavity connection axis system

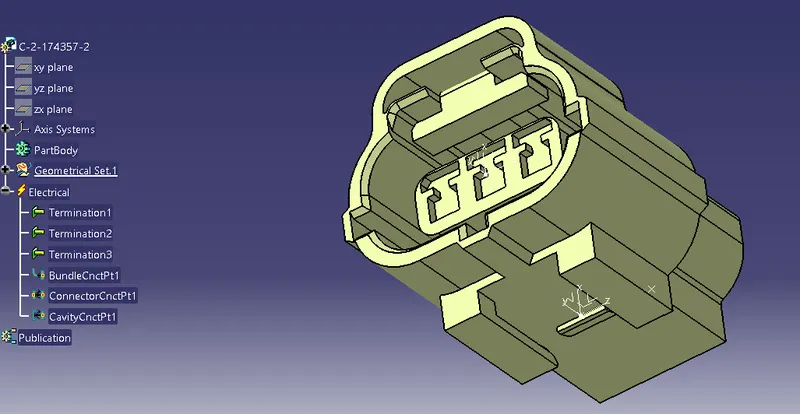

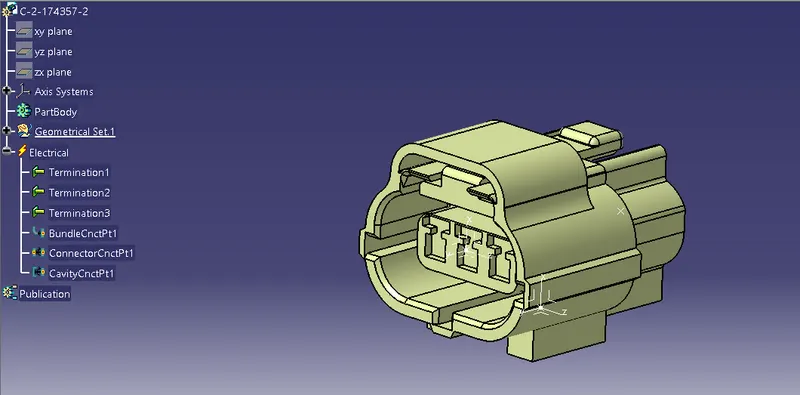

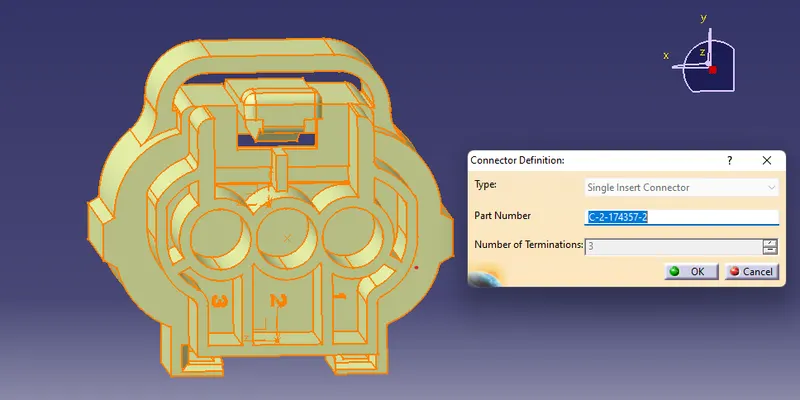

Switch to Electric part design and define the connector

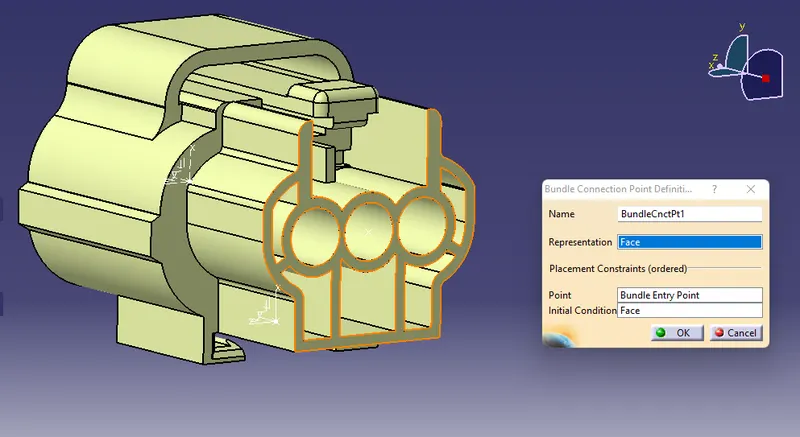

Define Bundle connection point

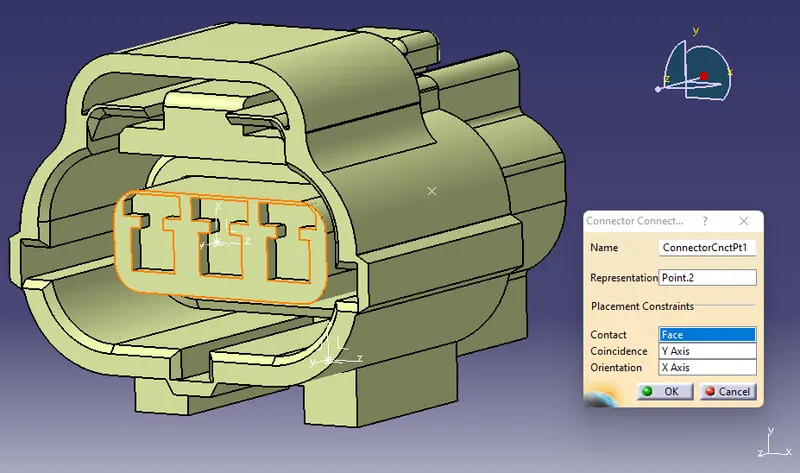

Define connector connection point

Define Cavity connection point

3. Tyco 85229-1

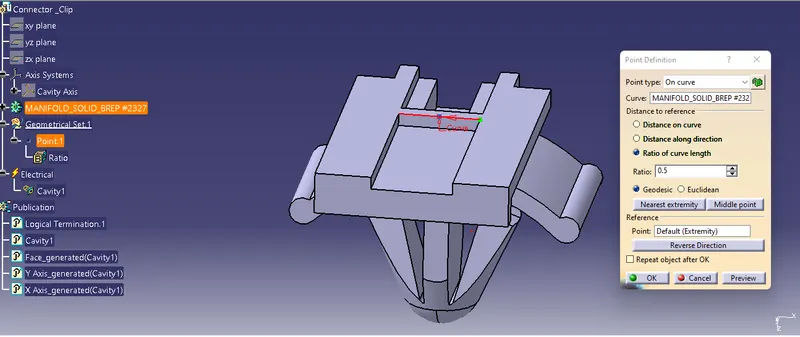

Create a Cavity connection point

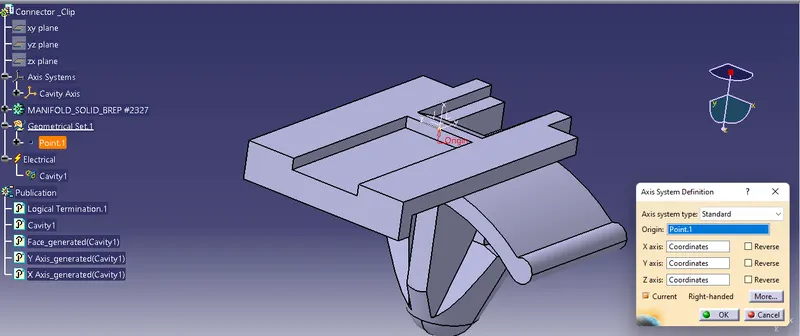

Cavity Axis System

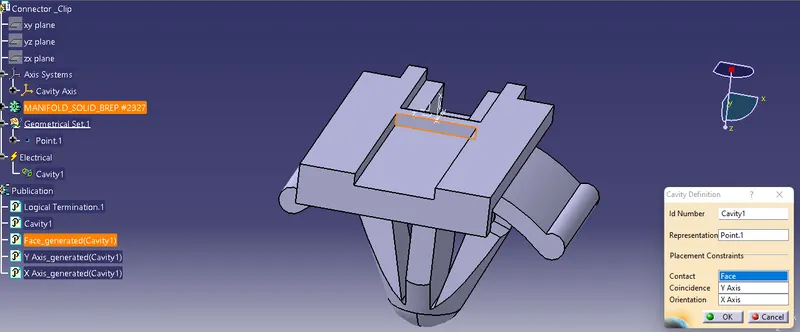

Switch to Electrical part design and define mounting Equipment

Define Cavity Cavity connection point

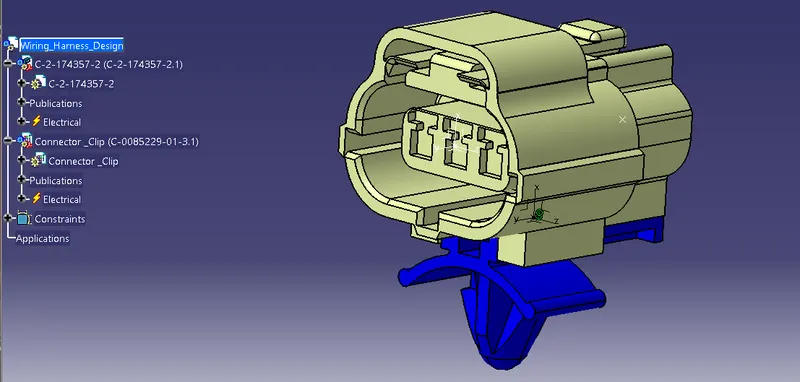

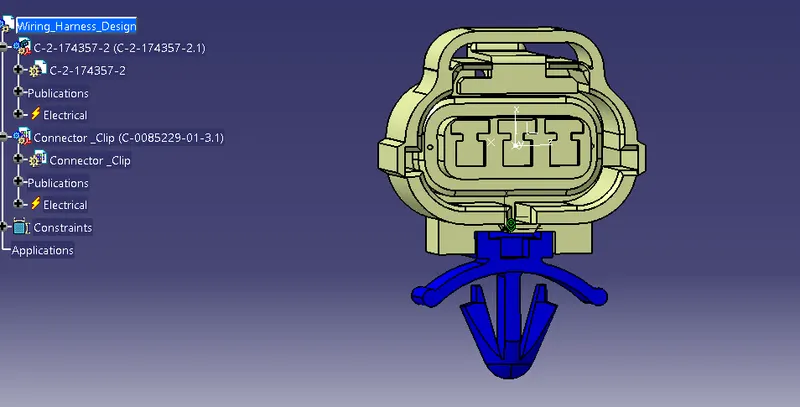

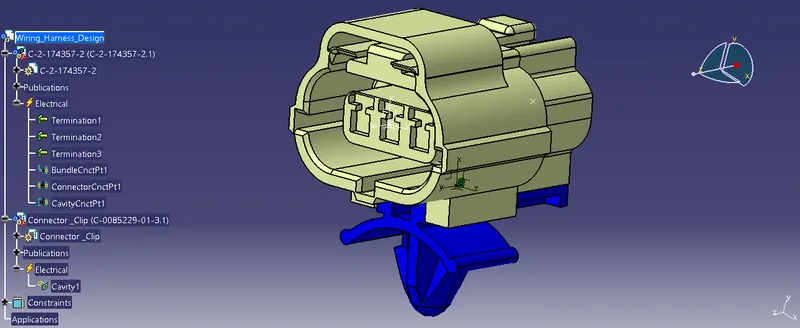

Electric Assembly Design

• Import connector and cavity/mounting clip
• Select defining Electric connection
• select cavity and then connector.
