Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
AIM:
Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.
- Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
- Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
- Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header
INTRODUCTION TO WIRE HARNESS
CONNECTOR DEFINATIONS IN CATIA V5
1. Deutsch DT06 – 08SA
Connector connection point:

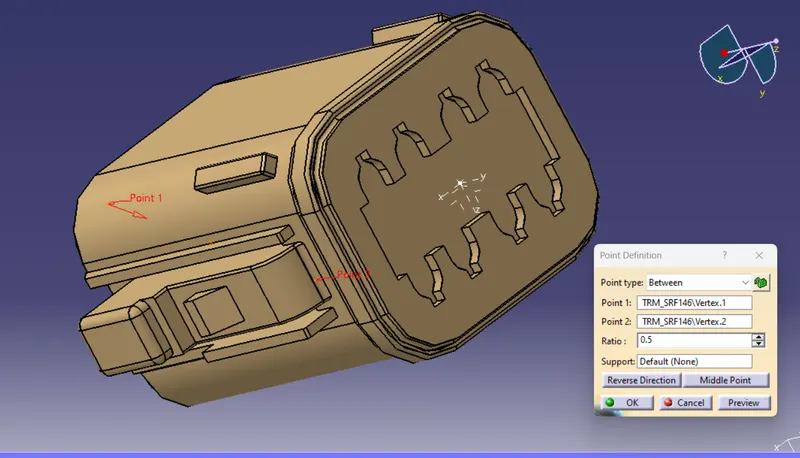

Create midpoint on the contact face which will be normal to wire bunddle insertion.
- THE CONNECTOR IS FIRST UPLOADED IN THE PART DESIGN WORKBENCH

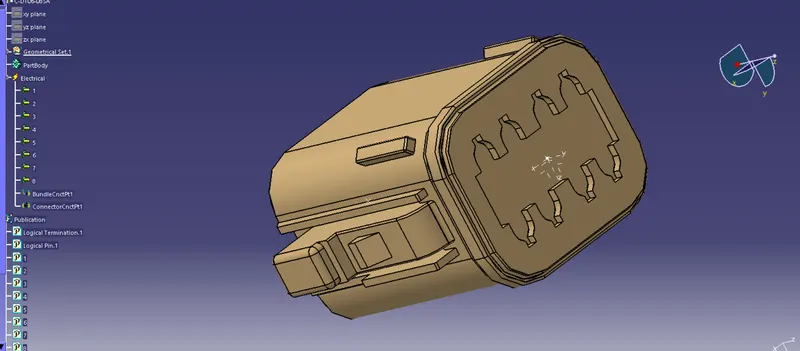

- WE DEFINE THE POINTS FOR CONNECTOR CONNECTION AND BUNDLE CONNECTION.
- THE AXIS SYSTEMS ARE PLACED ON THE CONNECTOR CONNECTION AND CAVITY CONNECTION POINTS
- THE ORIENTATION OF THE AXIS SYSTEM IS NOT SPECIFIC, WE JUST NEED TO FOLLOW A SIMILAR ORIENTATION FOR ALL THE PARTS.
- HERE THE Y-AXIS IS IN THE DIRECTION OF THE CONNECTION, Z-AXIS ALONG WITH THE CLIP MOUNTING AND X-AXIS ALONG BOTTOM TO TOP.

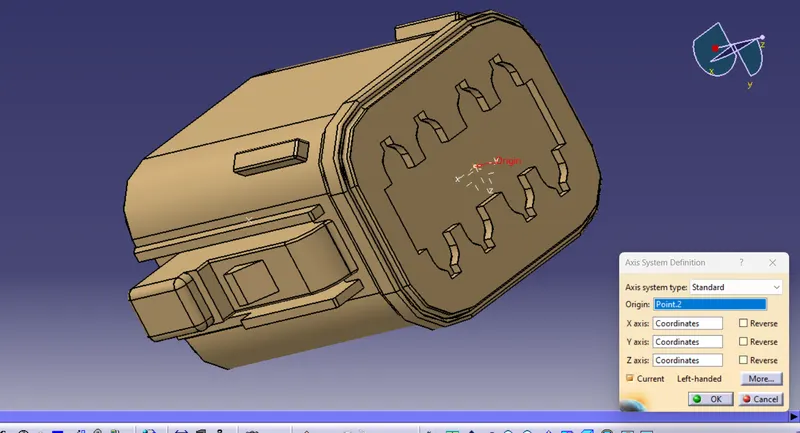

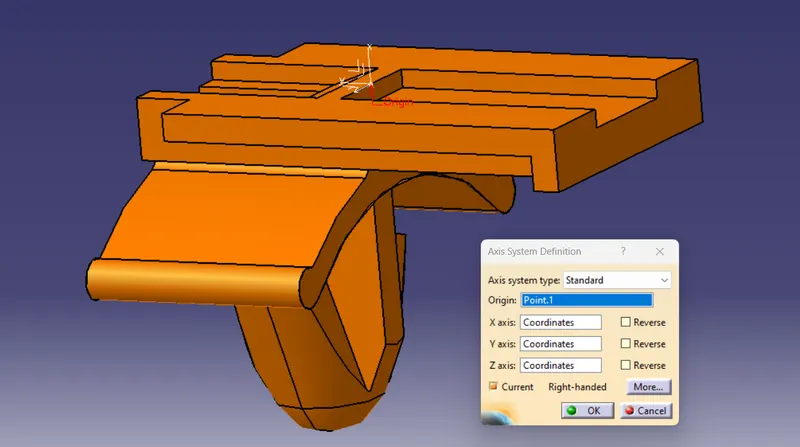

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

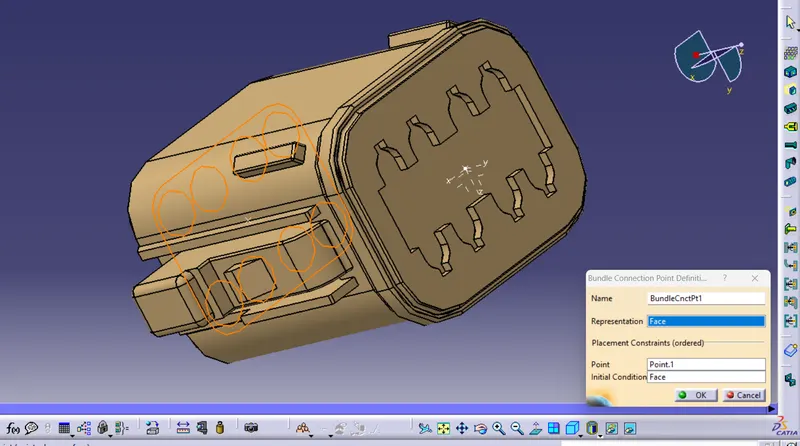

Bundle connection point:

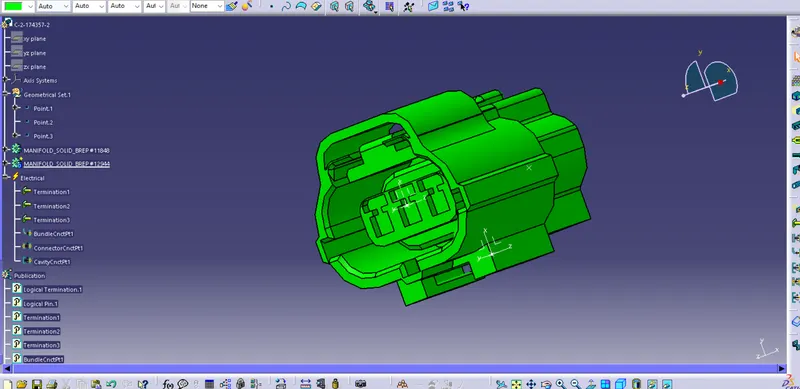

2.Tyco 174357-2 :
- Create midpoint
- create Connector connection point
- create Connector connection axis system
- create cavity connection point
- create cavity connection axis system

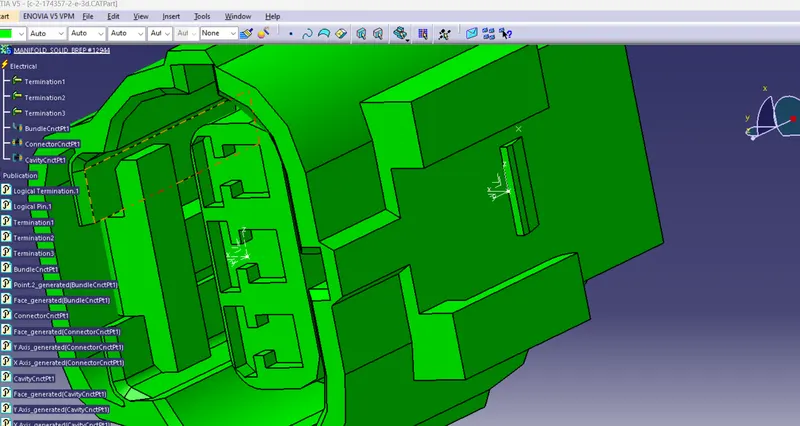

- Switch to Electric part design and define part as connector
- Define Connector connection point and cavity connection point
3. Tyco 85229-1 :
- Create midpoint

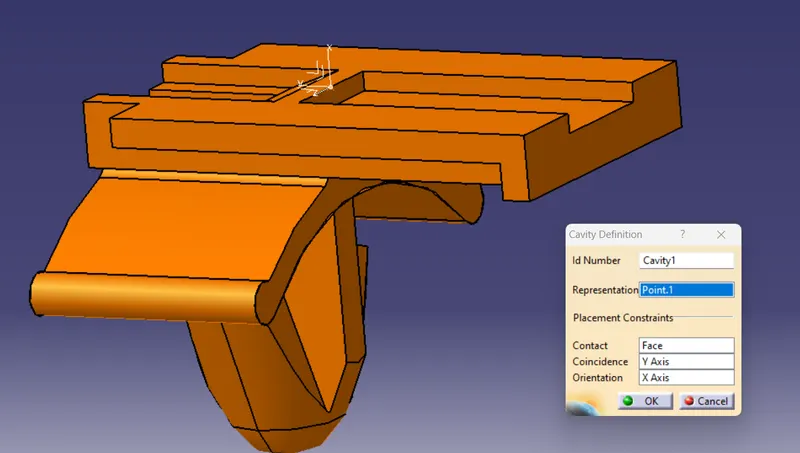

- create cavity connection point
- create cavity connection axis system and orientation should be same as in connector

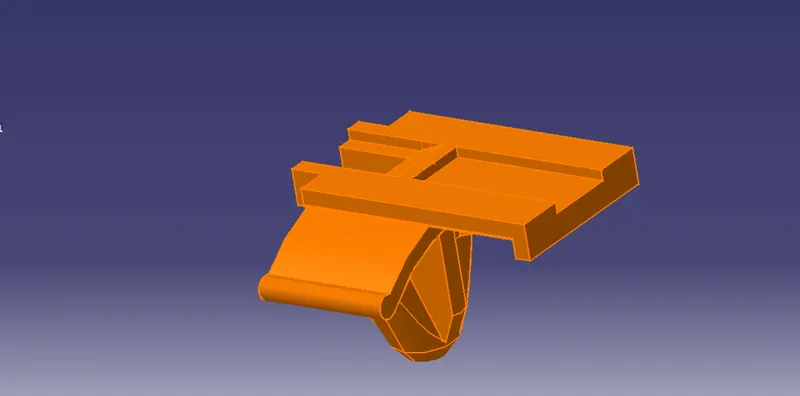

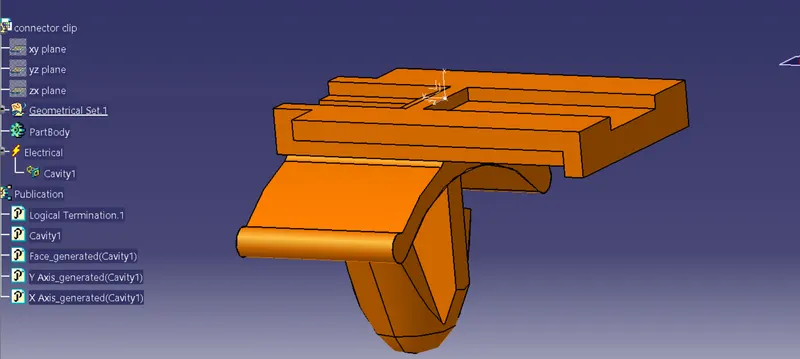

- Switch to Electric part design and define part as Mounting Equipment
- Define cavity connection point

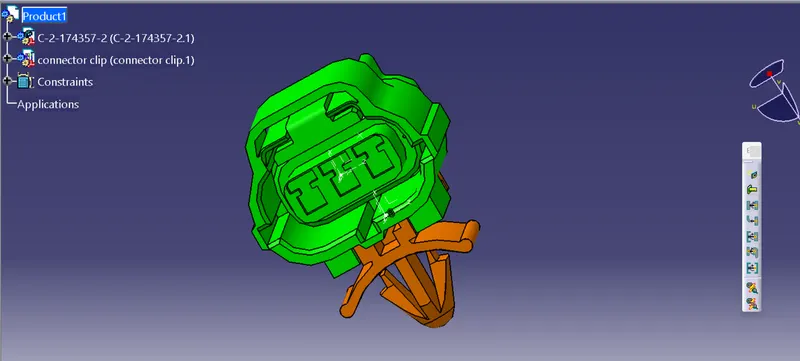

Electric Assembly Design

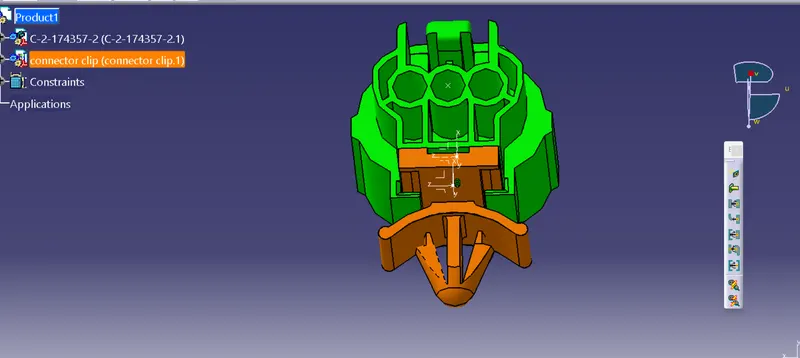

- Import Connector and cavity / mounting clip.
- Select Defing Eelectric connection
- select cavity and then connector.
