Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Wiring harness design in CATIA V5 - 3D modeling

Q.- Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

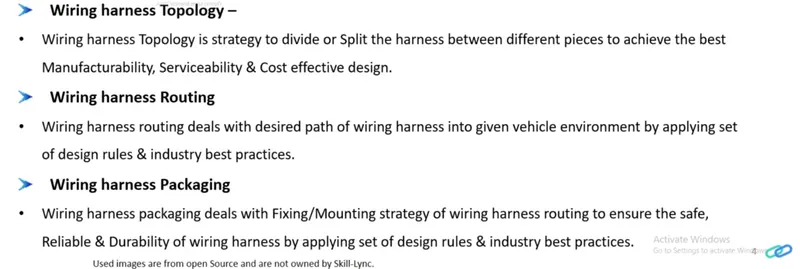

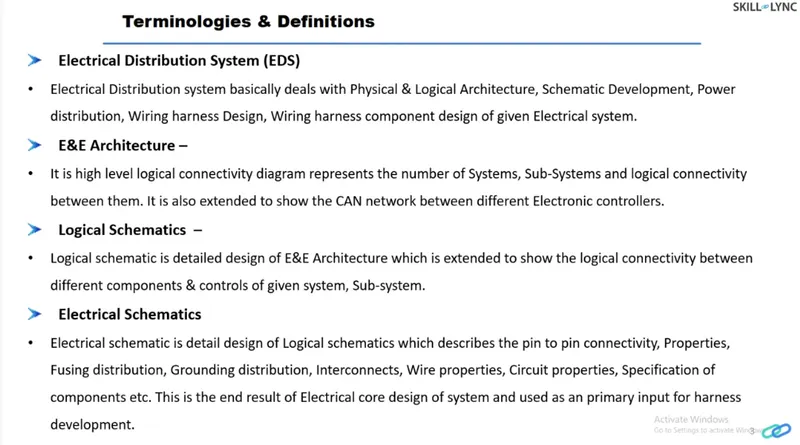

Wiring harness Terminology and Definition-

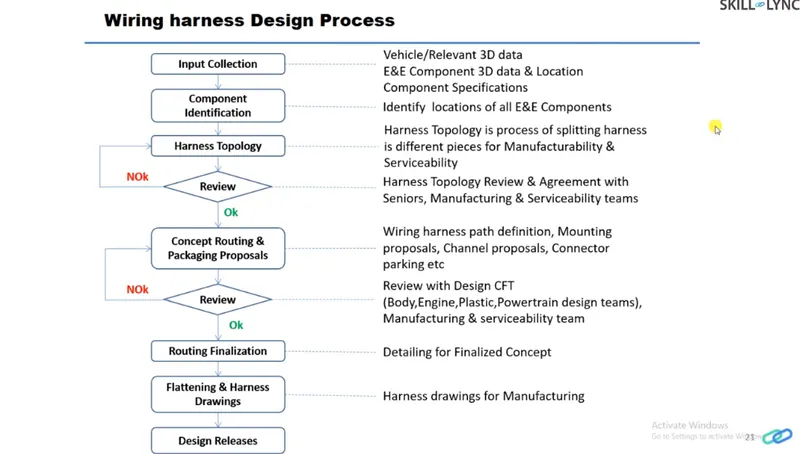

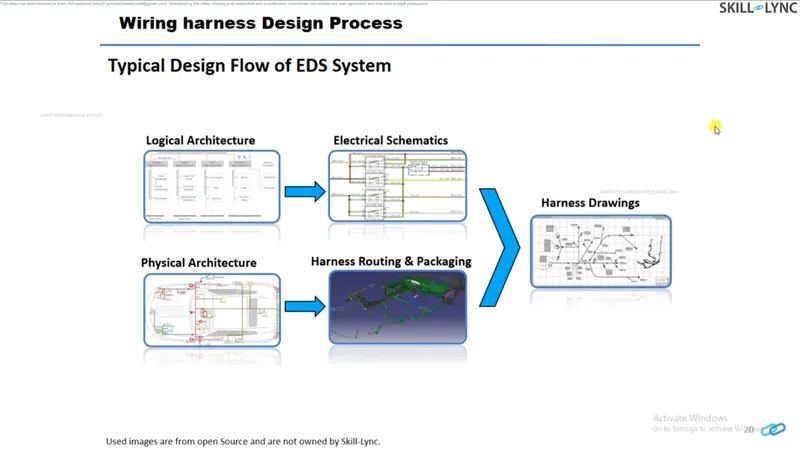

Wiring harness design Process-

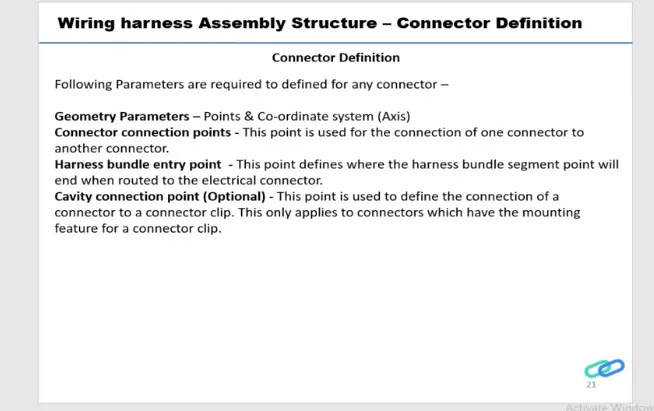

Deifining connector in CATIA V5:-

Geometry Parameters-

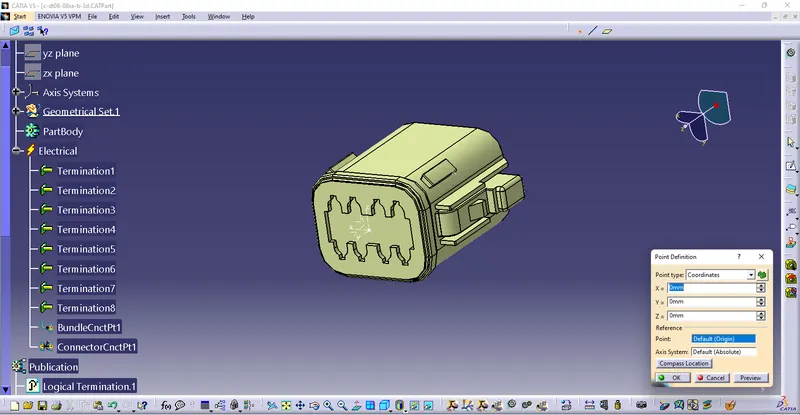

Create a Point-

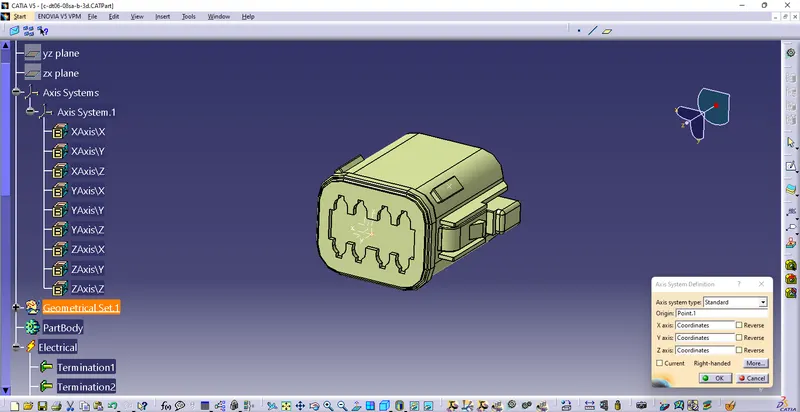

Create a Axis System-

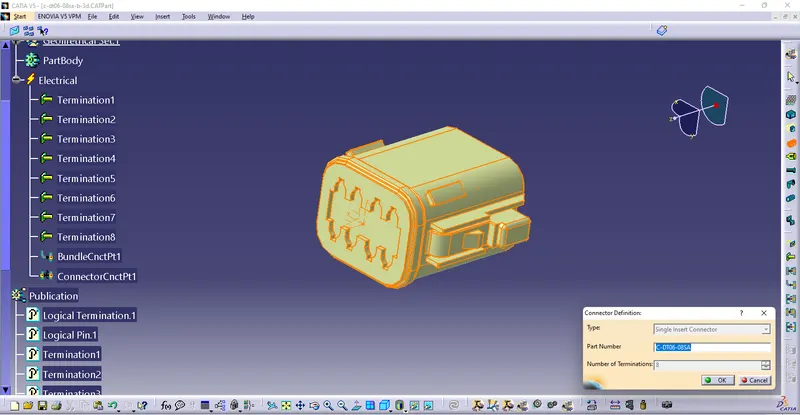

Deifine part as Connector-

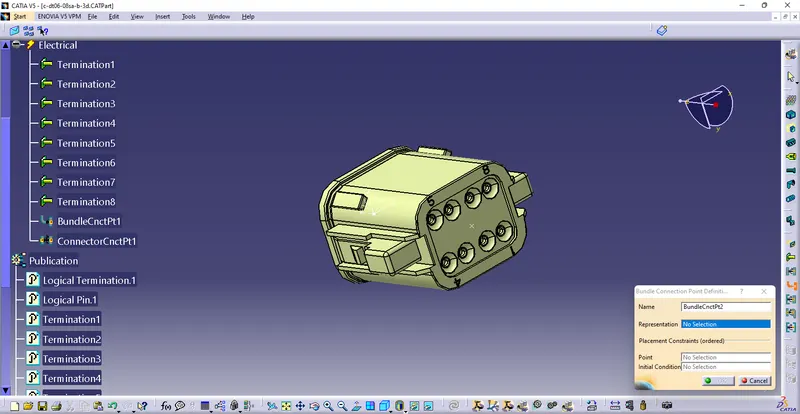

Dedine Bundle Connection Point-

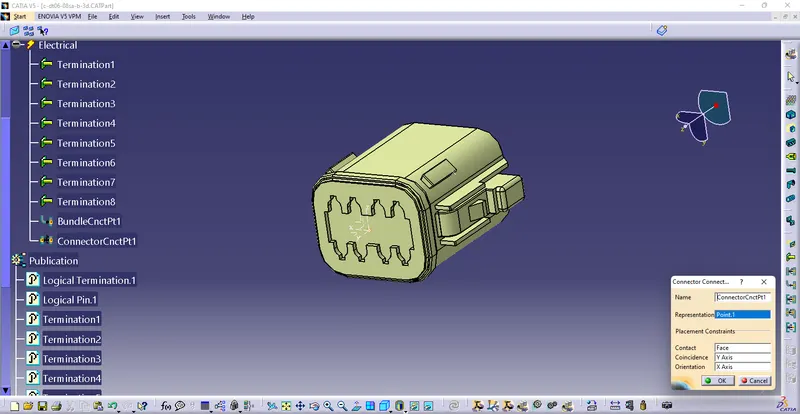

Define Connector Connection Point-

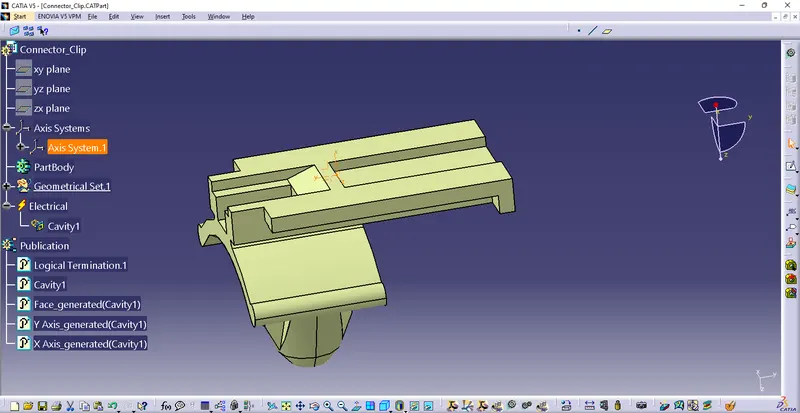

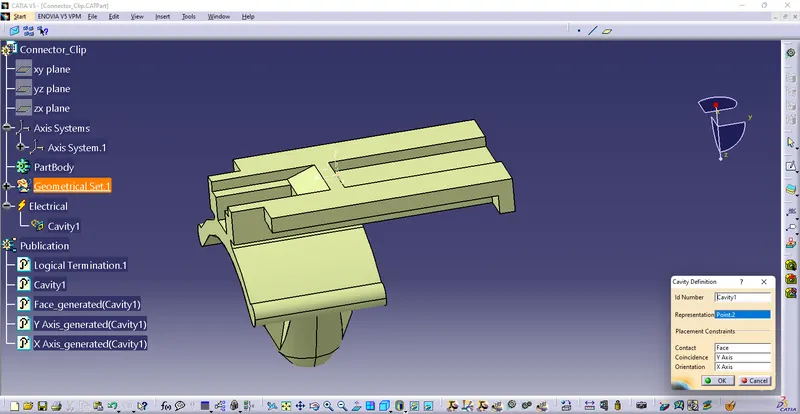

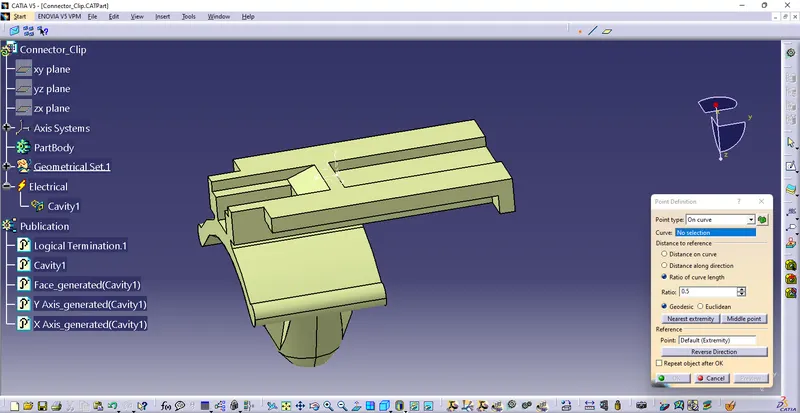

Define Cavity Connection Point in CATIA V5-

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point.

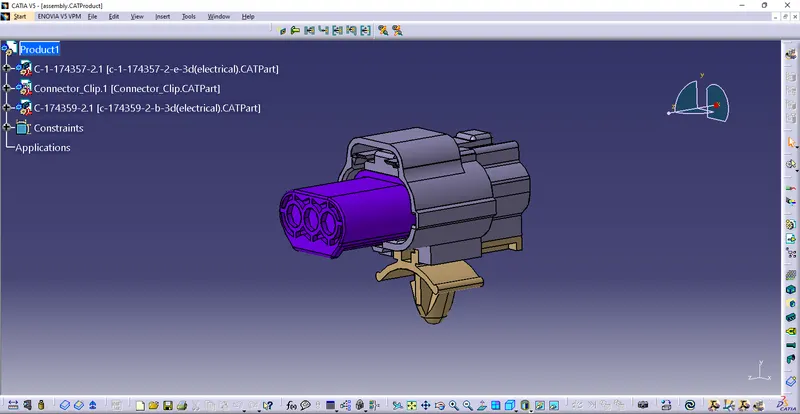

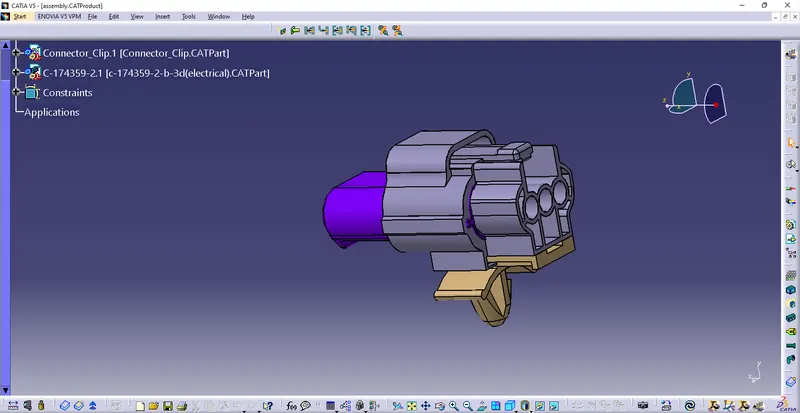

ASSEMBLY-

• Import Different Parts.
• Select Defing Eelectric connection.
• select cavity and then connector.

Catalog-

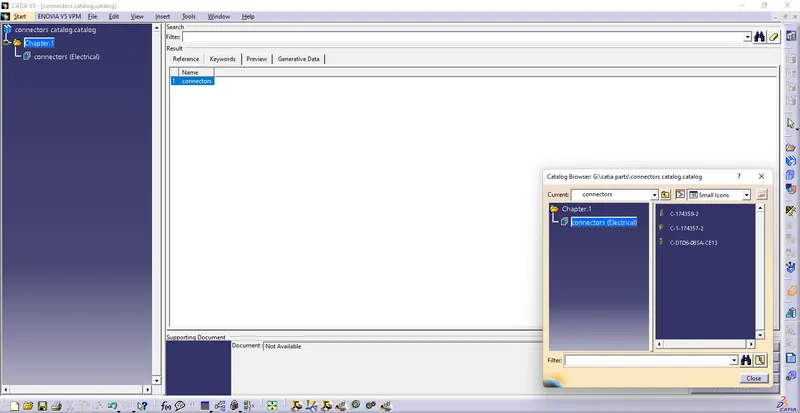

Created a Catalog for Connector-

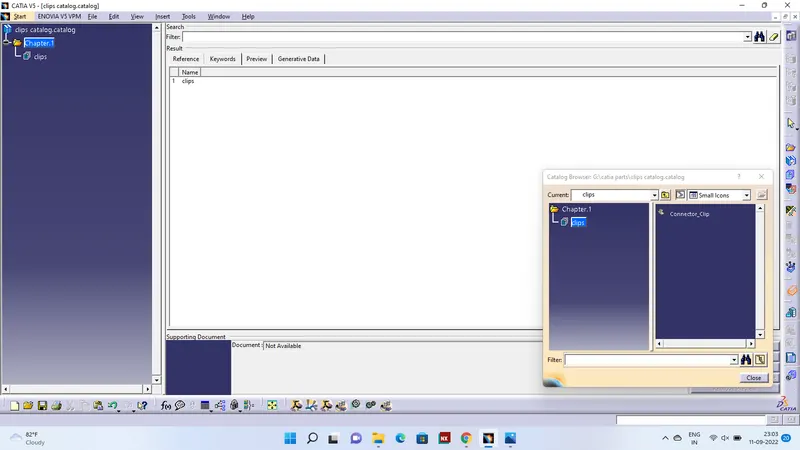

Created a Catalog for Clips-
