Week 9 - Project - A pillar Design with Master Section

A pillar design with master section

Aim

To create the A pillar solid body with respect to the given master section .

Objectives

• To create the tooling axis .
• To create class B and class C surface .
• To create the closed surface .
• To create the solid body.
• To create the doghouse according to the master section.

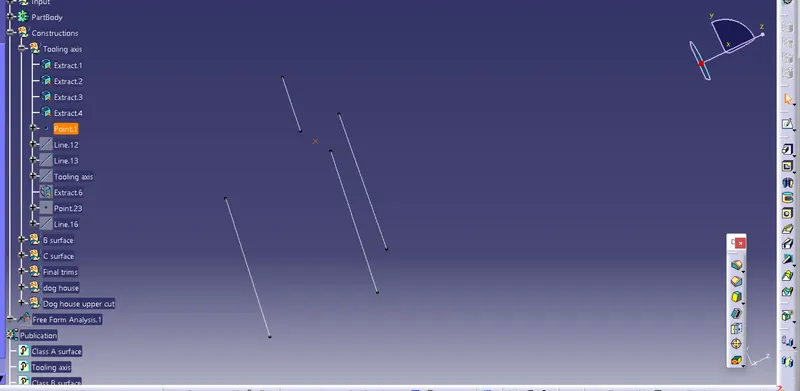

Creation of tooling axis

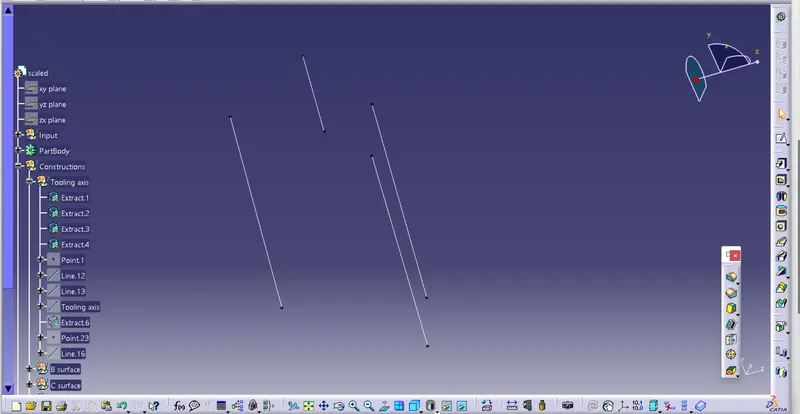

extract the which faces gonna make the difficult for tooling . Here takes the line instead of faces from the master section.

Take the midpoint between from those lines .

Create the bisecting line between those lines and its our main tooling axis .

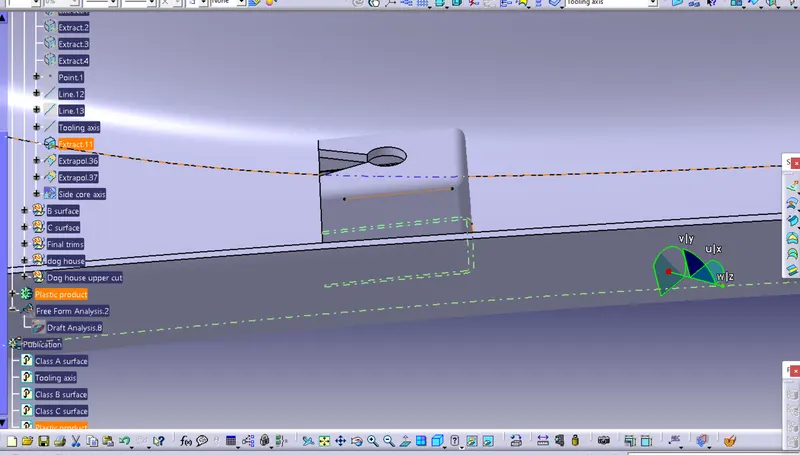

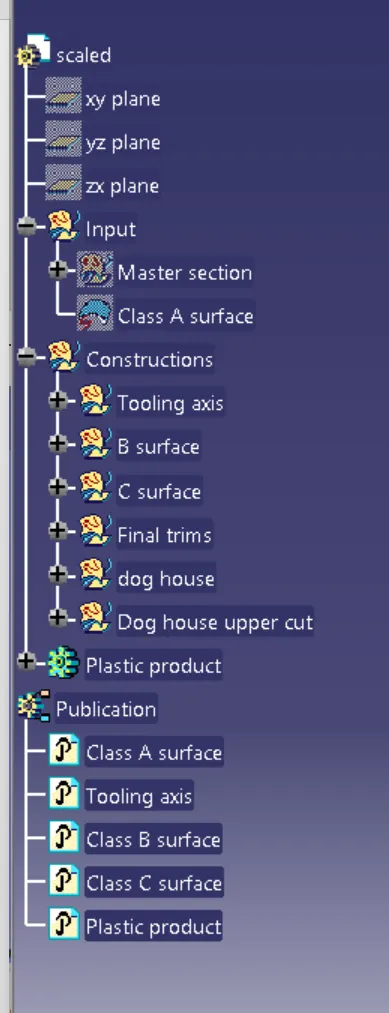

Tree structure

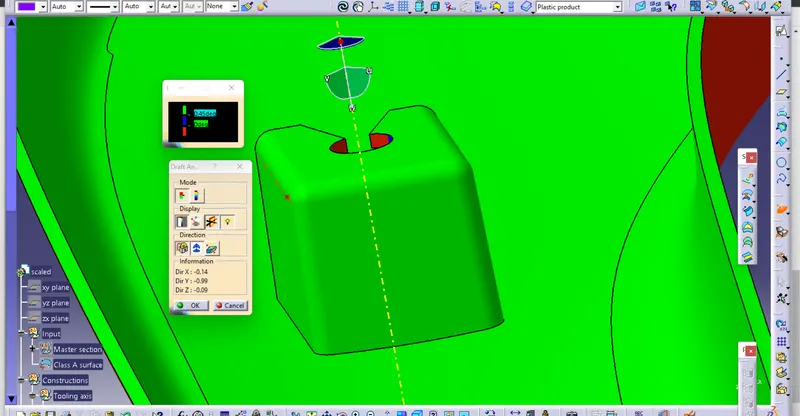

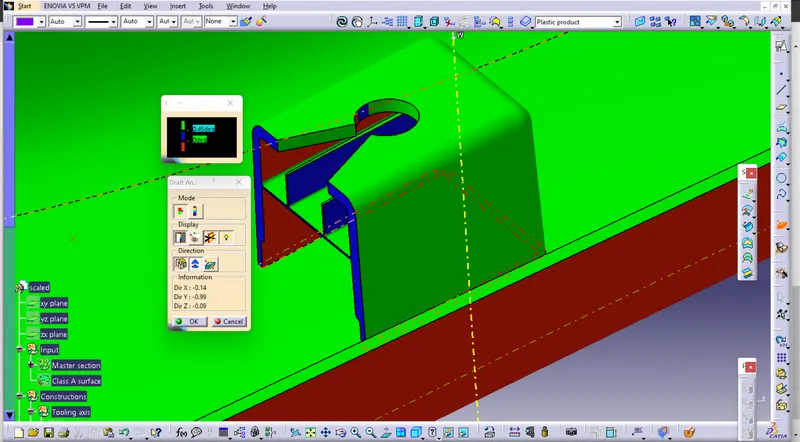

Draft analysis with main core axis

Side core tooling creation

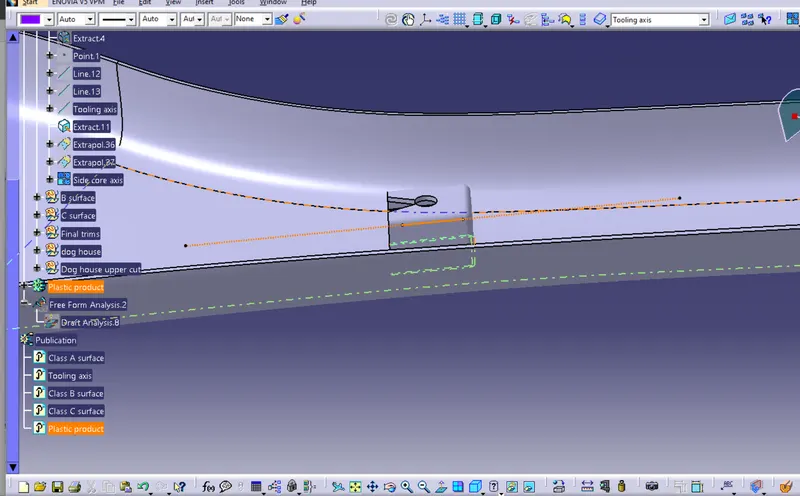

Extract the line which from the master section , thats used for the extrude for the doghouse creation.

extrapolate that line on both the direction

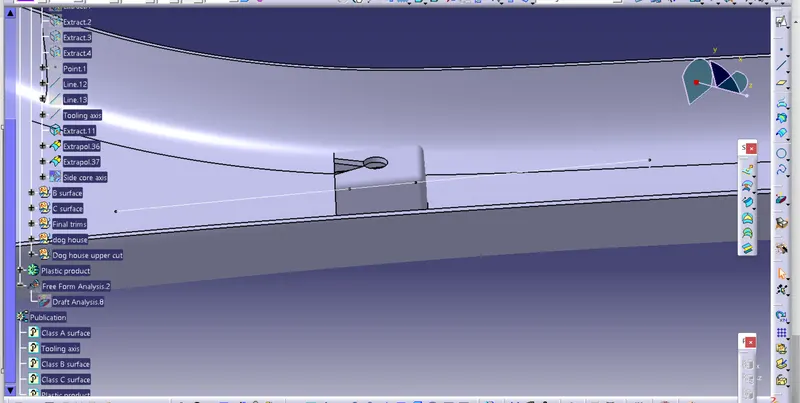

THen join those lines .

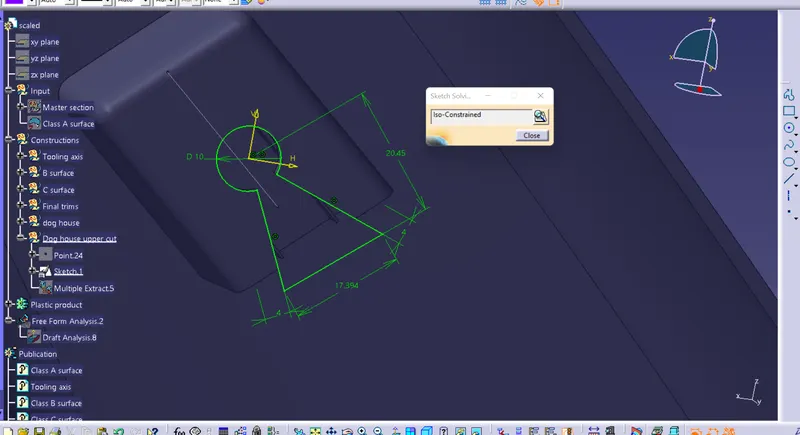

Sketch for pocket on doghouse

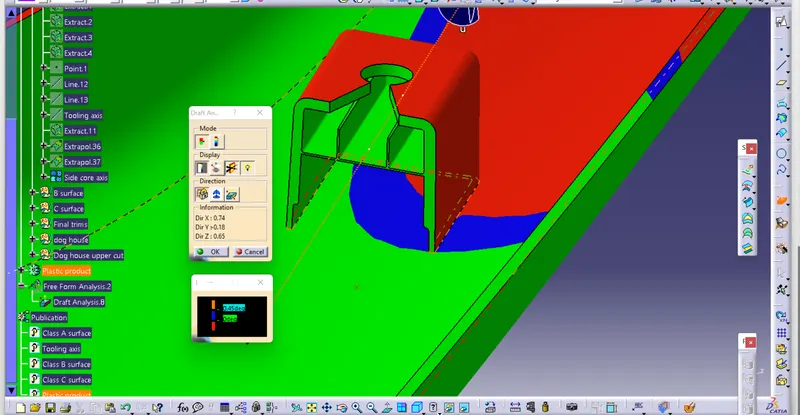

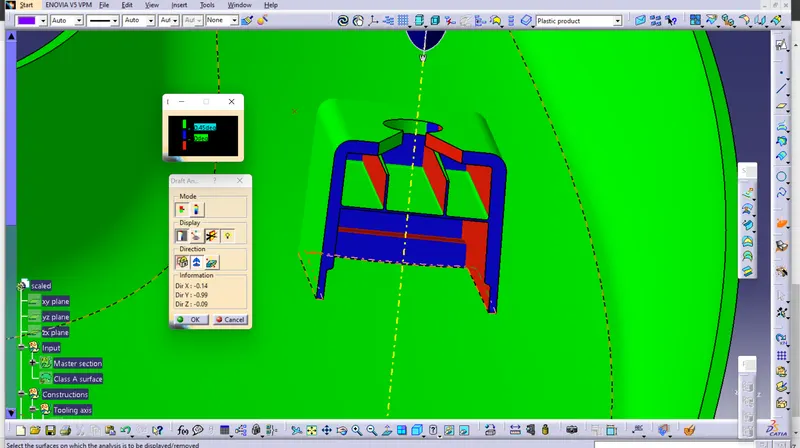

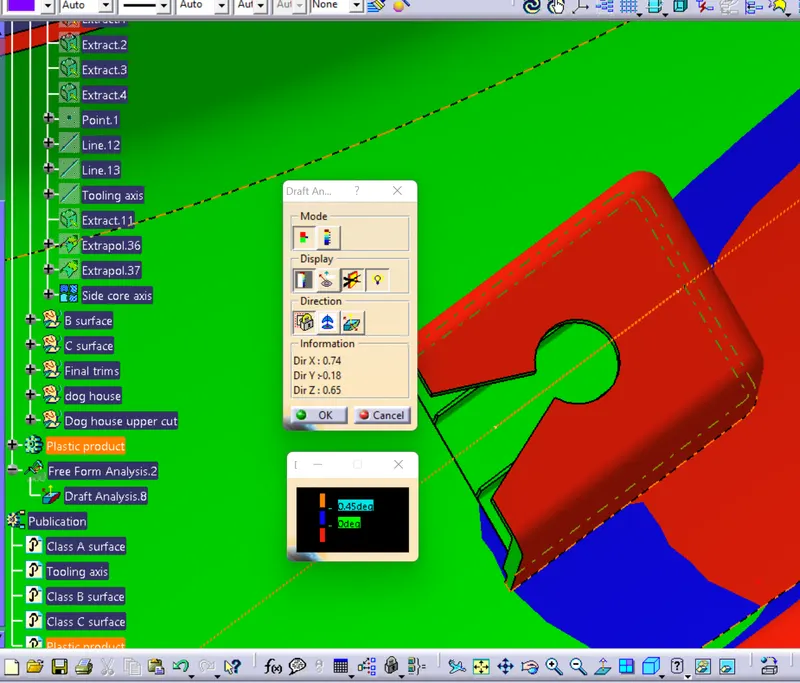

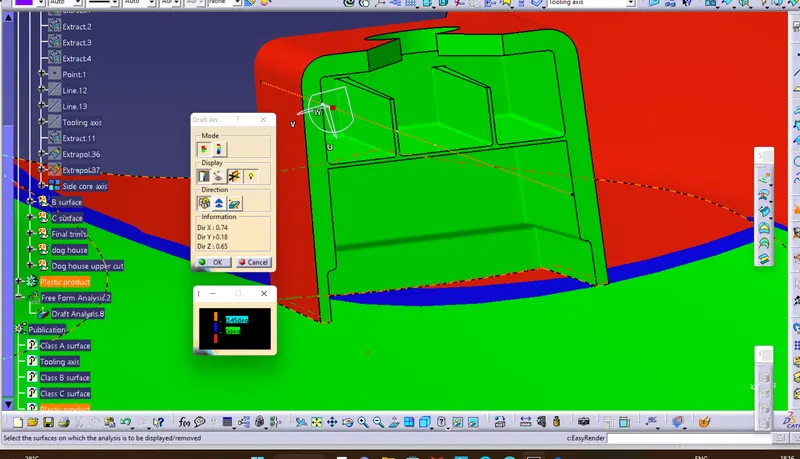

DRaft analysis with side core axis.

Conclusion

The final A pillar with doghouse features is created through the given master section.
