Week 9 - Project - A pillar Design with Master Section
- Report on creation of tooling axis
REPORT ON CREATION OF TOOLING AXIS

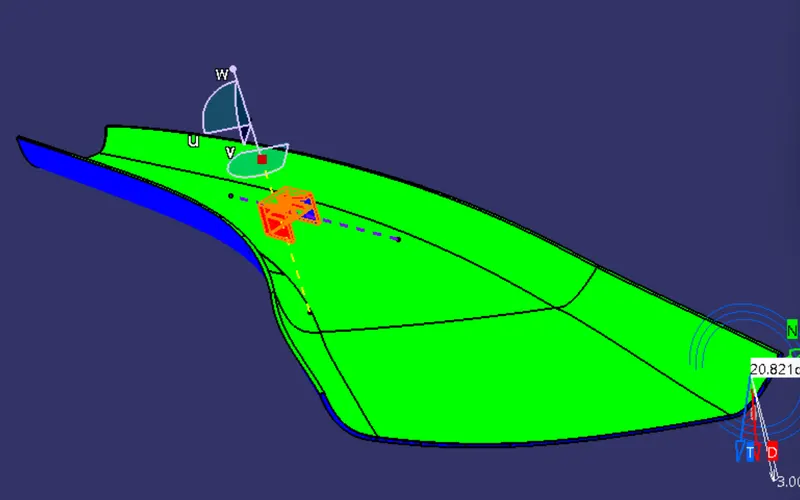

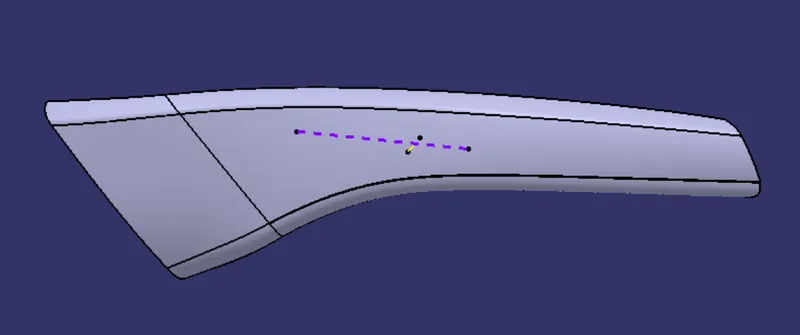

The specimen provided was a door trim. A tooling axis was created for the A surface considering the draft constraints. With respect to tooling axis a B-surface and C-surface was created.

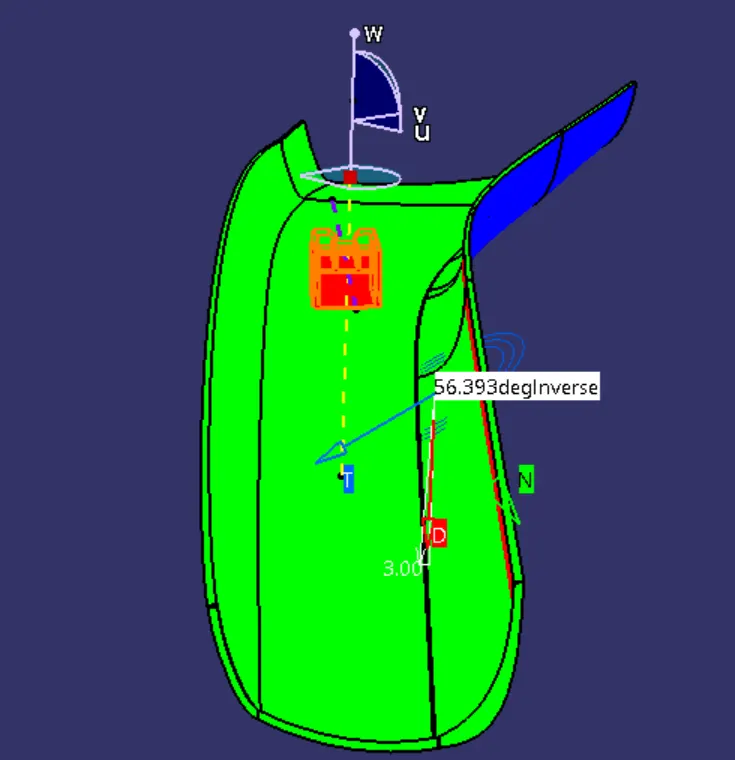

Tooling axis was created by considering all the draft requirements. Different tooling axes were created on different axis. Finally a tooling axis was selected by the bisecting method.

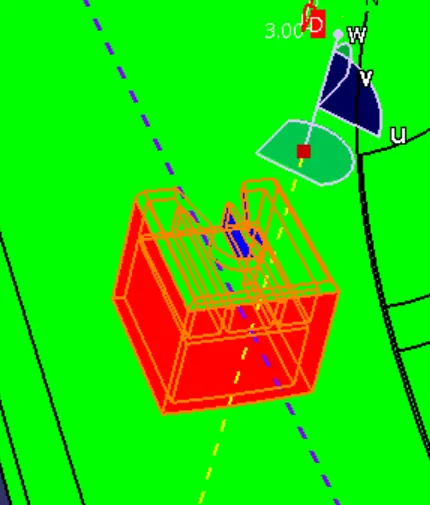

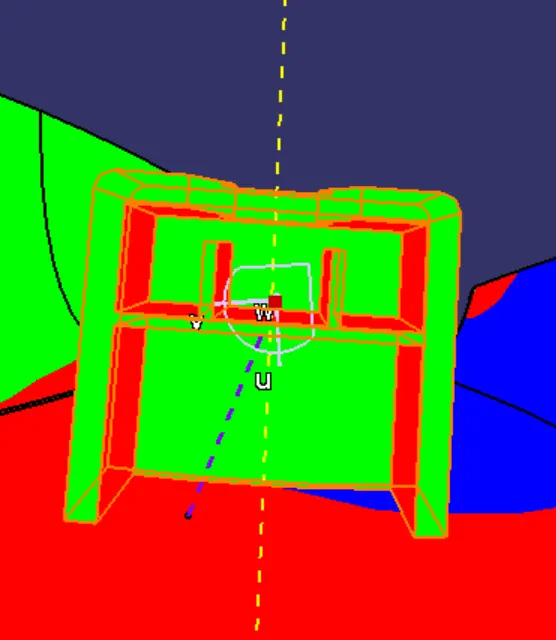

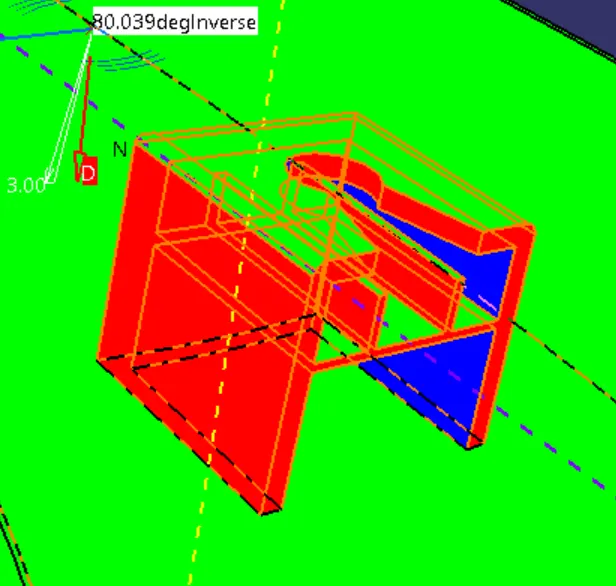

- Dog house, Draft with respect to side core axis.

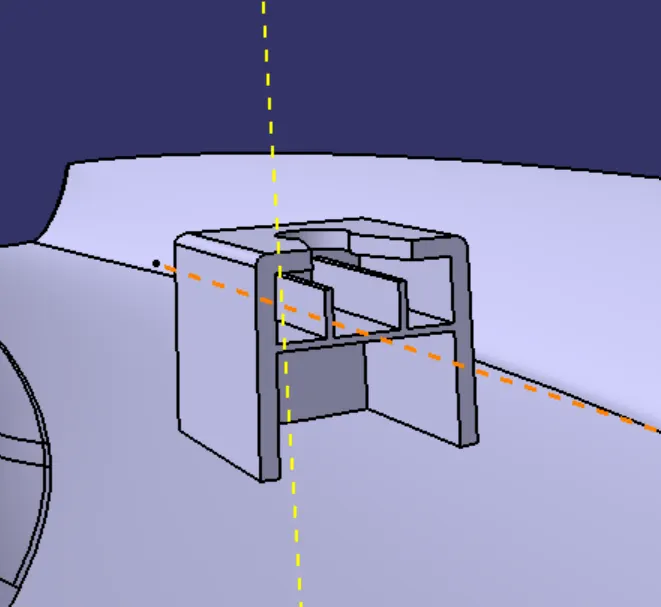

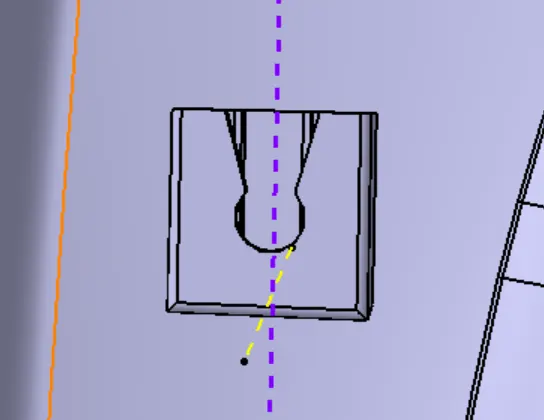

- Dog house

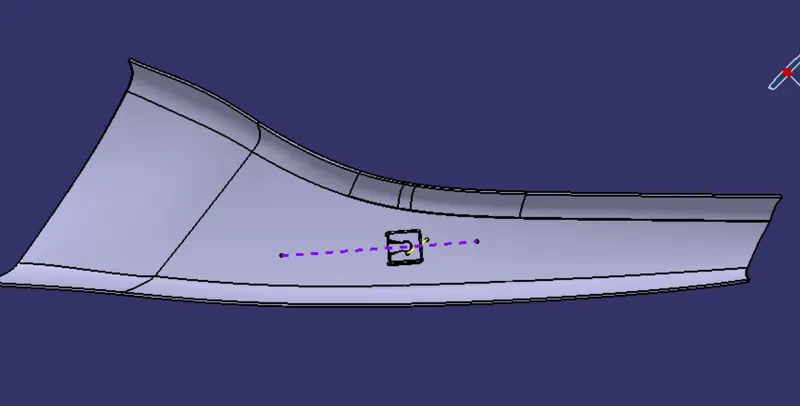

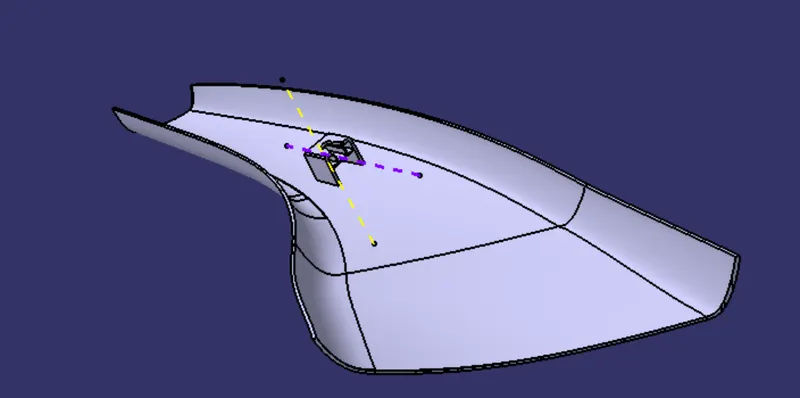

- Views of solid
