Week 8 - Challenge 3 - Coin Holder Design
- Report on draft analysis?

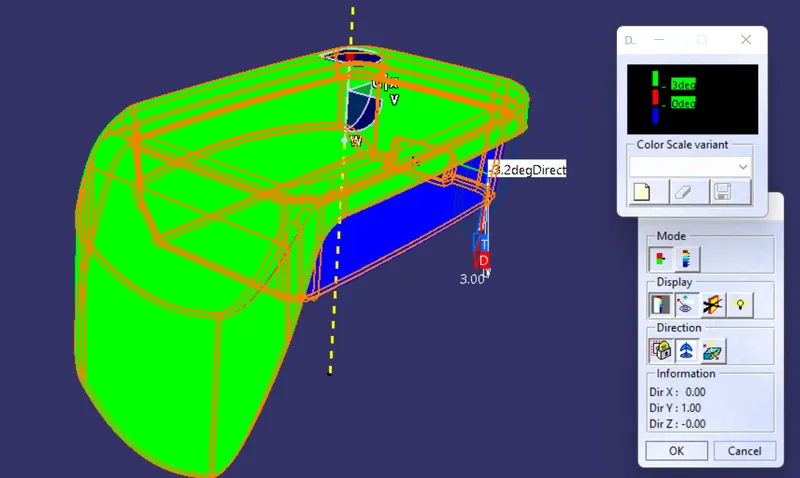

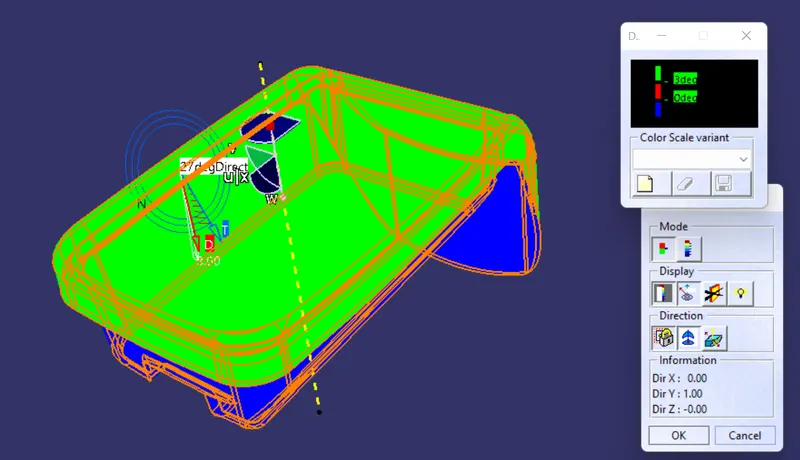

DRAFT ANALYSIS
Tooling axis was created which have more than the minimum inclination to all the surfaces.
Tooling axis was created by drawing a line perpendicular to the base surface. Since the given surface shares a base with proper inclination to all the surfaces

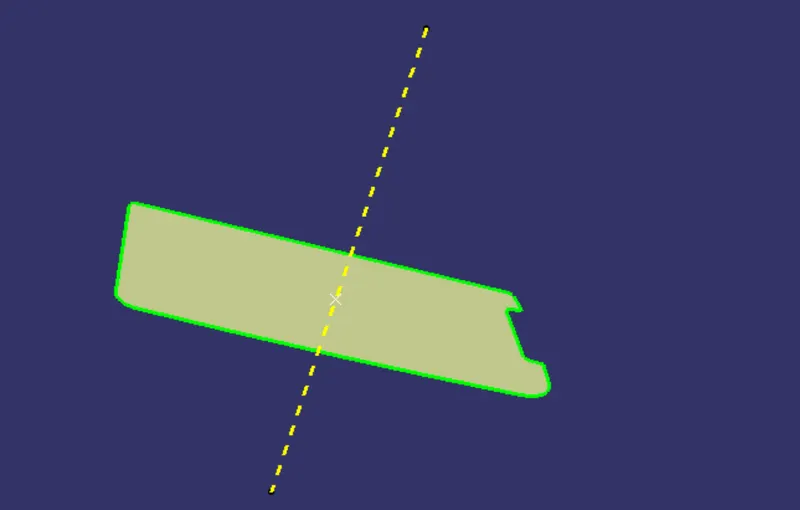

The base surface of the given drawing was extracted and found the centre point of the line. Then a line was drawn perpendicular to the surface through the point. Finally tooling axis was created
RESULT

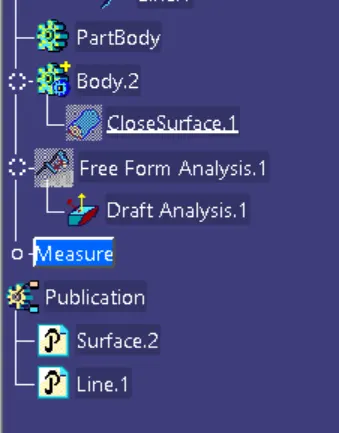

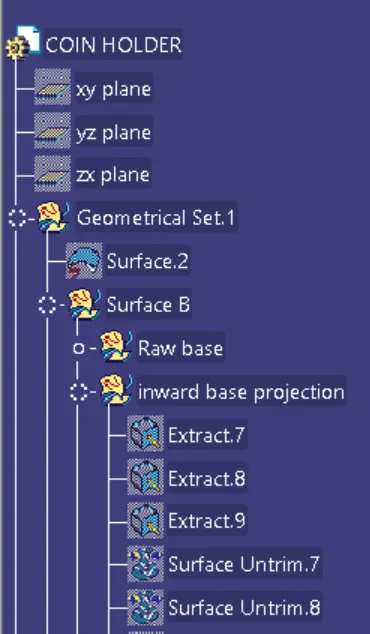

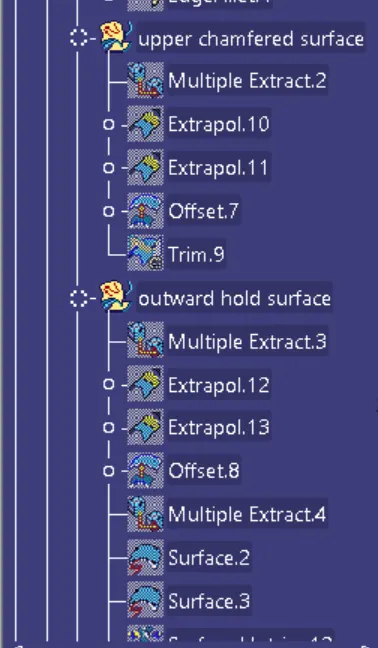

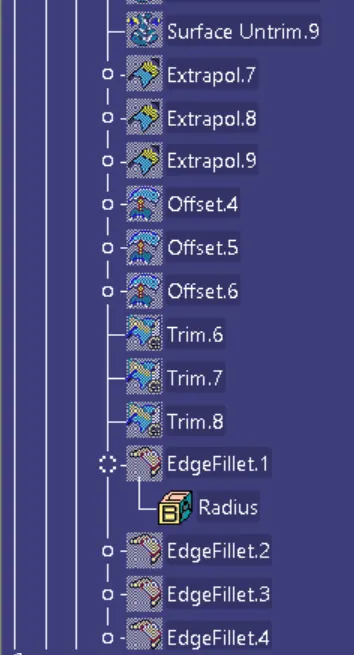

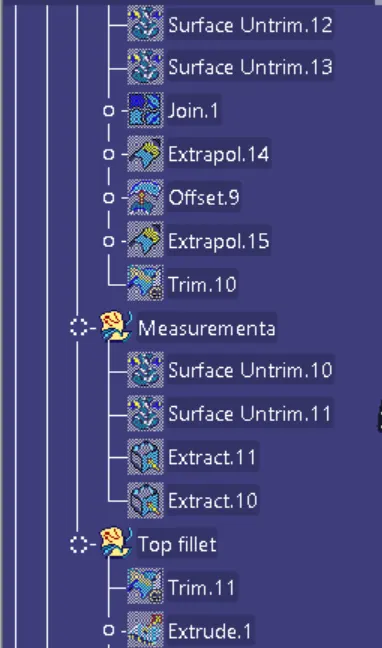

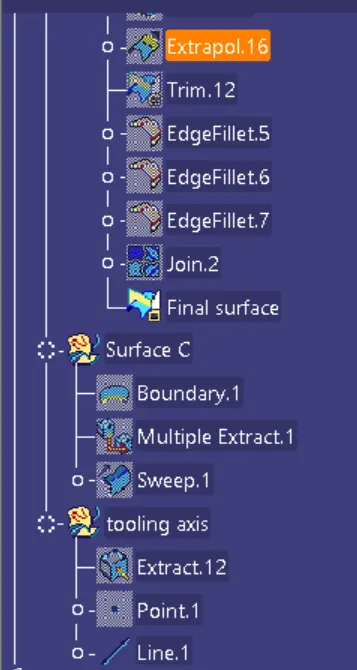

Tooling axis was created, and it satisfies the minimum inclination to all the surfaces. - Tree
