Week 9 - Project 1 - Door Trim Lower with Engineering Features

Week 9 - Project 1 - Door Trim Lower with Engineering Features

Aim:- Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Create the Heat Stakes and the locators considering the design rules mentioned in the video for the door applique.

Tooling Axis

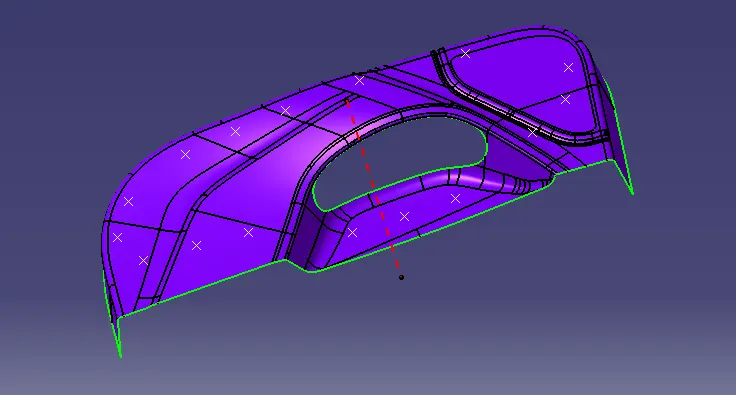

Make a point on the surface and make a line in y direction to create a tooling axis

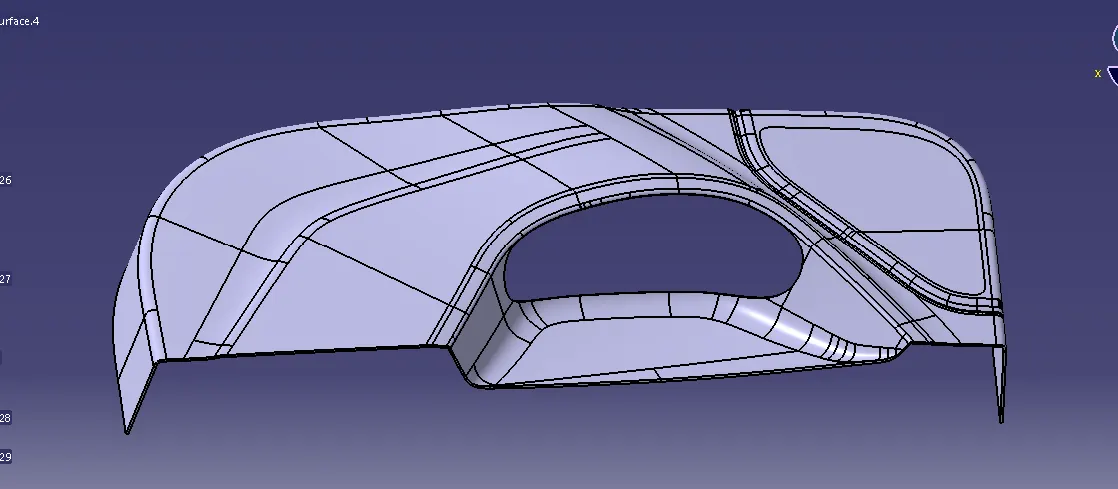

Class A surface

Class B surface

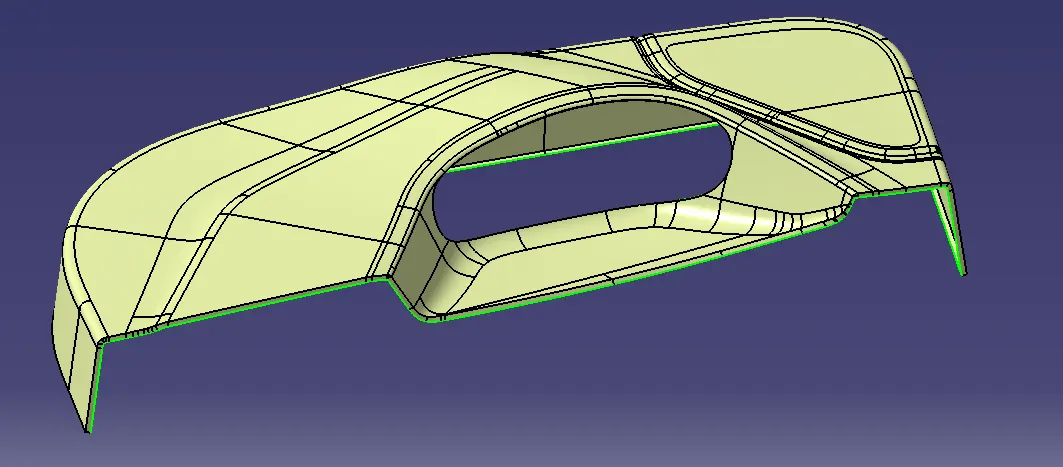

To make the class B surface offset the class A surface and then using trim , edge fillet , join make proper class B surface

Class C suraface

Take sweep of class A Surface to create a class C surface

Join AC

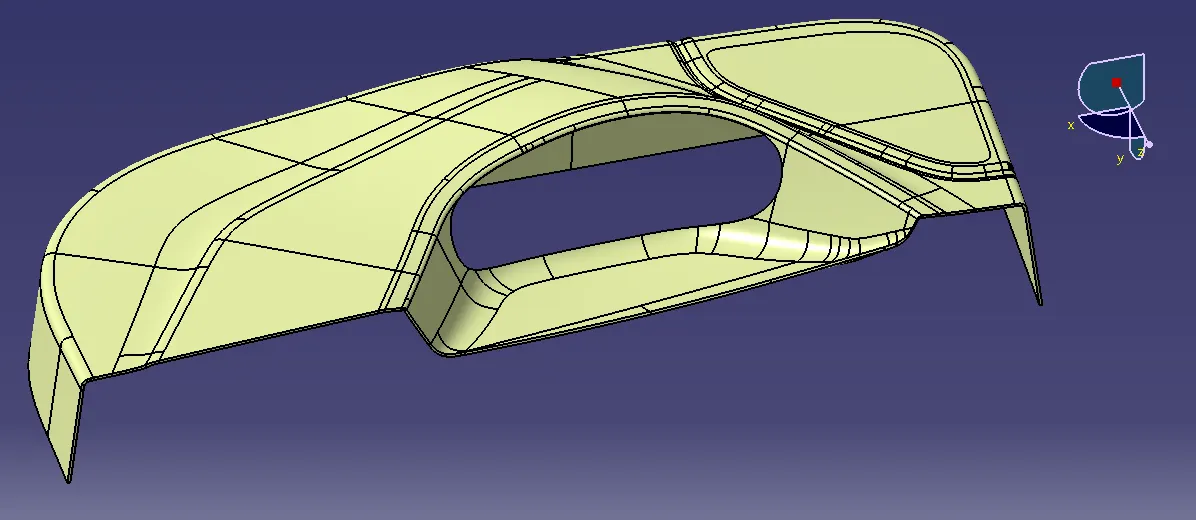

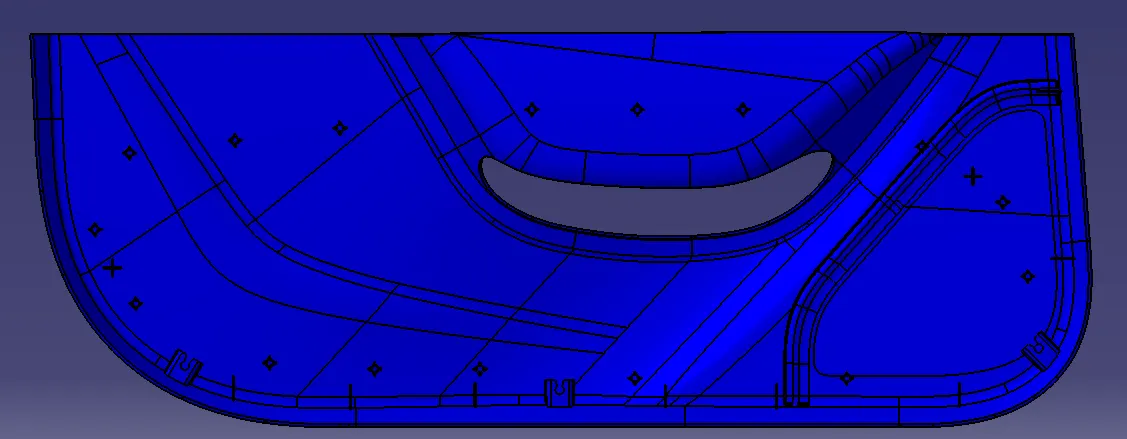

Final surface

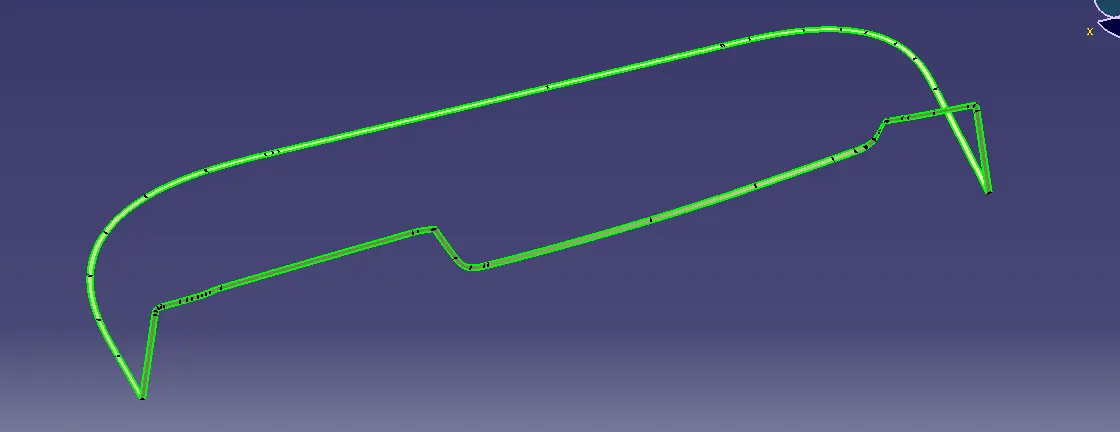

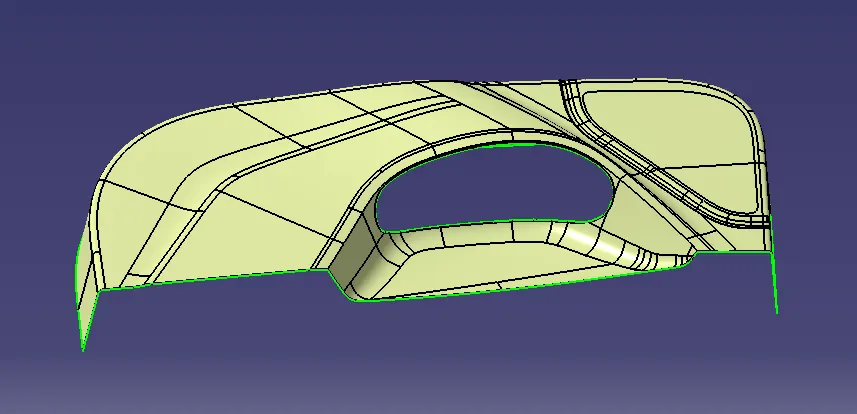

Trim join Ac with the B surface to form final surface

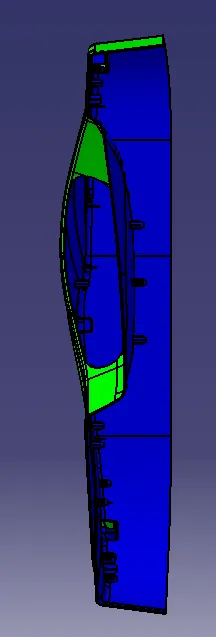

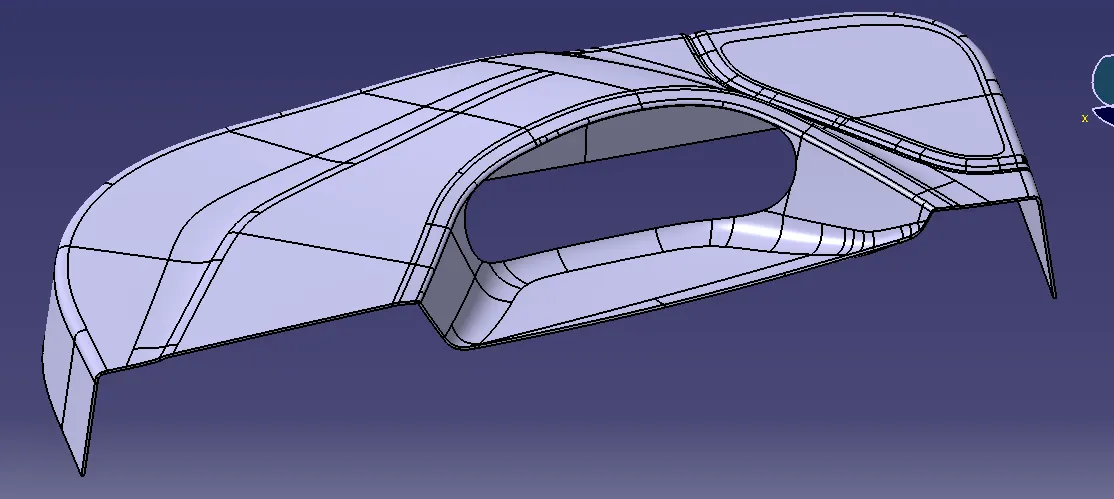

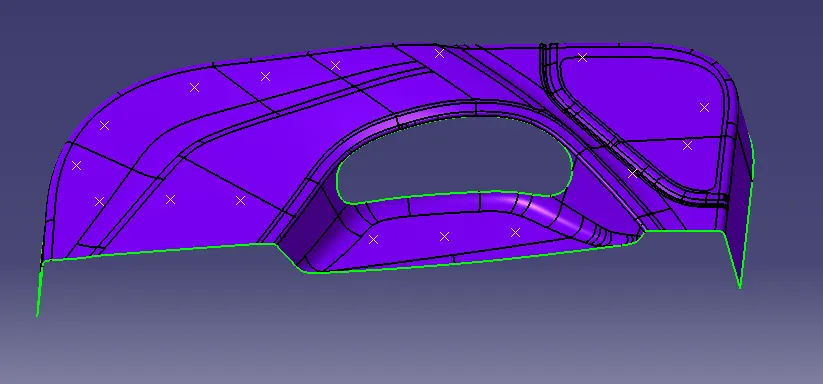

Closed suraface without Engineering features

Engineering features

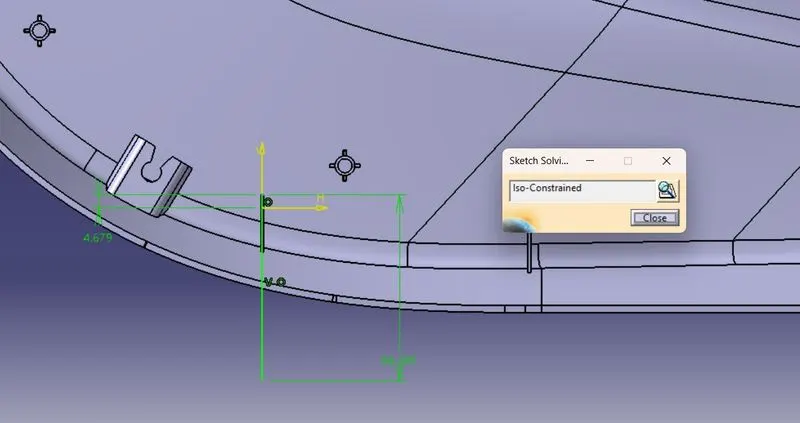

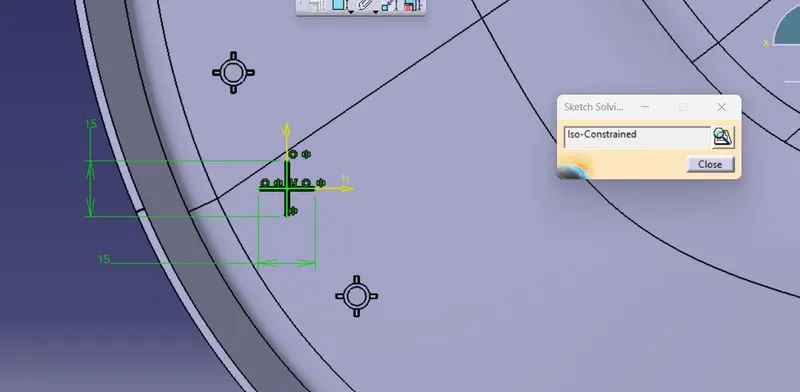

Sketch of 4 way locator

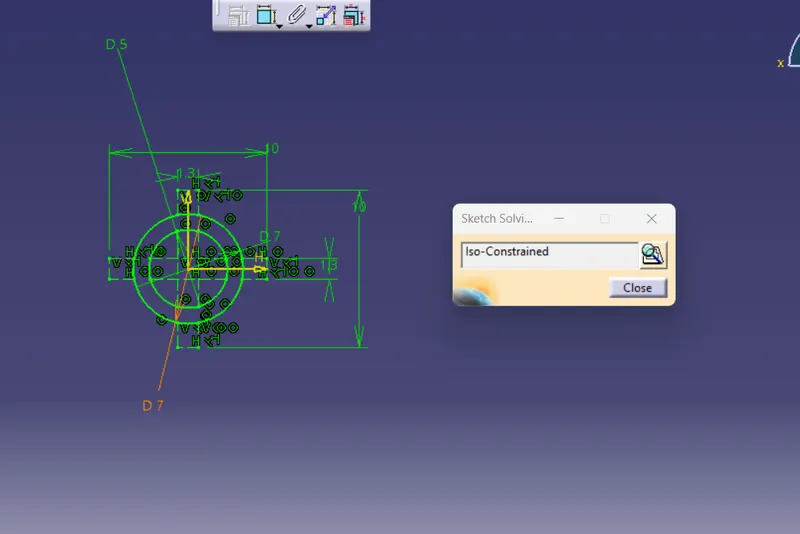

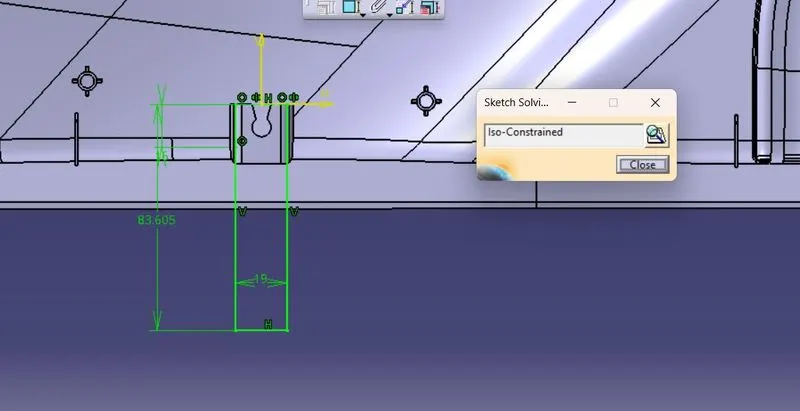

sketch of Heat stakes

Attachment features

sketch of Ribs

sketch of dog house

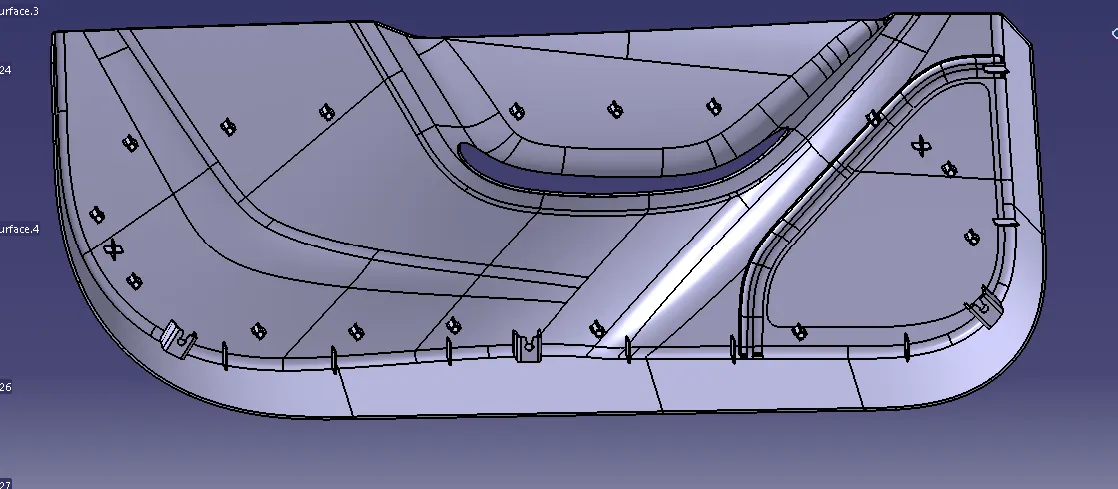

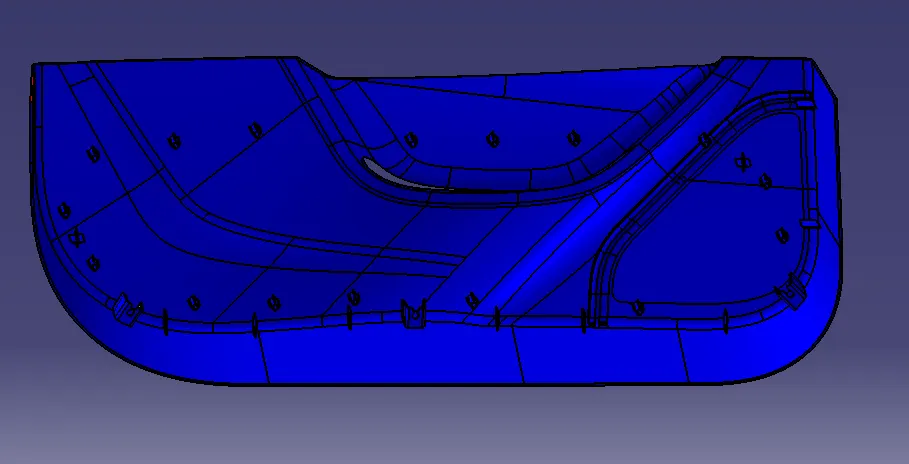

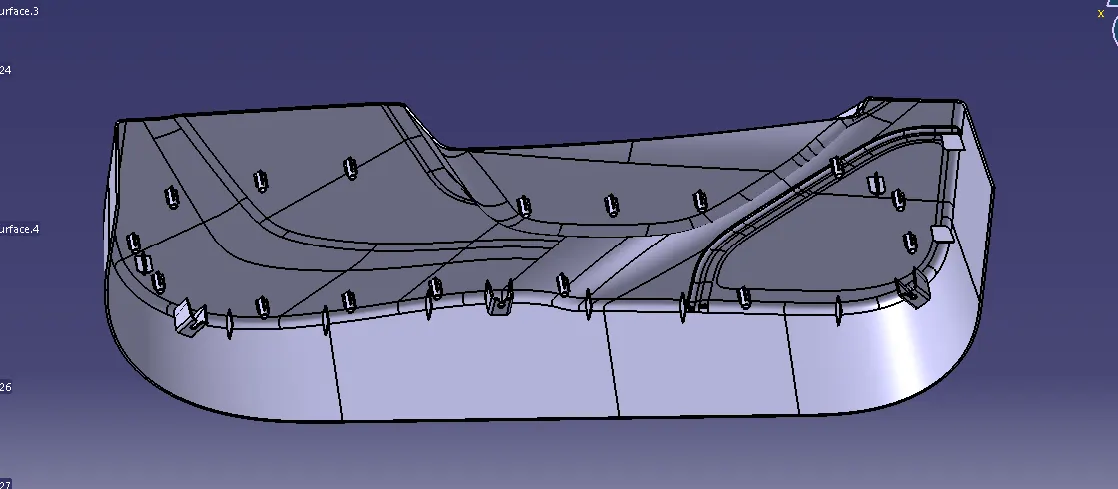

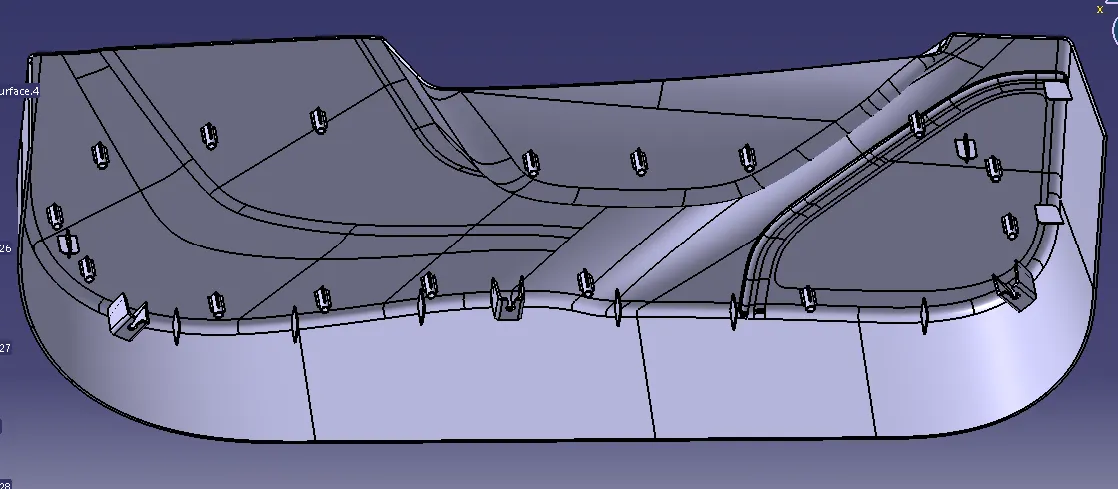

Final closed element with engineering features and attachment features

Draft analysis

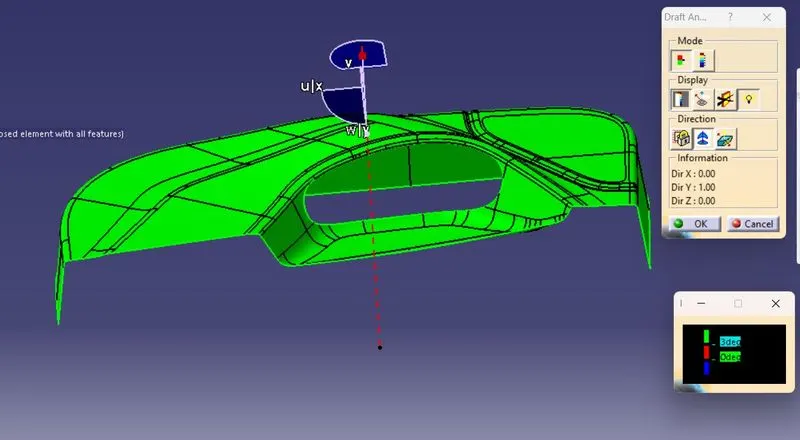

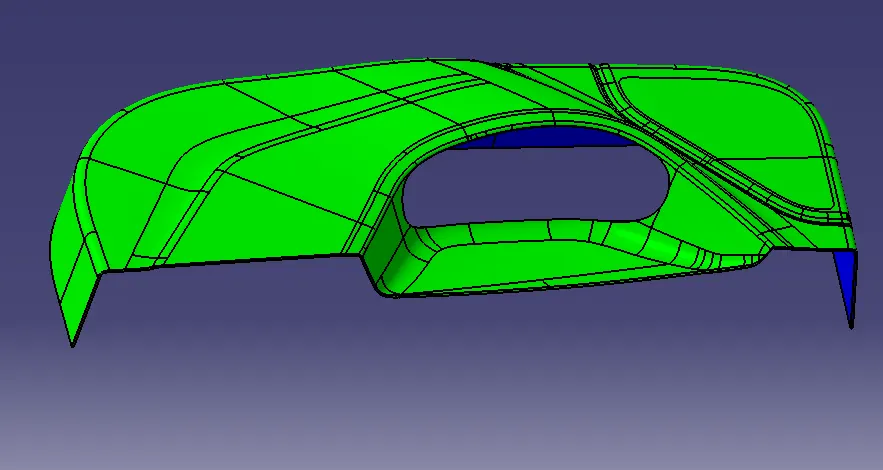

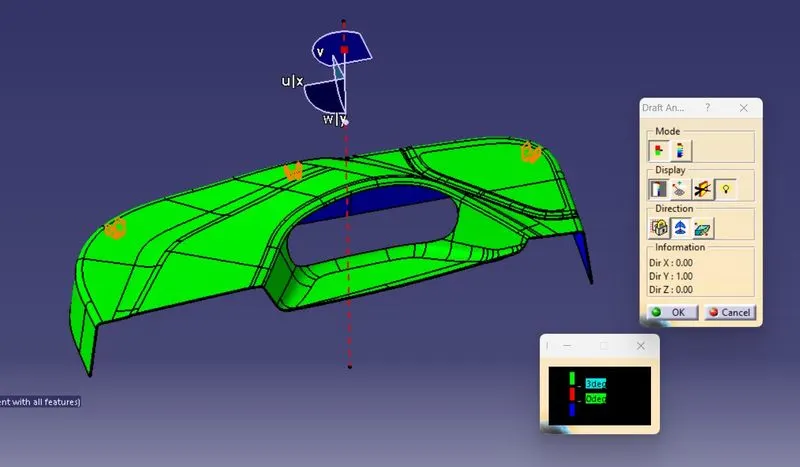

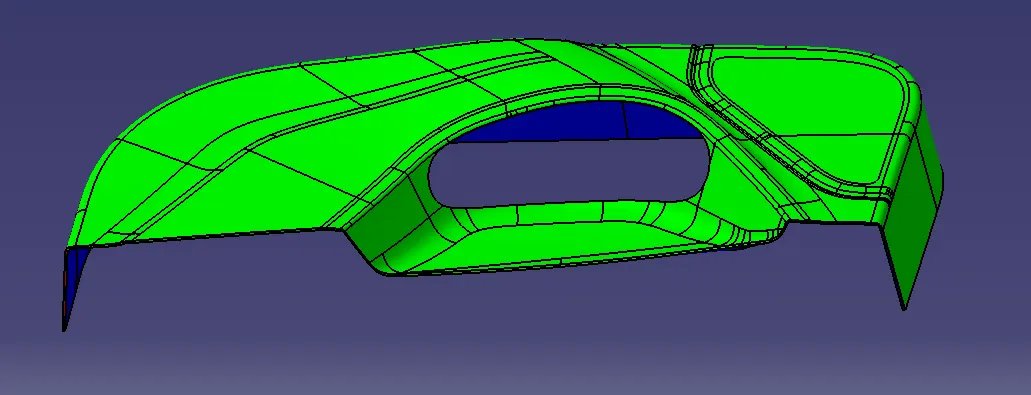

Draft analysis of class A surafce (draft angle 3 degree)

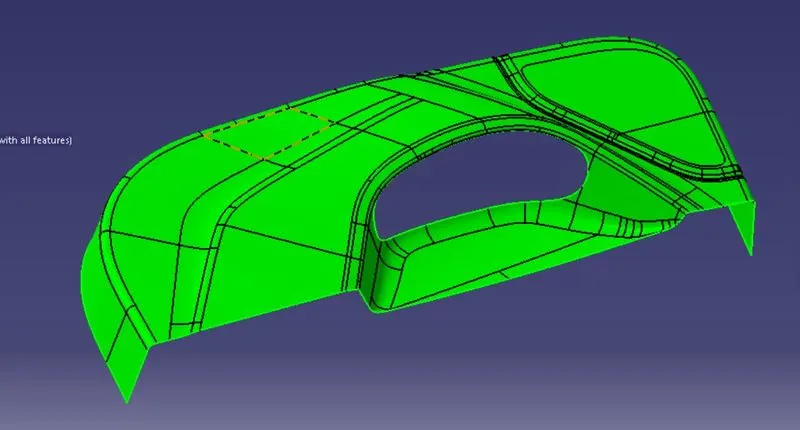

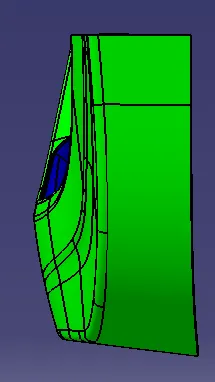

Draft analysis of Final element with all features (draft angle 3 degree)

VIEWS

ISO VIEW

FRONT VIEW

TOP VIEW

SIDE VIEW

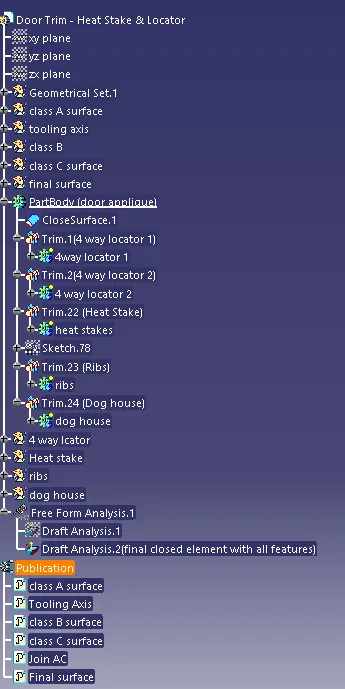

Tree Structure
