Week 8 - Challenge 6 - Core & Cavity Design

Week 8 - Challenge 6 - Core & Cavity Design

Aim:- Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.

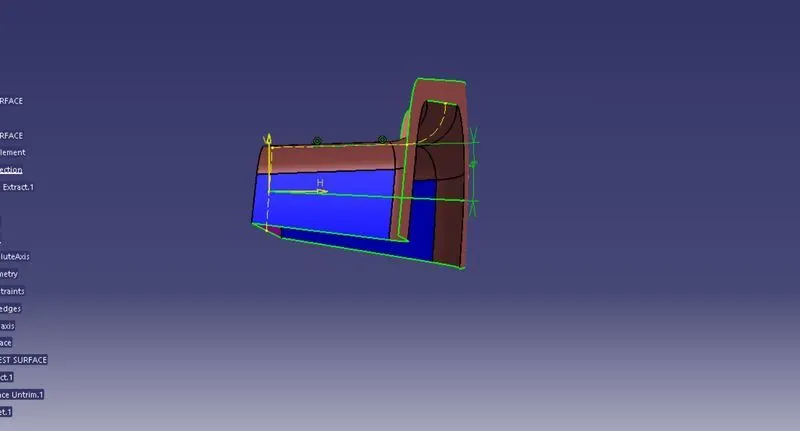

Tooling Axis

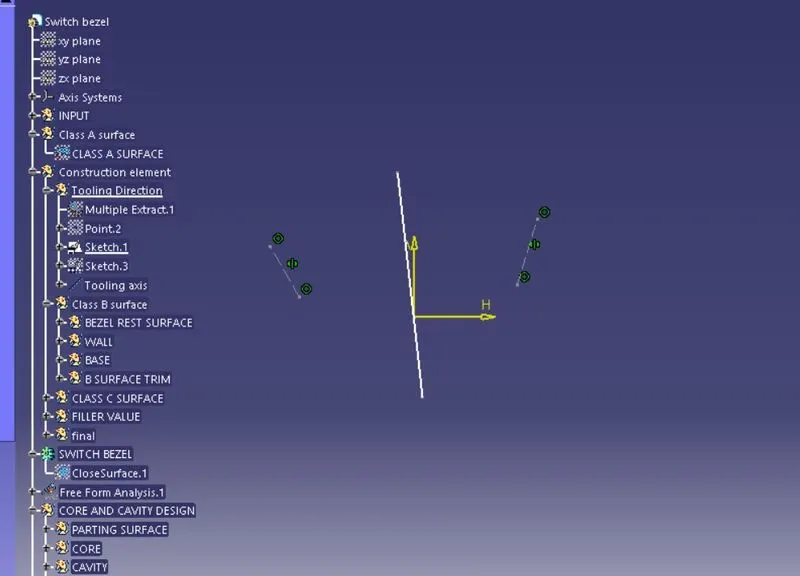

Creation of tooling axis

Using the two side walls 1st axis is made by bisecting the side wall axis

As the 4th wall is not there, an assumption is made and the axis is taken which is 4 degrees from the horizontal axis.

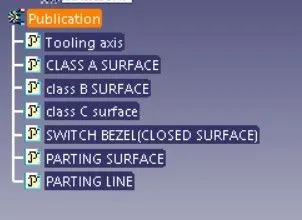

PUBLICATION

• Publication is done to the component to make it visible and navigate easily.

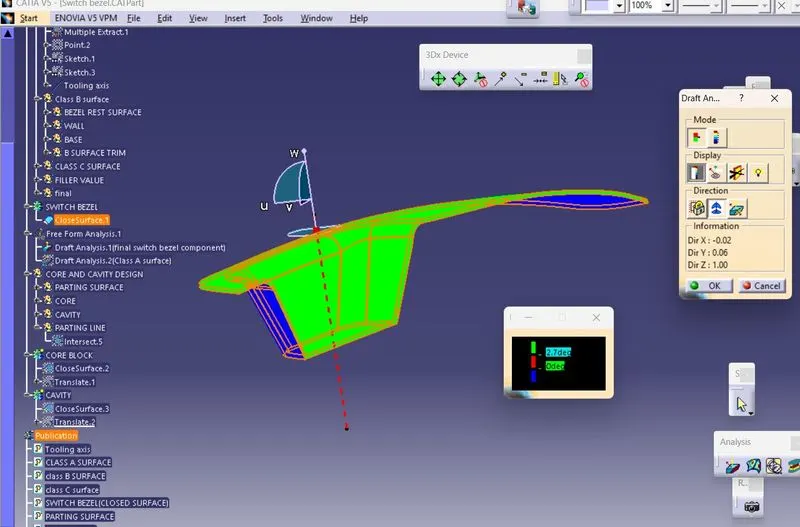

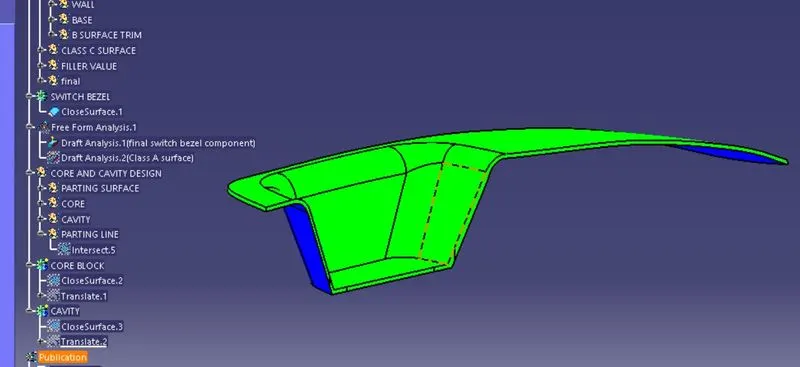

DRAFT ANALYSIS CLOSED SURFACE

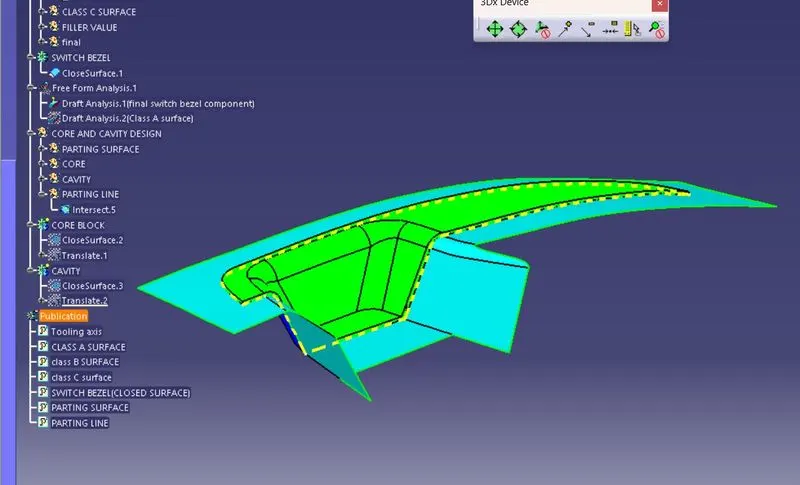

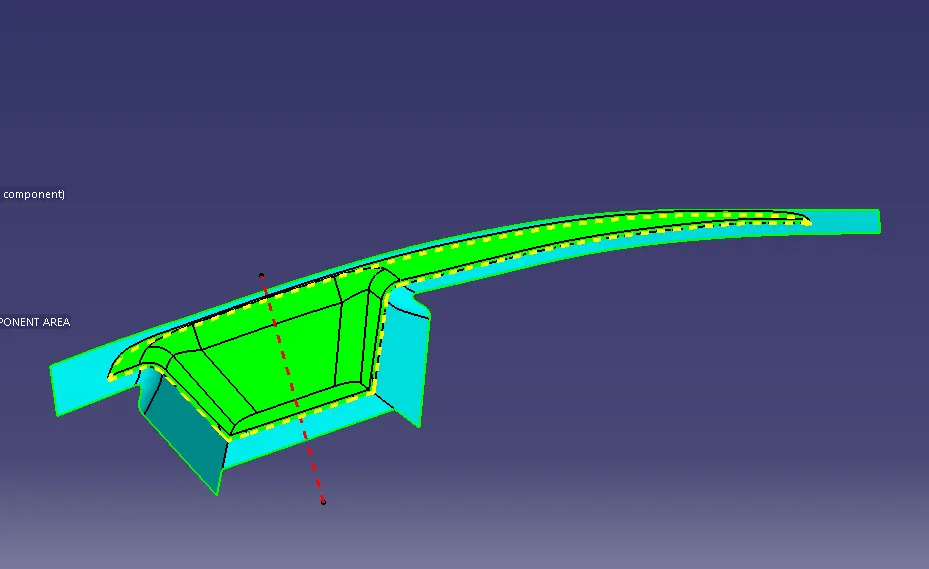

PARTING LINE AND PARTING SURFACE

yellow color line is parting line and the blue color surace is parting surface

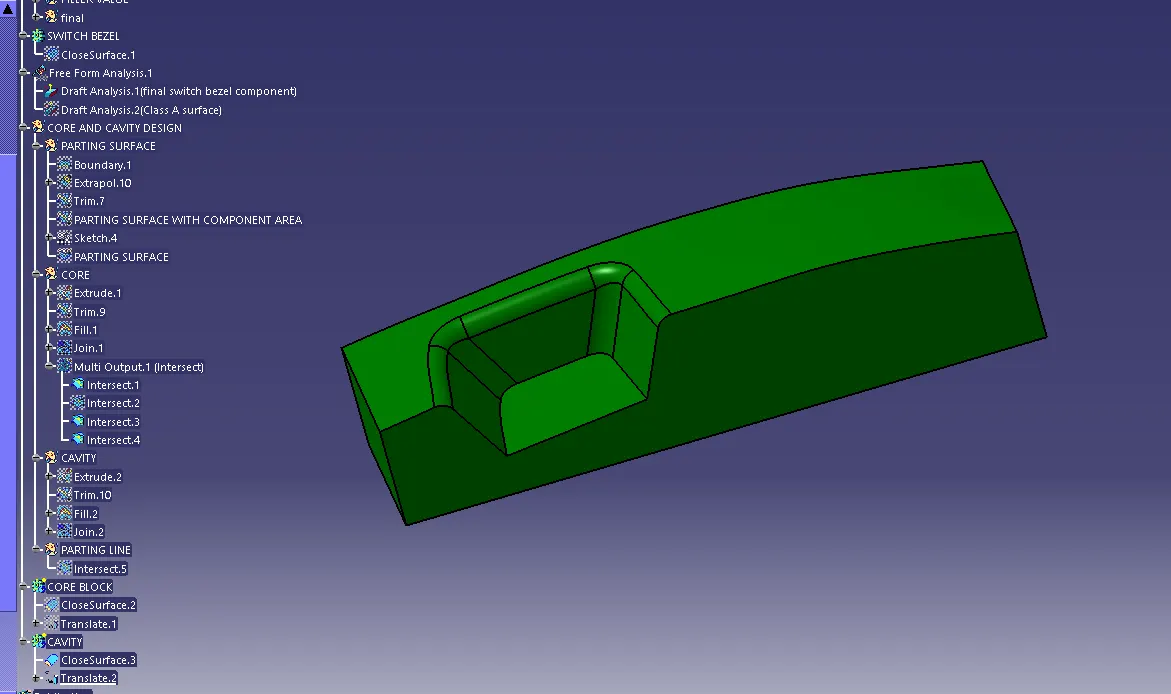

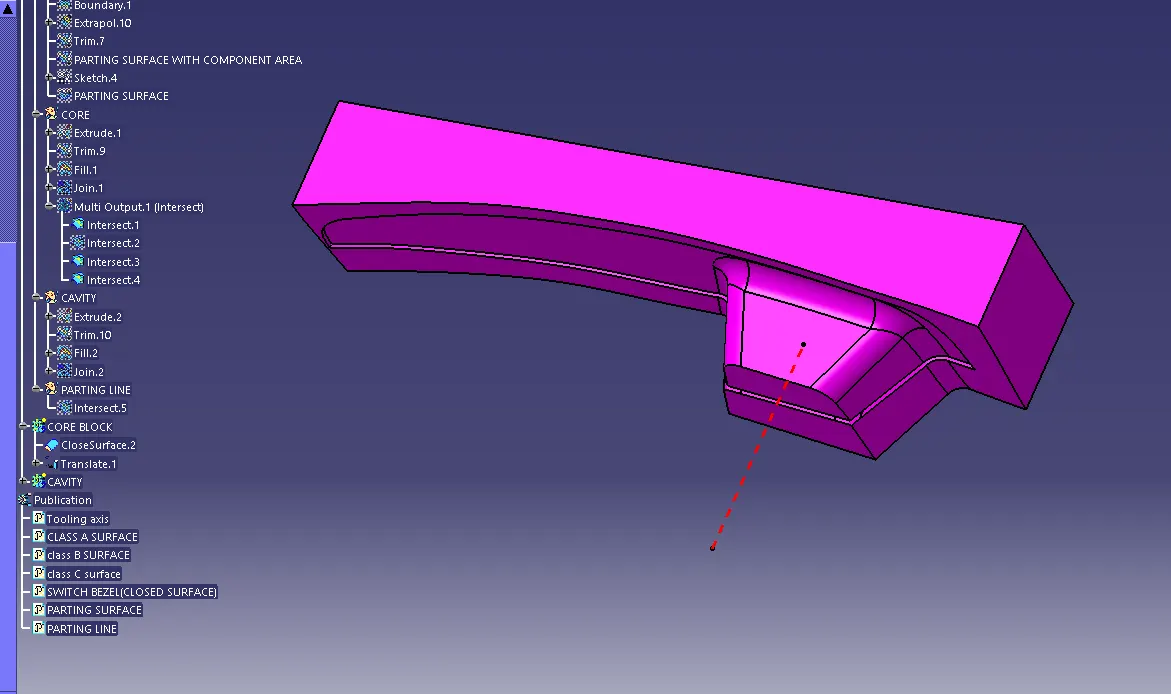

CORE BLOCK

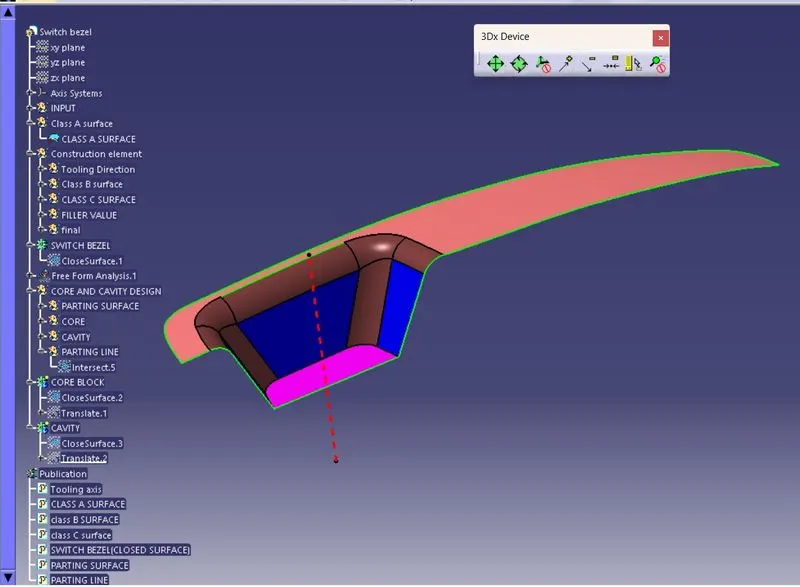

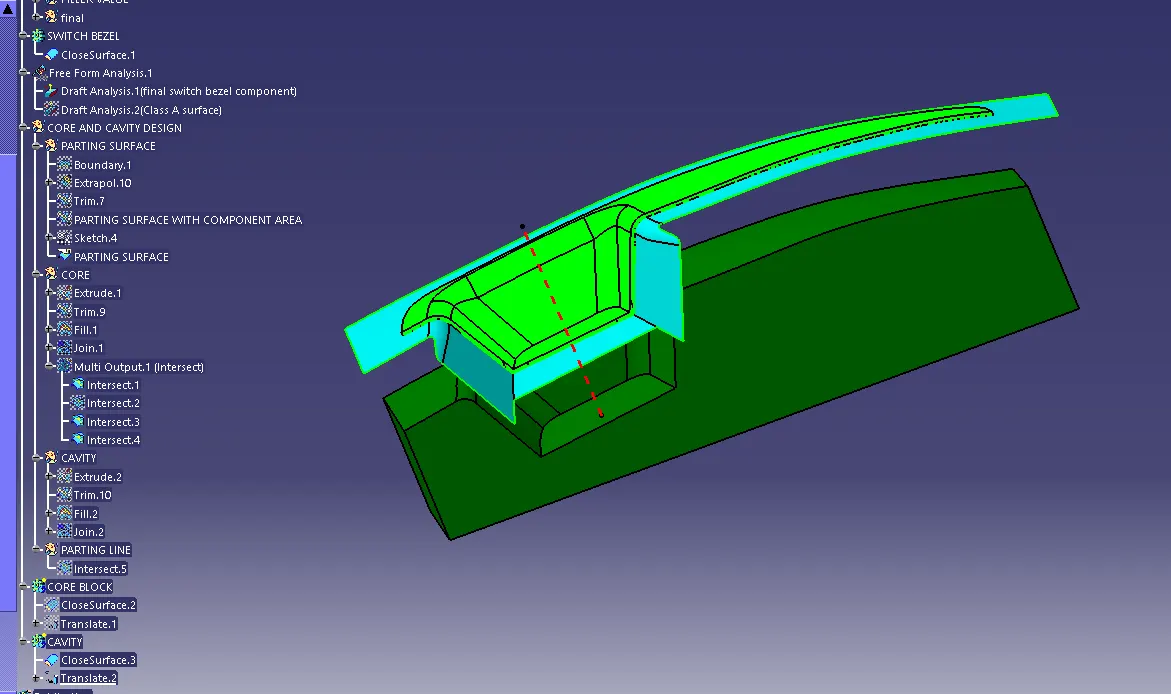

CAVITY BLOCK

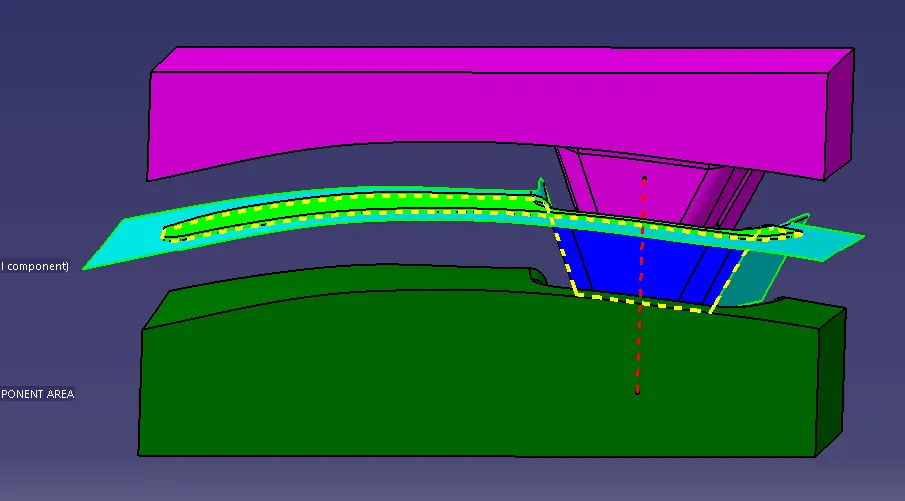

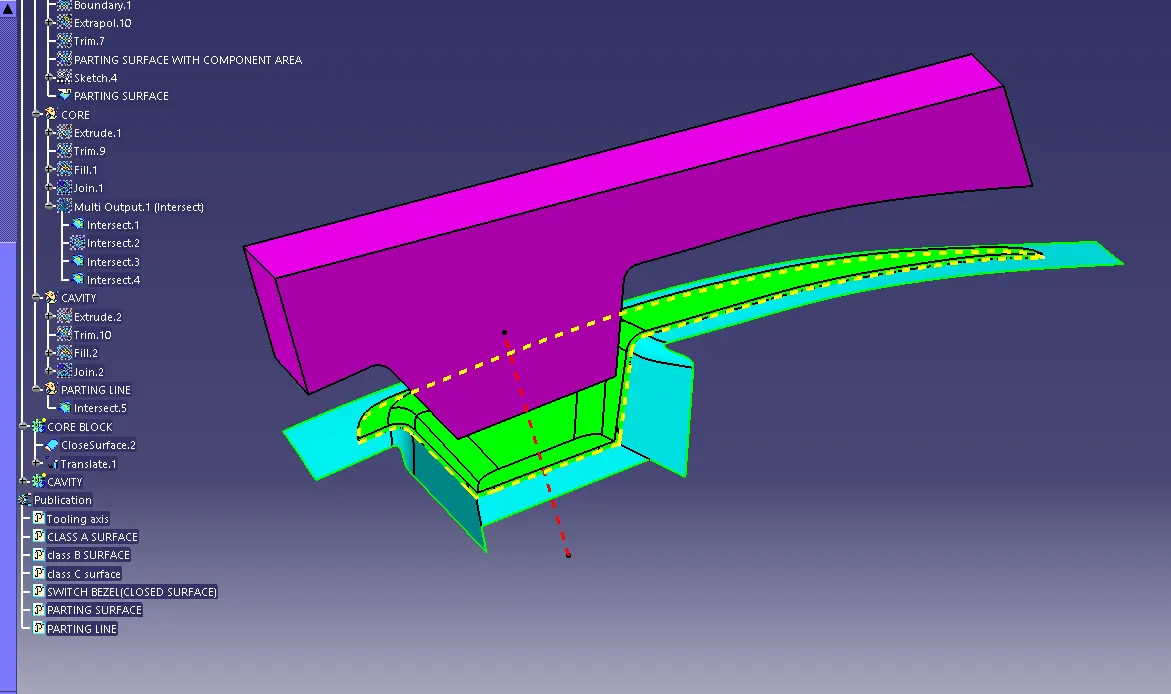

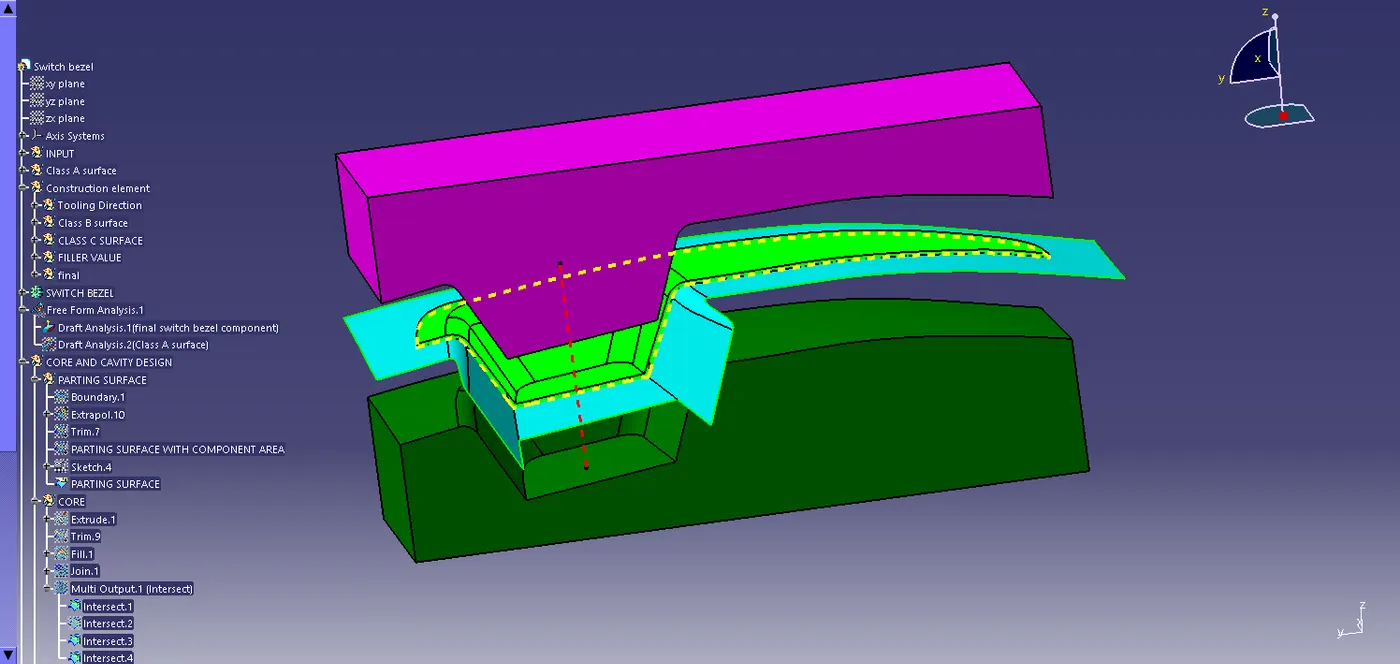

FINAL WITH CORE BLOCK,CAVITY BLOCK,CLOSED ELEMENT WITH DRAFT ANALYSIS,PARTING SURAFCE AND PARTING LINE,TOOLING AXIS

VIEWS

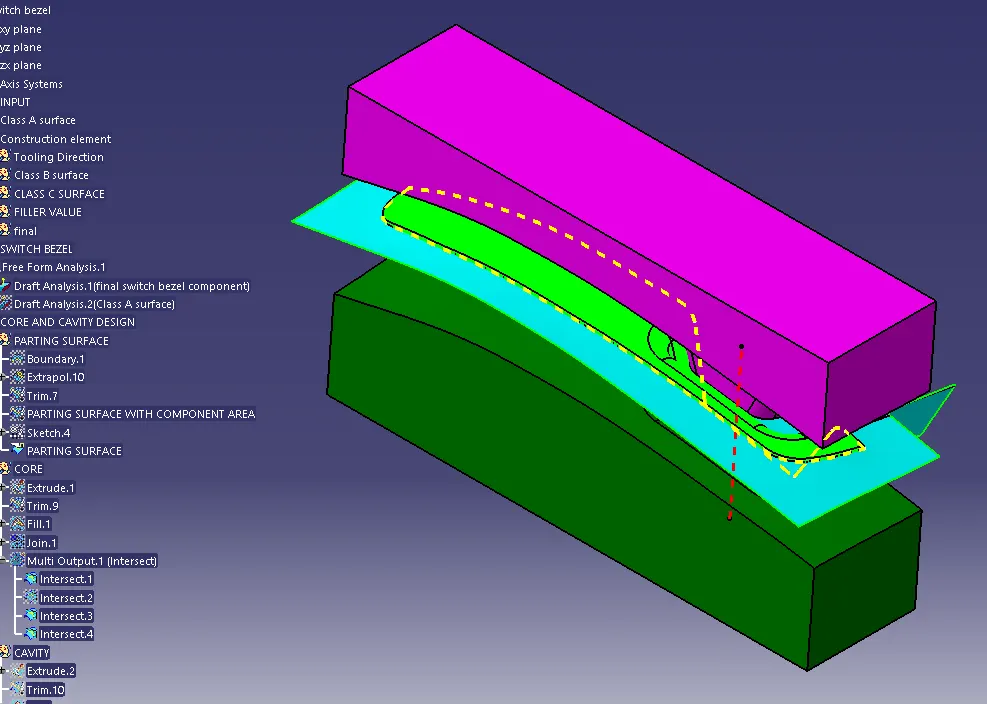

ISO VIEW

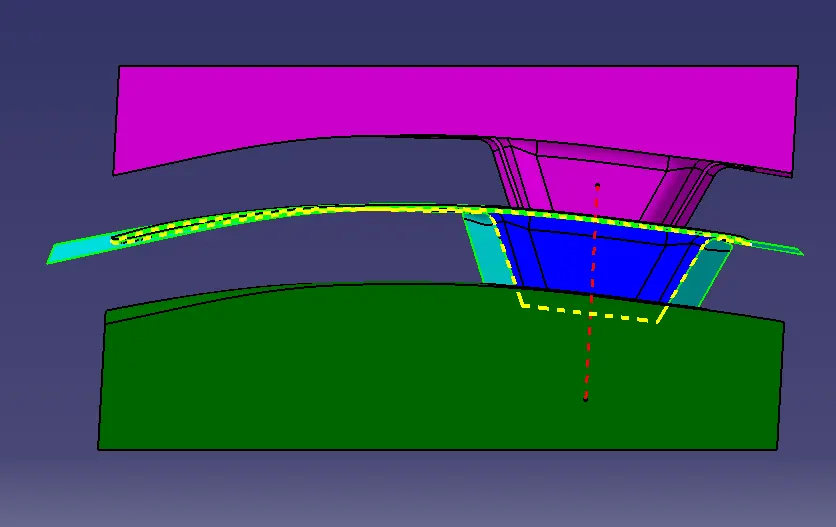

FRONT VIEW

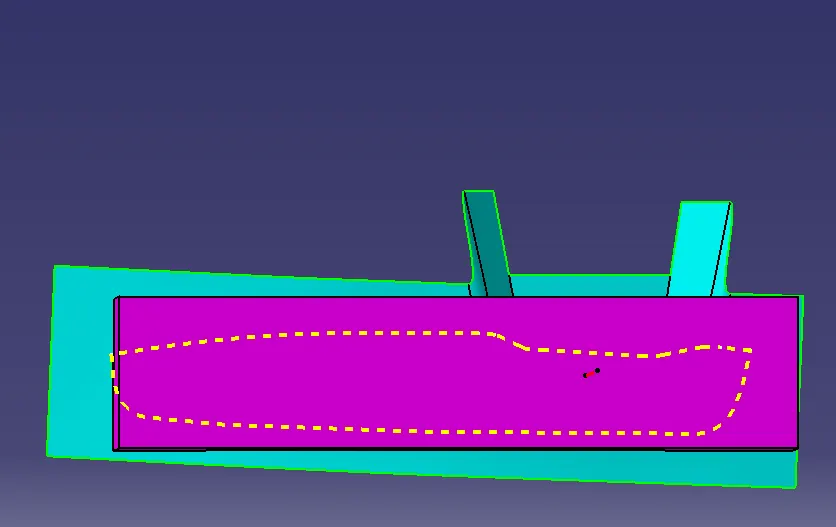

TOP VIEW

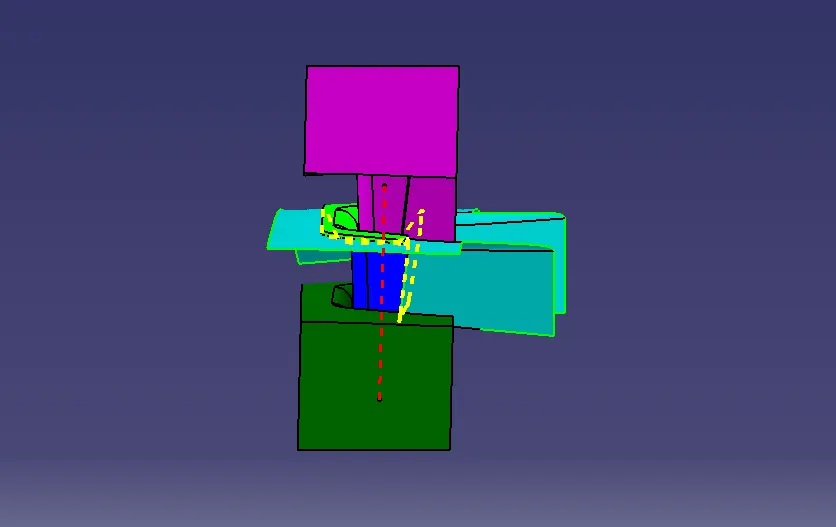

SIDE VIEW

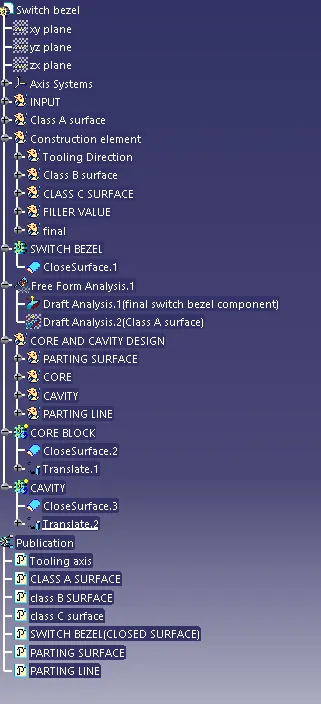

TREE STRUCTURE
