Week 9 - Challenge 3 - Bumper
AIM
Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Take the Thickness of the component to be 3 mm
REPORT
BUMPER
A bumper is a structure attached to or integrated with the front and rear ends of a motor vehicle, to absorb impact in a minor collision, ideally minimizing repair costs.Stiff metal bumpers appeared on automobiles as early as 1904 that had a mainly ornamental function. Numerous developments, improvements in materials and technologies, as well as greater focus on functionality for protecting vehicle components and improving safety have changed bumpers over the years. Bumpers ideally minimize height mismatches between vehicles and protect pedestrian from injury. Regulatory measures have been enacted to reduce vehicle repair costs and, more recently, impact on pedestrians.
CLASS A SURFACE
In automotive design, a class A surface is any of a set of free form surfaces of high efficiency and quality. It gives the aesthetic of the component which is created by the styling team and gives to the part design engineer to create the part with all engineering aspects.
CREATING THE CLASS A SURFACE
We have been given the Class-A surface and the first thing to do is to make sure that the given surface has no gap in between them. We can check it visually and also with help of Join or boundary commands.
Join or boundary commands.
TOOLING AXIS
The direction in which the mold or core and cavity opens is the tooling axis.
By checking the all three axis the best tooling direction is determined. flat surface or bin area is choosen for creating dummy tooling axis
created point on extracted base surface and a perpendicular line is drawn and Dummy tooling axis created
TOOLING AXIS USING BISECTING METHOD
Tooling axis for the part is created by using the bisectiong method .In order to check whether the part is toolable in the direction,the class A surface is analysed and the walls which are doubtful of clearing the 3 degree draft angle to the dummy tooling axis is identified.
an axis system is created on point to take intersection on both axis
lines are drawn atthe walls which are almost parallel to dummy tooling axis
bisecting lines are drawn to these two lines and first bisecting line is created
similiarly second bisecting line is created using the intersection onthe second axis
TOOLING AXIS is created by bisecting the axis created on two intersections .
TOOLING AXIS FOR BUMPER
the best tooling direction for the class-A surface is along x-axis direction.

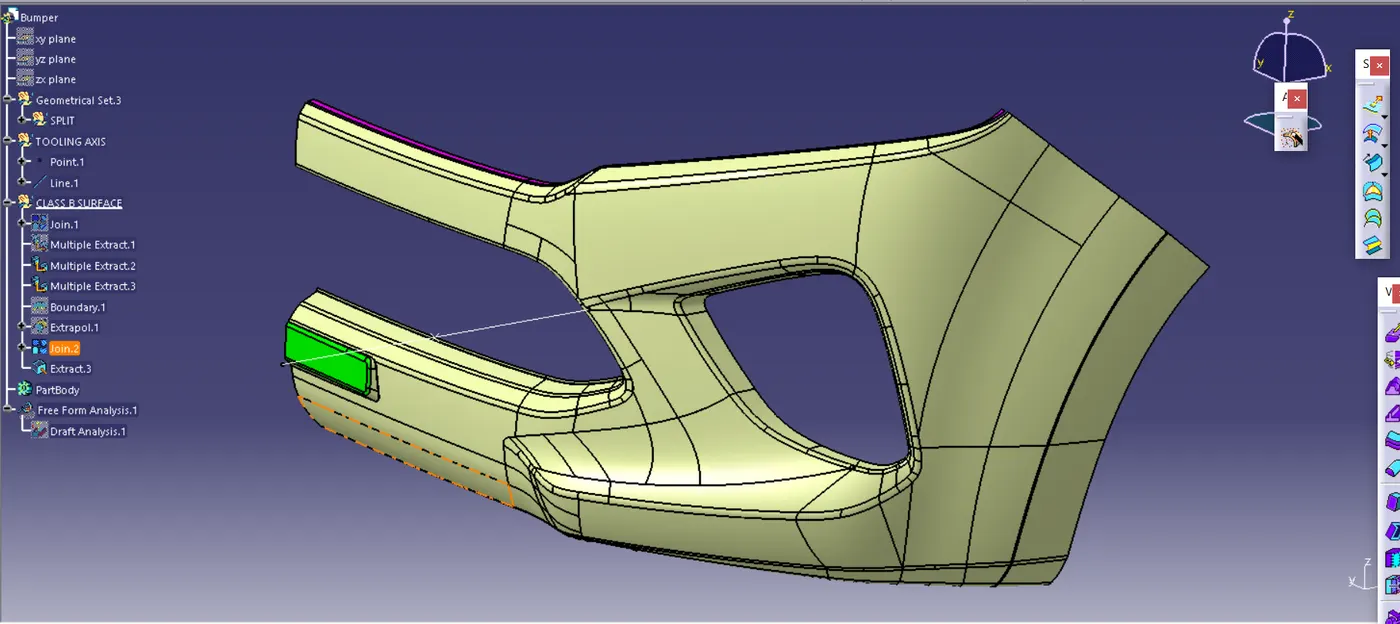

Flat surface on the center part of the bumper is extracted for creating the tooling axis in x direction
Then created a with the point and direction along x axis.
Use the compass fucnction to aling the compass to the tooling direction and lock the direction using lock function in the draft analysis tool bar
the surface is showing green colour so that the surface clears the minimum draft angle of 3 degree
By using the analyses under the running pointwe can check draft angle on the individual faces. It shows how much draft on specific points when we move the cursor point.
Green colour - above 3 degree positive draft
Red colour -between 3 and 0
blue colour- below 0 degree
CLASS B SURFACE
CLASS B SURFACE
Class-B surface means the thickness of a part it is not visible and is inside part. In other words, the Class-B surface is a surface below a certain thickness from the class-A surface. This is the surface that contains engineering aspects of a model.The Class B finish is a quality finish with only minimal imperfections. A Class B finish is the most common finish for exterior surfaces. It is normally specified on surfaces such as external covers, panels, and parts that are fairly prominent.
B SURFACE is created by Offseting the class-A surface to 3mm inward direction.
patches are created while offsetting the surface. Rework on the patches using the features like extract, multi-extract, sweep, multi-section surfaces, extrapolate.
the boundary command is used to identify and highlight the patches
In this component Creation of the class B surface first, we have to offset the entire model by 3mm inward some of the surfaces give offset error and ask for offset without these subelements click okay and work on the incomplete surfaces by using the multi-section surface command, sweep and different commands used to complete the class B surface.
Incomplete surface gaps
Closed surface of class b surface
like this, we work on the remaining surfaces and ensure that there is no gap in the class b surfaces.
CLASS B SURFACE
CREATION OF CLASS C SURFACE:
We first extract the edges from the Class A surface with the help of the multi extract or boundary command which we create the path for a sweep for class C
like this, we have to create all separate sweeps and join them together. once all the sweeps are joined together we created a class c surface.
CLASS C SURFACE:
Joining class A surface and class c surface together
Then trim the class-B surface to join (A+C) this will make sure that we get a closed surface. We can check it using the boundary tool, if it gives an error that means that the component is closed.
Then We go to the part design workbench and use to closed surface tool to create a solid body.
hence, we created our final plastic component.
Draft analysis of the final plastic component:
- Go to the Insert menu and select the Analysis option.
- Select Feature Draft Analysis.
- Select the Material option and select the surface.
- Drag the compass and place it on the tooling axis.

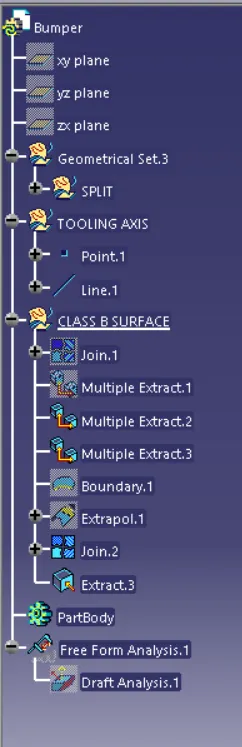

FEATURE TREE
