Week 9 - Challenge 3 - Bumper

SShubhankar Magade15 Jun 2023

CATIA

COMPONENT - CAR BUMPER

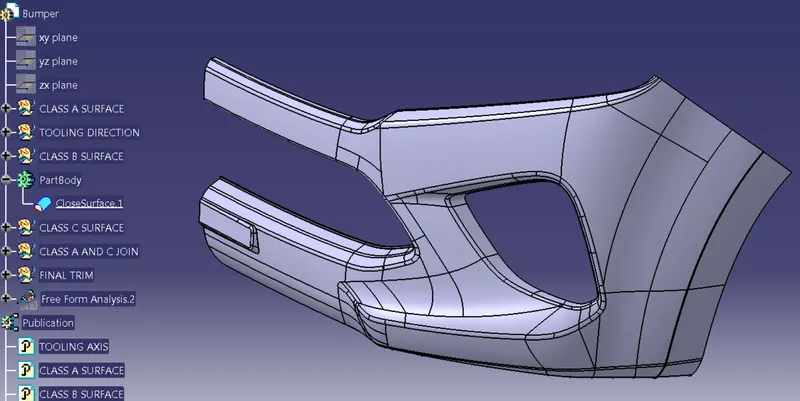

REQUIRED OUTPUT

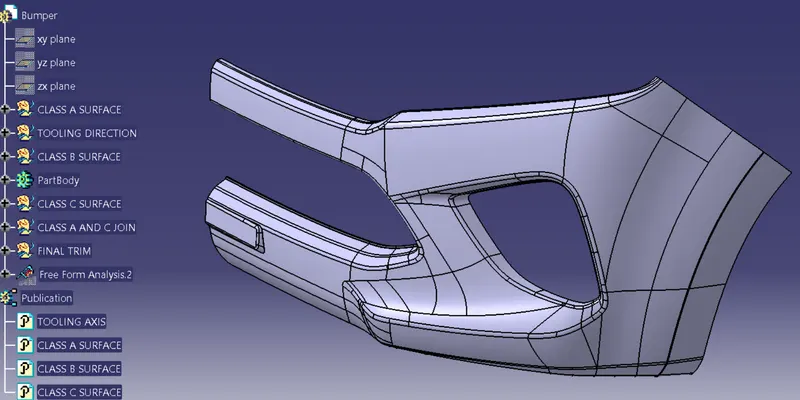

CLASS A SURFACE

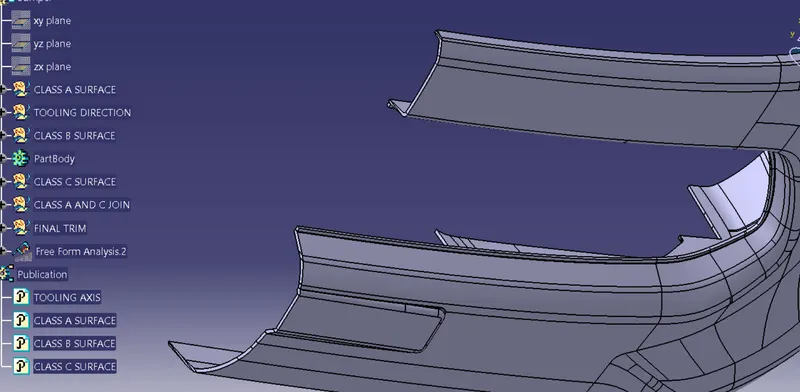

CLASS B SURFACE

CLASS C SURFACE

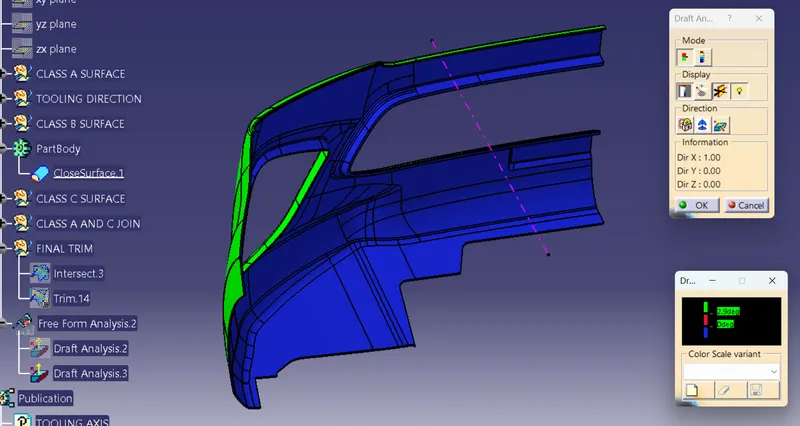

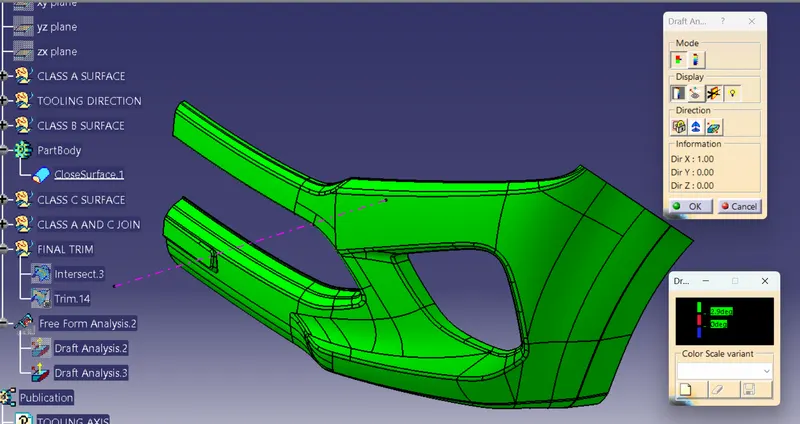

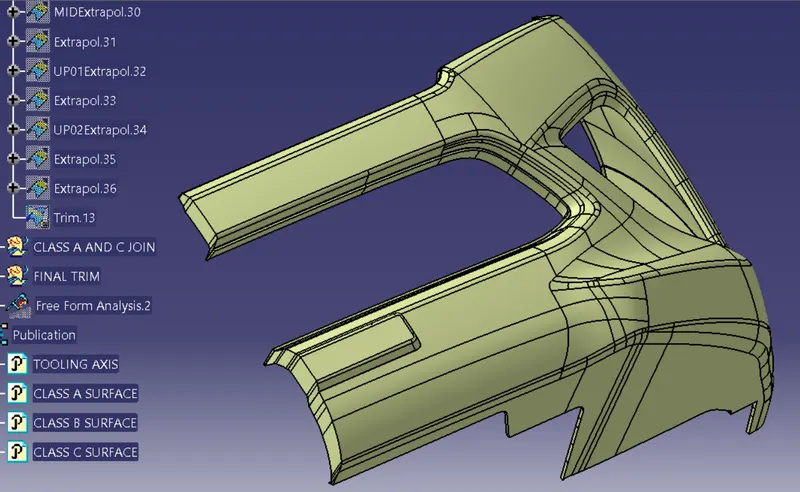

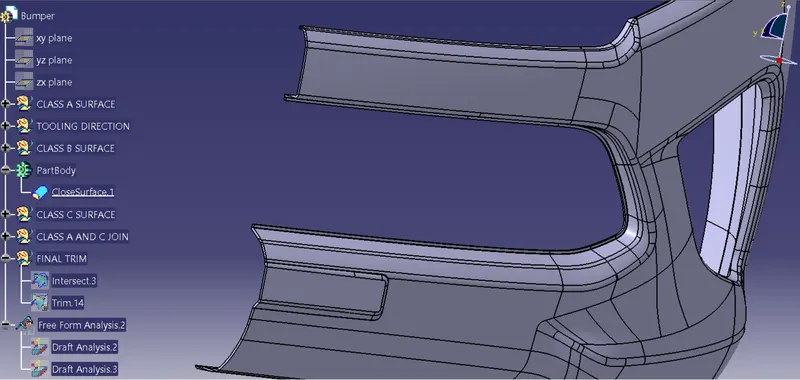

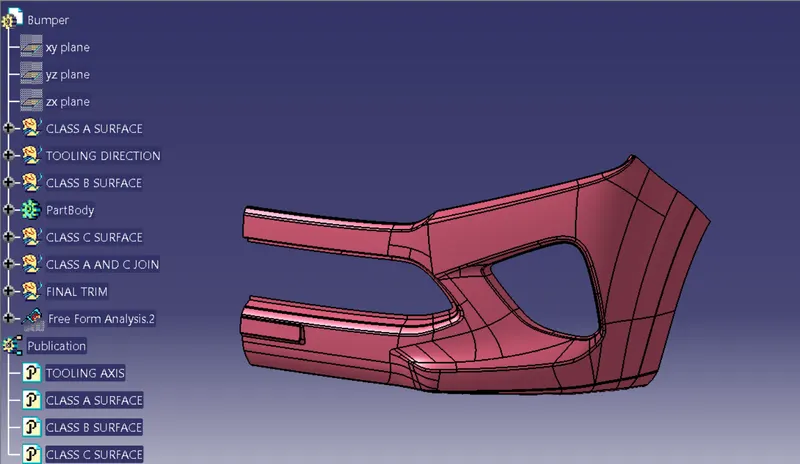

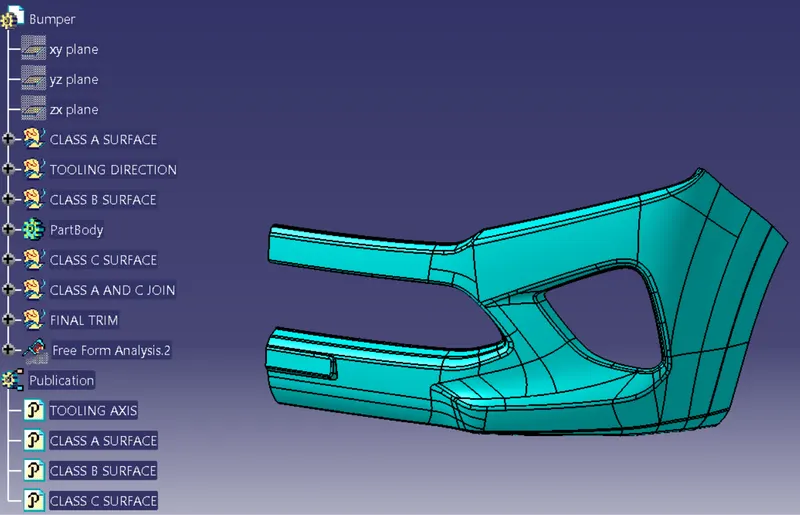

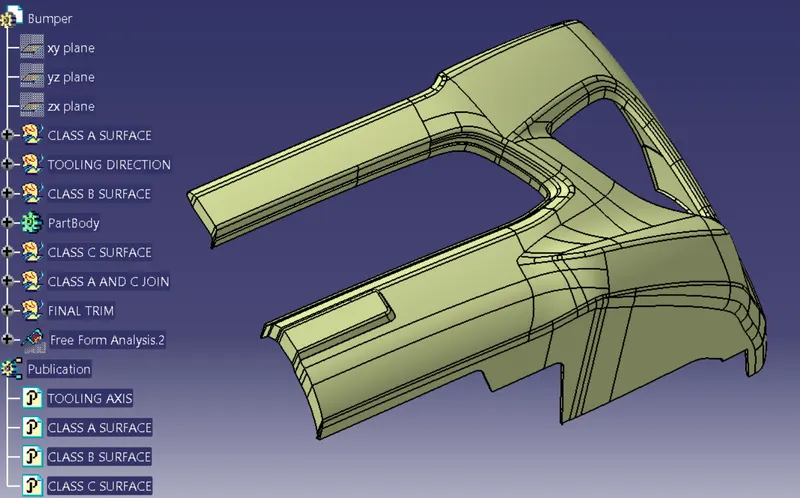

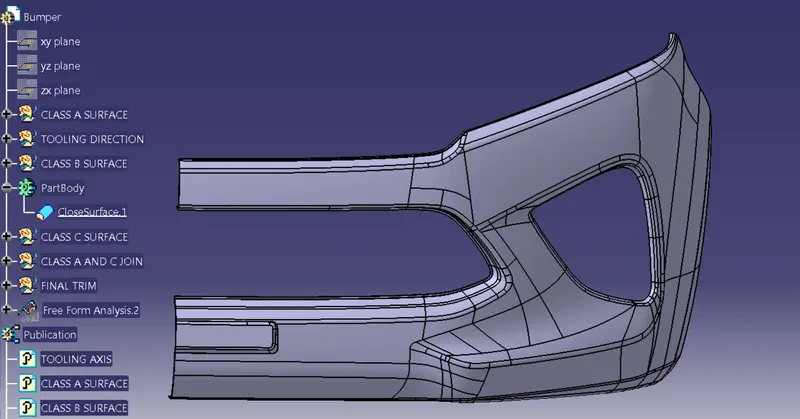

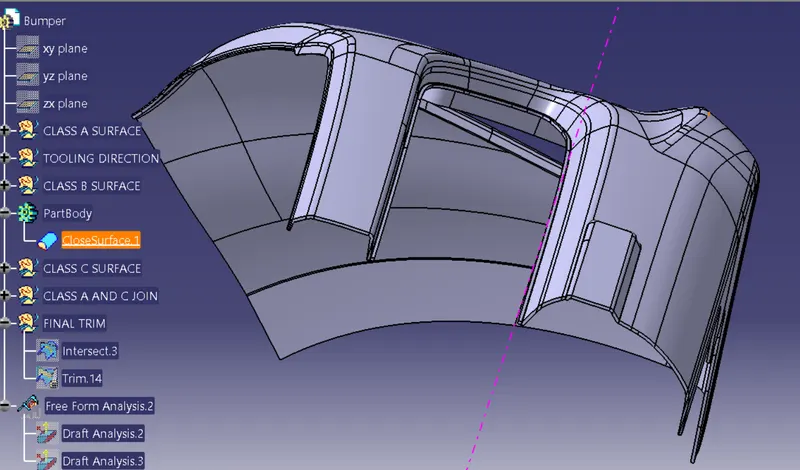

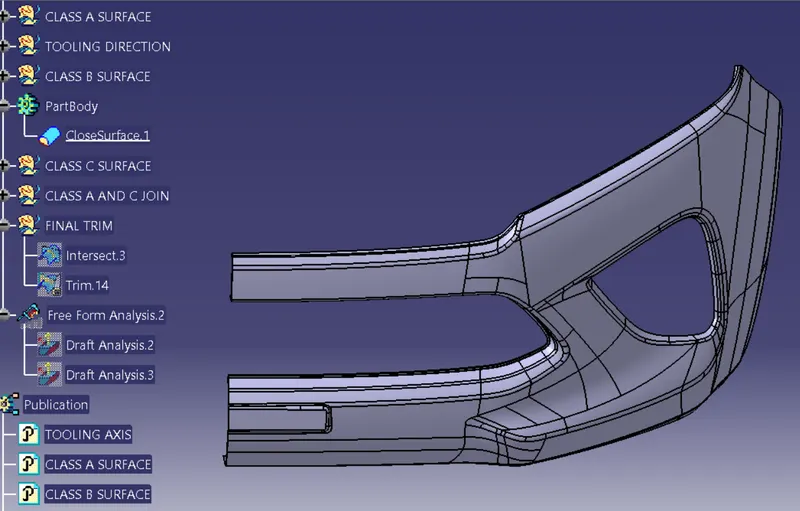

TREE STRUCTURE OF CAR BUMPER

GEOMETRICAL SETS AND TREE STRUCTURE OF CLASS A SURFACE AND TOOLING AXIS -

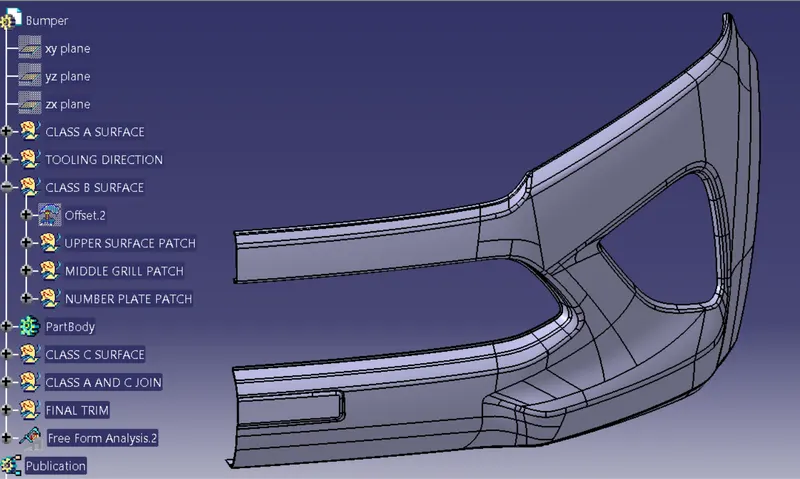

GEOMETRICAL SETS AND TREE STRUCTURE OF CLASS B SURFACE -

STEPS-

1. Firstly offseted Class A Surface about 3mm inside. Due to offset patches has being formed in the offseted surface.

2. To obtain the Upper surface without patch we have use Multiple Extract Definition to Extract only the upper edge of the bumper.

3. Similarly we have extracted the lower part without the edge fillet.

4. Used Extrapolate definition command to extend the Upper edge surface.

5. Extrapolated the Lower part of bumper as well. To extrapolate properly in One go, we have used firstly Boundary command and created boundary on the lower part surface of bumper.

6. After extrapolating the two surface which has propeer intersection in between we have used Trim Command to Trim excess surface.

7. Similarly, we have used the all steps to solve the Middle Grill patch and Number plate patch.

8. In this we have used another approach to extract the surafce from the Class B surface.

9. Join command we have used here in this Sub elements to remove the unwanted surface from bumper.

10.Thus, we have followed all the steps to Solve the Patches in the Bumper surface.

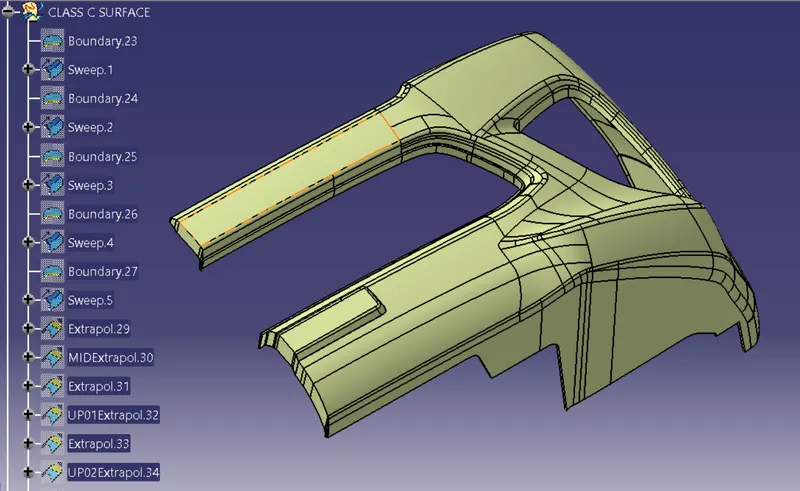

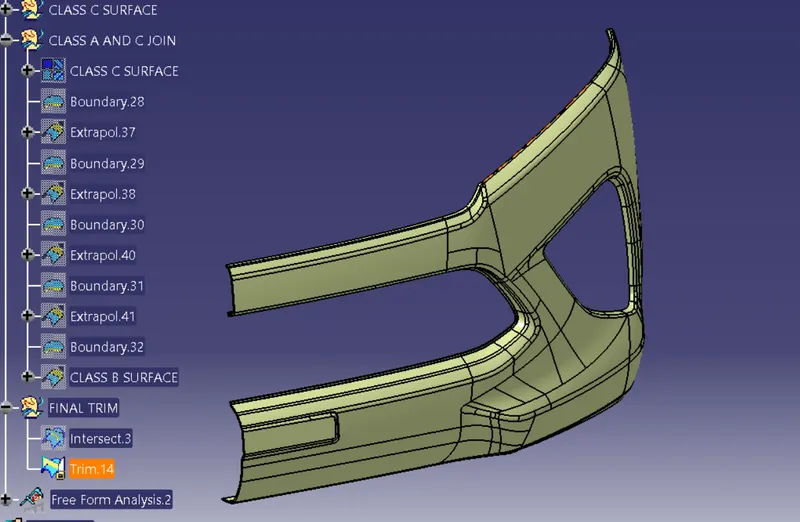

GEOMETRICAL SETS AND TREE STRUCTURE OF CLASS C SURFACE -

1. Using Boundary command in the selescted area to use Swept command properly.

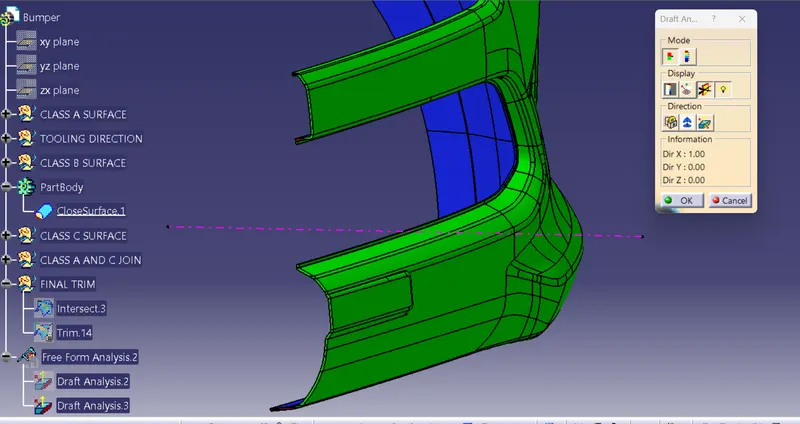

2. In this we have used Swept Command with use of (with reference surface) as well as in certain cases we have use (with draft reference) to give an angle of 3 degress to the swept surface.

3. For Intersection with the swept surface properly we have Extrapolated the surface 4-5mm.

4. Lastly using Trim command to Remove excess surface or unwanted surface.
