Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

OBJECTIVE:CREATE THE PLASTIC PRODUCT FROM THE CLASS A SURFACE GIVEN.AND CREATE THE RIB AND SCRRE BOSSES AS PER THE DESIGN CONSIDERATION.

Tooling Axis:

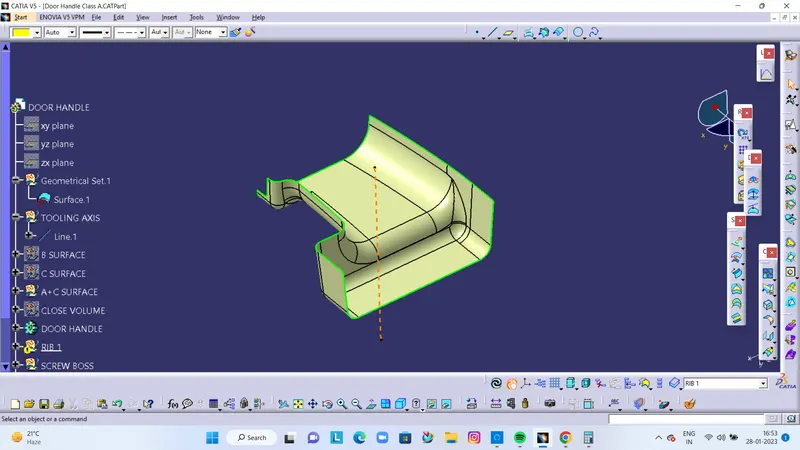

To create the tooling axis, I extracted the surface of class A with no propagation and I created the point at the centre of the extracted surface and created a line at that point in the Y direction. After creating the Tooling axis, I performed a draft analysis for class A to check the draft angle for it.

CREATION OF THE B SURFACE.

(A) OFFSET THE CLASS A SURFACE

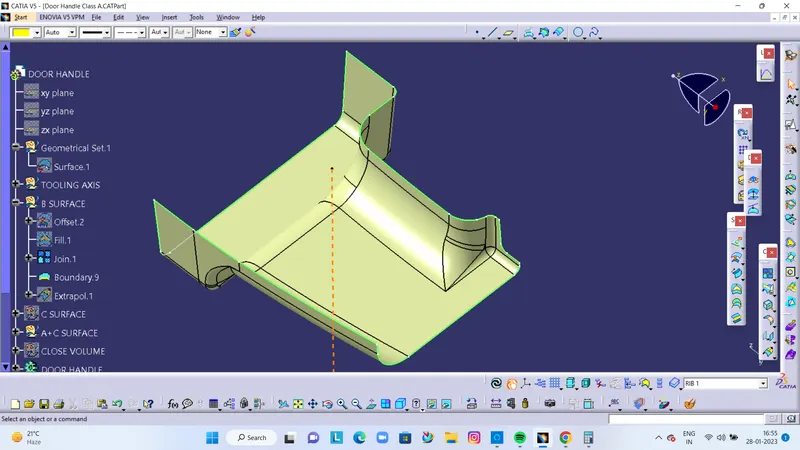

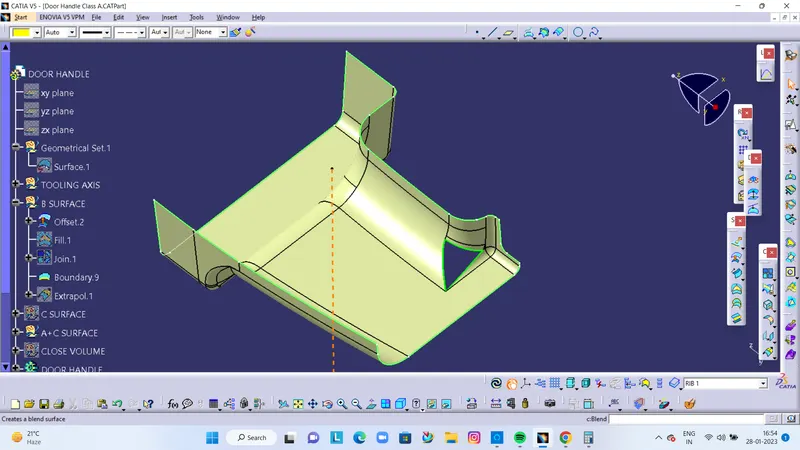

CREATION B SURFACE

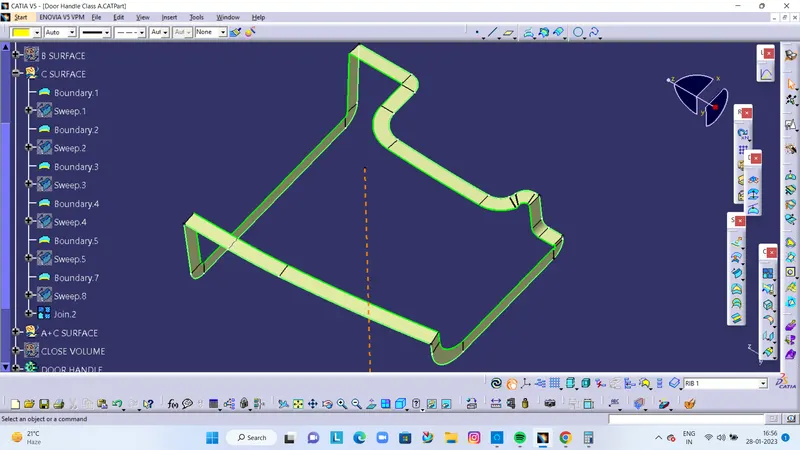

CREATION C SURFACE

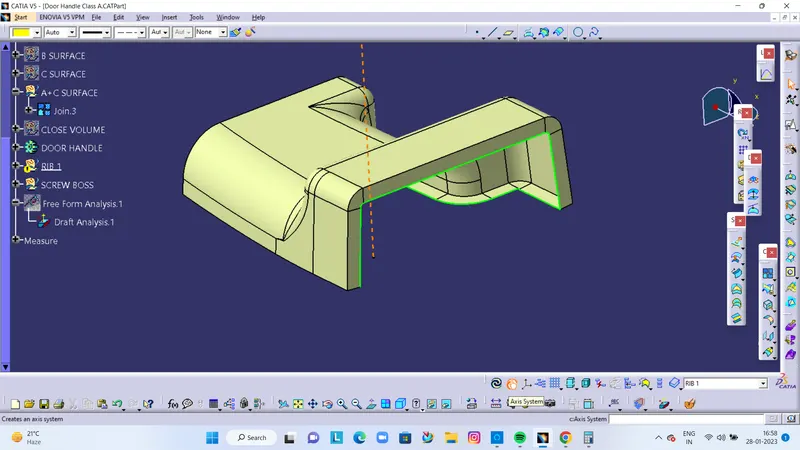

JOIN A+C SURFACE

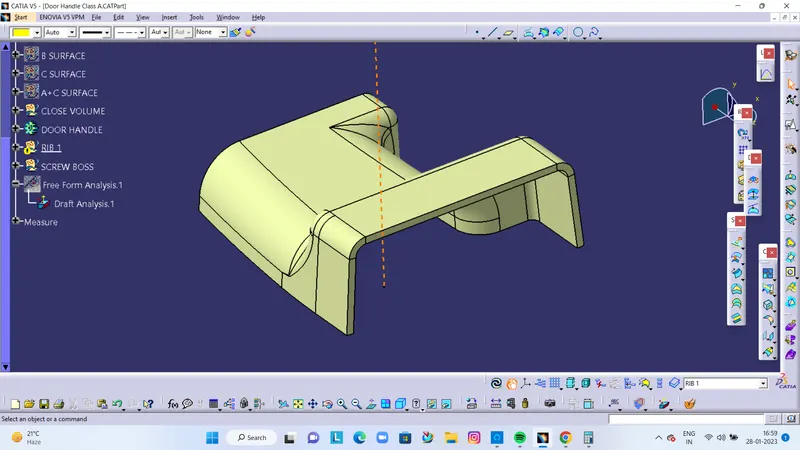

CLOSE VOLUME

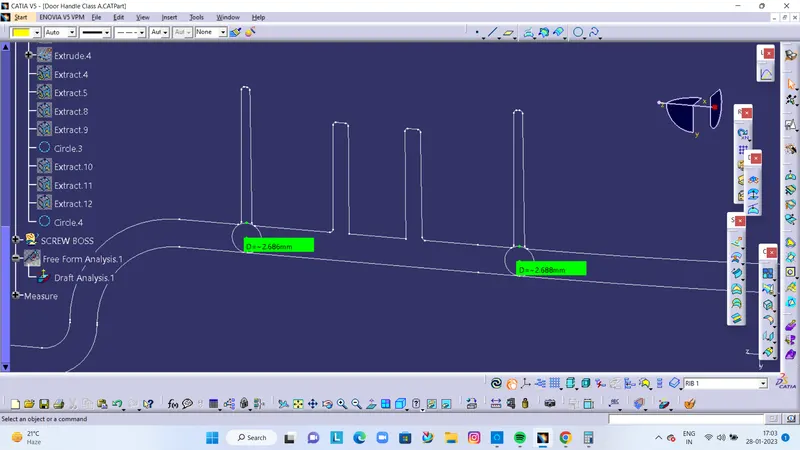

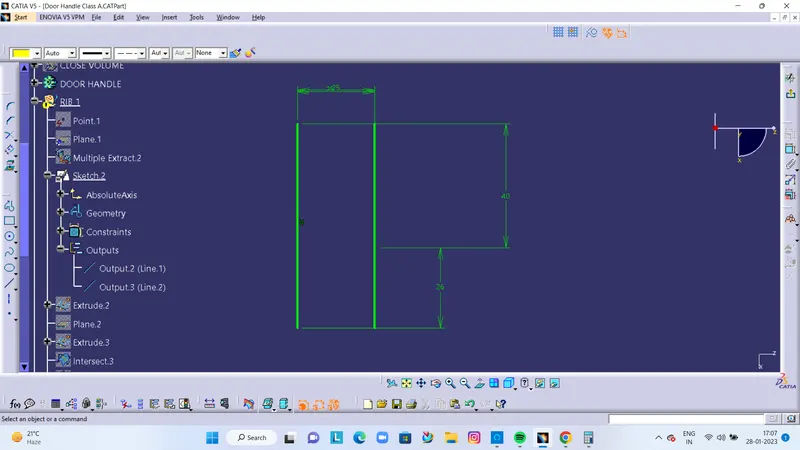

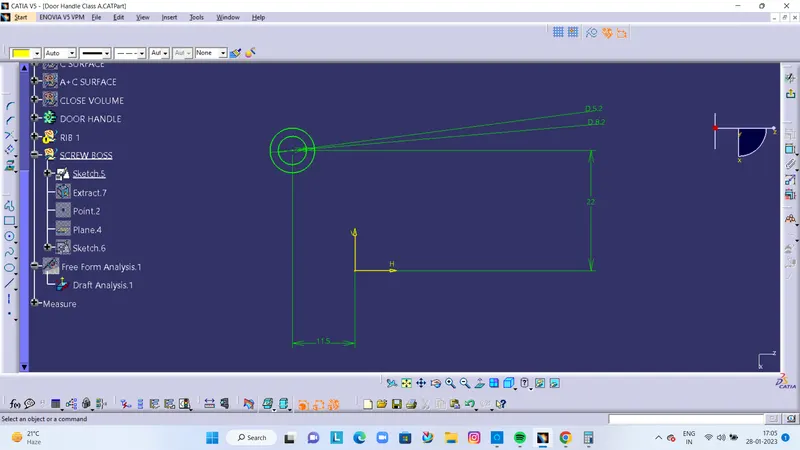

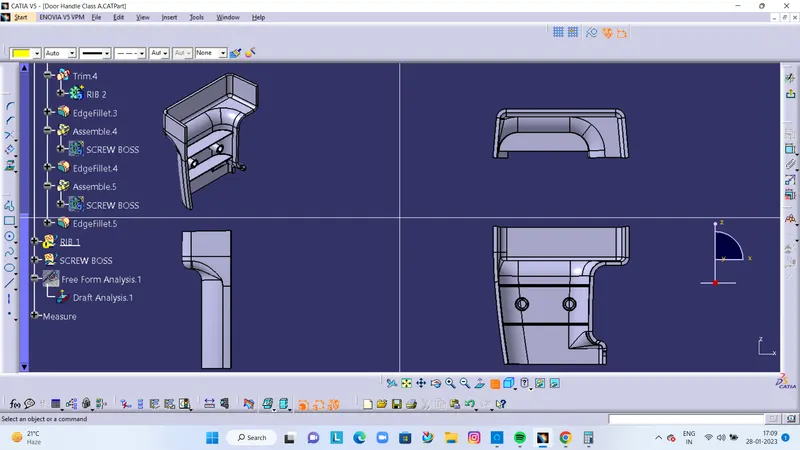

INTERSECTION VIEW OF RIBS AND SCREW BOSS

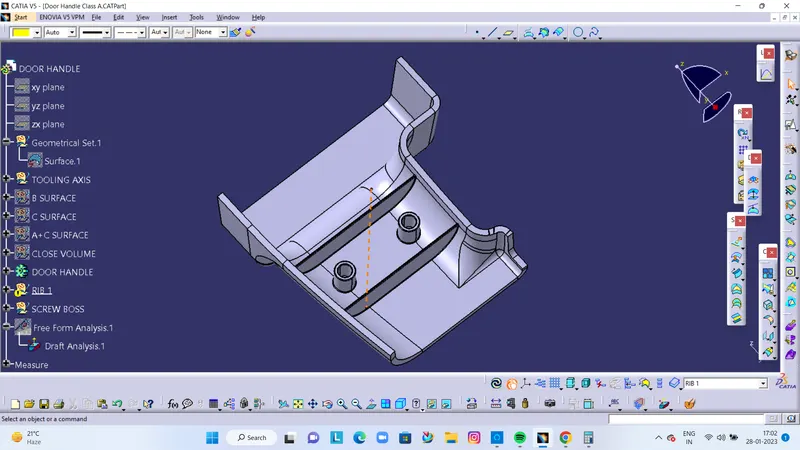

COMPLETE WITH RIBS AND SCREW BOSS

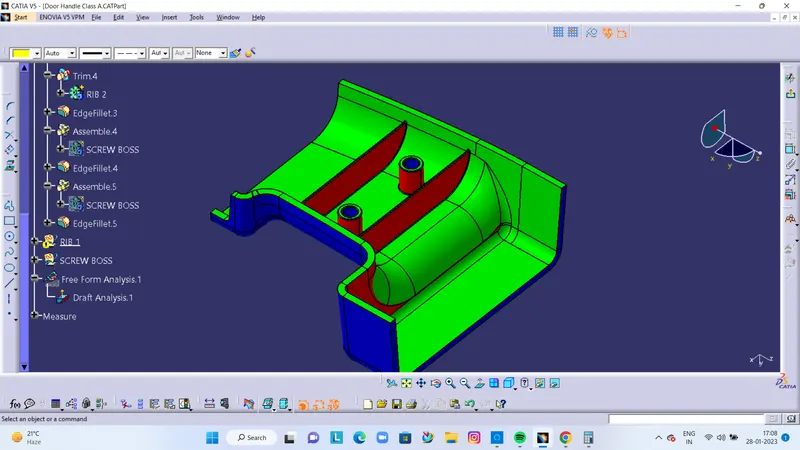

DRAFT ANALYSIS
