Attachment Feature Creation (Ribs & Screw Boss)

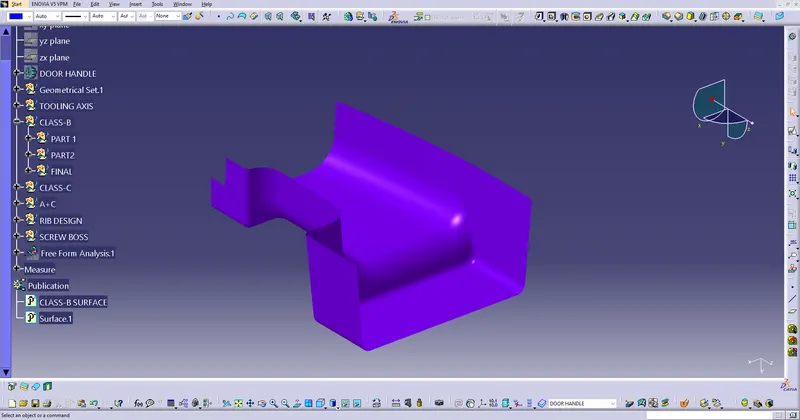

CLASS-B

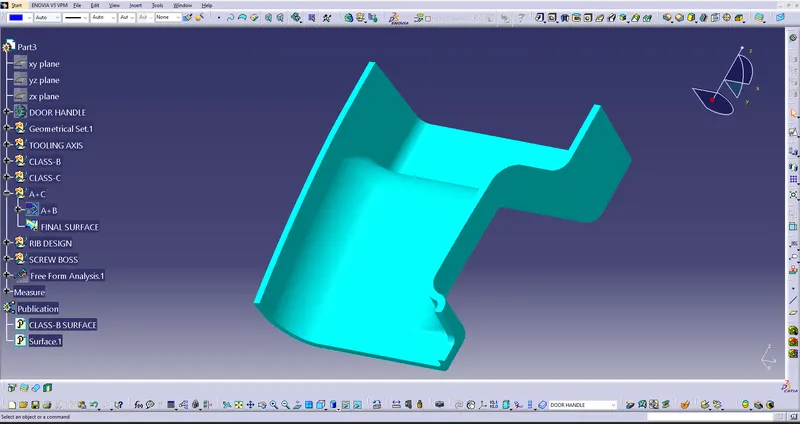

CLASS-C
CLOSED SURFACE

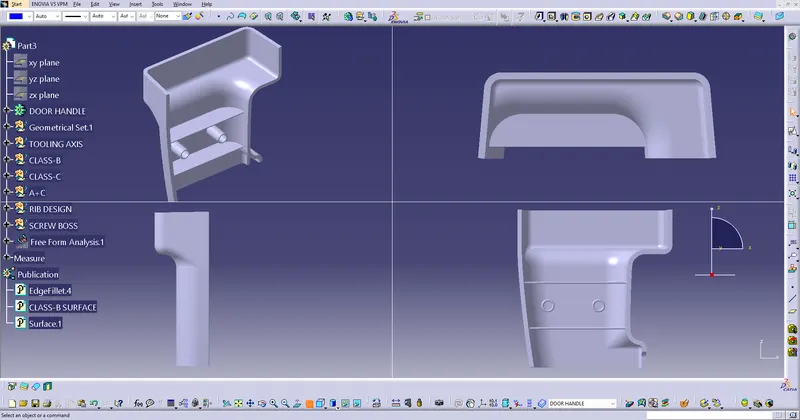

ALL VIEWS

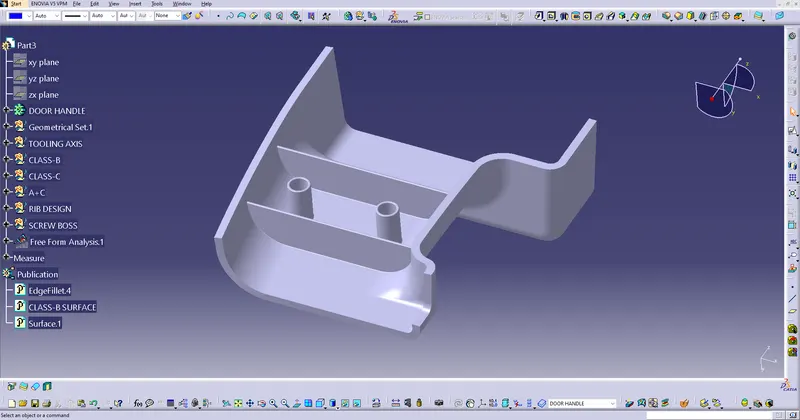

FINAL PRODUCT WITH ENGINEERING FEATURES ON B-SURFACE
DRAFT ANALYSIS

TOOLING AXIS:

• Tooling Axis is very important part while designing the CLASS-B.
• The determination of the direction of Tooling Axis depends on the phases of the surface.
• The Bisecting Method of creating the tooling axis is first we create two lines to clear the draft analysis on both components X & Y.
• When we get both the lines we simply need to bisect it.
• The line formed by Bisecting those lines will be our Tooling Axis.

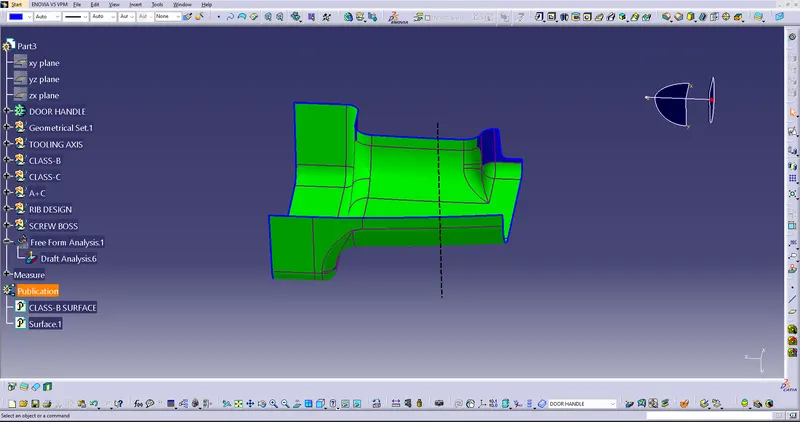

DRAFT ANALYSIS:

• Draft Analysis of a part is to check the phases of the Part are in given Draft angles.
• The tool Future Draft Analysis is used in CATIA V5 to anlyse the draft angles with respect to the created Tooling axis .
• If the colour code is OK as the given range then it is good to go.
• The green surface quote that the CLASS-A of the product is clered for further surface creation.
