Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Aim:-Create the rib for the Drill Handle considering the design rules mentioned in the video.

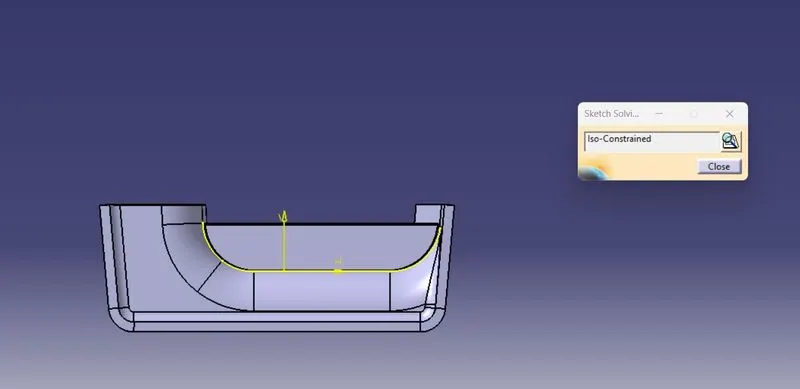

Tooling Axis

Take a extract of the surface make a point and take line in Y direction to create tooling axis

Class A surface

Class B surface

Take offset of A surface and make proper B surface by taking care of vanished surfaces

Class C surface

Take boundary of class A surface and then sweep it

Join AC

JOIN A and C surface

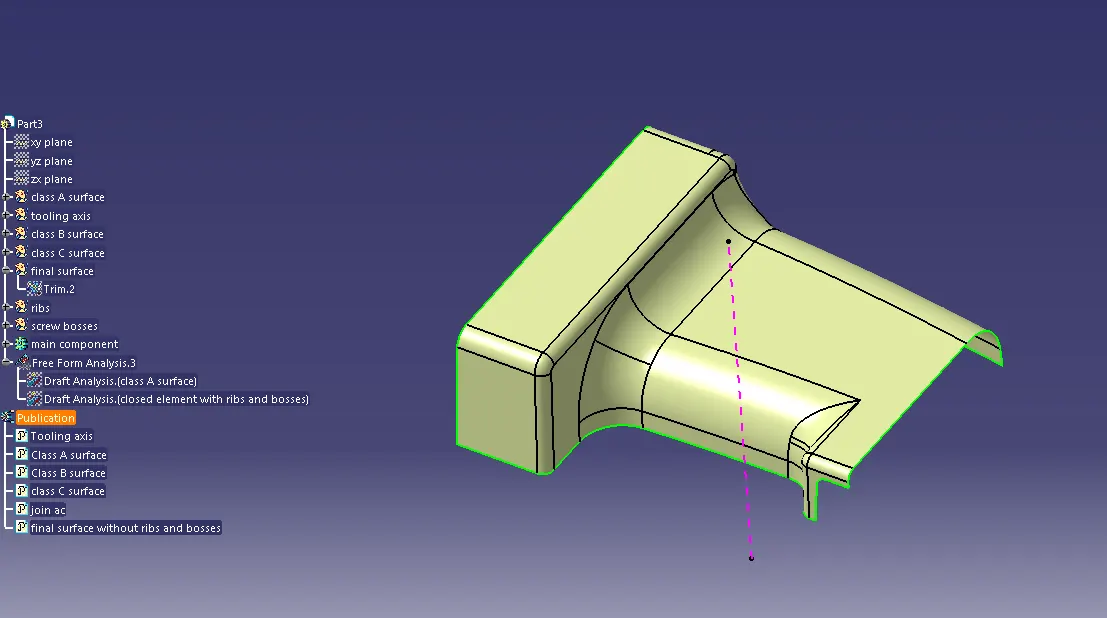

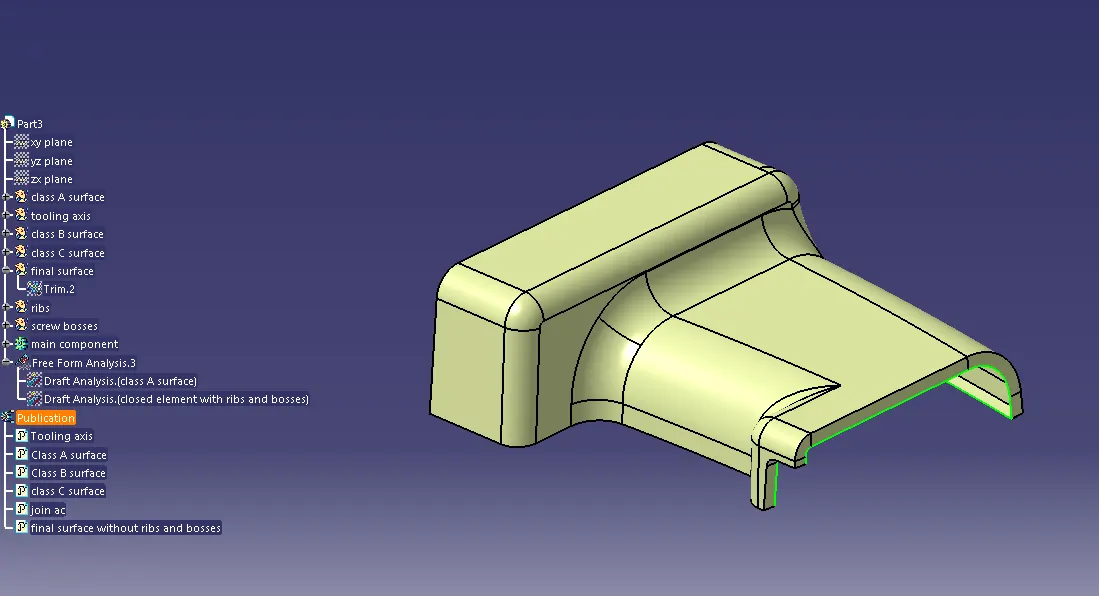

Final surface

Trim join ac with B surface

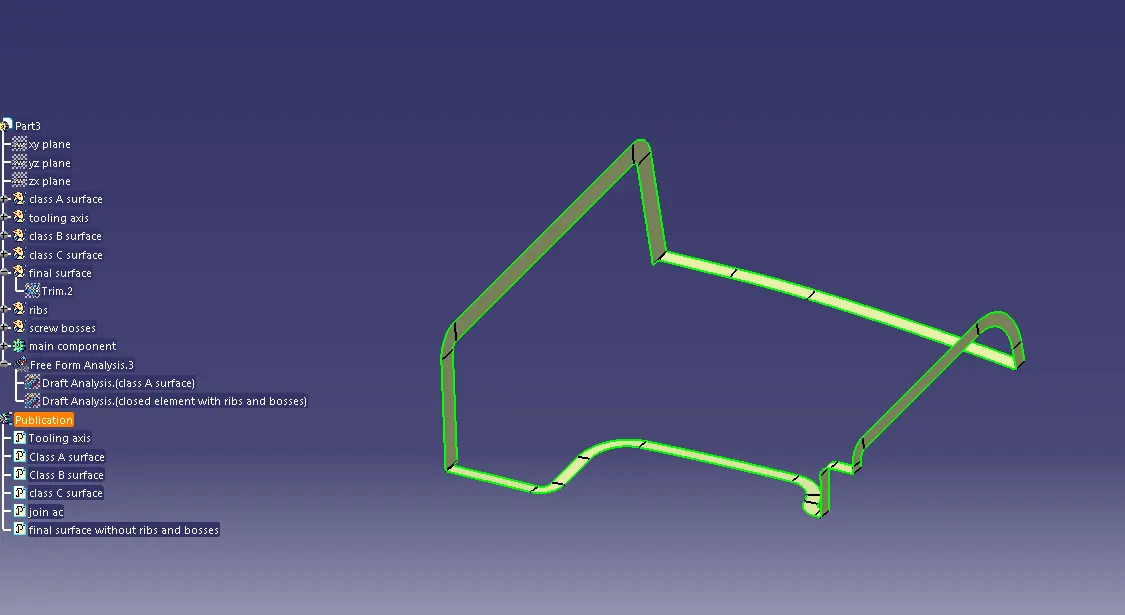

closed element

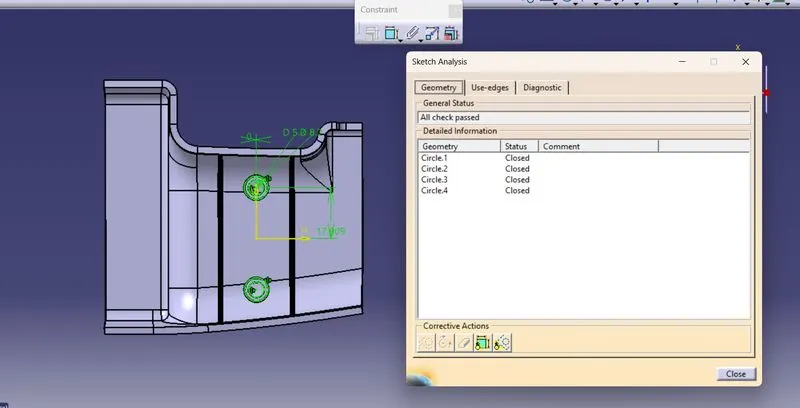

RIBS AND SCREW BOSSES

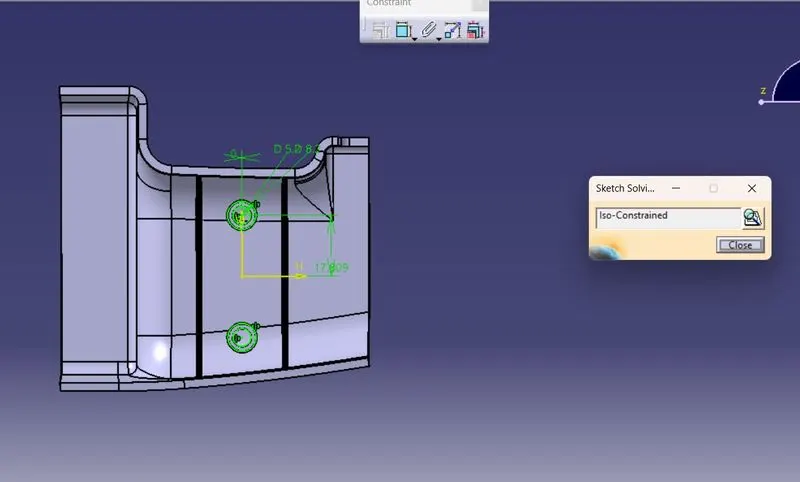

sketches

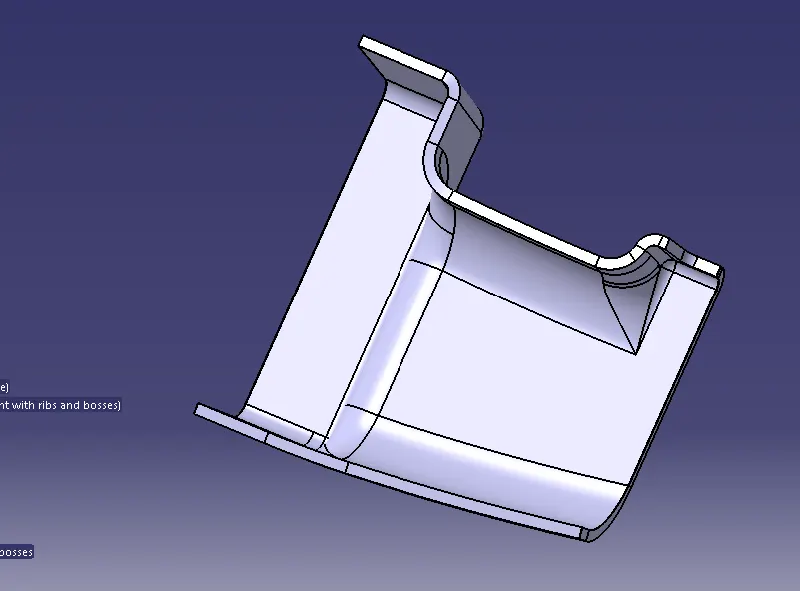

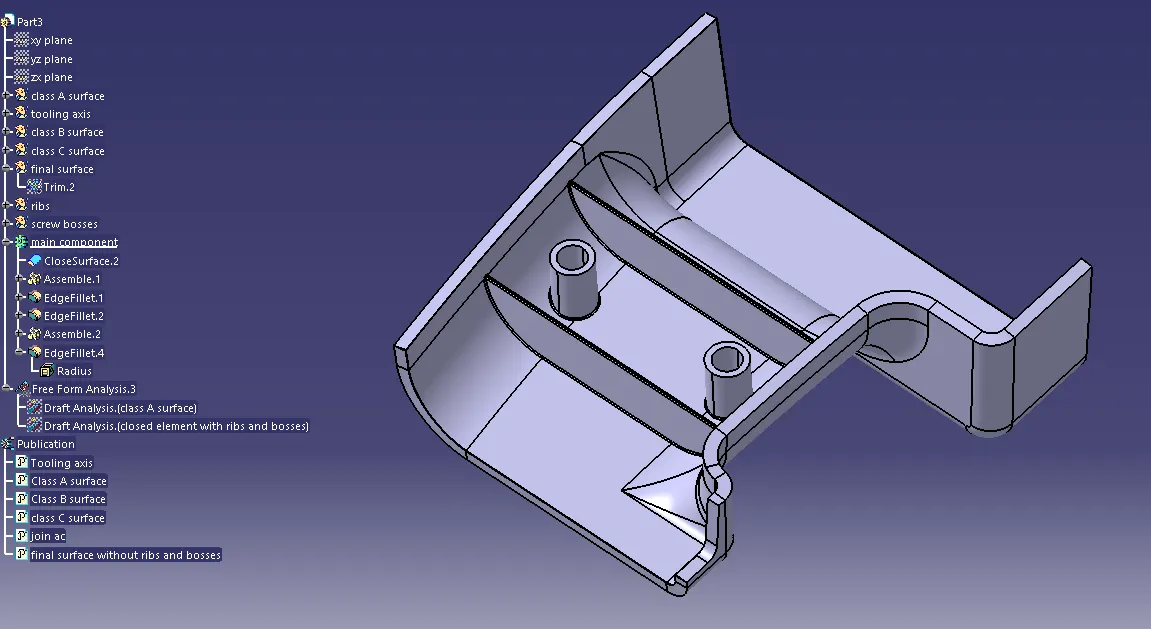

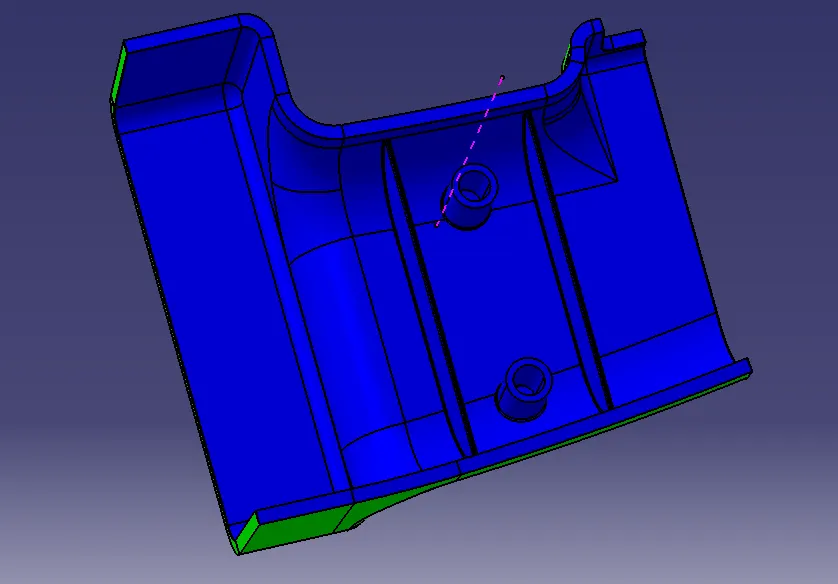

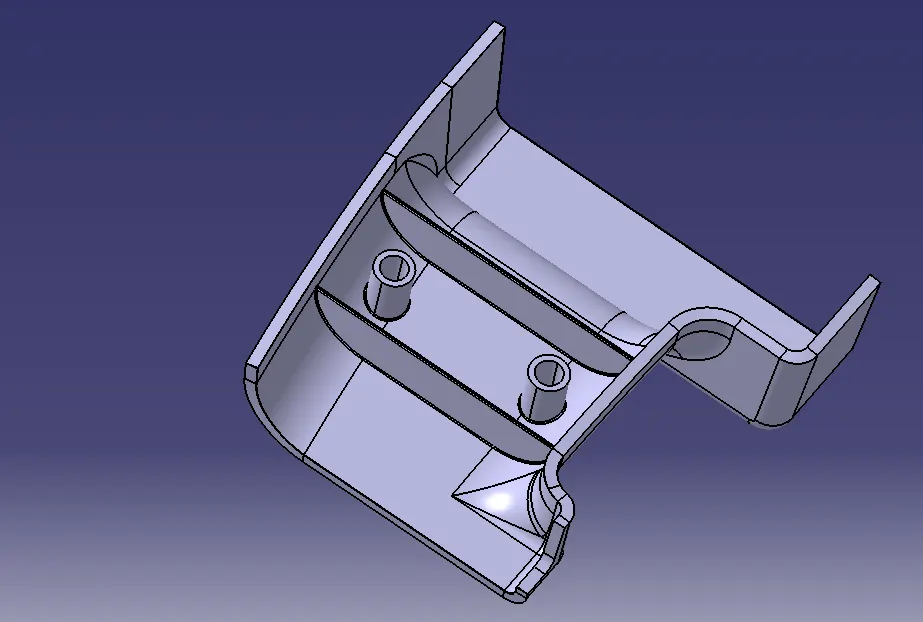

Final element with ribs and screw bosses

DRAFT ANALYSIS

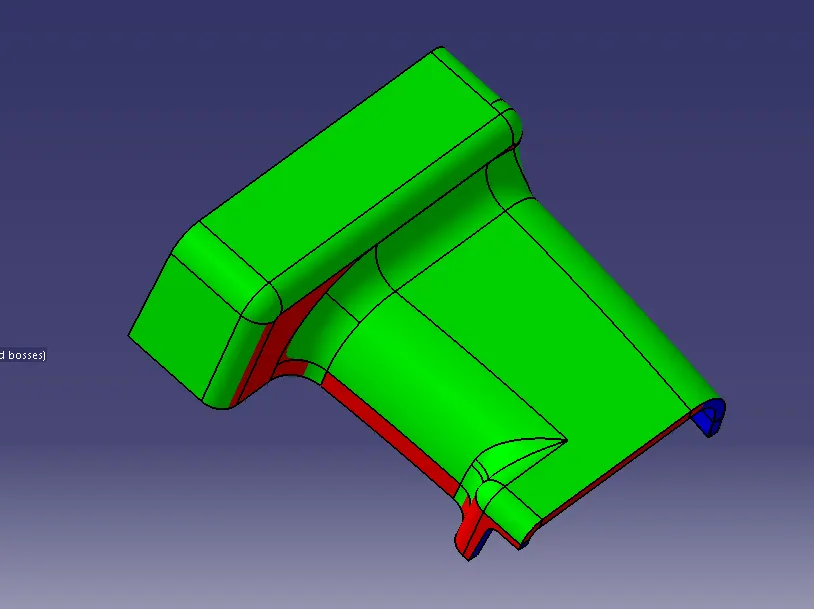

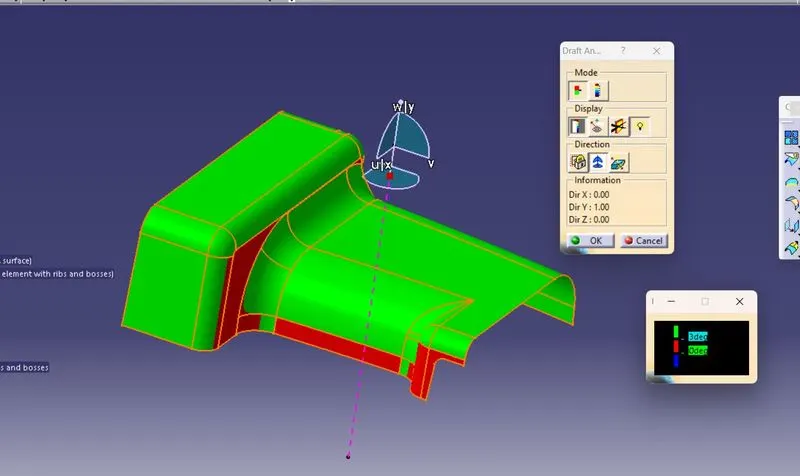

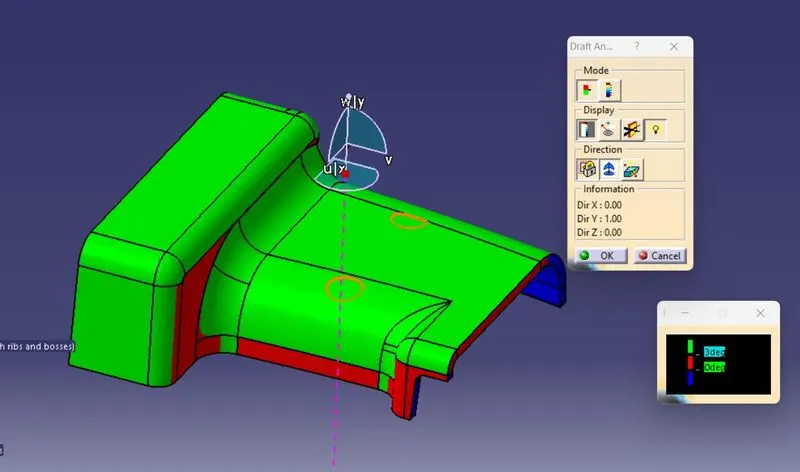

Draft analysis class A surface( with uneveness draft angle 3 degree)

There is a defect in the class A surface becaues the red patches there is uneveness and the angle there is less than 1 degree that is less than 3 degree

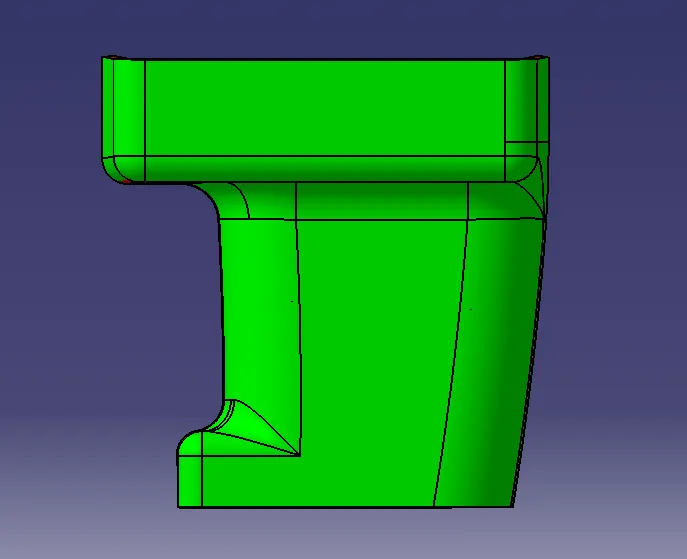

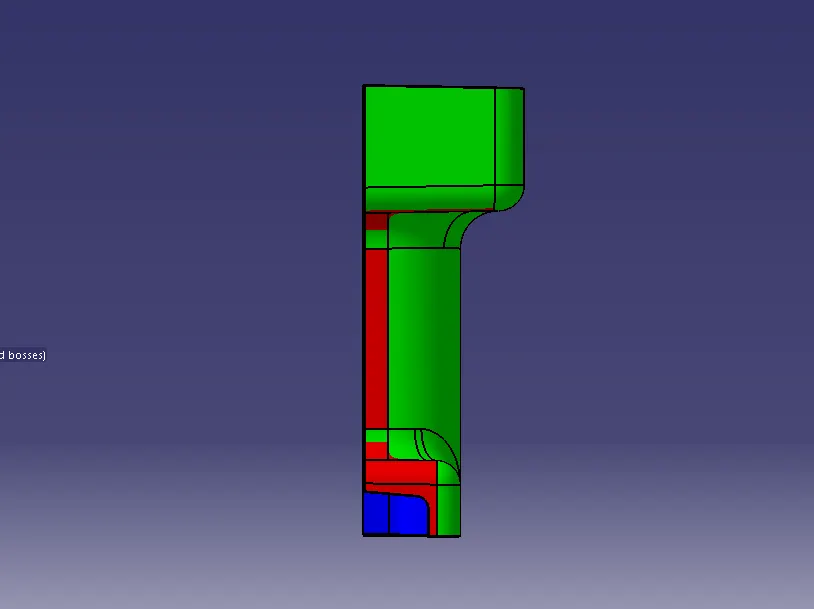

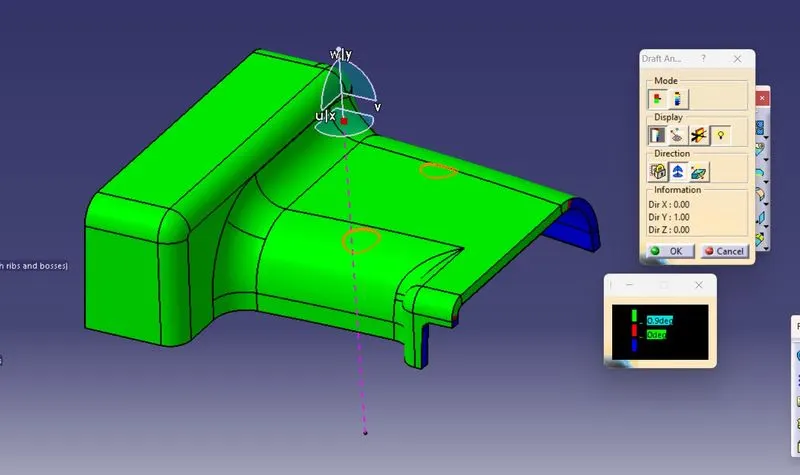

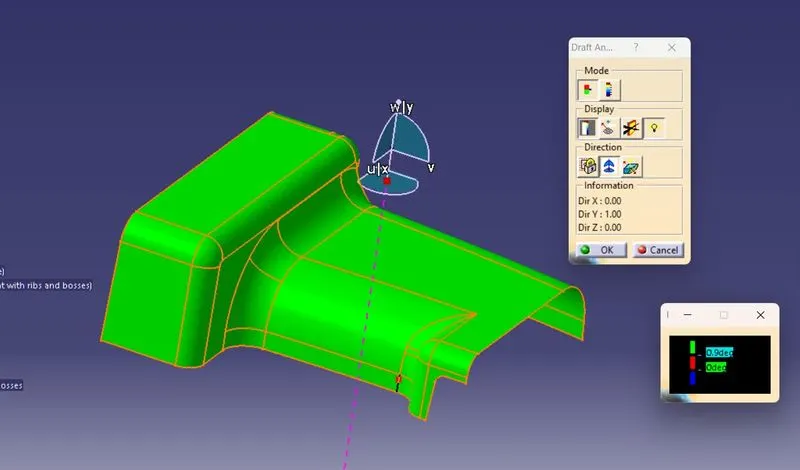

Draft analysis class A surface( with even surface draft angle 0.9 degree)

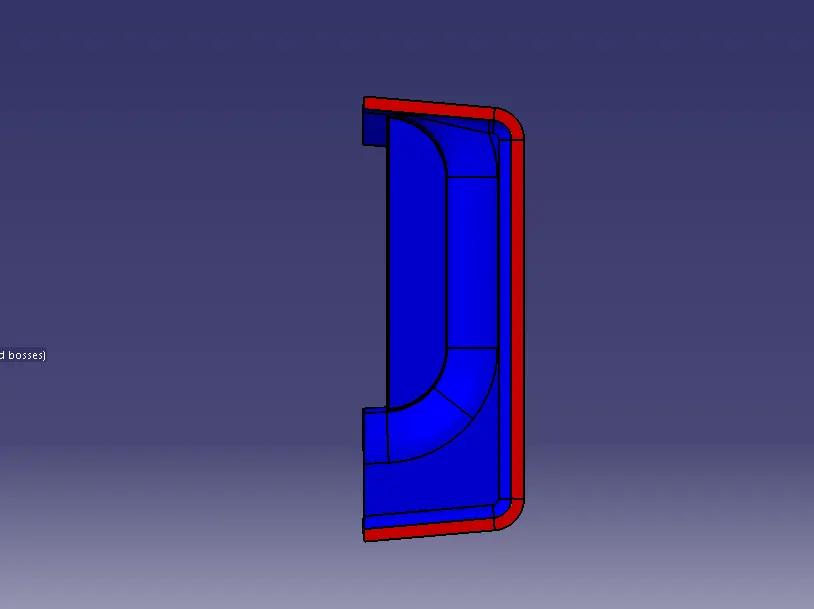

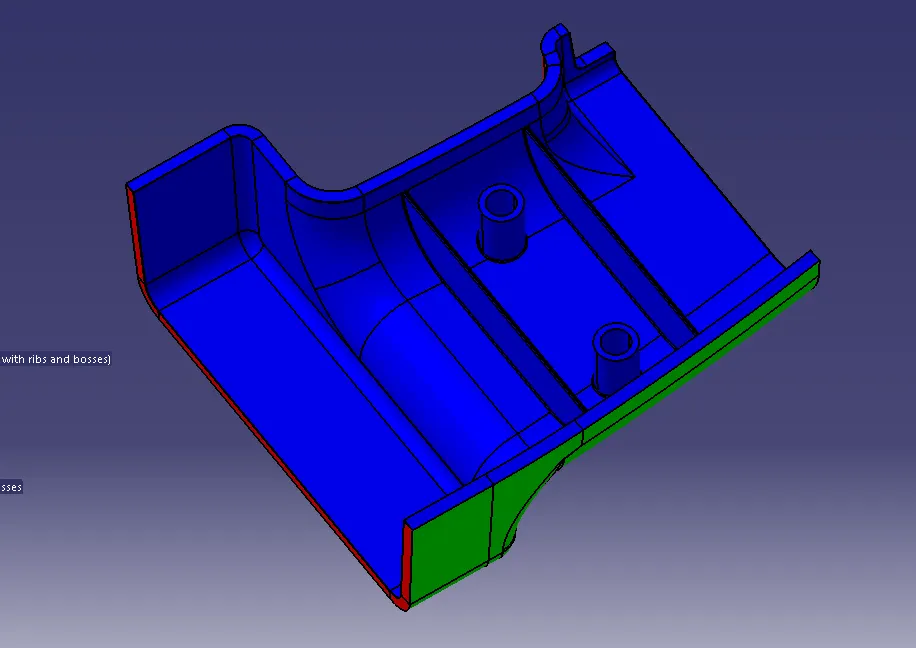

Draft analysis of closed part with ribs and screw bosses(uneveness draft angle 3 degree)

Draft analysis of closed part with ribs and screw bosses(even surface draft angle 0.9 degree)

views

iso view

Front view

Top view

side view

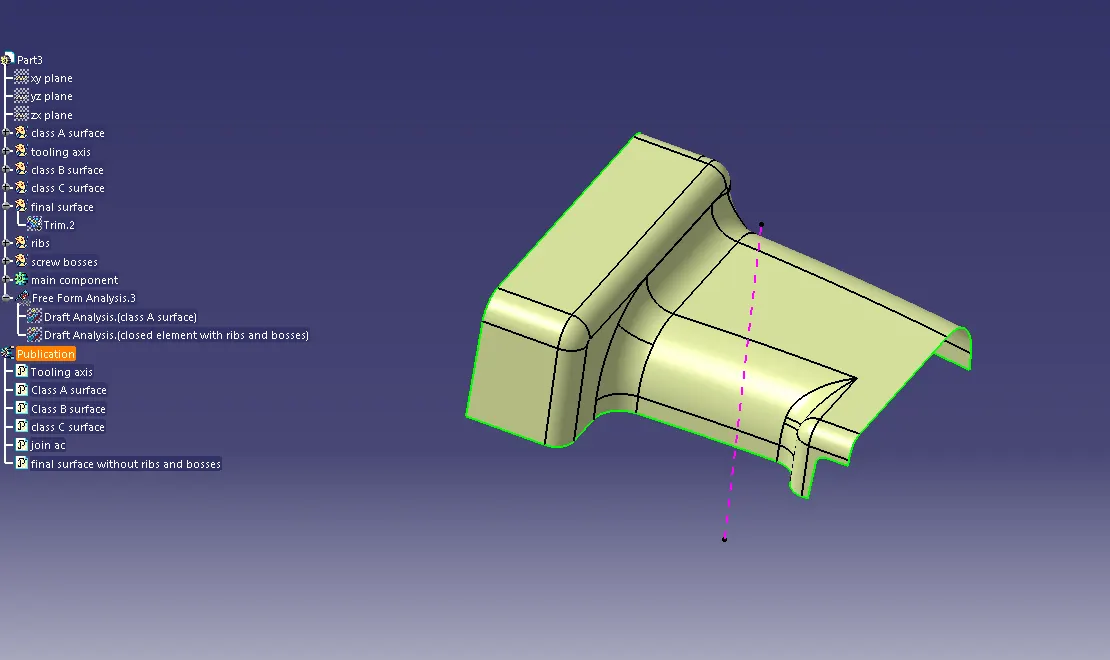

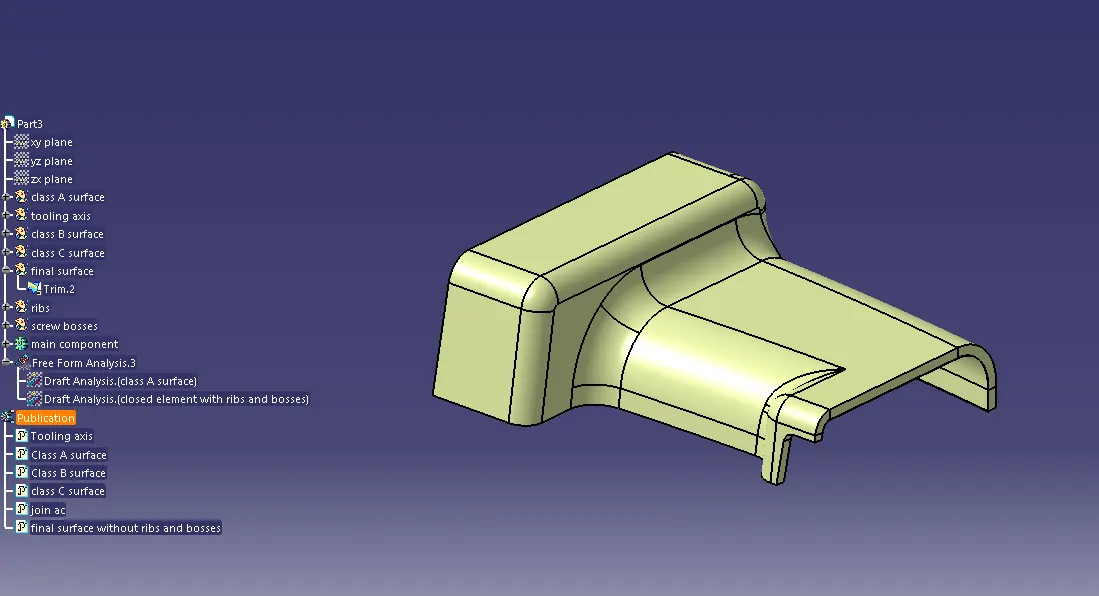

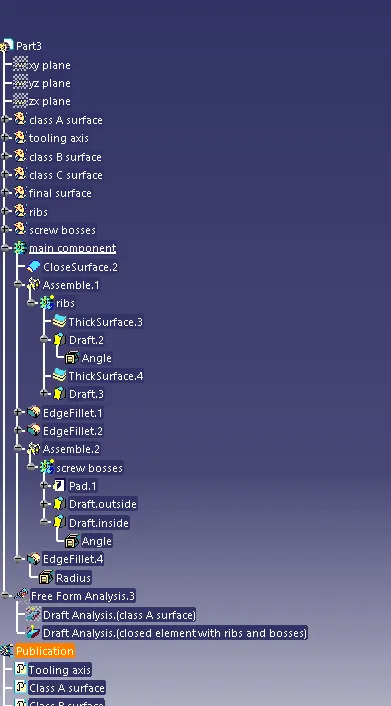

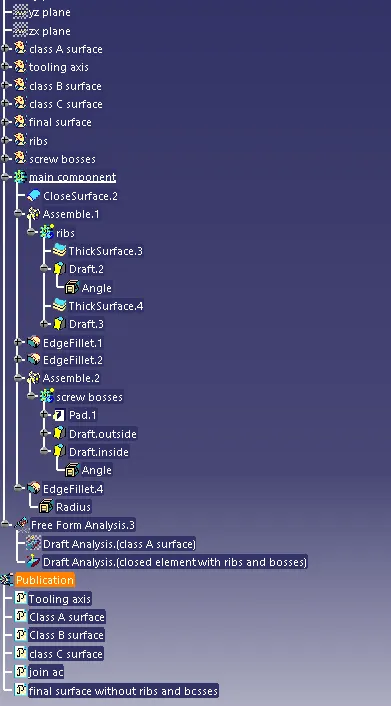

Tree structure
