Week 9 - Attachment Feature Creation - Challenge 2
General Guidelines for Bosses:
- Draft - 0.5 degrees on walls of boss
- Thickness - Typically 40%* of the nominal wall at the base.
- Height to Diameter Ratio - 3:1
- Radii - 0.25mm maximum radii.
"C" is where the doghouse contacts the backside of the surface
-
Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).
-
Height of ( B ) should be between 3.0 – 6.0 mm.

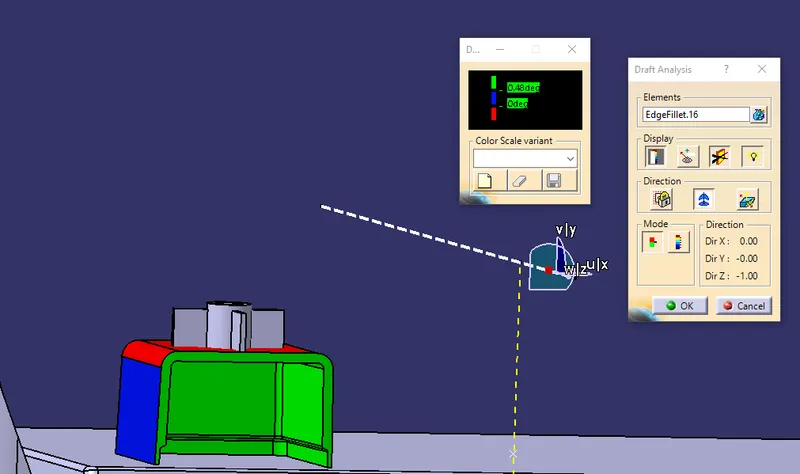

Draft Analysis:
The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.The draft analysis button within CATIA V5 will helps you quickly gather the draft angle on multiple surfaces without the need for tedious manual measurements.
The tooling axis creation:
The tooling axis is very important for the creation of plastic component as it is this axis through which the tool is sent for tooling purpose.And the tooling axis was created parallel to the side walls of the dog house.
- Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View):

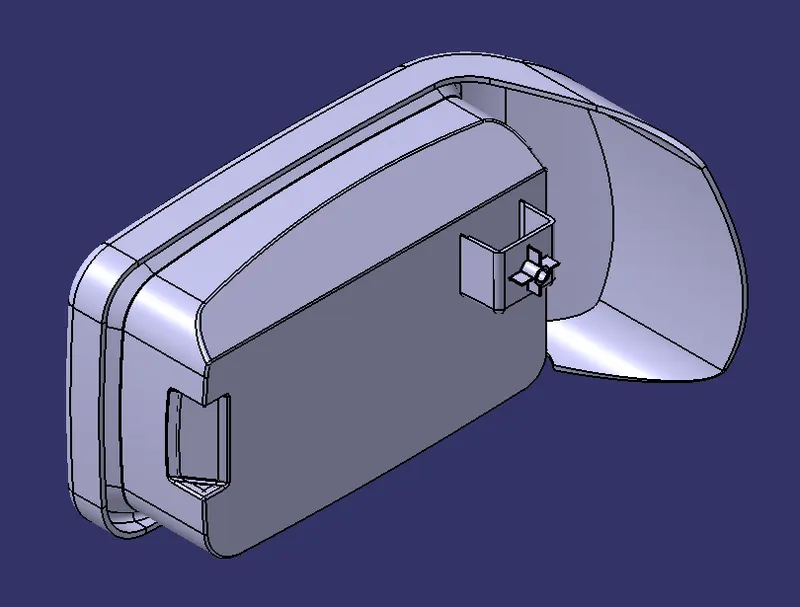

Iso view:

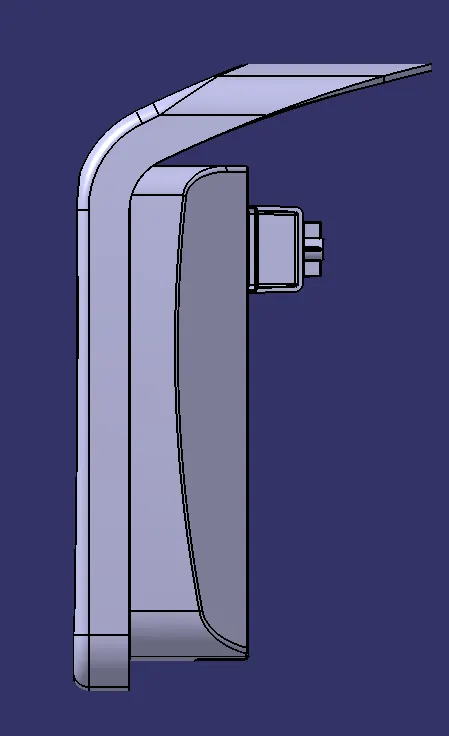

Front View:

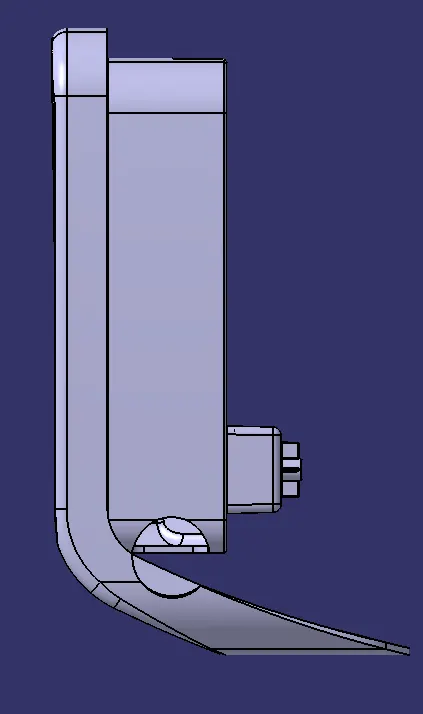

Right view:

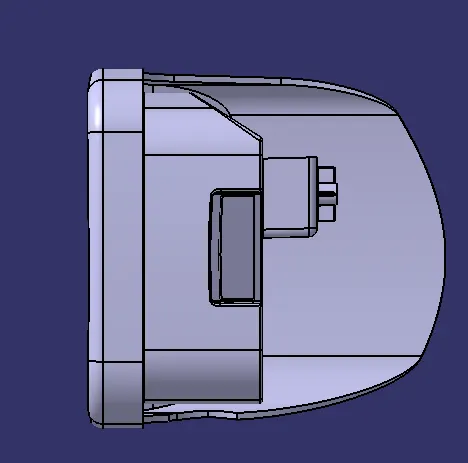

Top view:

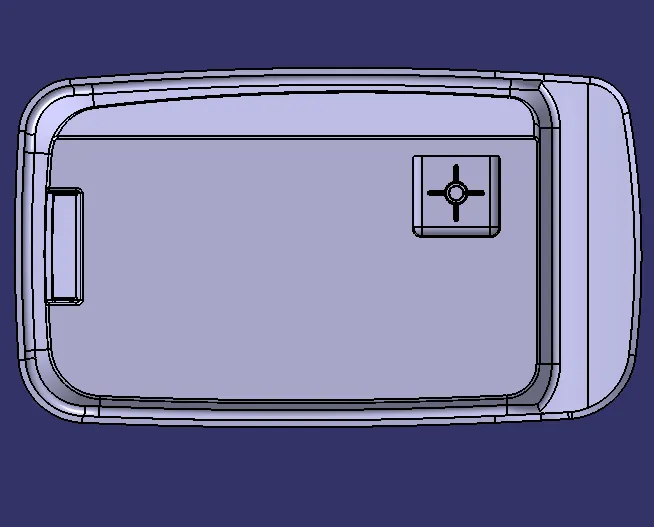

Bottom view:
