Week 9 - Attachment Feature Creation - Challenge 2

Dear sir,

Please Find the Attached Work file For Week 9 (Door Trim Dog house Creation)

Title:- Creation of Door Trim With Doghouse Creation

Tools:- 1) Input class A feature

2) Thickness of part

3) Doghouse Feature Details (Thickness, and approx Size)

4) CAD Software (Catia V5)

Procedure:- 1) Create a Tree Flow chart for making a Complete solid Part

I) Get Input as Class A surface

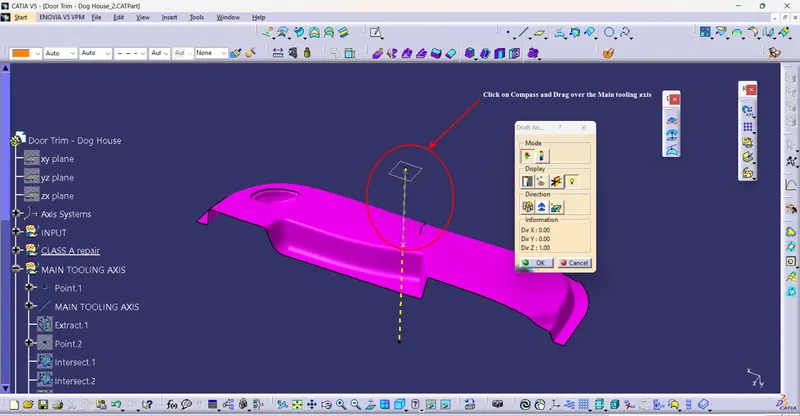

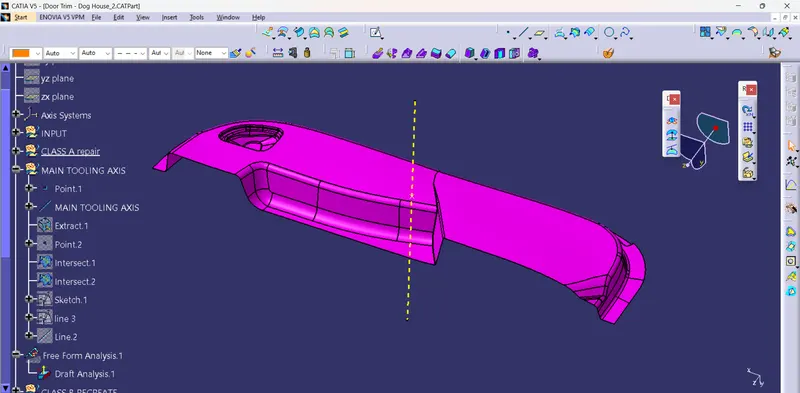

II) Create the Main tooling axis By using the appropriate Method

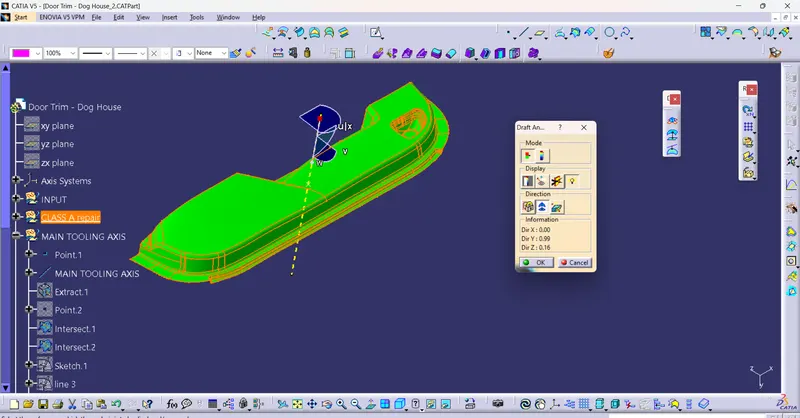

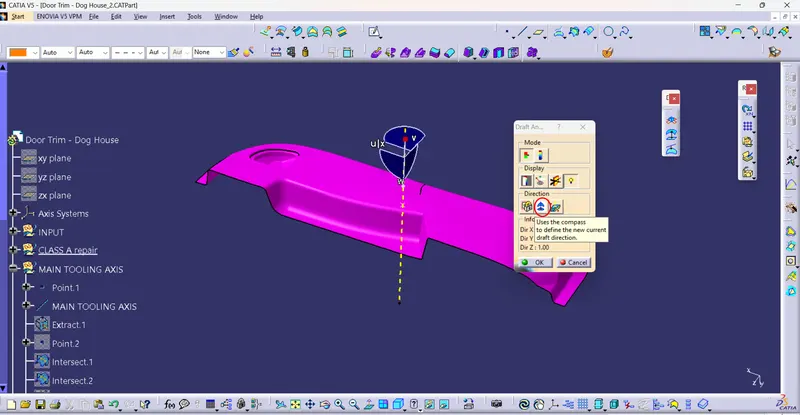

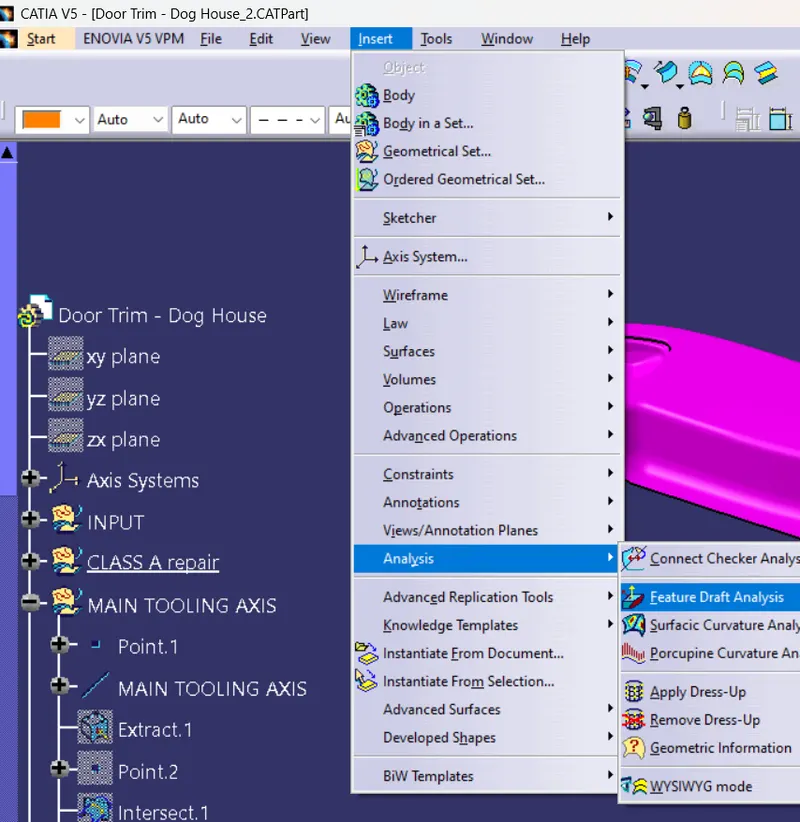

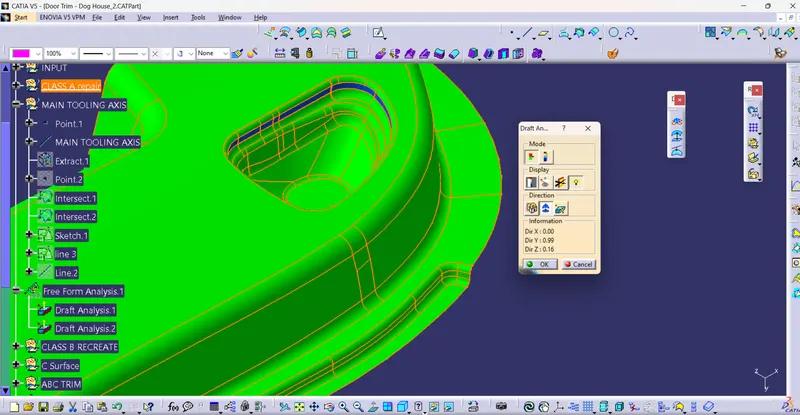

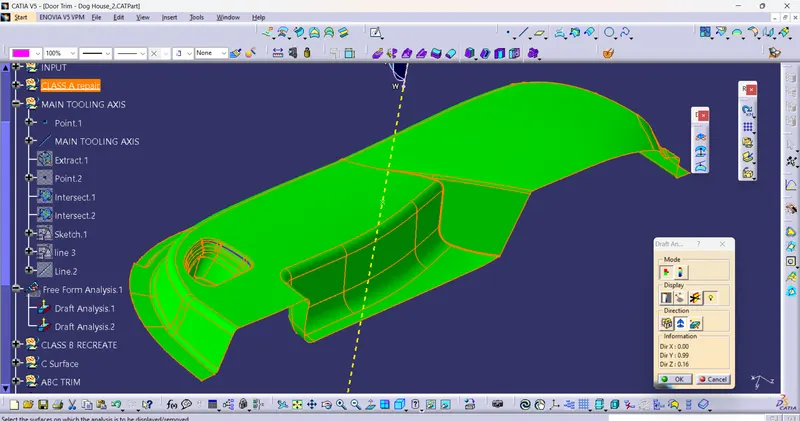

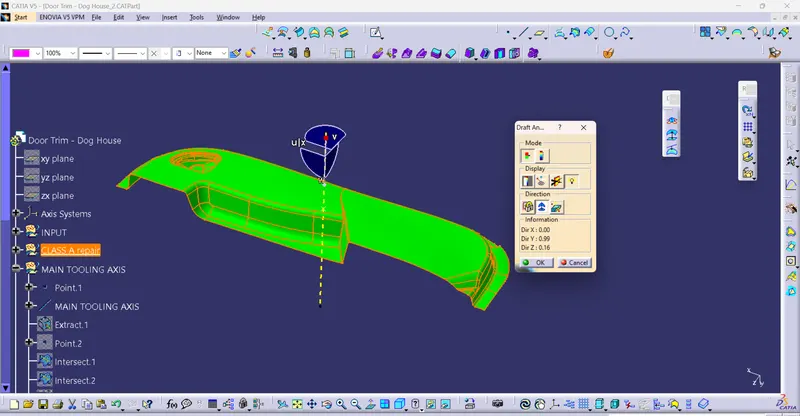

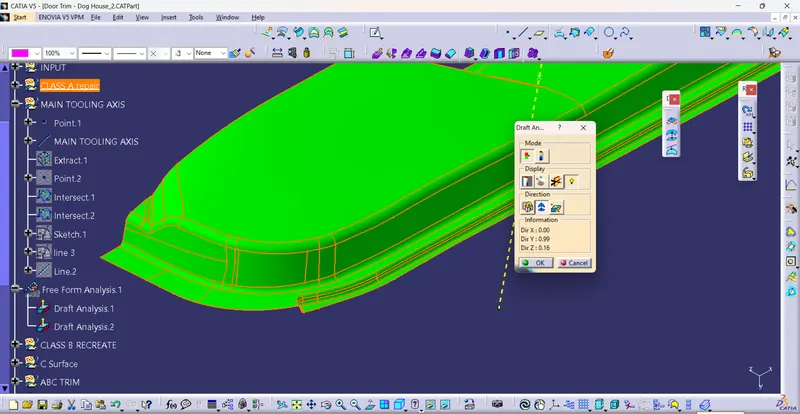

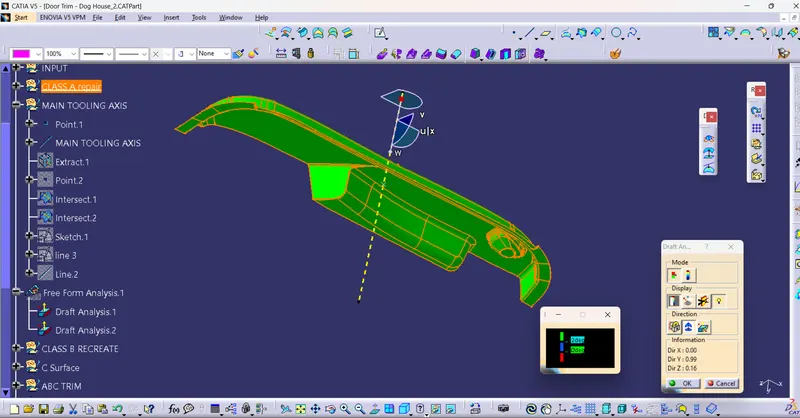

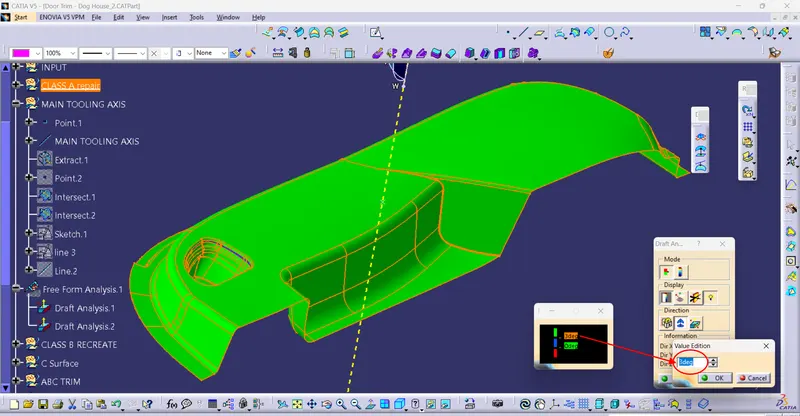

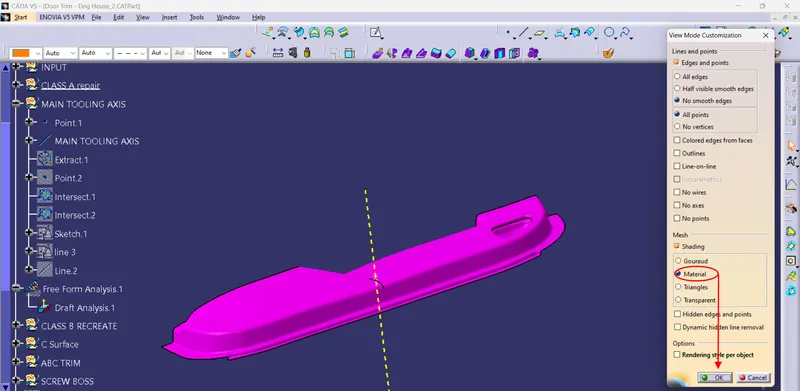

III) Perform Draft analysis on Class A surface

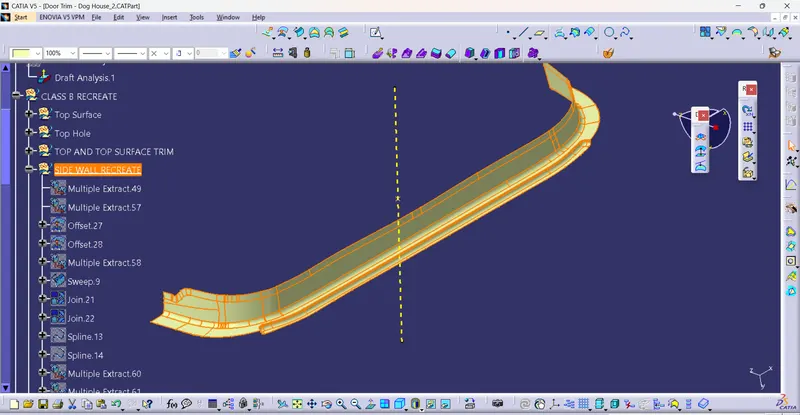

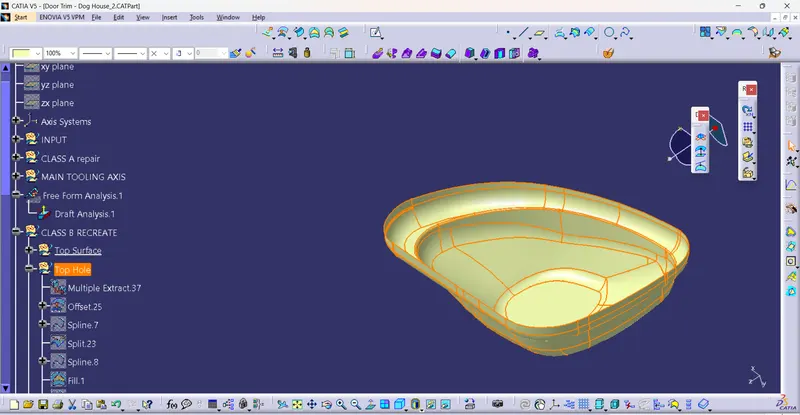

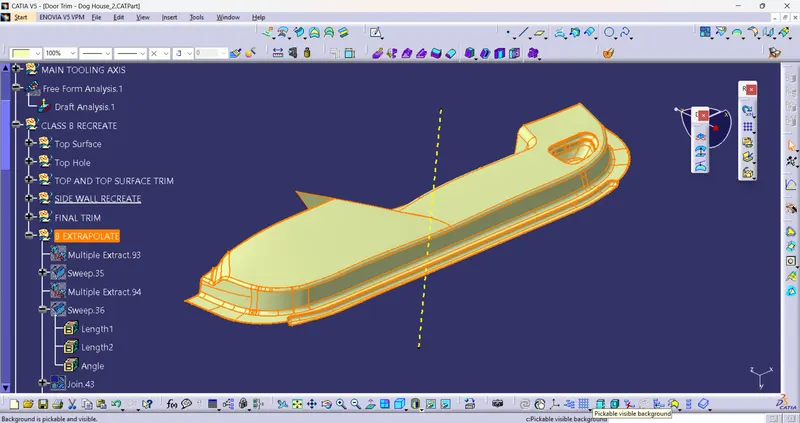

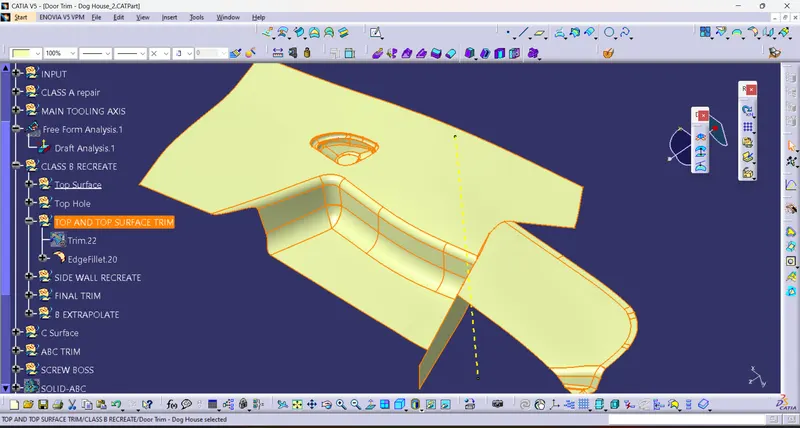

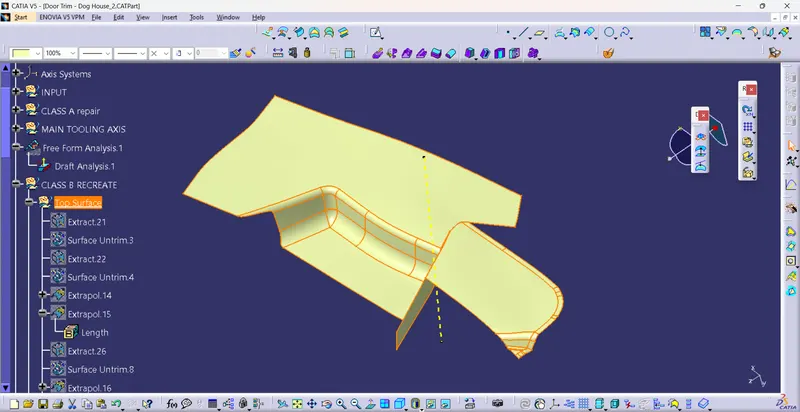

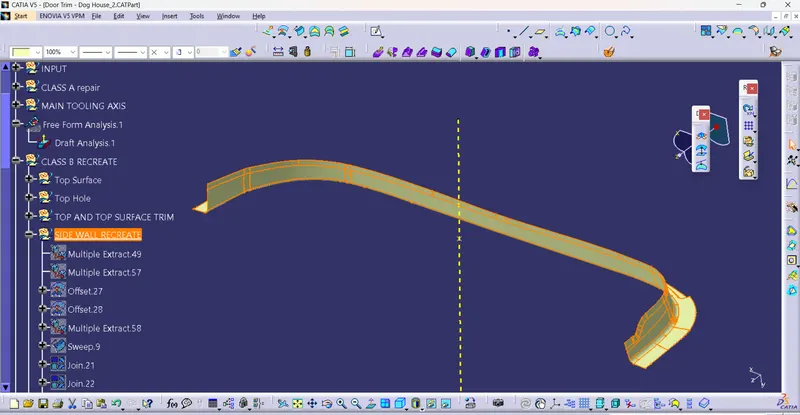

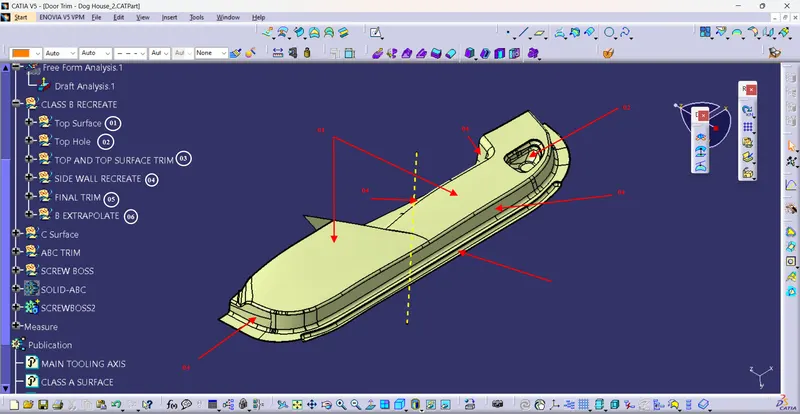

IV) Create a Class B surface

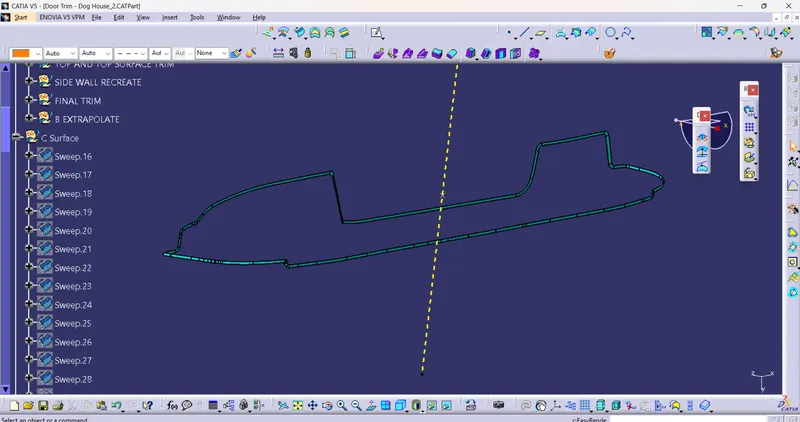

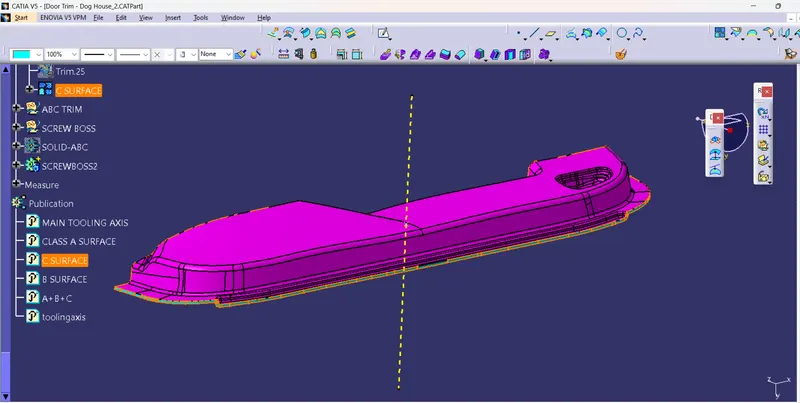

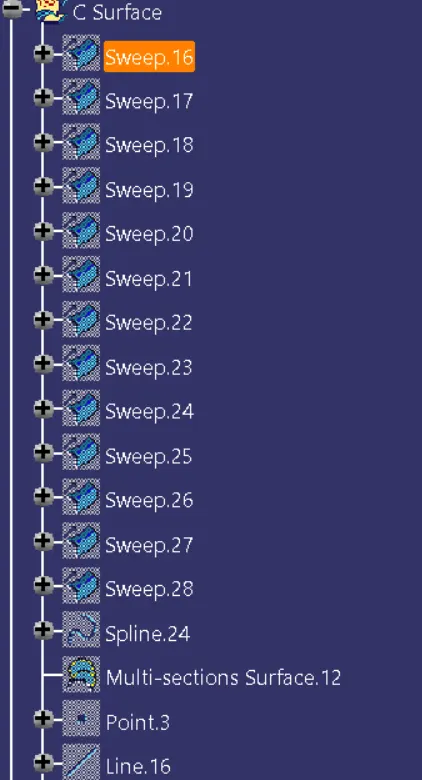

V) Create a Class C surface

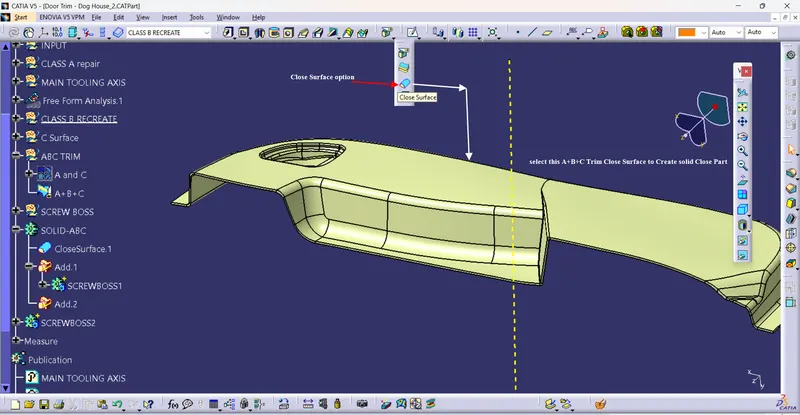

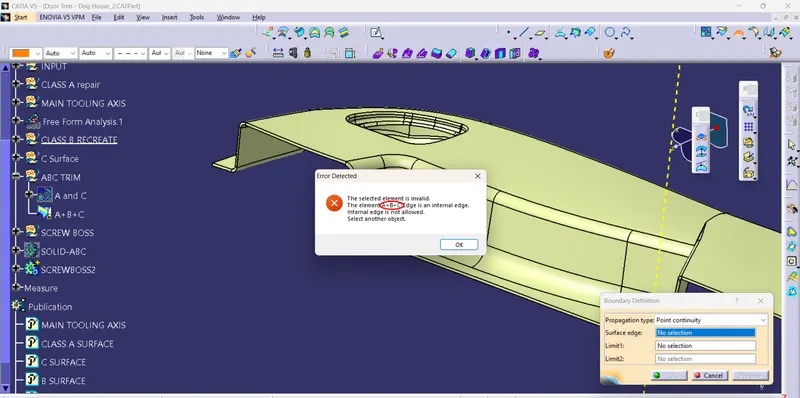

VI) Close all A, B, and C surfaces and make a Close Surface Feature

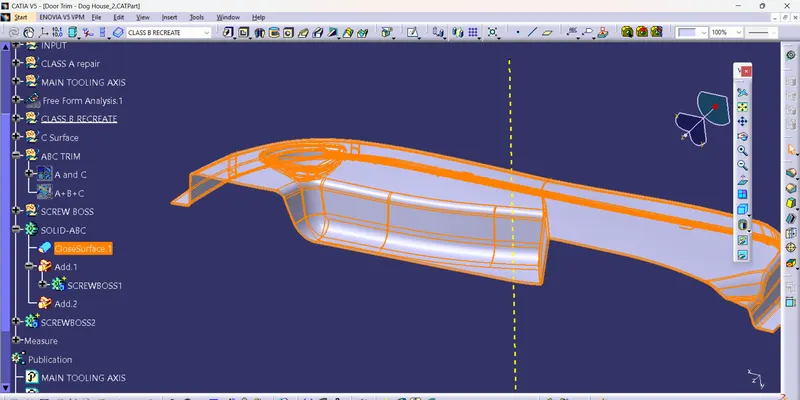

VII) Create solid Feature From Close surfaces

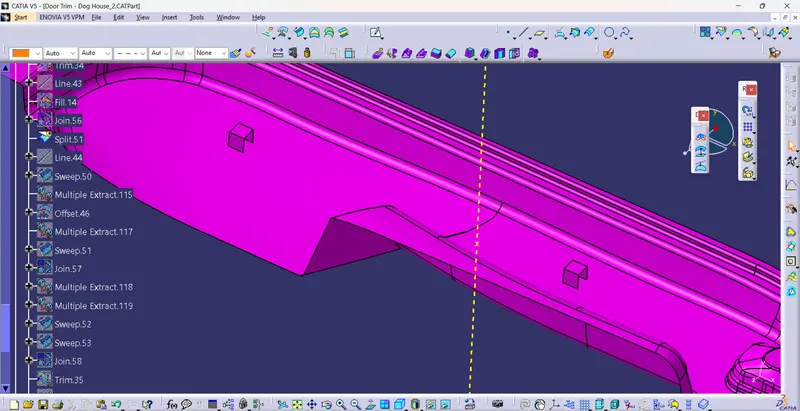

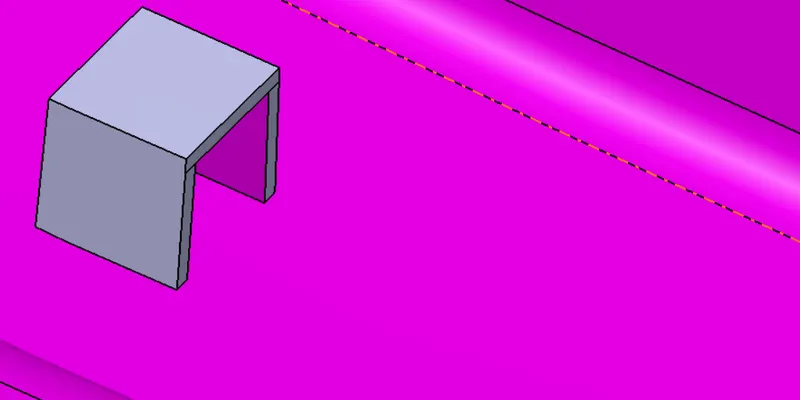

VIII) Create Dog house Features

A) Base Sketch For Dog house

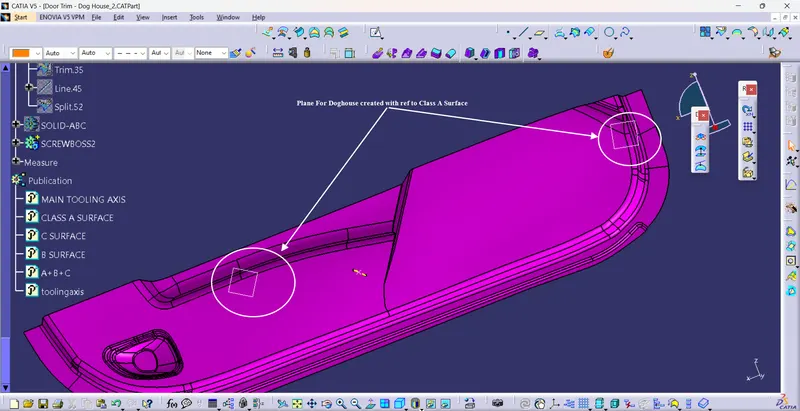

a) choose or create a Plane where the dog house feature Located

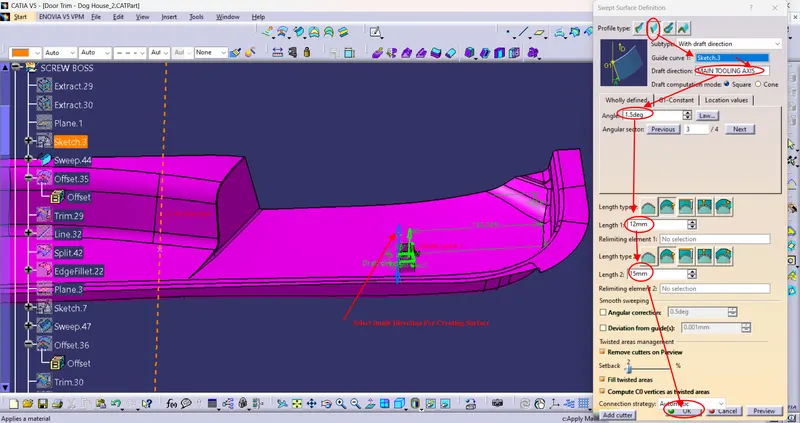

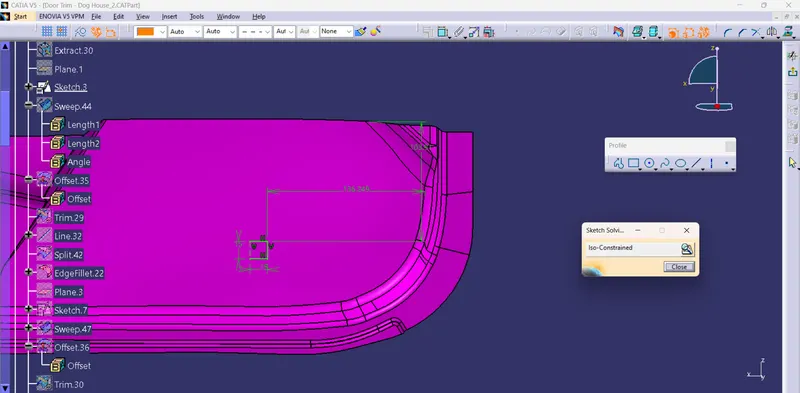

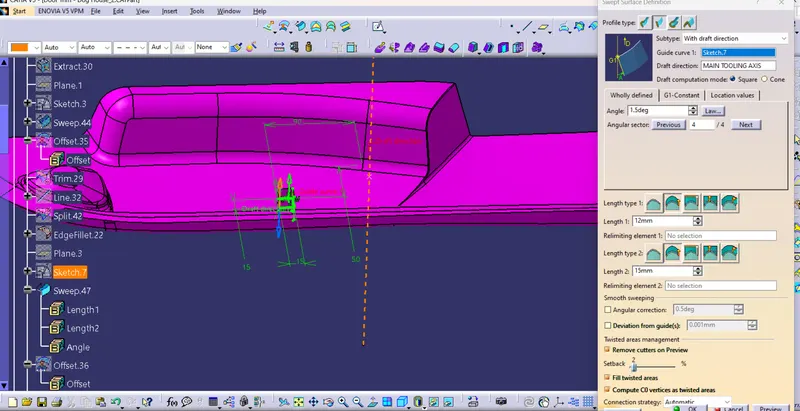

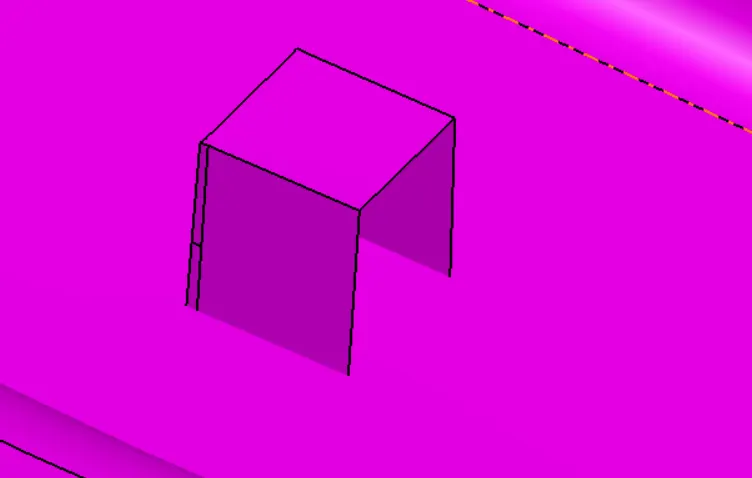

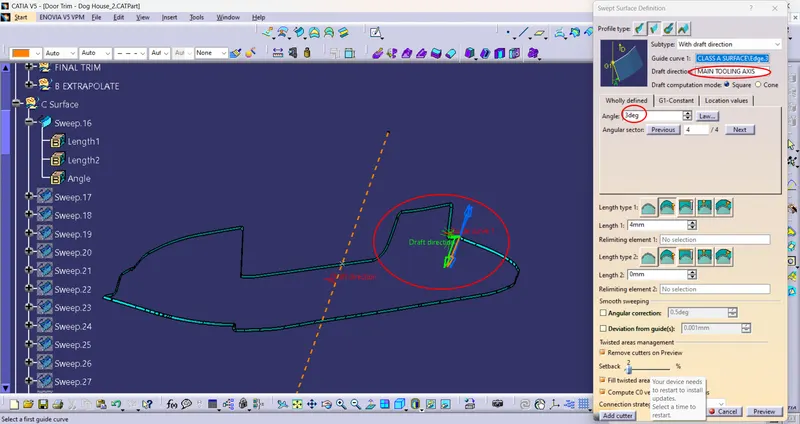

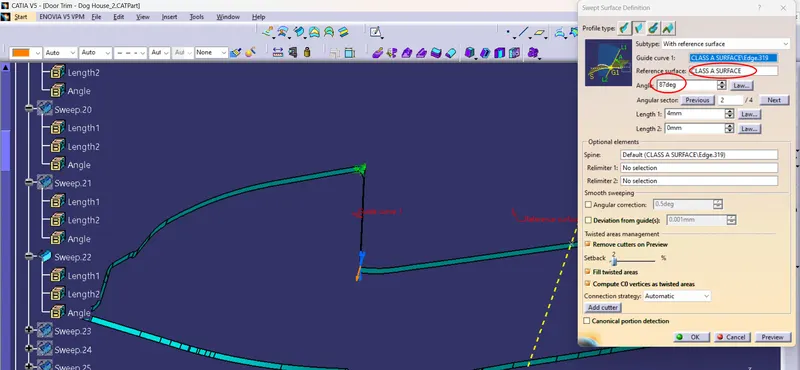

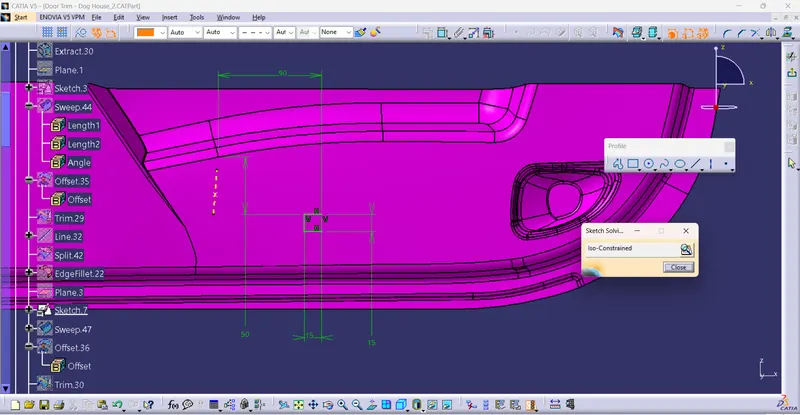

b) Create a Base Sketch For Dog house and use the Sweep command Draft with the main tooling axis

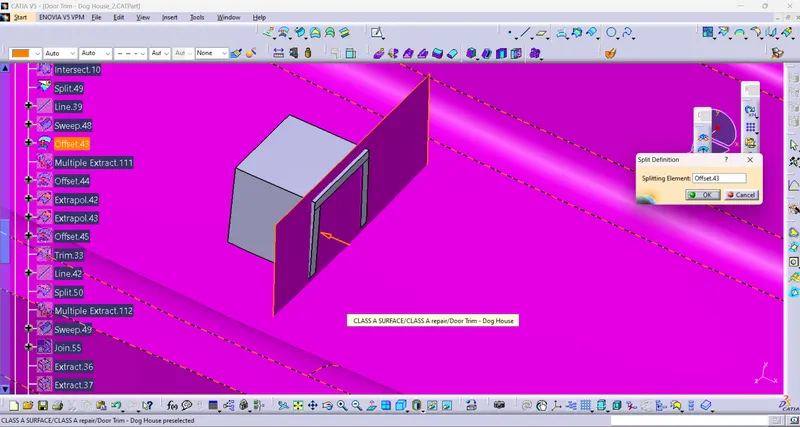

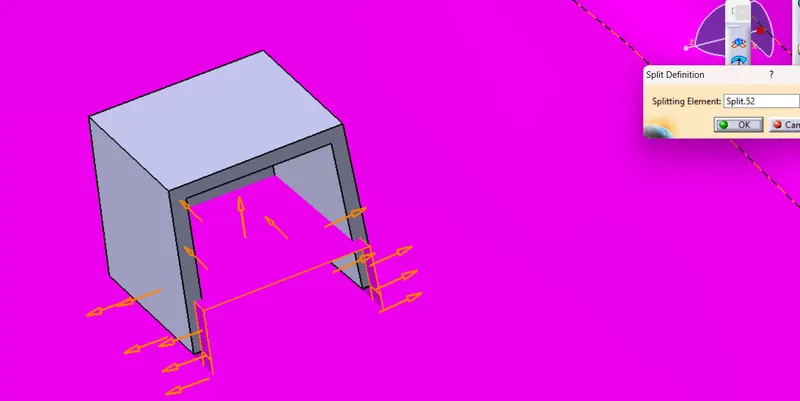

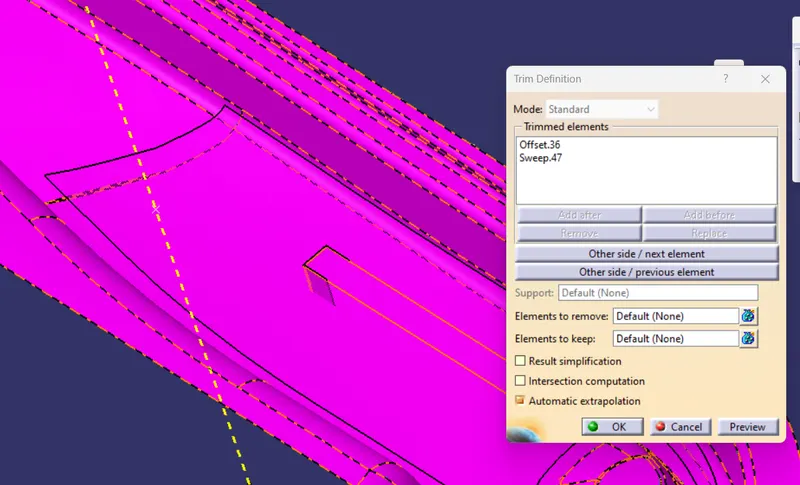

c) Perform trim Operation if required

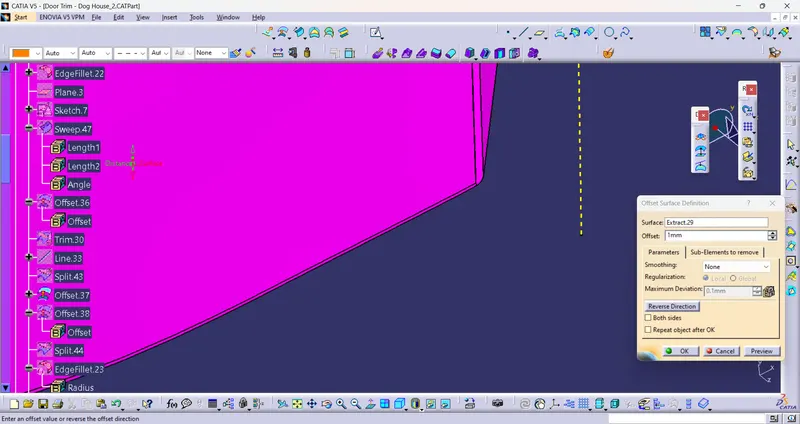

As Created Plane is Above Class A During the Intersection it will create an issue so We trim bodies At 1 mm offset.

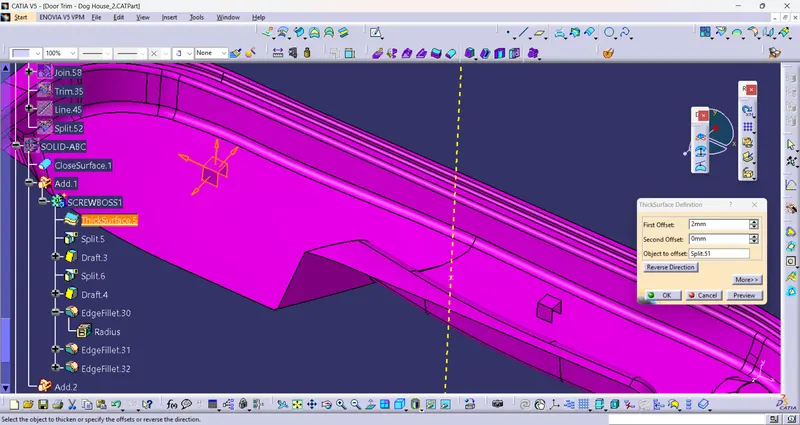

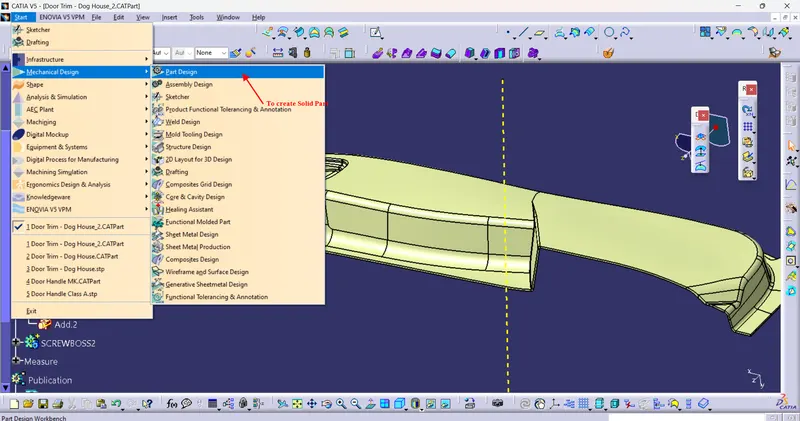

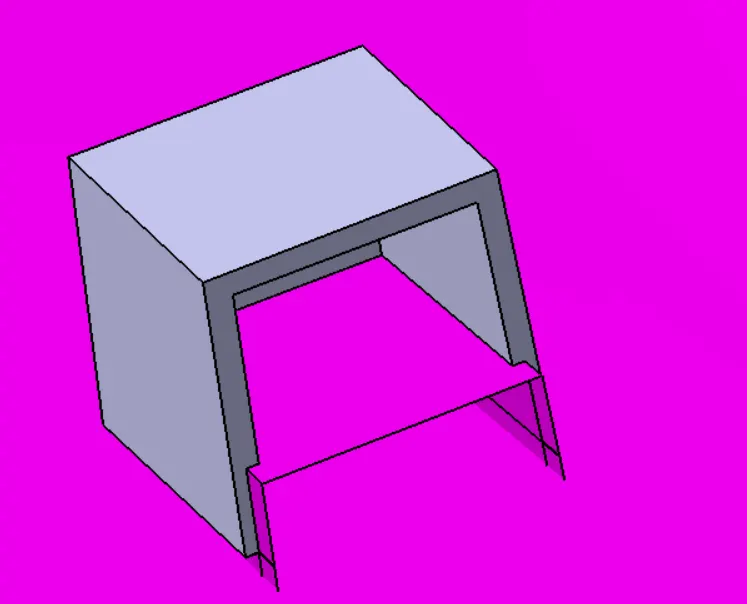

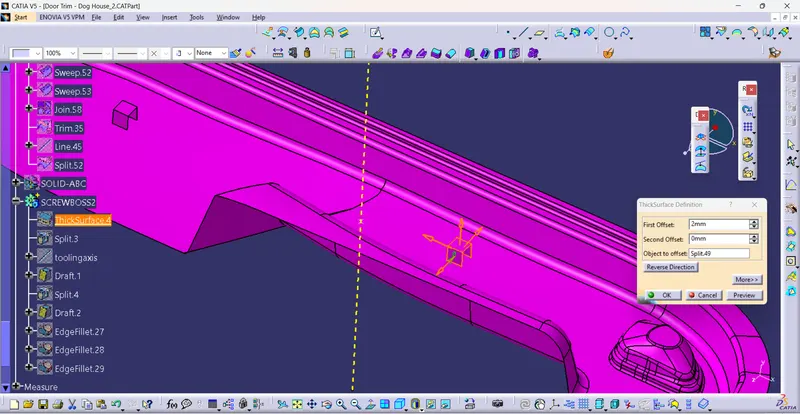

d) Create a Solid feature from the Thicksurface feature from Part design in Catia

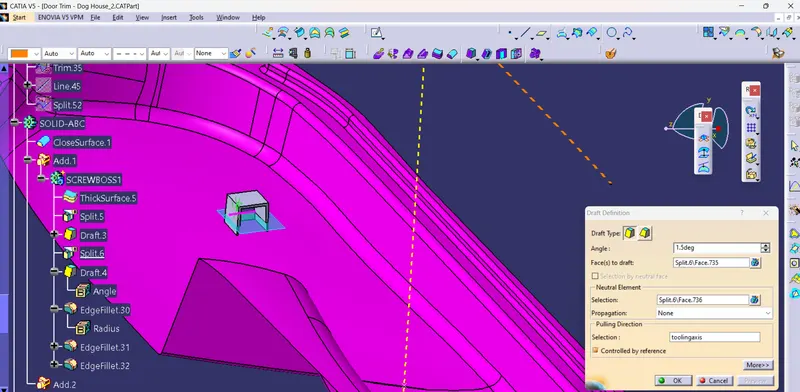

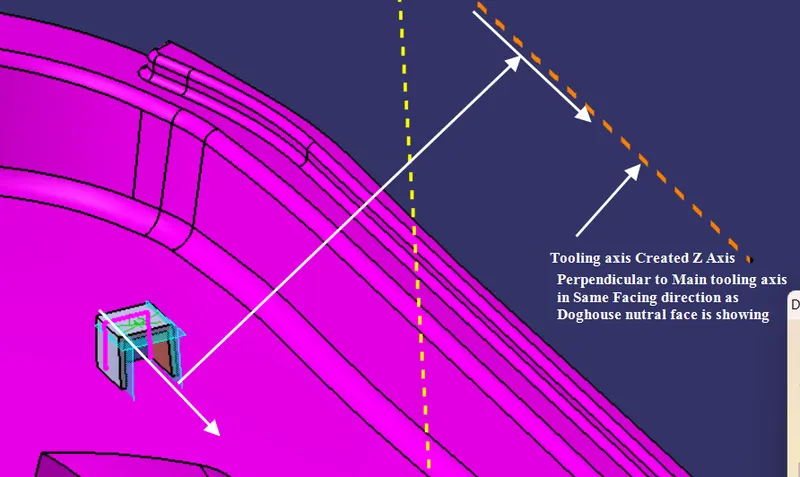

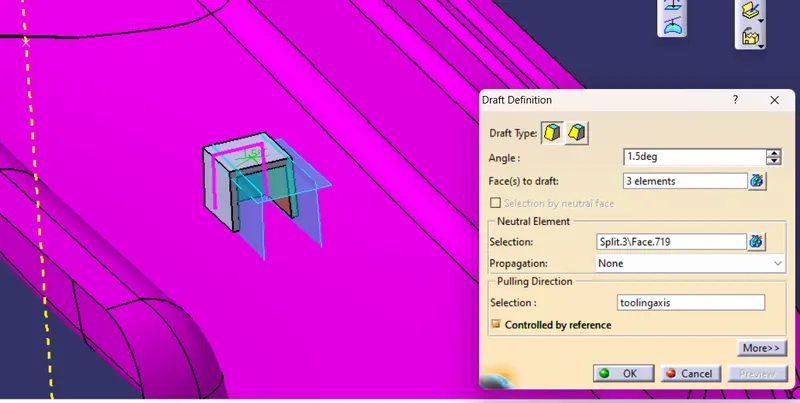

e) Create a Tooling axis and Give a Draft To the Required surfaces

f) Bottom Cut for Screw Boss

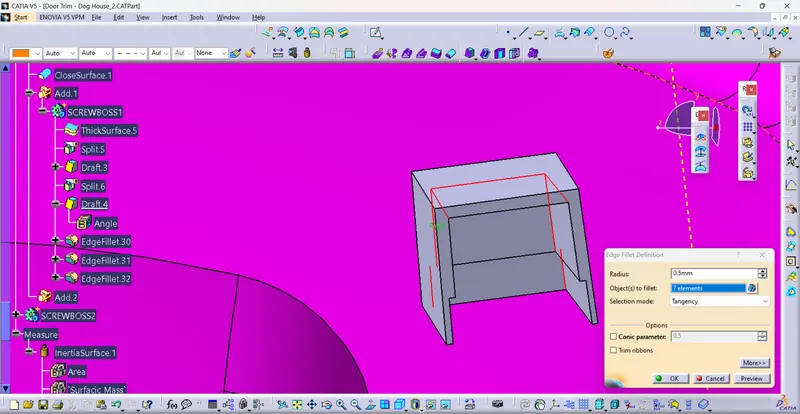

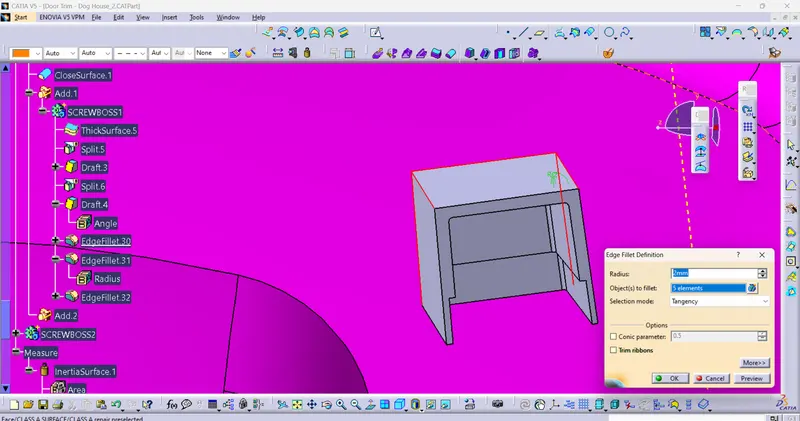

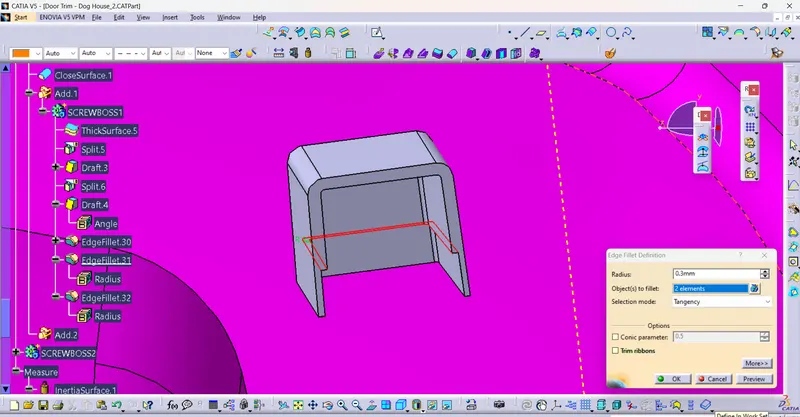

g) Give Fillets (Radius) to Avoid Sharp Corners

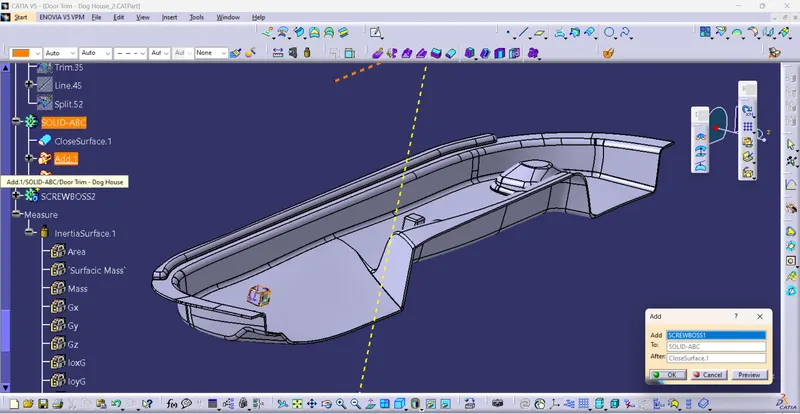

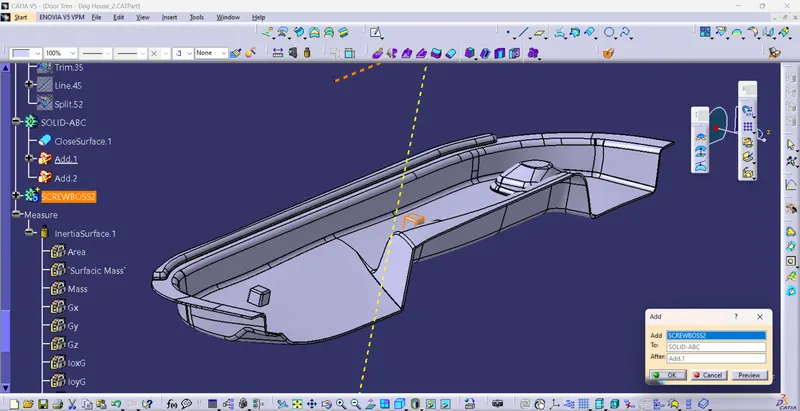

B) Add this Screw boss Feature into a Main solid body

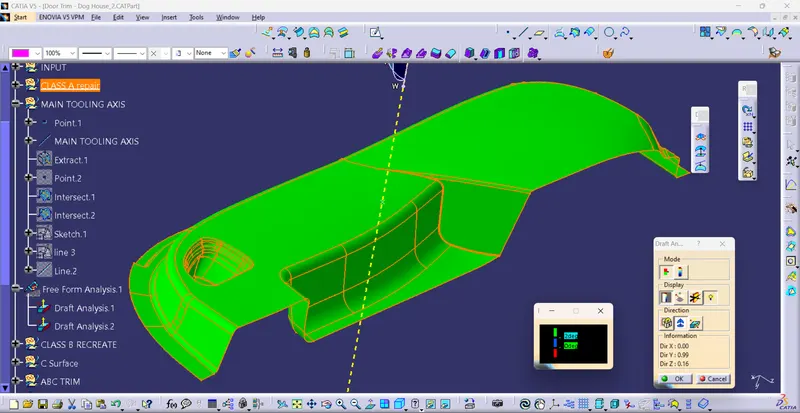

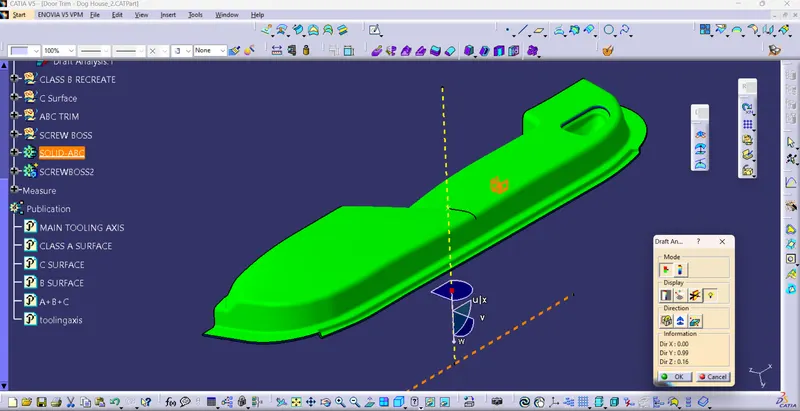

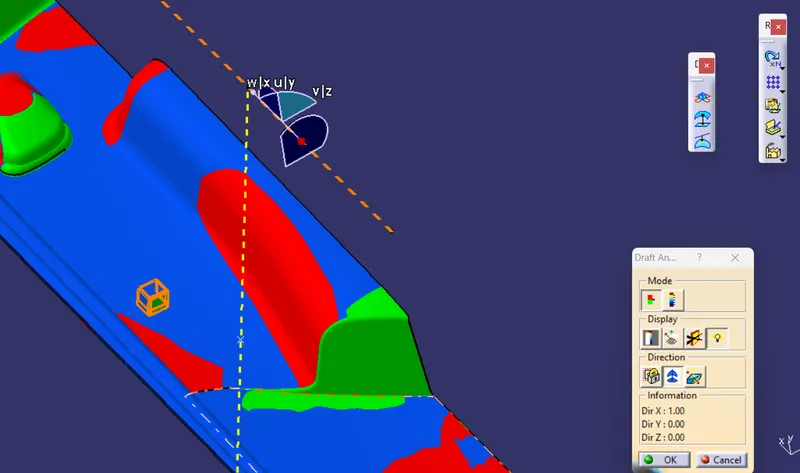

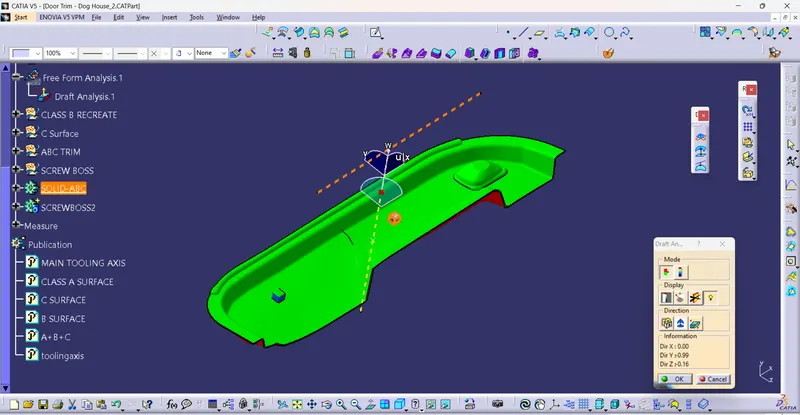

C) Perform Draft analysis on the Body

CATIA Part File Details

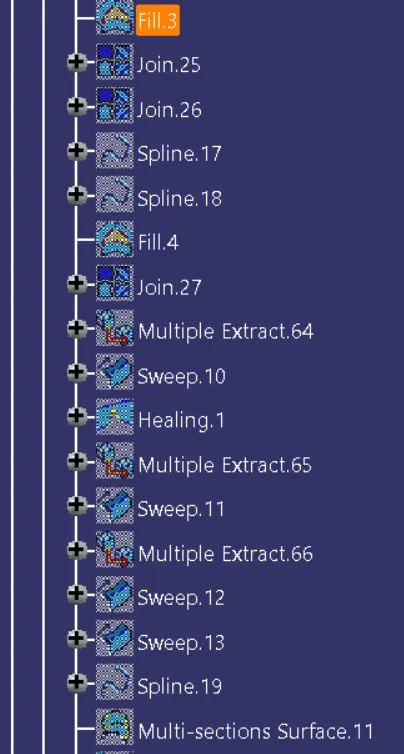

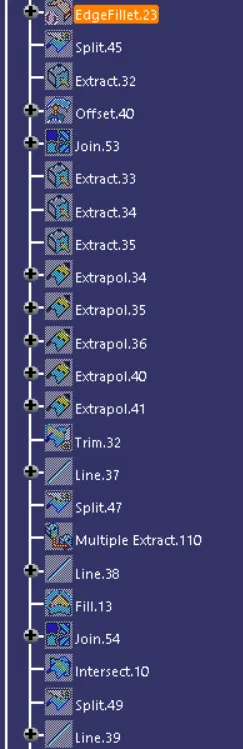

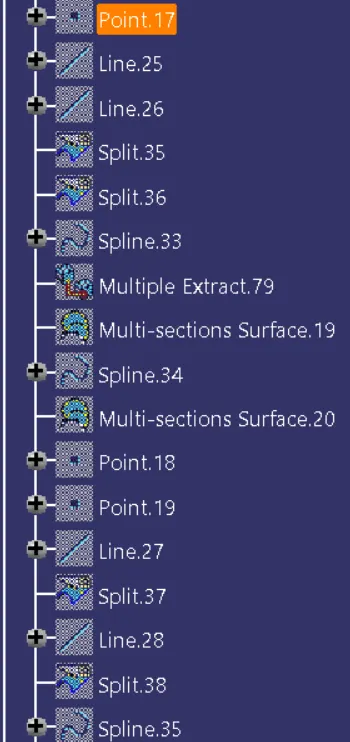

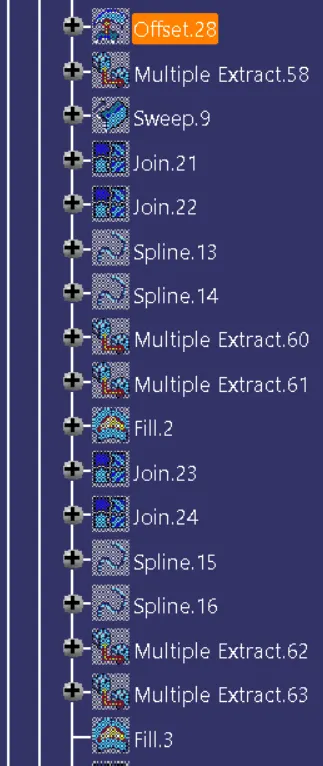

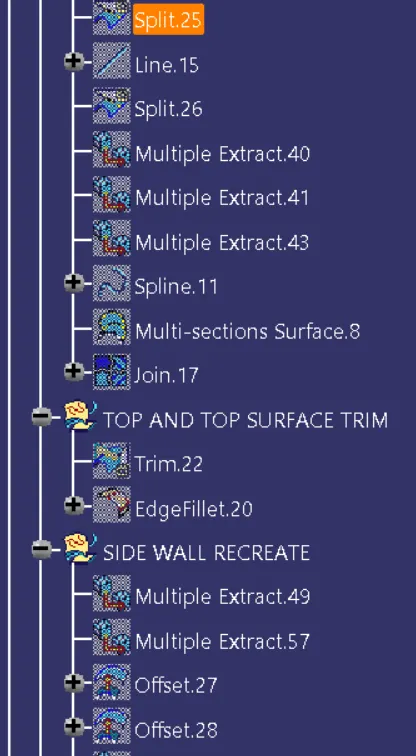

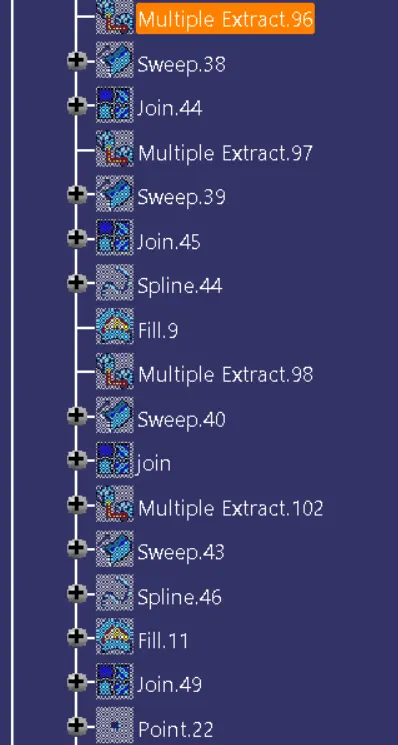

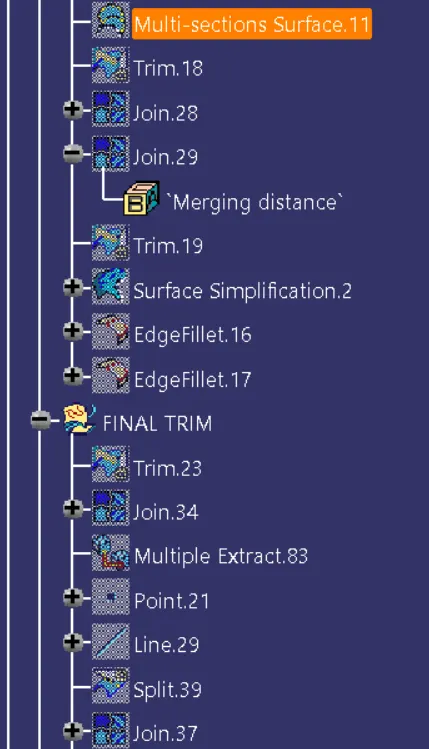

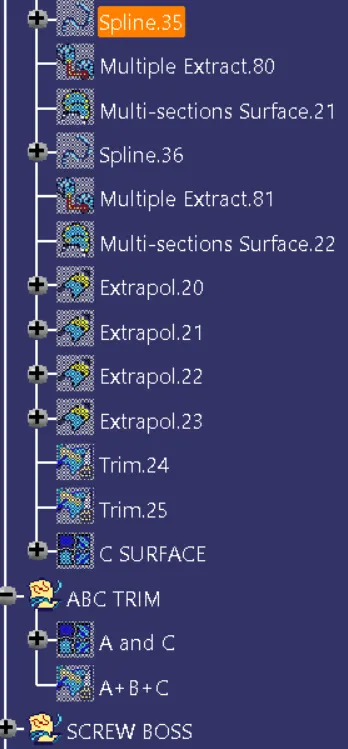

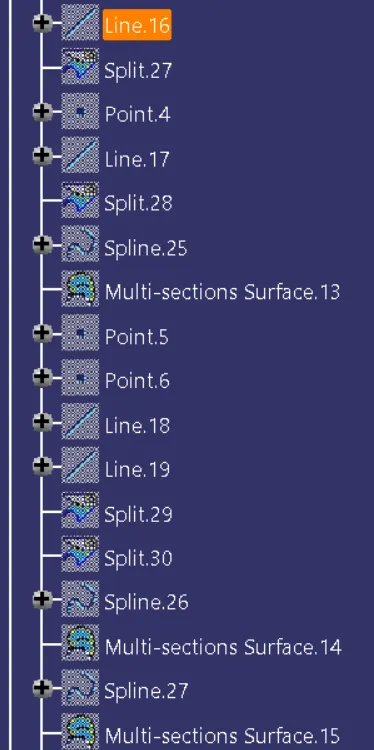

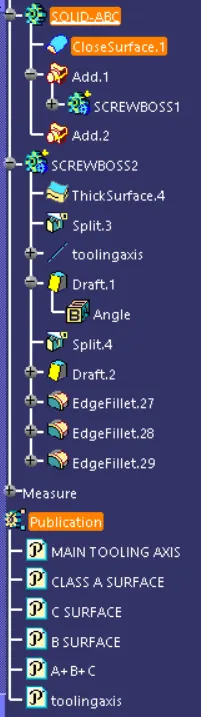

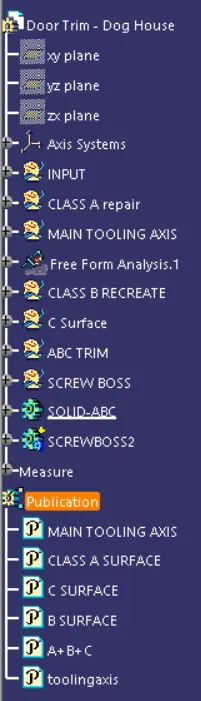

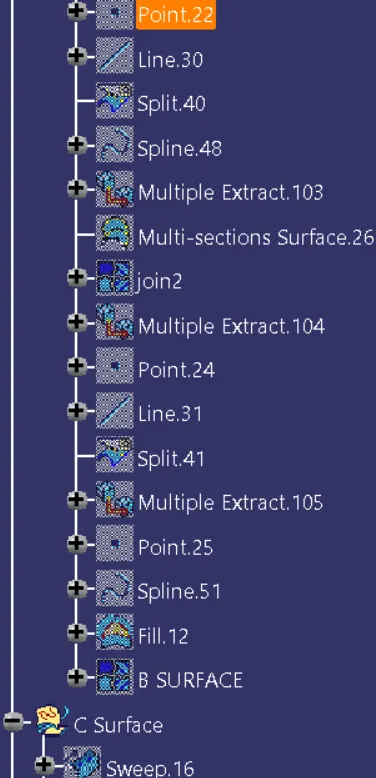

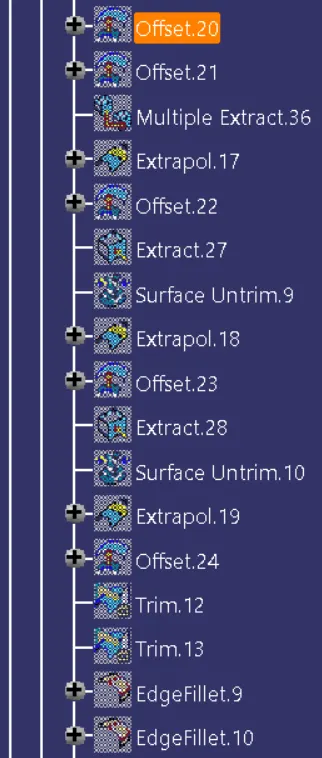

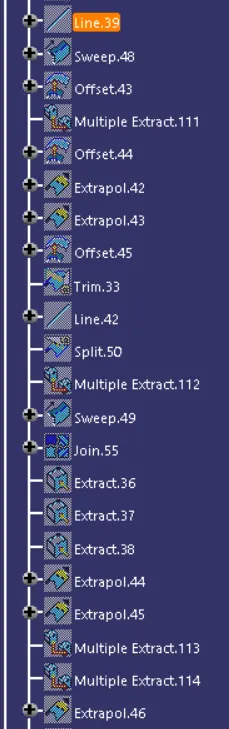

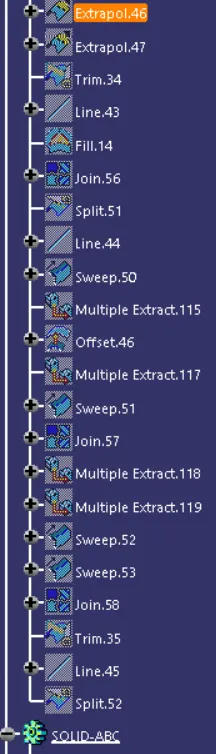

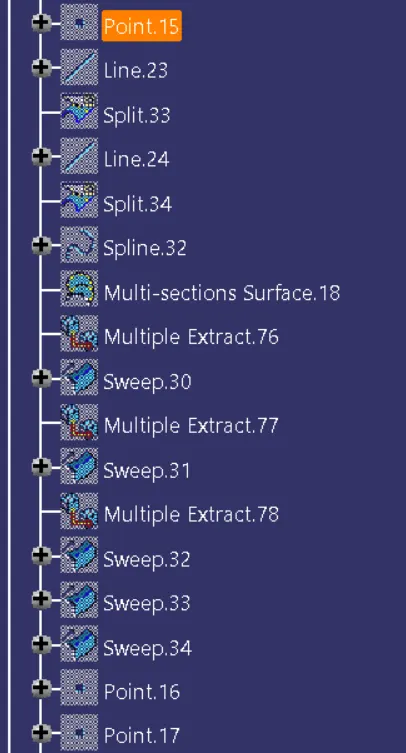

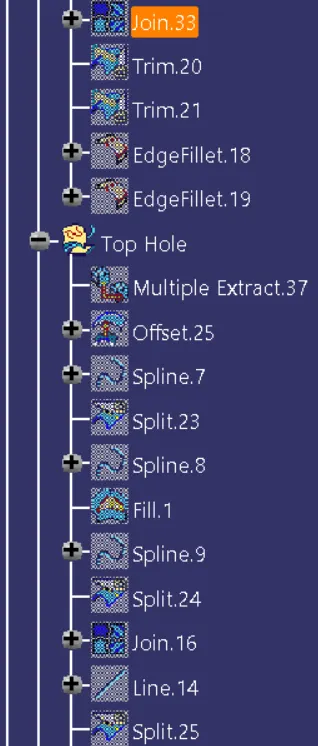

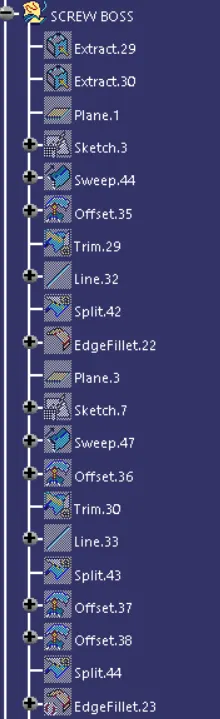

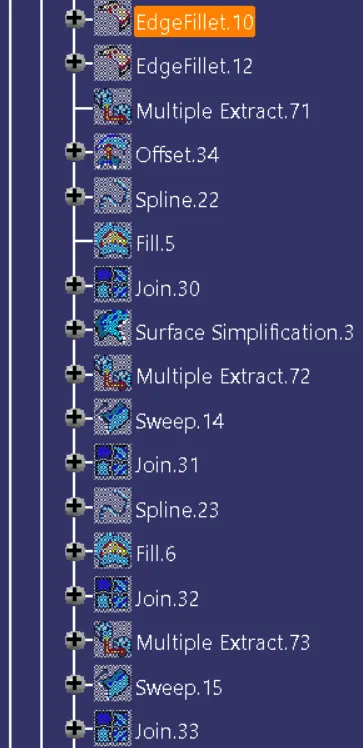

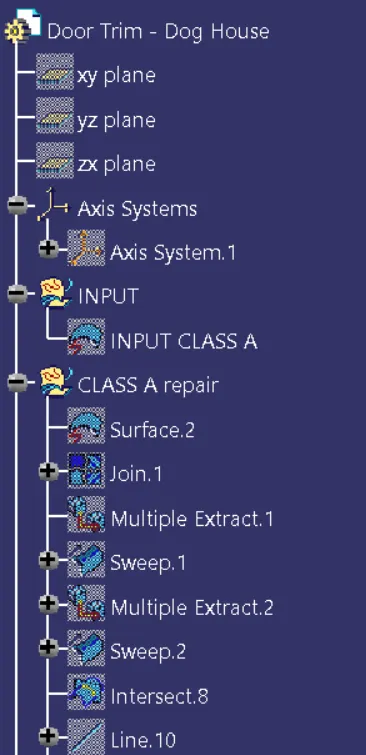

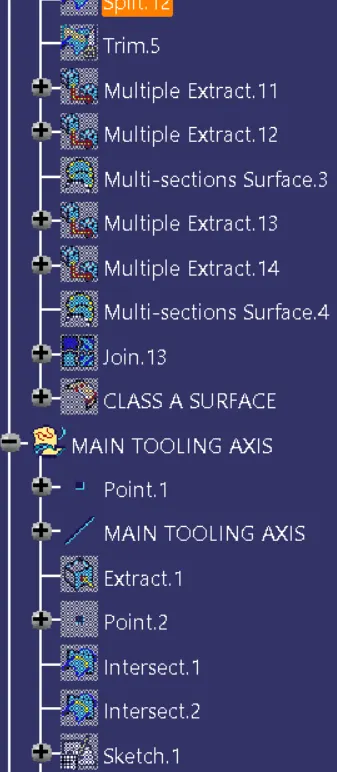

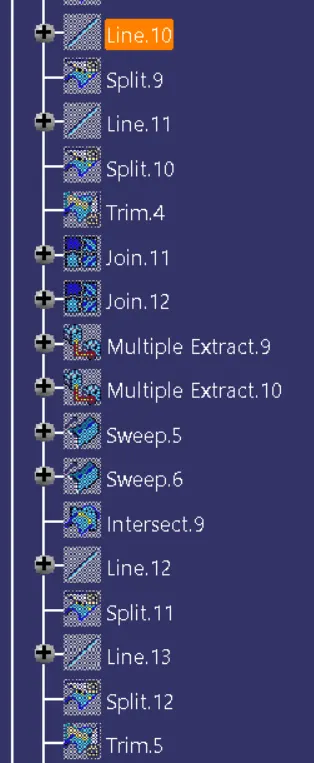

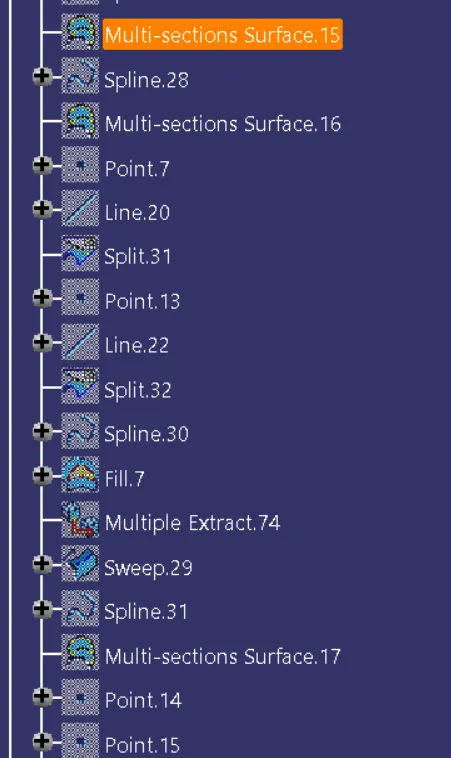

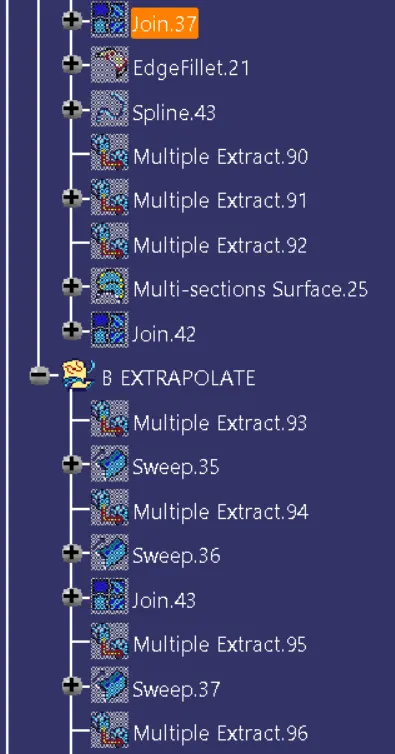

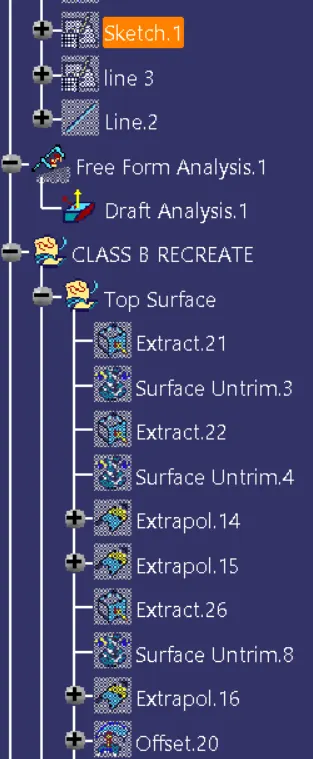

1) Feature tree

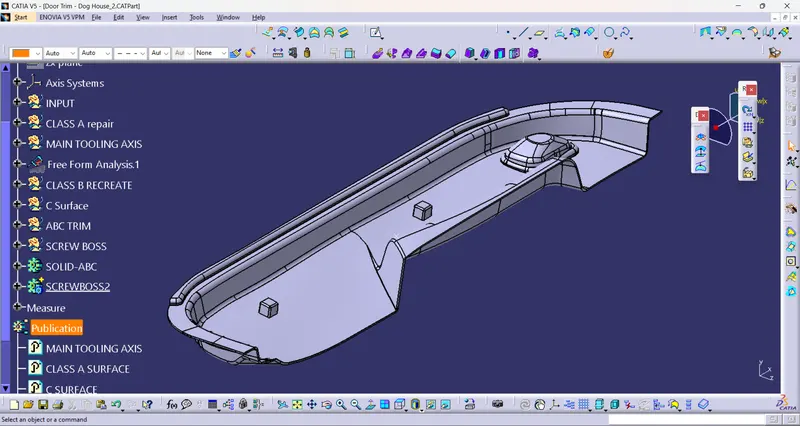

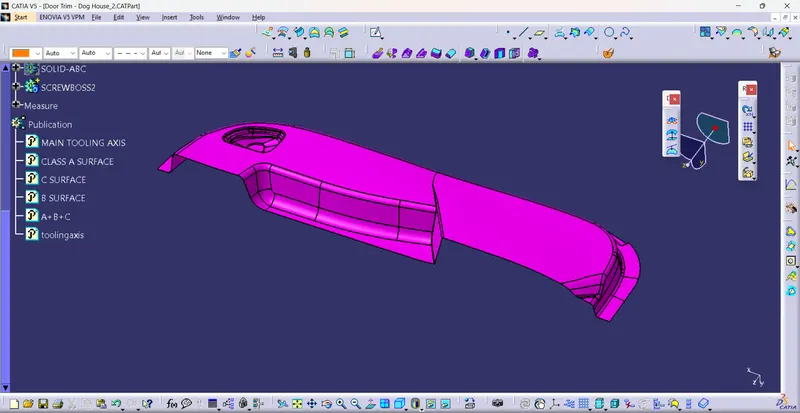

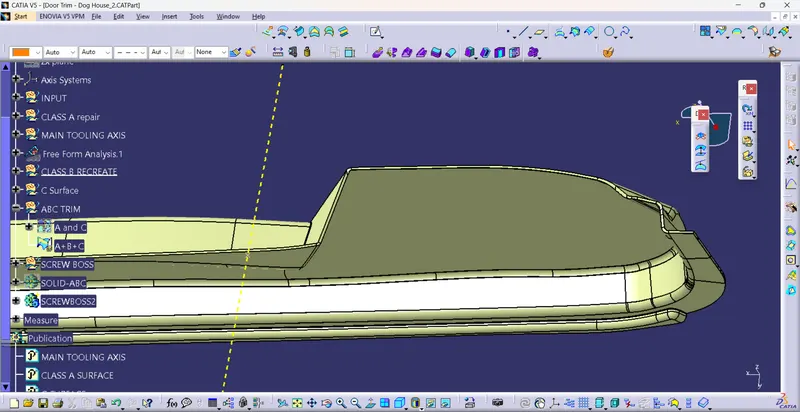

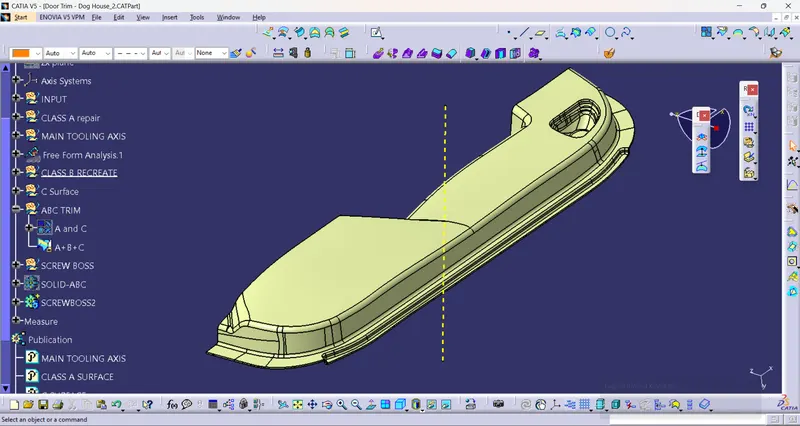

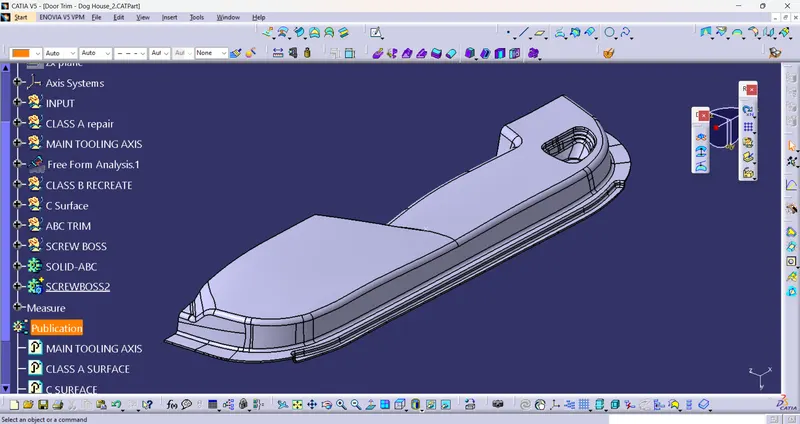

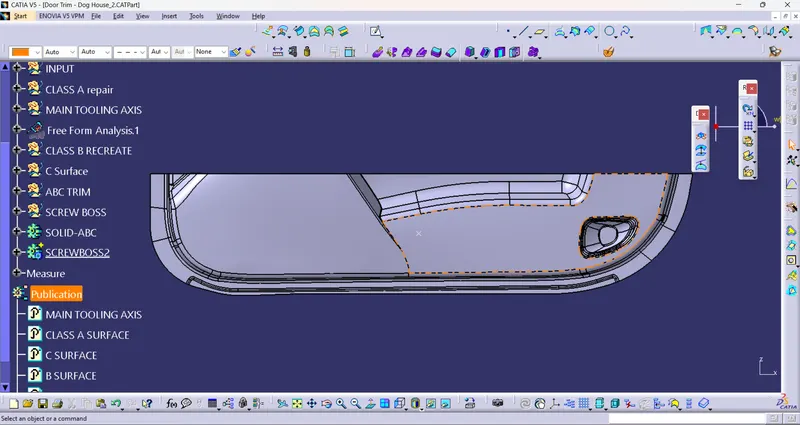

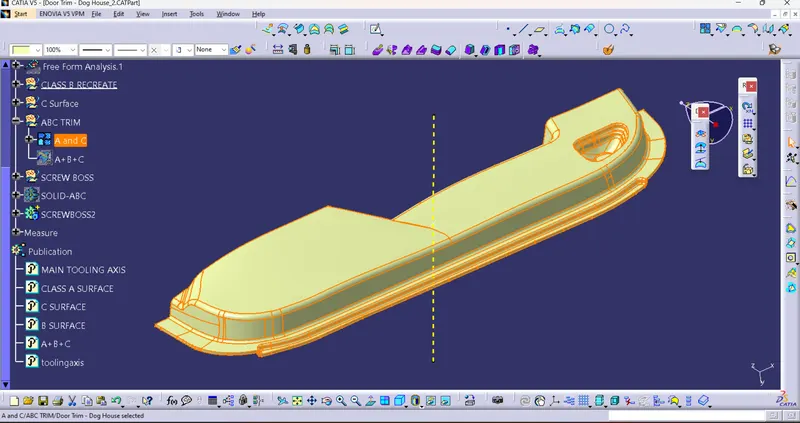

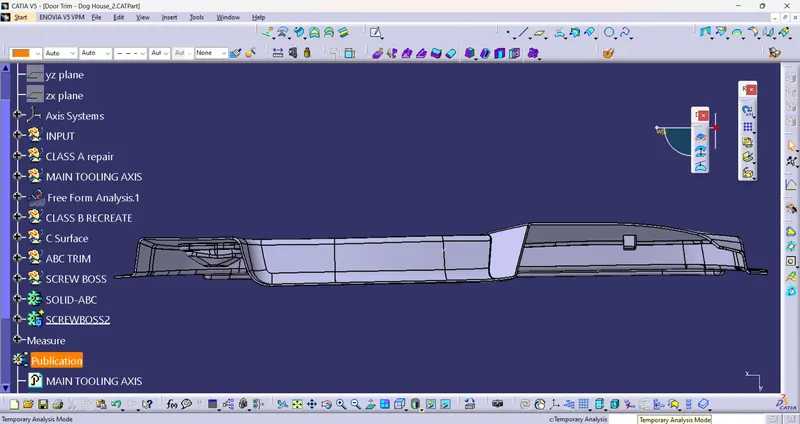

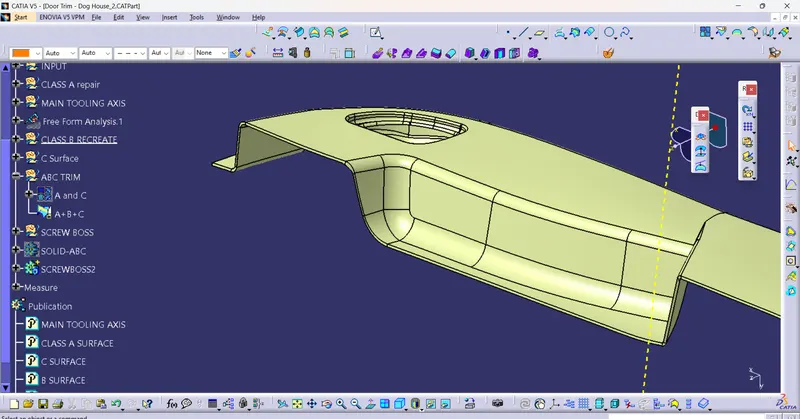

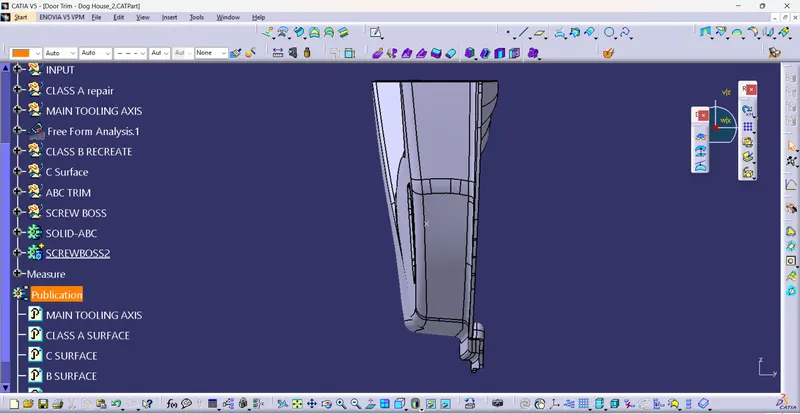

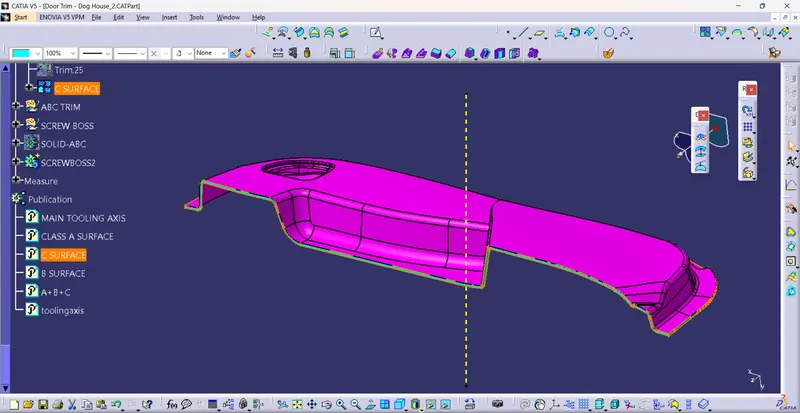

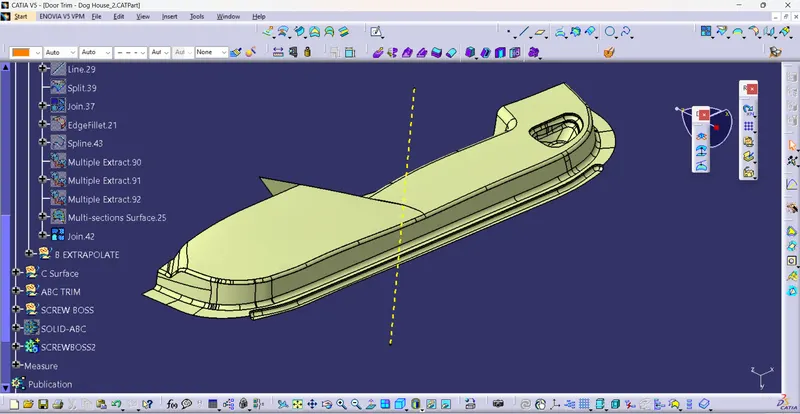

2) FV, ISO, and SV
