Week 9 - Attachment Feature Creation - Challenge 2

REPORT WRITING

CONTENTS

• TOOLING AXIS
• CREATION OF B AND C SURFACE
• SOLID SURFACE
• DOG HOUSE CREATION

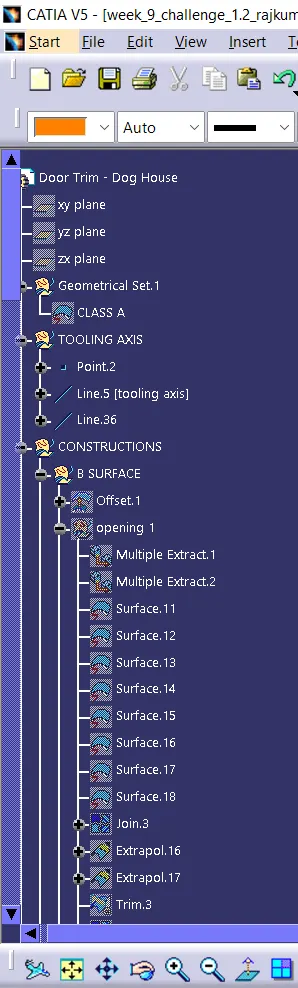

TOOLING AXIS

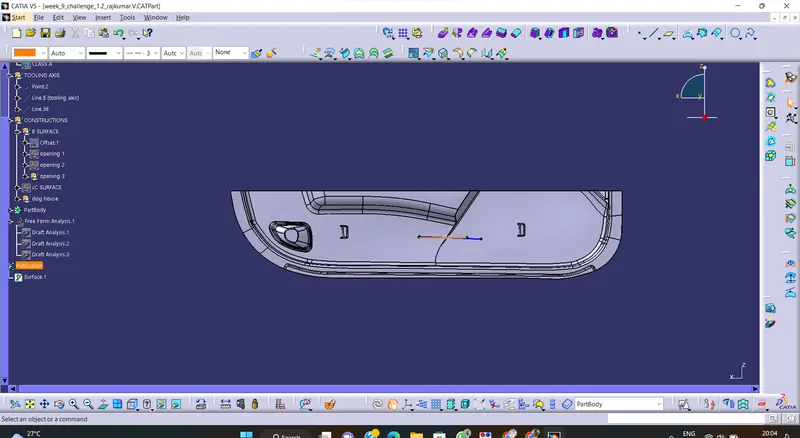

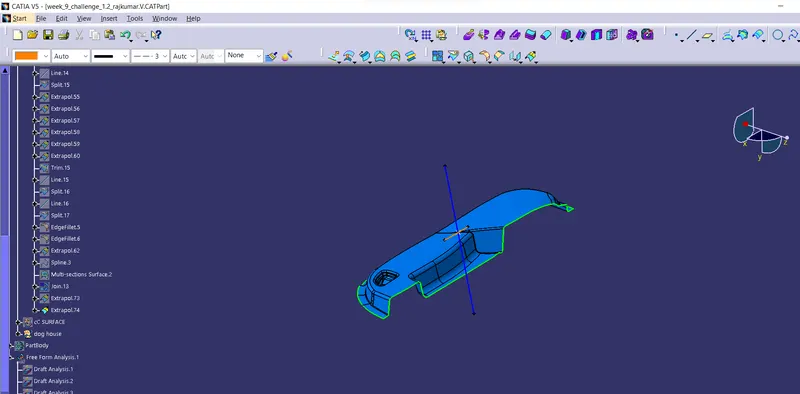

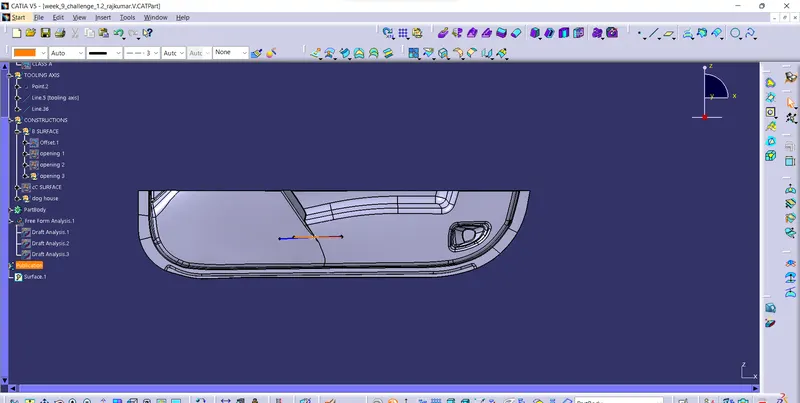

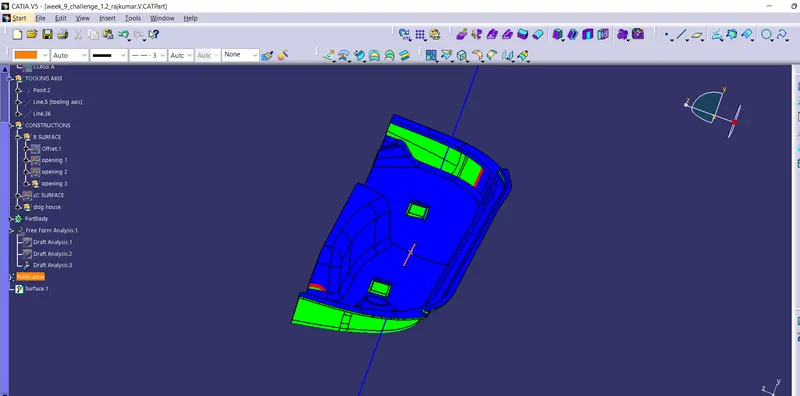

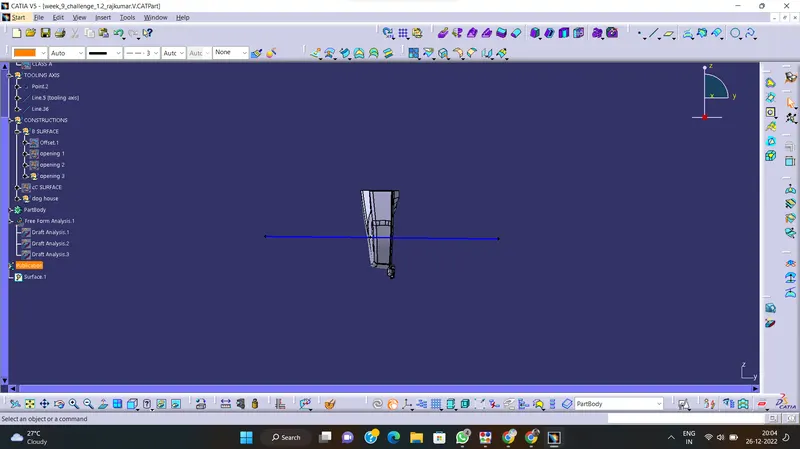

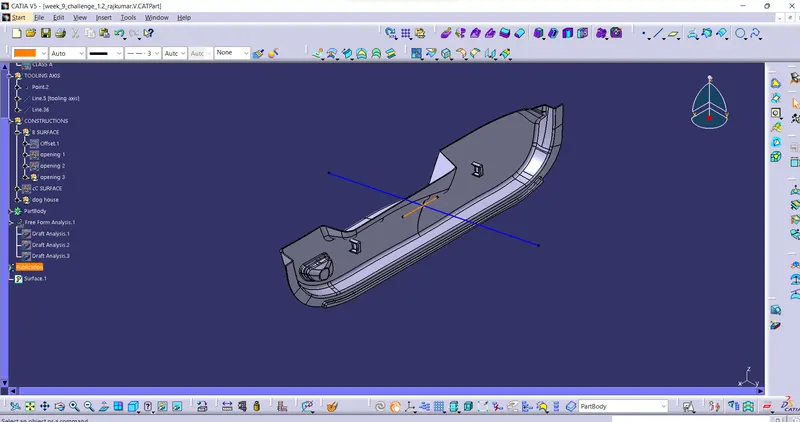

The Tooling Heading is essentially the course that the form pulls a portion. The form is built in two isolated pieces, essentially. You have got a Depth side and you've got the Center side. The Center pulls separated from the Depression and that's the Color line or the Tooling Direction.Check for holes between surfaces for that press on connect and after that preview. If theres any hole between the surfaces connect them with a greatest resistance of 0.003 mm.Extract the boundary and mask the boundary. Find the right tooling pivot where the fabric do not meddled with the tooling hub and all the components can be created. Intersect the yz plane with regard to the course A surface. Hide the class A surface and make point to point lines on the suspected drafts. Create bisecting line with the two lines and point to form a tooling axis. BISECTING LINES were utilized to urge the precise medium from the two sides so that most extreme positive draft point can be accomplished.

CRATION OF B AND C SURFACE

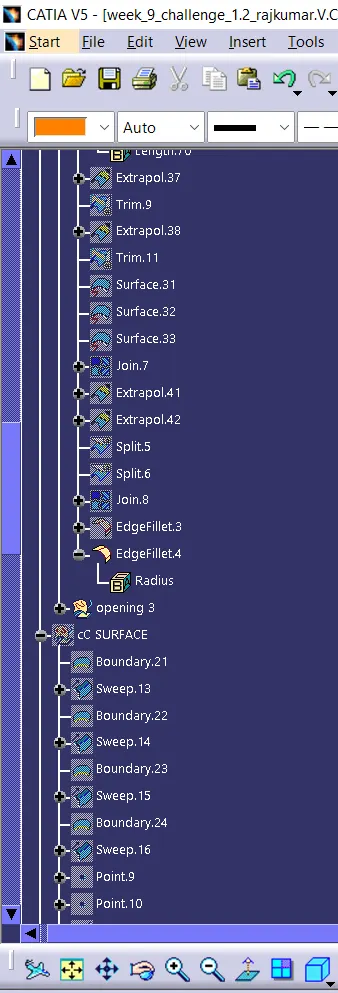

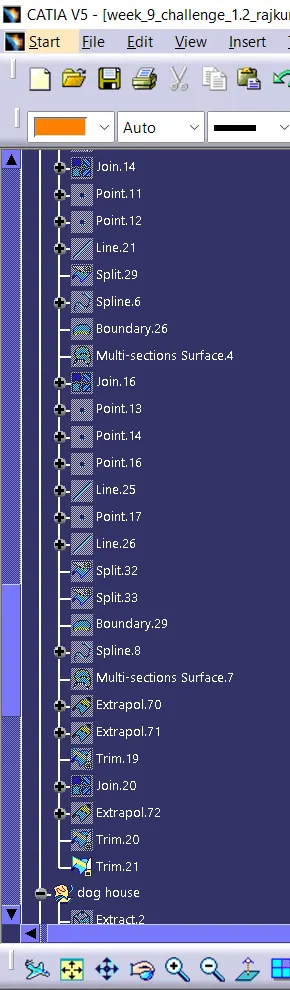

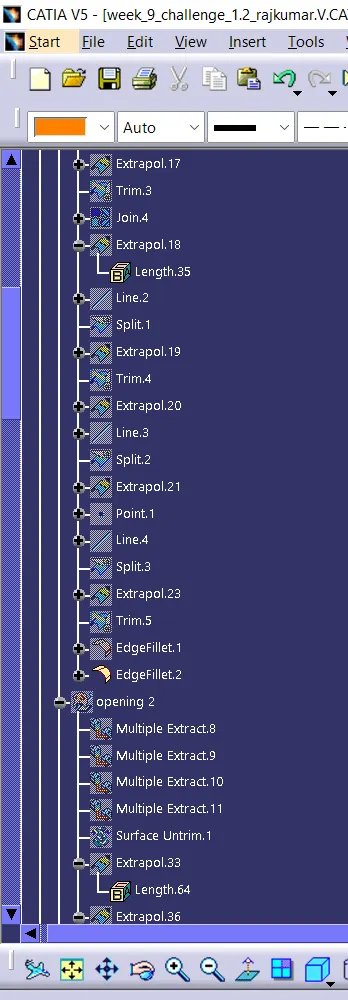

Extricate the surfaces from the course A utilizing numerous extricate and untrim them. Use Extrapolate to create beyond any doubt that all the untrims are legitimately met to trim and counterbalanced the surfaces to 2.5 mm to form the thickness. Trim the additional surfaces utilizing trim command. Insert them into modern geometrical set and title it with respective portion names. Apply filets to the show after making the whole surface. If the edges are exterior the filet esteem will be included to the thickness of the component and on the off chance that the edges are interior, the filet esteem will be subtracted from the thickness of the component, for occasion the thickness of the component Is 2.5mm the filet esteem is 15mm so the exterior parcel esteem ought to be 17.5mm and inward eges ought to be filleted 12.5mm to induce uniform thickness.

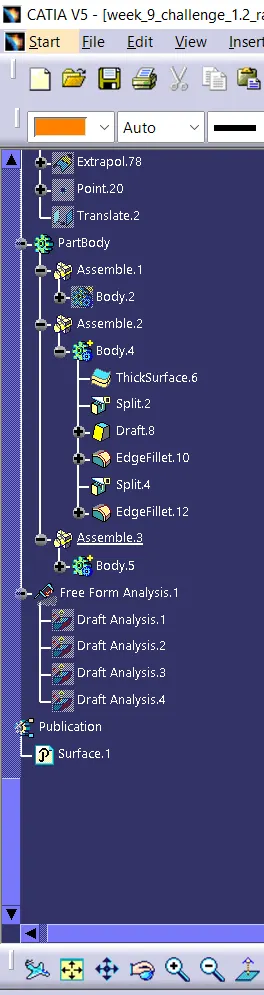

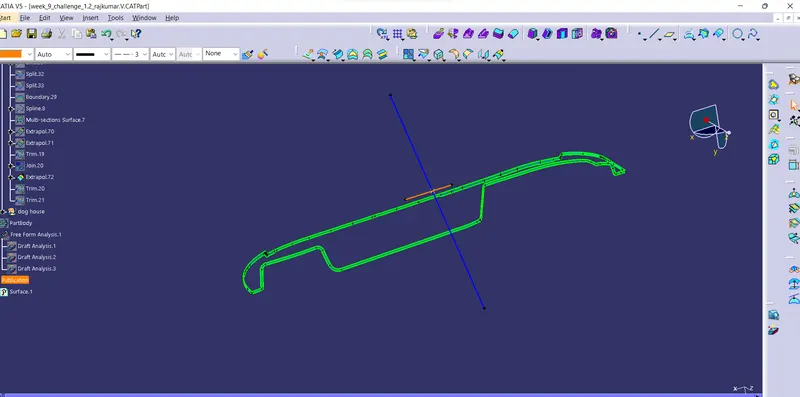

Extricate the boundary from the course A surface utilizing boundary command. Using dismantle device to isolate the boundary as the boundary contains domains. Use clear command > select profile sort line > subtype as with draft course > select direct bend and draft heading > draft point as 3 degree > preview.After getting clear at that point trim the yield with lesson B surface to urge last output.Now open portion plan workbench and utilizing near body surface make a strong of the component.

DRAFT ANALYSIS

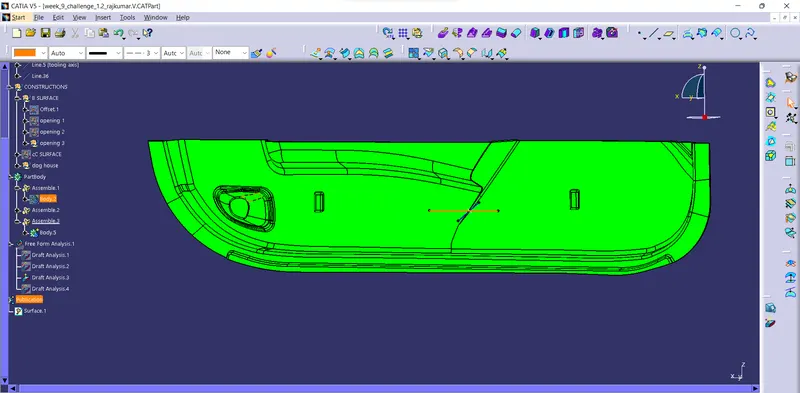

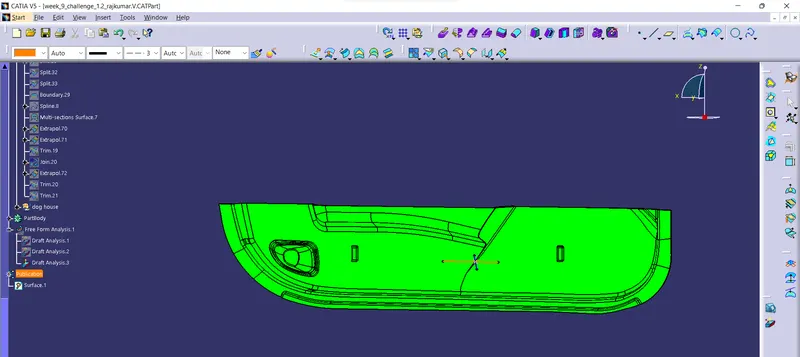

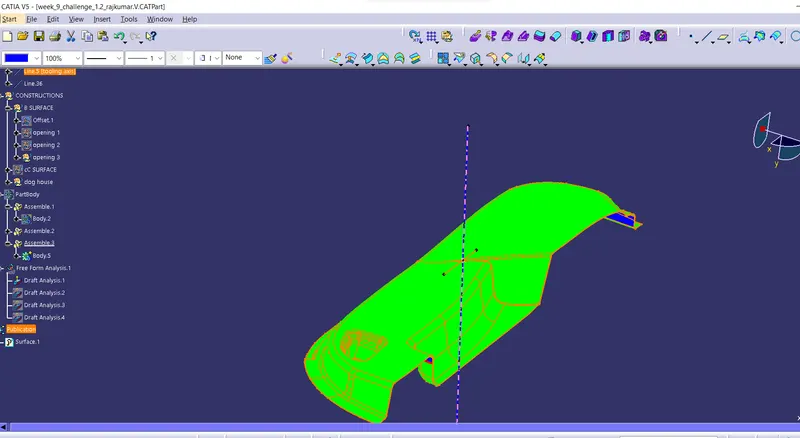

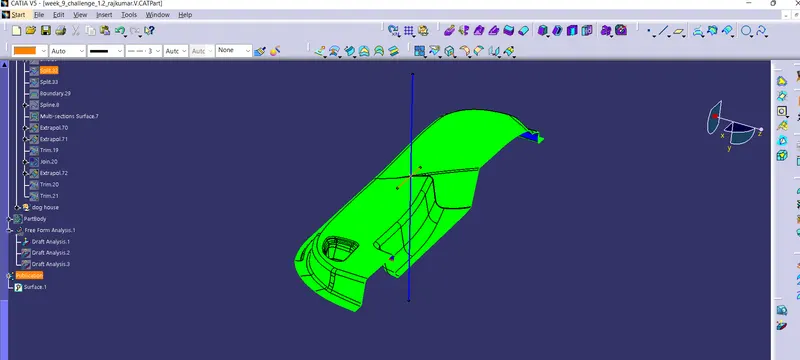

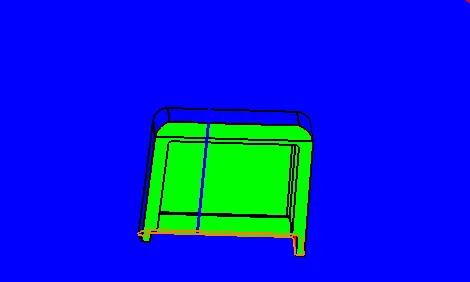

The Draft Investigation command empowers you to distinguish in the event that the portion you drafted will be effortlessly evacuated. This sort of investigation is performed based on color ranges distinguishing zones on the analyzed component where the deviation from the draft heading at any point, compares to indicated values. Before attending to confound it investigation go to customized see parameter >beneath work >check fabric and after that press ok. Now for draft examinations go to embed » examination » include draft analysis. Use the compasss to characterize the draft direction. In the colour scale alter the draft point to 3 degree. The component changes to green in sign of passing draft angle. Use running point to check the point on the component.

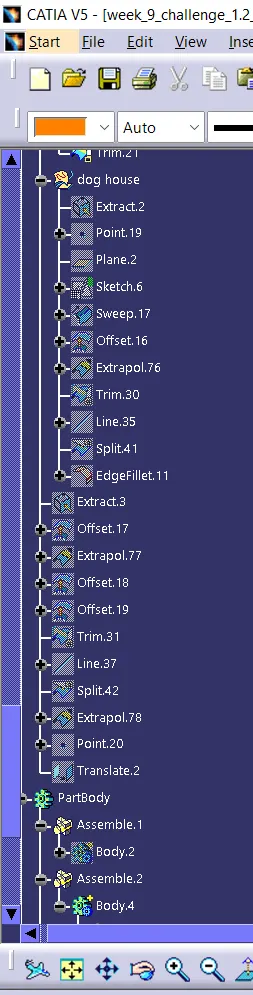

DOG HOUSE CREATION

CONCLUSION

THUS CREATION OF B SURAFCE ,C SURFACE, DOG HOUSE HAS BEEN DONE.
