Project:- Coin Holder Design

REPORT FOR COIN HOLDER DESIGN WITH DRAFT ANALYSIS

EXPLANATION:-

CLASS A SURFACE

• Class A Surface of coin holder is imported first.
• Extract base surface and create new axis system by creating a point on the surface.
• Now check the class A surface by using boundary, now untrim the boundary into 2 element which will be used in future.

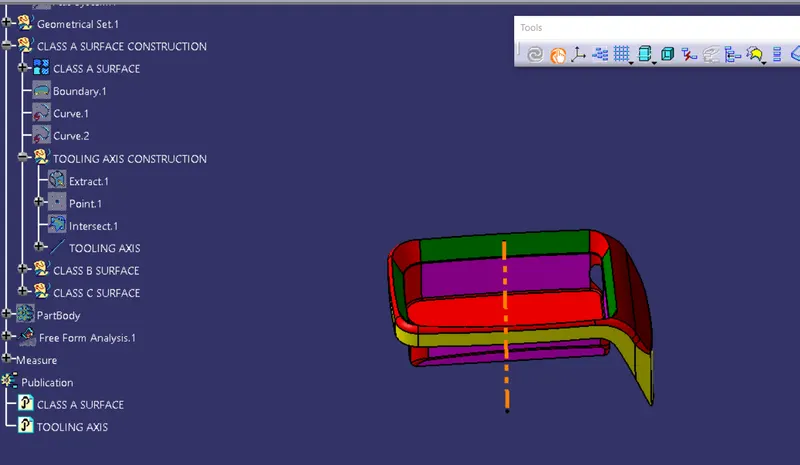

TOOLING AXIS CREATION:-

• For this component we bisect with the plane and component.
• By seeing bisect we observe that one wall is at 90degree.
• For creating tooling axis for this component just create a normal line using the point we created intially.

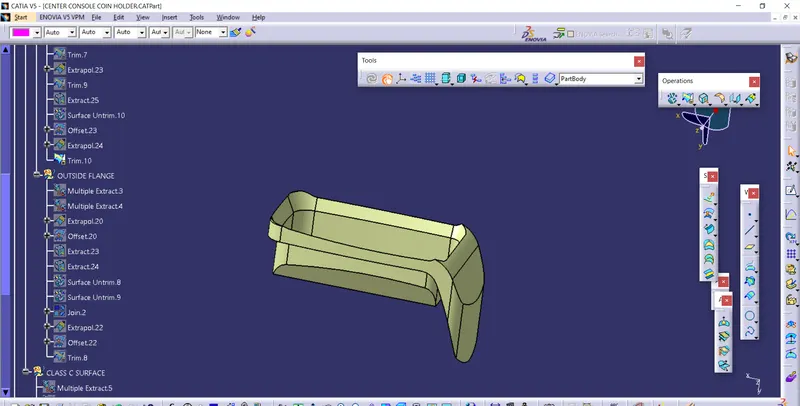

CREATION OF CLASS B SURFACE:-

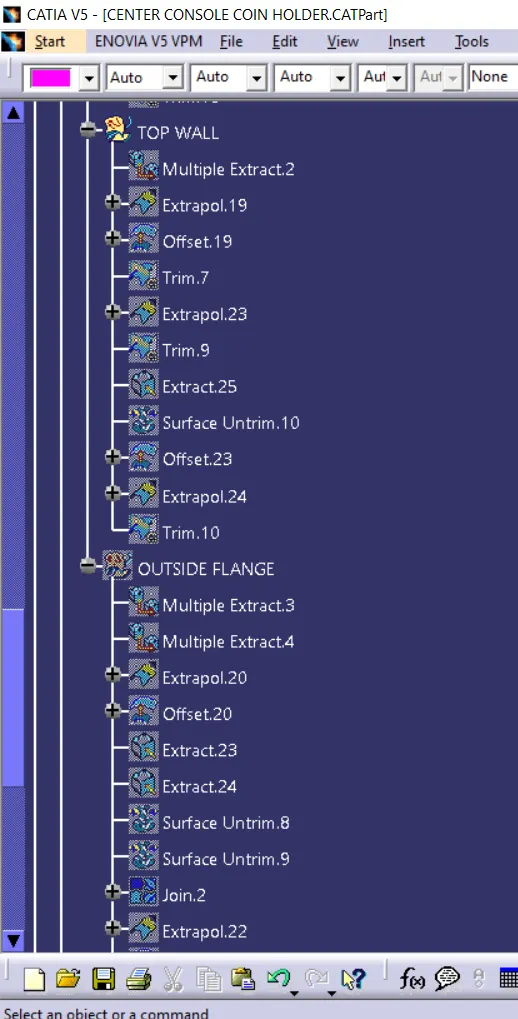

• Note in the feature tree, Class B surface has been divided by into 3part.They are Side wall,Top wall and Outer flange.
• Extract the surface of class A and untrim them.
• Now extrapolate them and offset them by 2.5mm as it is the thickness of the component.
• Trim them to the desired result.
• Similary process is followed for the other two but for outer flange we offset it inward instead of outward.

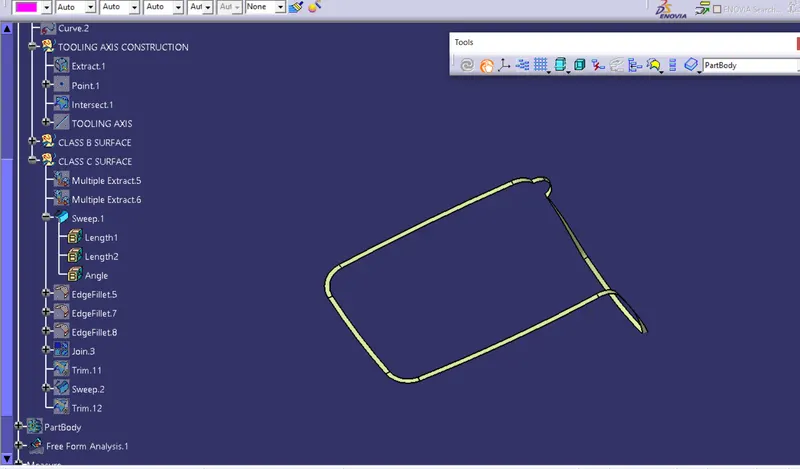

CREATION OF CLASS C SURFACE:-

• For class C surface we extract the boundary and surface of outer flange of class A surface.
• Now we create surface sweep to create class c surface using subtype: with referance surface.
• we give 4mm or more thickness to class C surface.
• Now we add fillets to the sharp edges.
• Join class C surface with class A.
• Now trim with class B surface.

SOME SMALL CHANGES:-

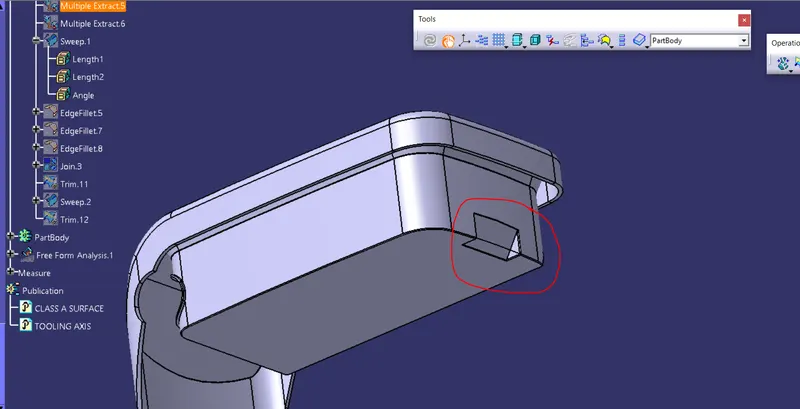

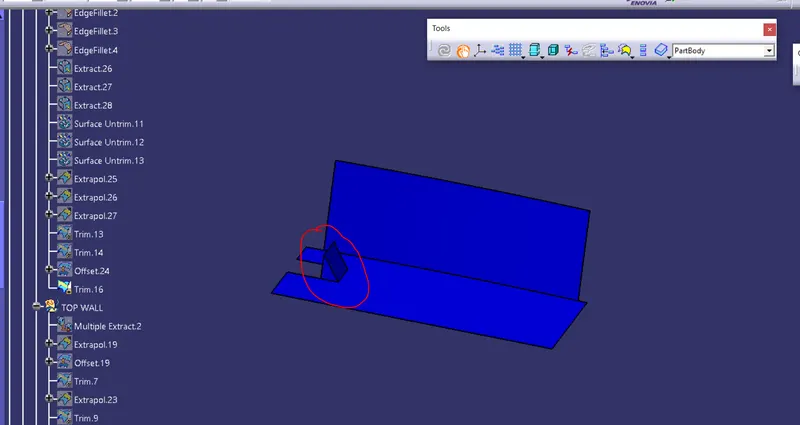

Creation of this small surface had been left so we will create this surface first.

• Extract from class A surface and untrim them.
• Extrapolate them and trim them .
• Now offset them.

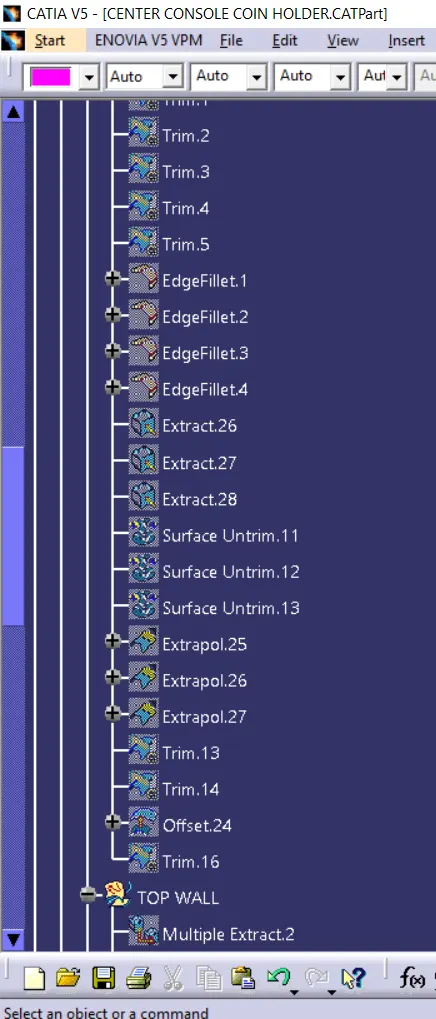

• Now replace trim16 with trim1 and we get the final result.

Now open part body and Thicken it to get solid body.

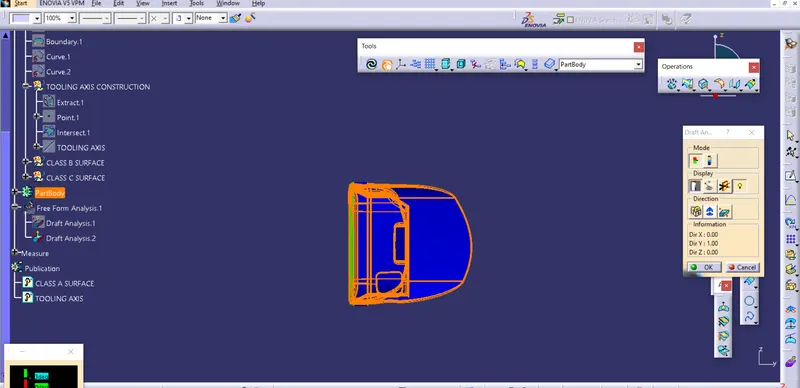

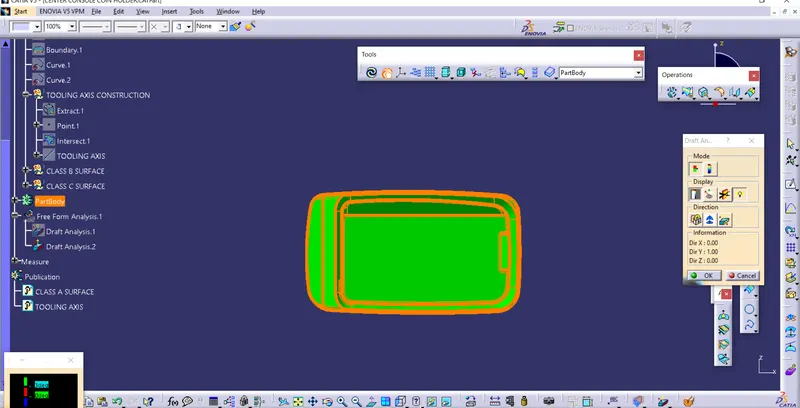

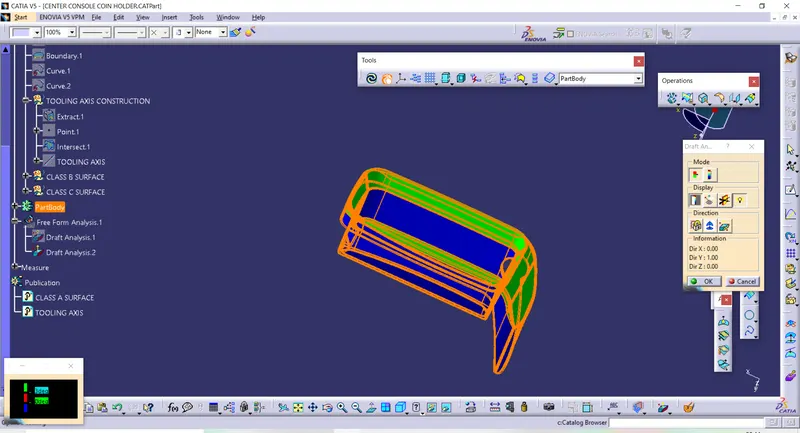

DRAFT ANALYSIS:-

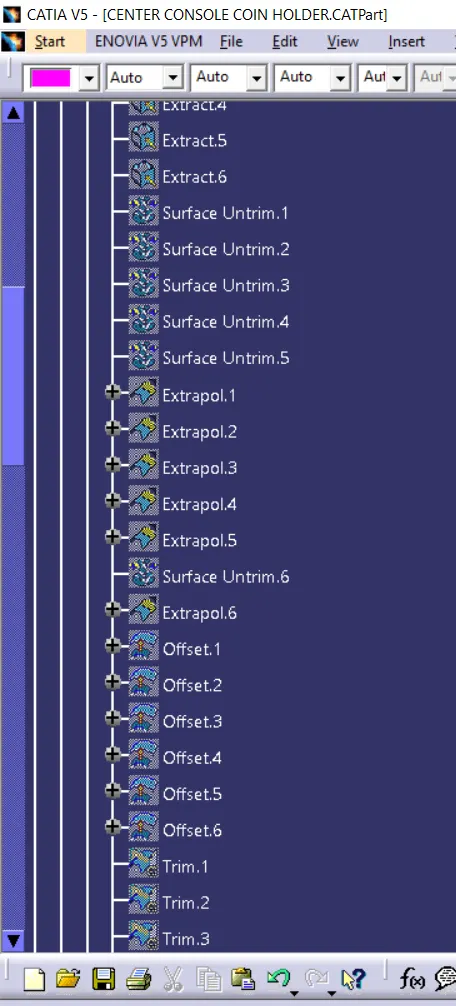

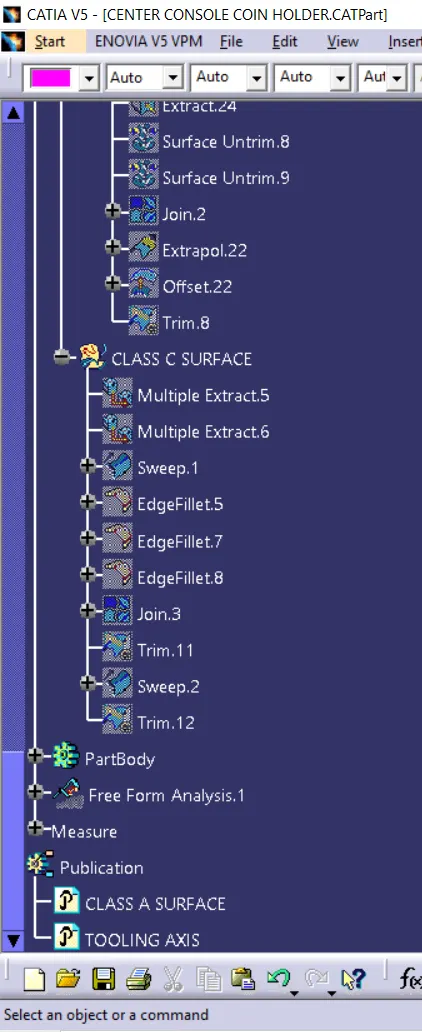

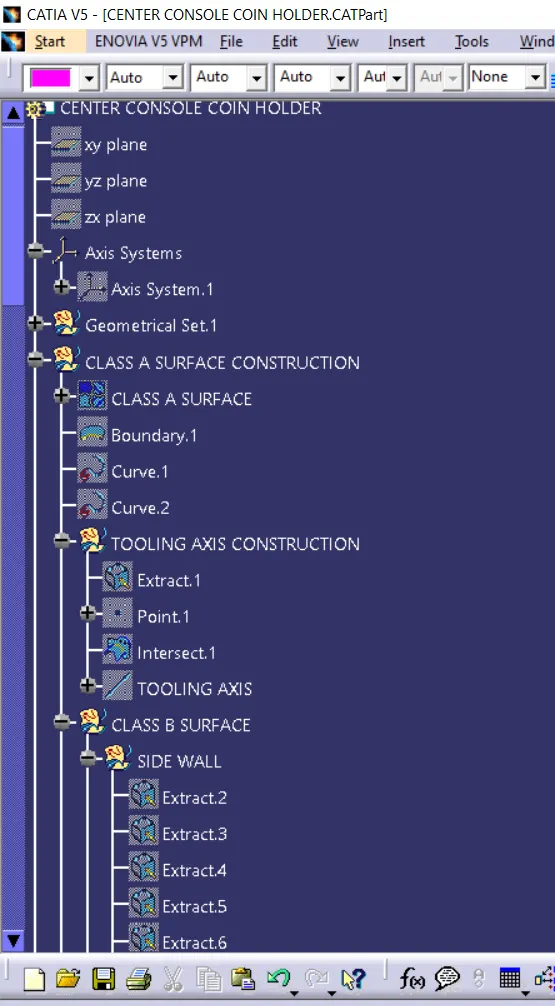

FEATURE TREE:-

THANKYOU
