Week 8 - Challenge 3 - Switch Bezel Design

CLASS A

In automotive design, a class A surface is any of a set of freeform surfaces of high efficiency and quality. Although strictly, it is nothing more than saying the surfaces have curvature and tangency alignment – to ideal aesthetical reflection quality, many people interpret class A surfaces to have G2 (or even G3) curvature continuity to one another (see free form surface modeling).

Class A surfacing is done using computer-aided industrial design applications. Class A surface modelers are also called "digital sculptors" in the industry. Industrial designers develop their design styling through the A-Surface, the physical surface the end-user can feel, touch, see, etc.

A common method of working is to start with a prototype model and produce smooth mathematical Class A surfaces to describe the product's outer body. From this, the production of tools and inspection of finished parts can be carried out. Class A surfacing complements the prototype modeling stage by reducing time and increasing control over design iterations.

Class A surfaces can be defined as any surface, that has styling intent, that is either seen, touched, or both and mathematically meets the definition for Bézier.

• Automotive design application
• Product design application
• Aerospace design application
• Clay modeling
• Notable software

CLASS B

It's the surface created from extracting the class A surface with all their faces and adding support features like ribs, dog houses, stiffeners for maintaining its stability and strength for the surfaces.

CLASS C

Class C is the thickness added to the Class B surface and it is in 3D since the direction is in the Z direction of the component.

Reason for tooling axis selection

• In both X and Y directions the fan cover geometry was not covered or visible so by selecting the Z direction entire geometry will be covered
• In X there is an OPENING by reference to the boundary so the feature will not be captured.
• In Y there is a SIDE WALLS by reference to the boundary so the feature will not be captured.

PROCEDURE

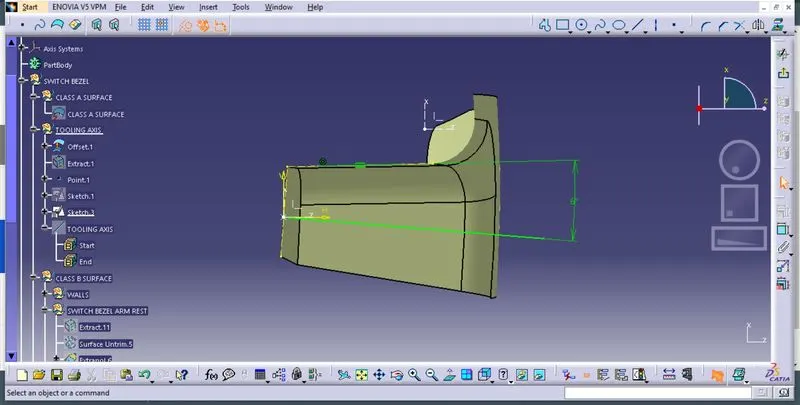

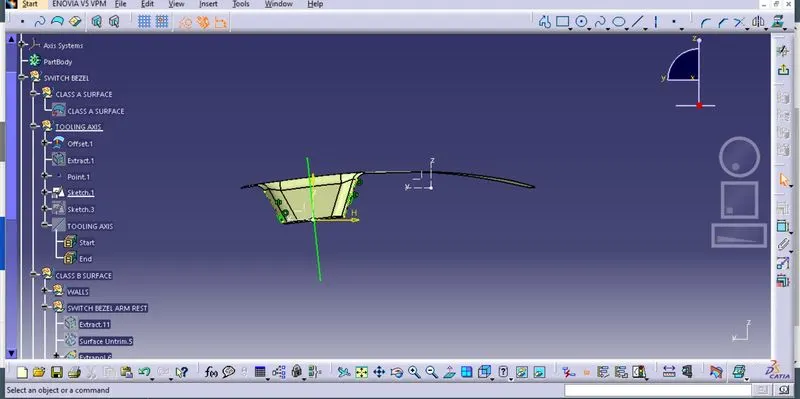

*Create a sketch on the ZY plane and the Switch Bezel to create a reference tooling axis.

*Create a sketch on the ZX plane and the Switch Bezel to create a reference tooling axis.

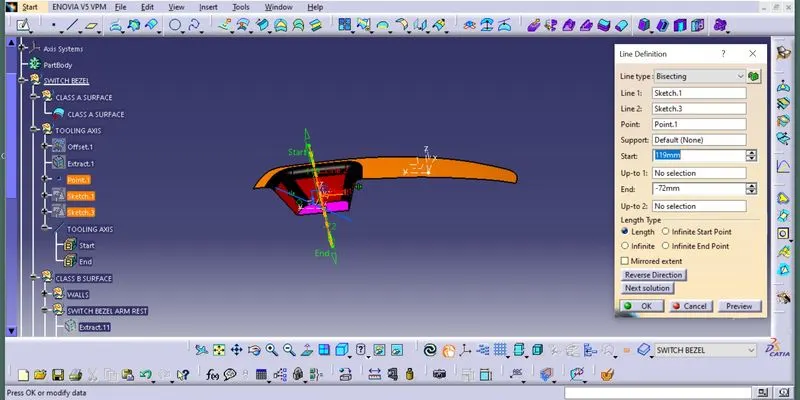

*From the above two reference axis, Bisecting the lines to create the TOOLING AXIS.

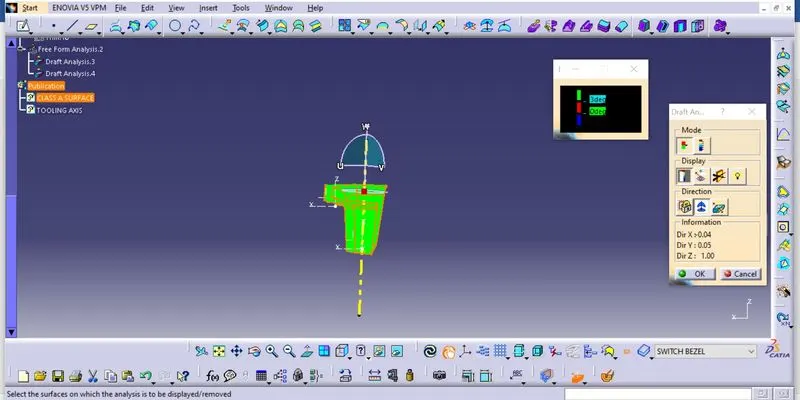

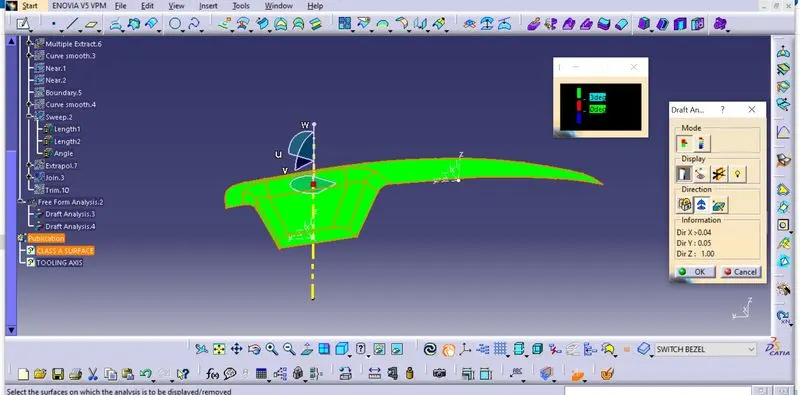

*Draft analysis for the Switch Bezel by quick analysis mode.

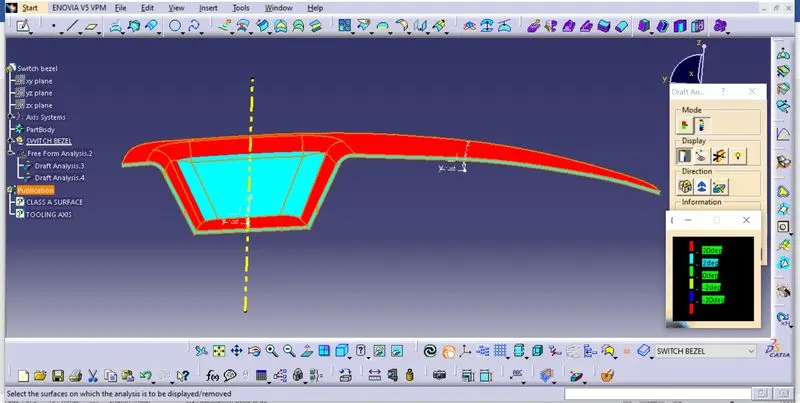

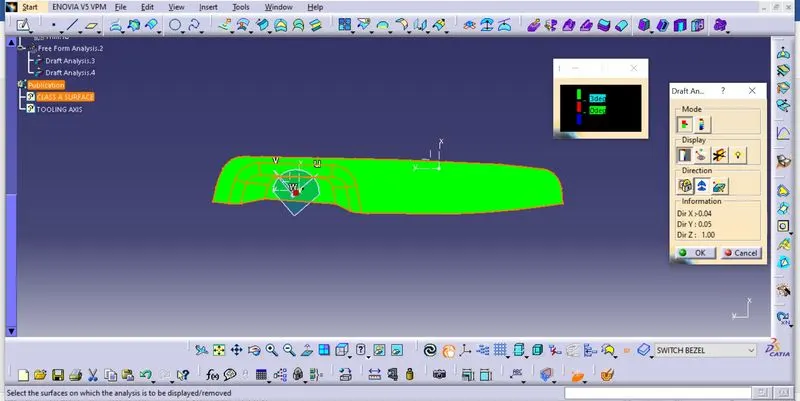

*Draft analysis for the Switch Bezel by Full analysis mode.

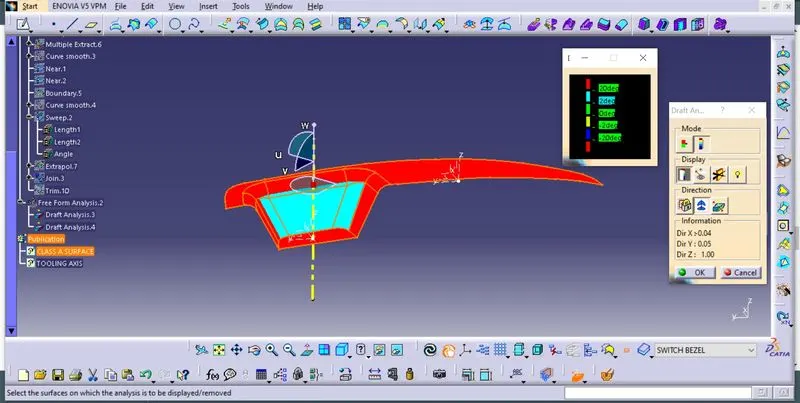

*Draft analysis for the Switch Bezel in Isometric view.

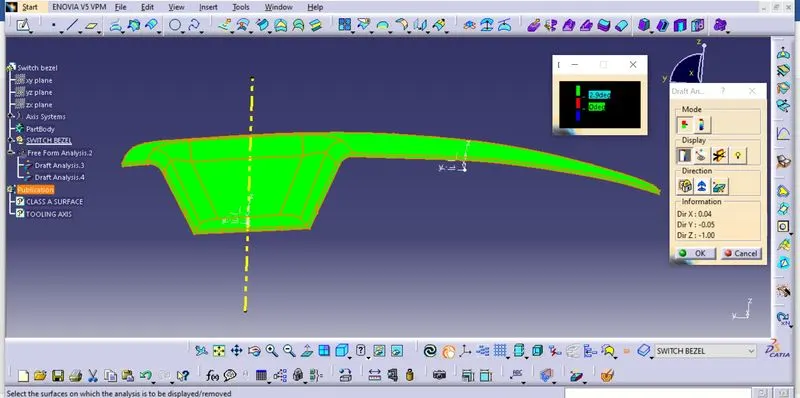

*Draft analysis for the Switch Bezel in Front view.

*Draft analysis for the Switch Bezel in Side view.

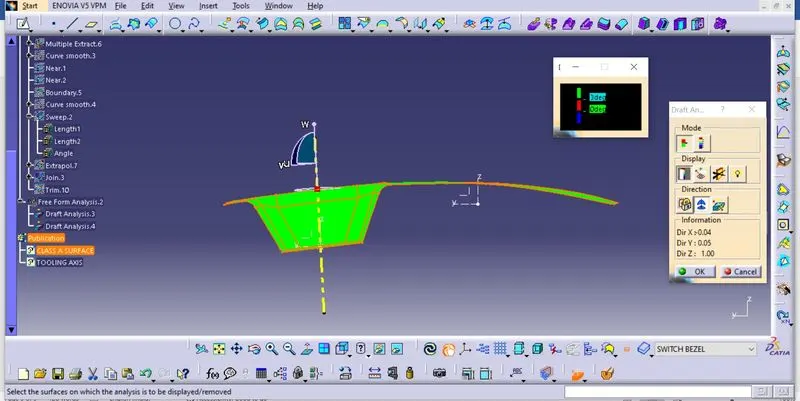

*Draft analysis for the Switch Bezel in Top view.

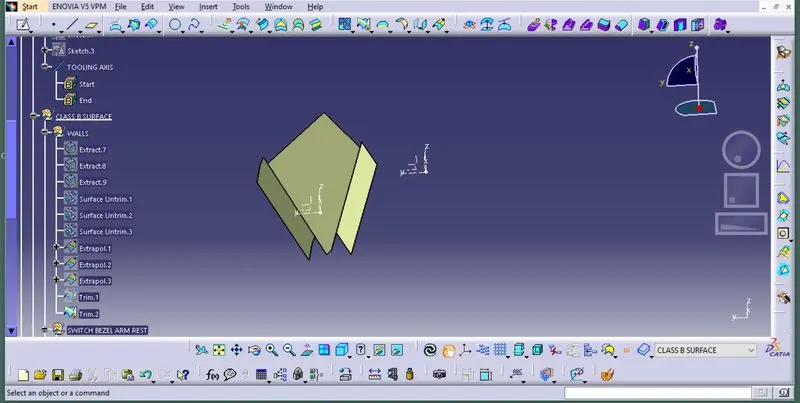

*Class B surface WALLS after extract, Surface Untrim, Extrapolate, Trim.

*Class B surface SWITCH BEZEL ARMREST after Extract, Offset, Surface Untrim, Extrapolate, Trim.

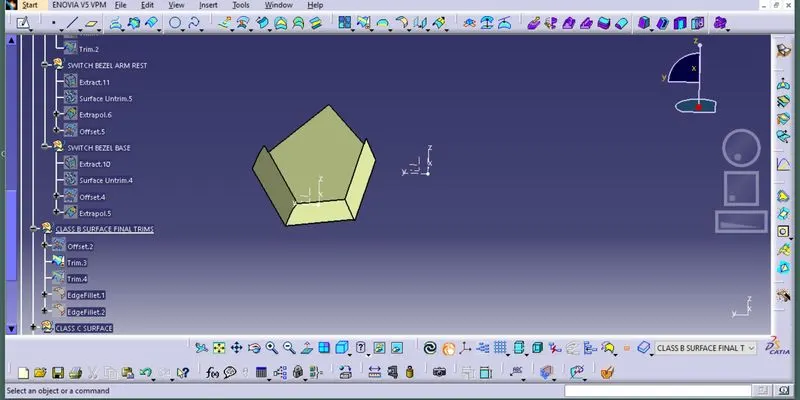

*Class B surface SWITCH BEZEL BASE after Extract, Offset, Surface Untrim, Extrapolate, Trim.

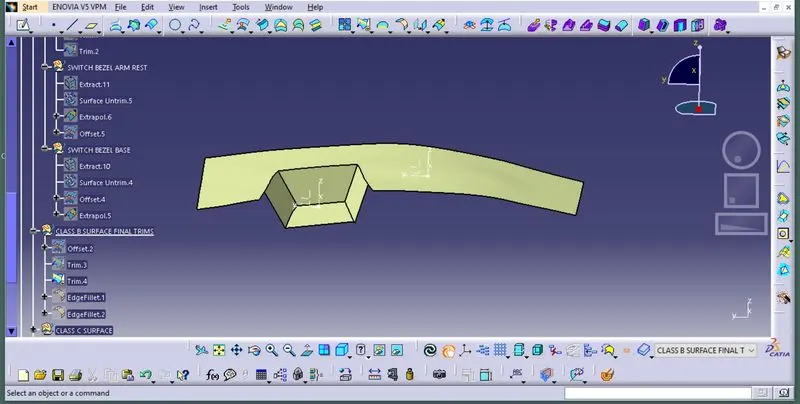

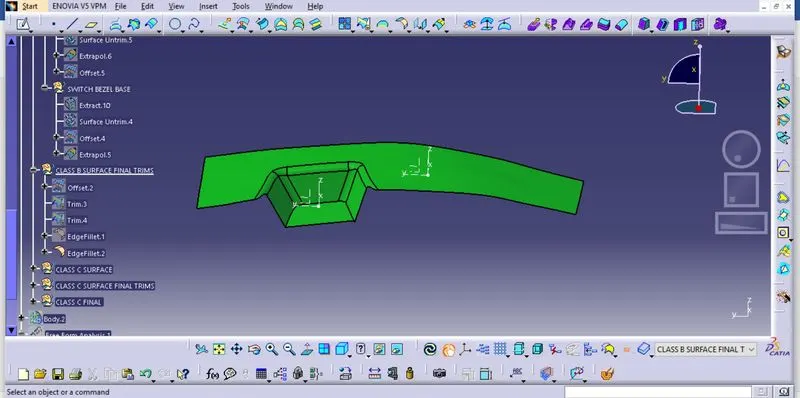

*Final Class B surface.

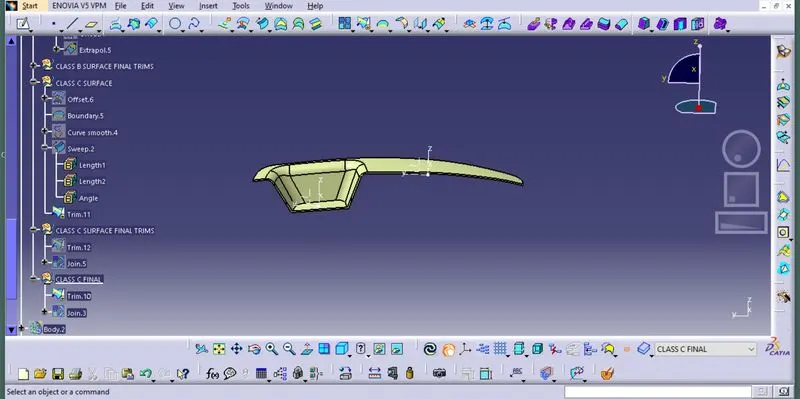

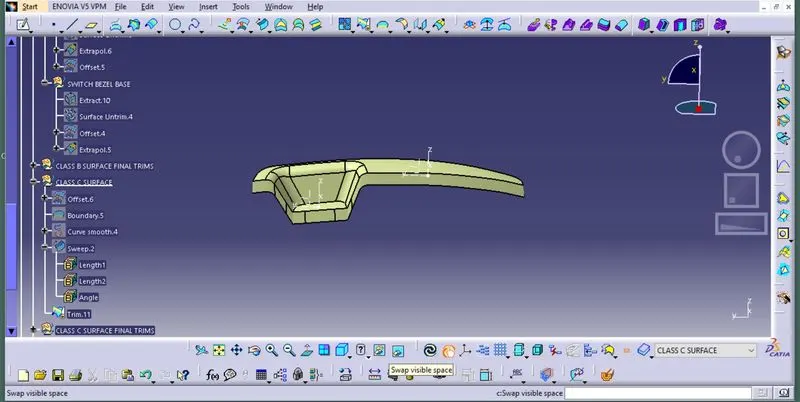

*Final Class C surface.

*Final surface of the Switch Bezel Surface with 2.5mm thickness.

*Draft analysis for the Switch Bezel Body by quick analysis mode.

*Draft analysis for the Switch Bezel Body by Full analysis mode.

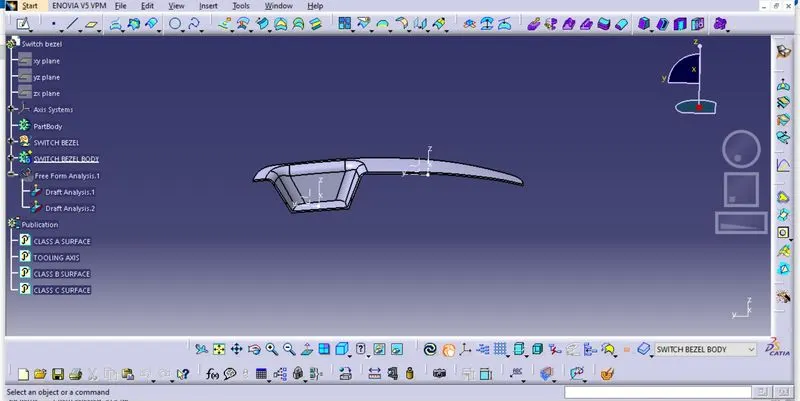

*Final surface of the Switch Bezel Body with Close Surface.

CONCLUSION:-

• A detailed report is been done explaining the draft analysis and the tooling axis creation.
• An explanation is been given on the way of creating the tooling axis by Bisecting method.
• Screenshots of the Draft analysis report and the final plastic component.
• Image of the complete Draft analysis.
• Images of the color scale variant.
• Screenshots of the model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View.
