Week 8 - Challenge 3 - Coin Holder Design

1- For the tooling axis it was not selected as the usual due to complexity shape

2- For the remaining, I have the CATIA V5 2011 in which I have faced infinetly many issues from altering some curvature due to some software limitation as stated by one of Skilllync instructors post a 1 on 1 mentoring session.

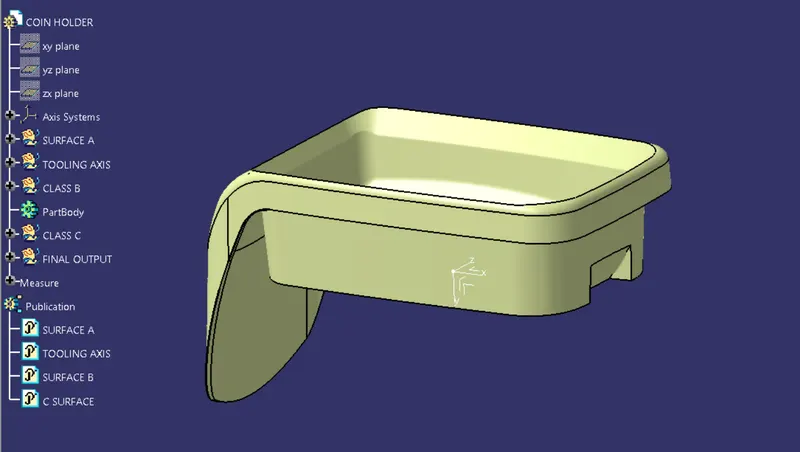

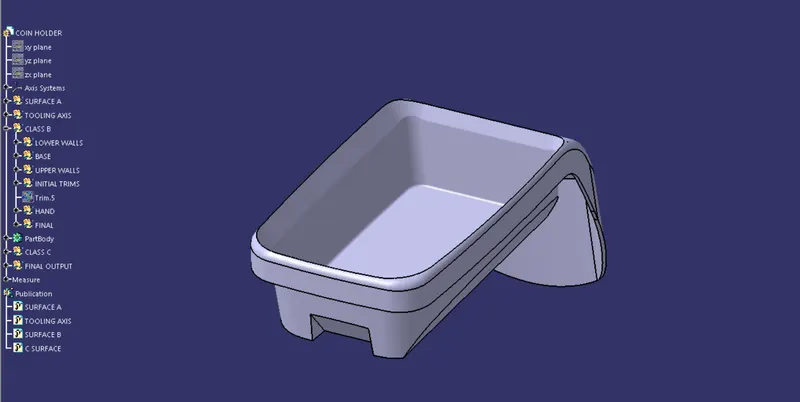

Final output

Please take into consideration that I did my best.

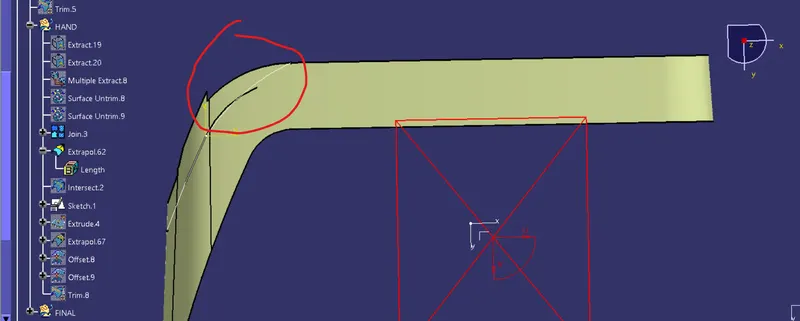

And for the handle I tried Untrim its 2 segments and then

-Split and join

- Trim

- Sketch and extrude then trim

And all did not work so last thing I intersected the axial system and altered the curvature to cut the upper surface clearly and it worked more or less

Again Please take into consideration the ammount of work devoted for this exercise.

Best regards.
