Week 8 - Challenge 6 - Core & Cavity Design
1) Used the previously created switch bezel with the tooling axis based on tilted or inclined faces which might be the toughest to clear

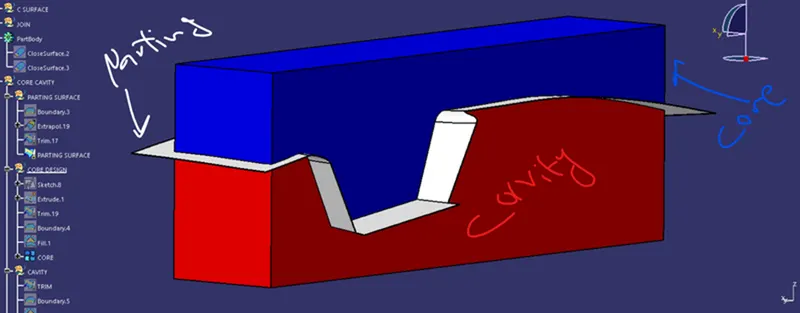

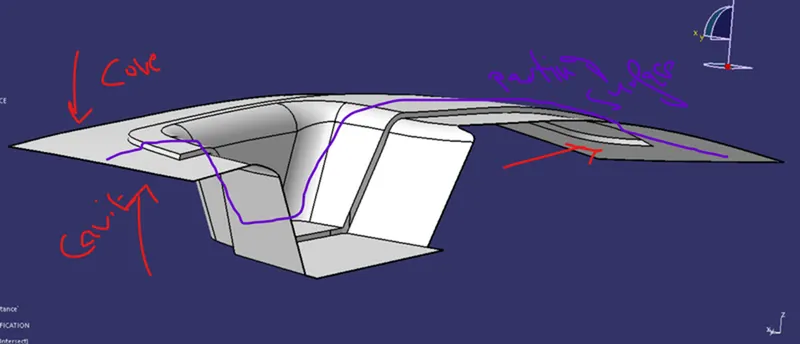

2) for the core design we placed it on the B side insuring that the top and the hieght are captured creating the parting surface

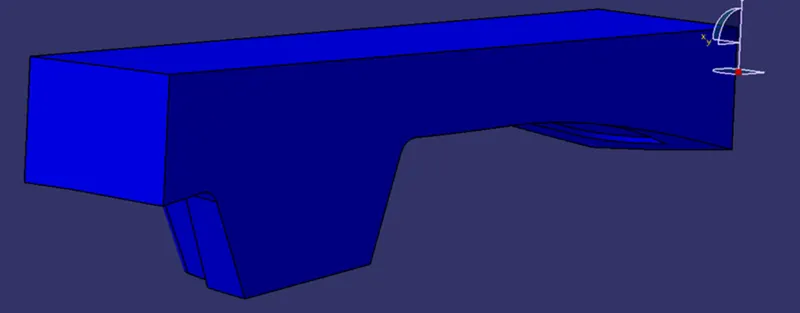

Next for the core we trimmed an extruded rectangle with the above shape and filling it from above

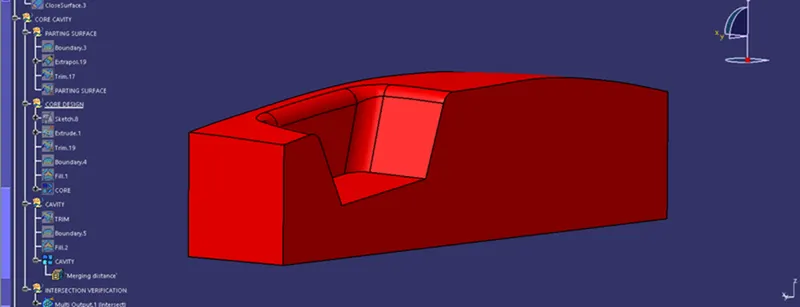

Cavity created by trimming the same extruded recatangle with the lower side (B surface)
Final Shape:

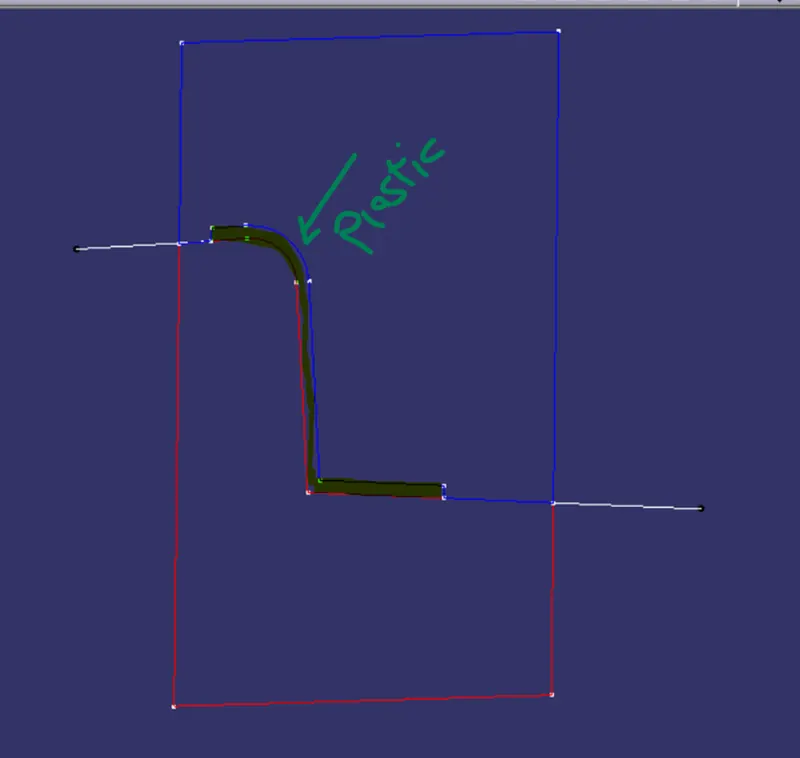

Intersection analysis ( Colors as specified)

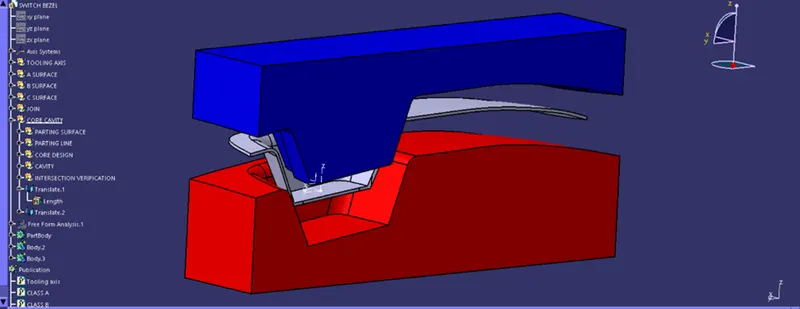

Final exploded view:
