Week 8 - Challenge 3 - Coin Holder Design
Design of COIN HOLDER with the help of CATIA V5
*Objective:
To design coin holder with respect to the class a surface
Create class b surface and class c surface and the tooling
Convert those kids surfaces in a close body and make it into the solid body provide the thickness of 2.5 mm
Performing draft analysis to verify the creation of tooling axis and class C surface.

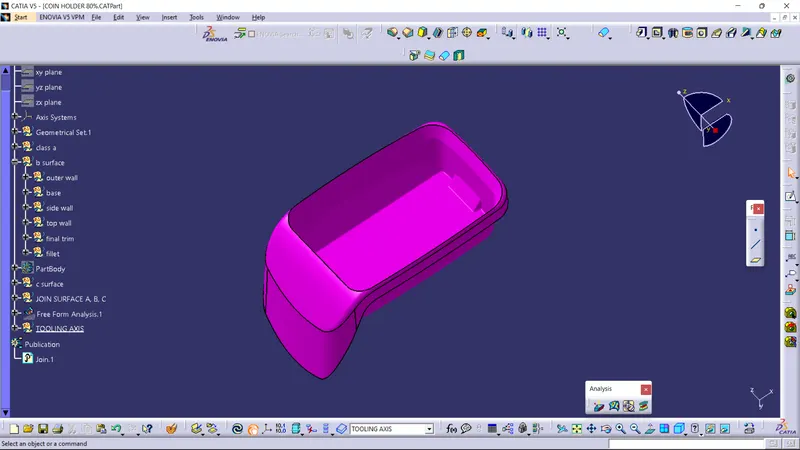

THE GIVEN CLASS A SURAFCE.....
*Here we are using the software catia v5 generative safe design
*How to create class B surface….
. Many surfaces we have to extract from the class a surface and have to trim that surfaces for -creating the class B surfaces
-The surfaces are side wall top wall base outer wall.
-Extract the side wall with no propagation in exact option
-Untrim them.
-Extrapolate the walls with point continuity of distance 20 mm.
-Trim the walls to get the required shape.
-Offset those walls with thickness value 2.5 mm.
-Extract the surfaces separately and untrim them.
-Extrapolate that surfaces with required distance 20 mm offset them with the thickness value 2.5.
-Trim them for required shape.
-Measure the fillets value from the class a surface calculate it and give some distance like if the fillet value is 10 then and you have given the offset value 2.5 at class B surface then you have to add that offset will you because the curvature is increases due to the surfaces are going outside so the fillet value is 10 + 2.5 mm.
-You can follow the same process for creating the outer wall.

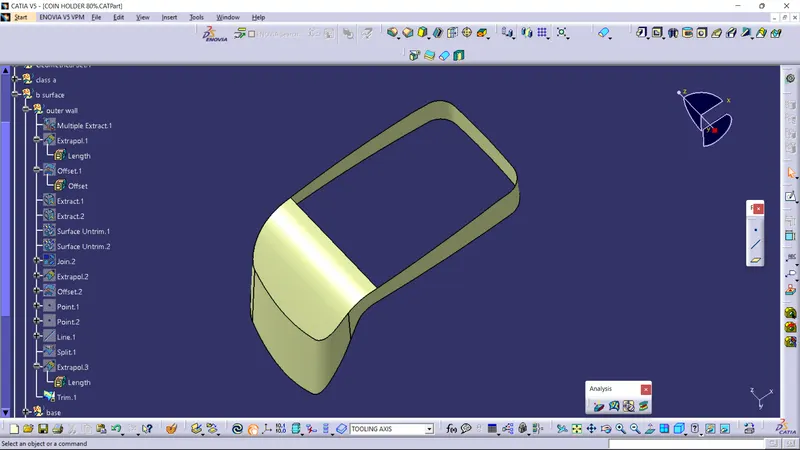

OUTER WALL:

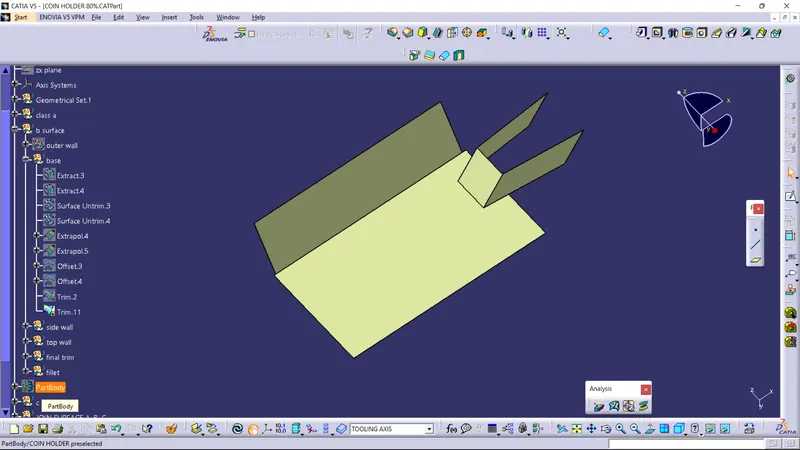

BASE OF THE COIN HOLDER:

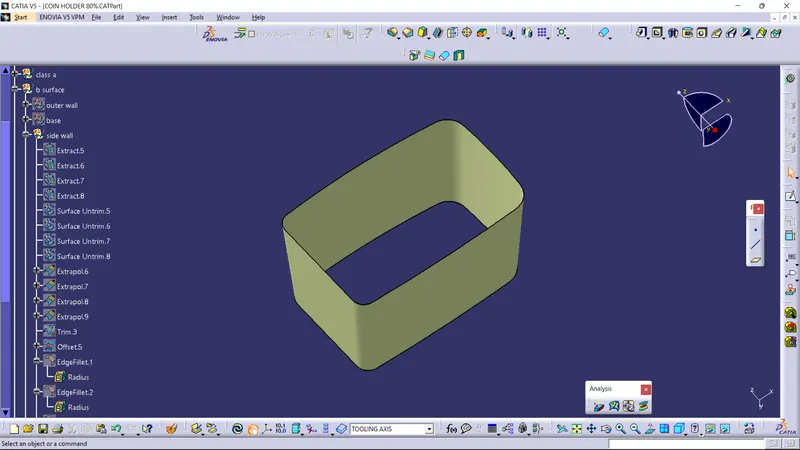

SIDE WALL:

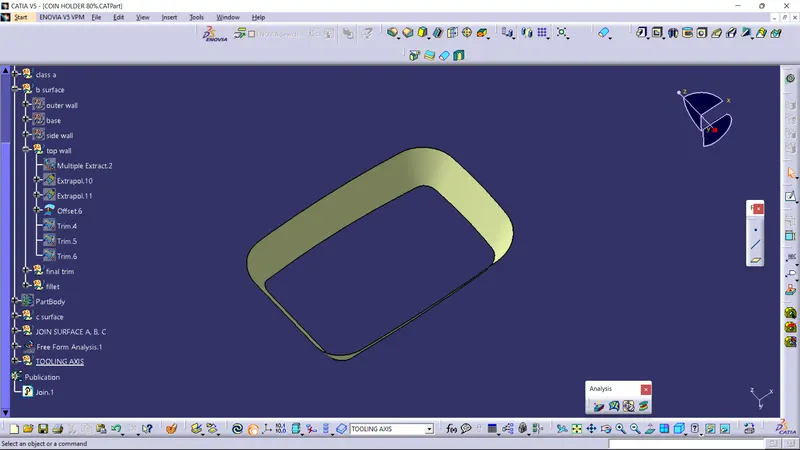

TOP WALL:
JOINING OF CLASS B:
AFTER APPLYING FILLETS:
*How to create class C surface…..
-First get the boundary lines of classes surface separately.
-Smooth curve with smooth option as boundary line have a lot of vertices.
-Swift curve with toolling Axis as direction in Swept option you can take the direction with surfaces first select the boundary and then select the surface of the class A as reference surfaces.
-Now trim that surface with class B surface.

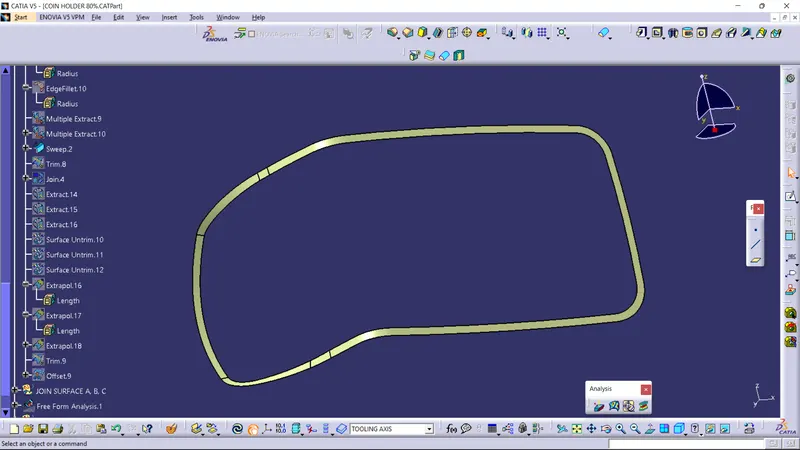

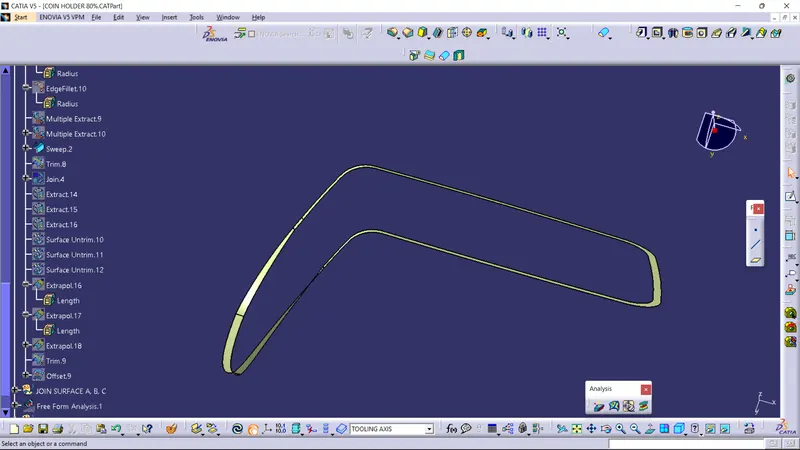

CLASS C SURFACE:

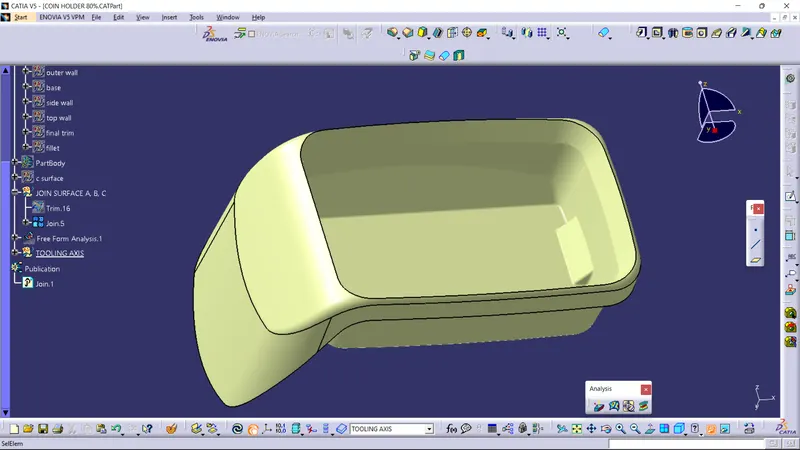

JOINING OF CLASS A, B ,C SURFACE
* How to create a closed body…. AND APPLING DRAFT ANALYSIS:
- Join the class a surface class b surface and classy surface joint surfaces with class be
-Go to the part design and insert a body create a closed surface
-Procedure of creating draft analysis
-Go to insert menu and select the analysis option
-Select feature and draft analysis
-Select the material option and select the surface
-Drag the compass and place on tooling axis
make sure that the top surface is in green colour as draft angles should not exeed 3 degree.
-Click on okay after confirm the model.

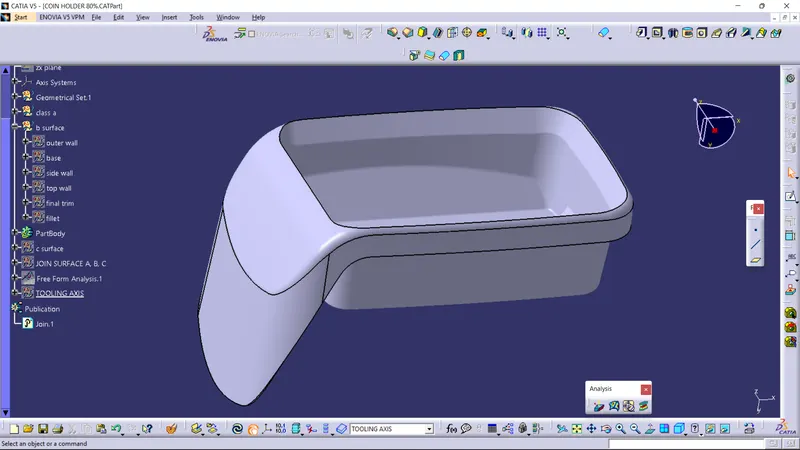

SOLID BODY

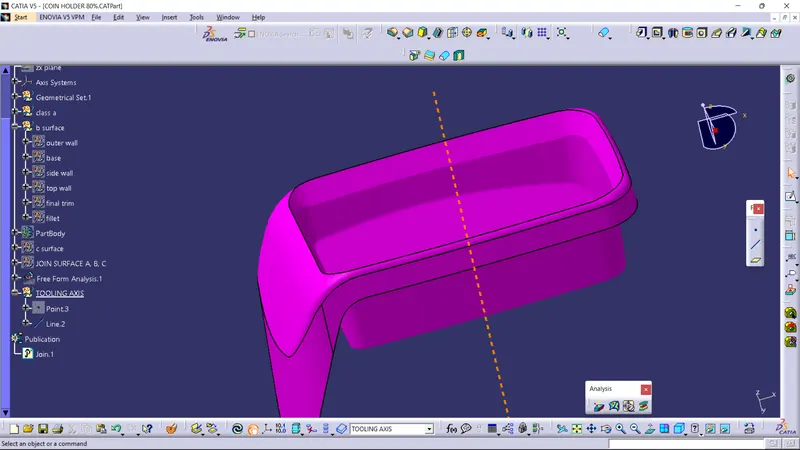

TOOLING AXIS:

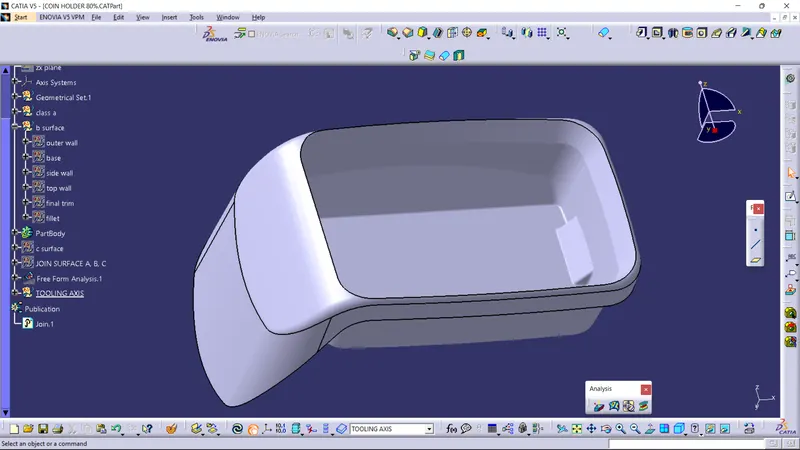

ISO VIEW
FRONT VIEW

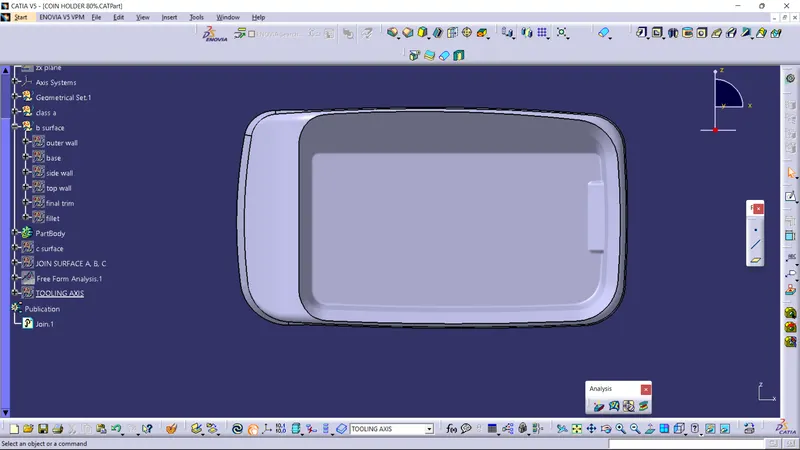

TOP VIEW

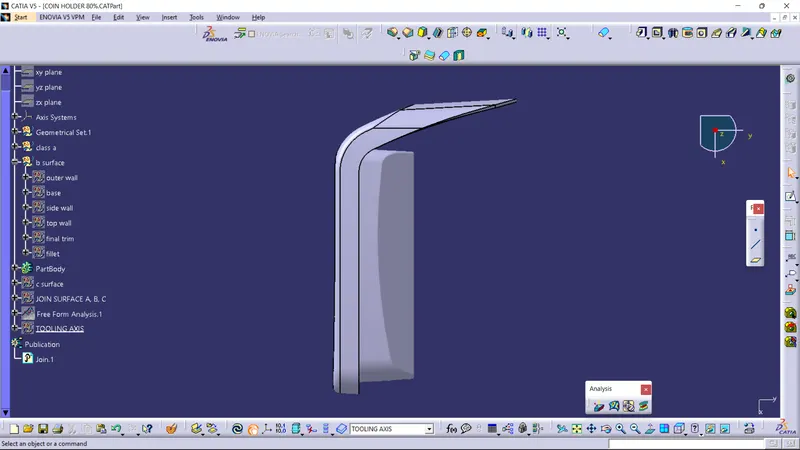

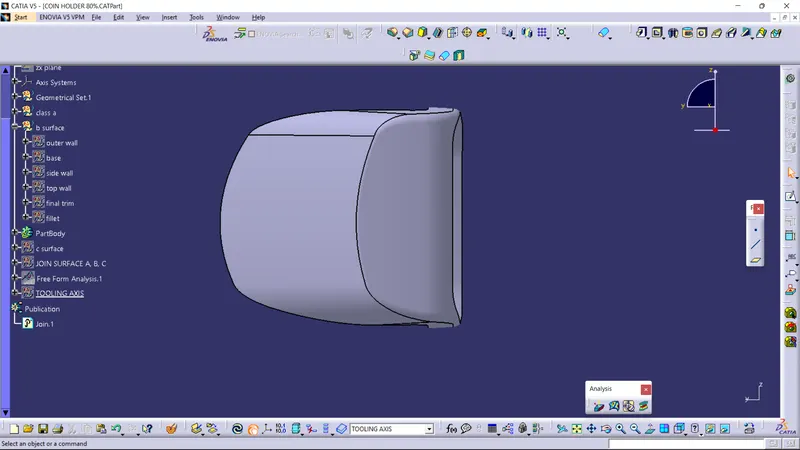

SIDE VIEW ARE GIVEN BELOW:

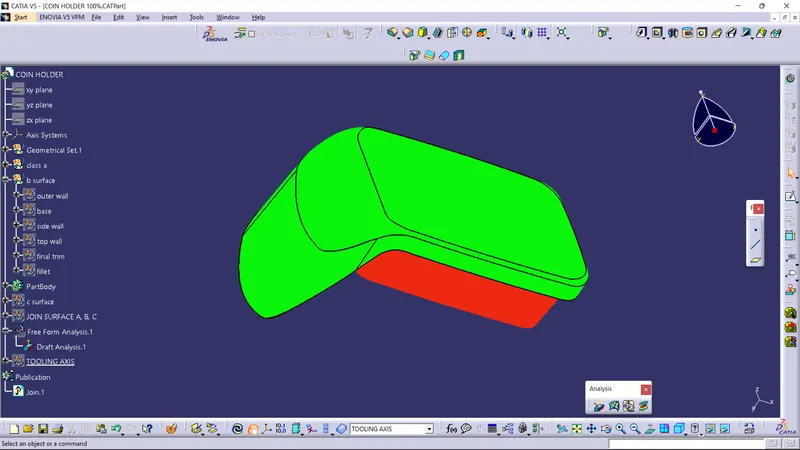

DRAFT ANALYSIS:

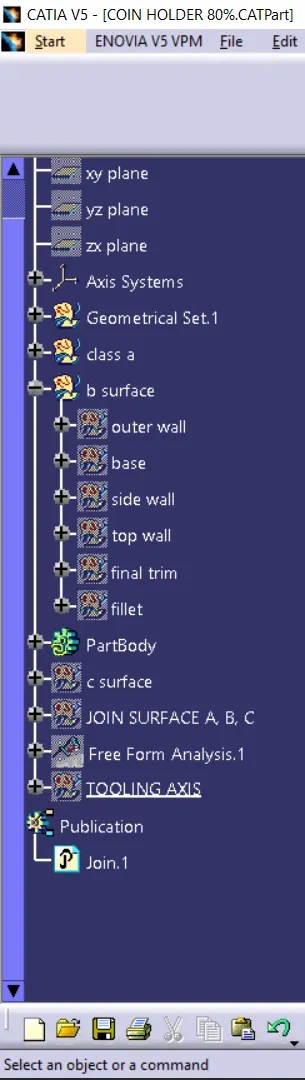

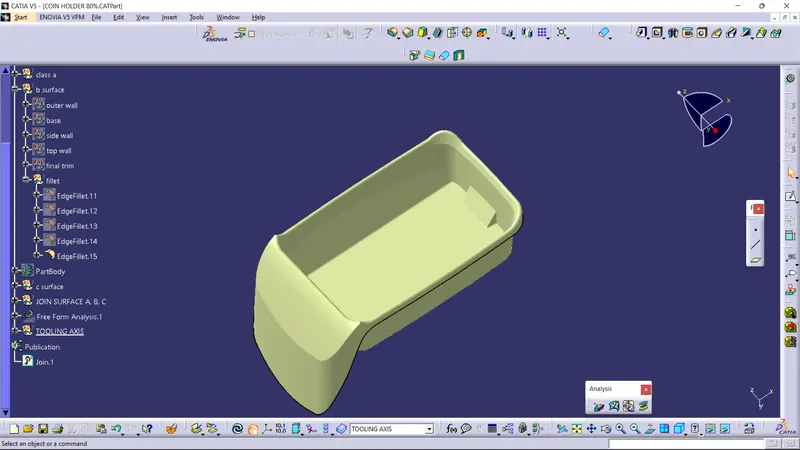

TREE OF THE MODEL.....
THANKYOU......
