Week 8 - Challenge 6 - Core & Cavity Design
Objective...
*To create Core and cavity with the help of given class a surface.
*To create parting surface and their intersection of core design cavity design and parting surface....
Core and cavity design
*The mold Core and cavity are the saved section in other half of the mould tool which give the plastic product its final shape.
*The hot molten material is injected into the core and cavity and then set hard into same the design of the core and cavity is essential in the correct formation of the product the sequence of events during the injection mould of a plastic part is called the injection moulding cycle.
*The cycle begins with the mould class closes followed by the injection of the polymer into the moled cavity.
*The core is usually made of the best quality sand and its placed into the desired position in the mole cavity. core prints are added to both sided of the pattern to create Impressions that allow the core to be supported and held at both ends.

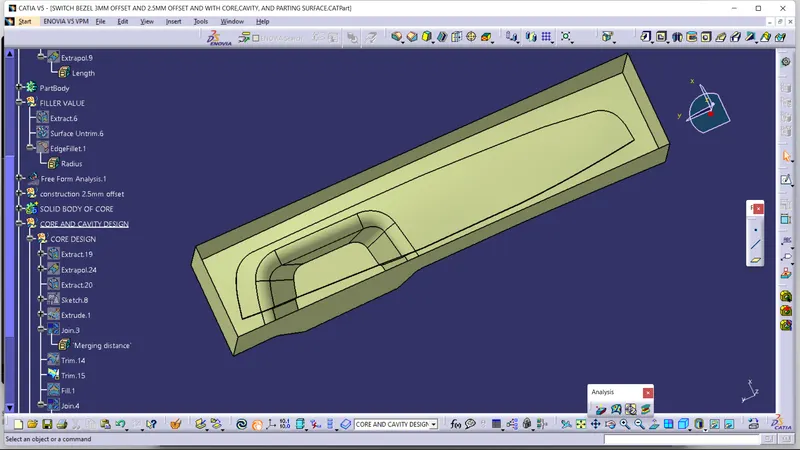

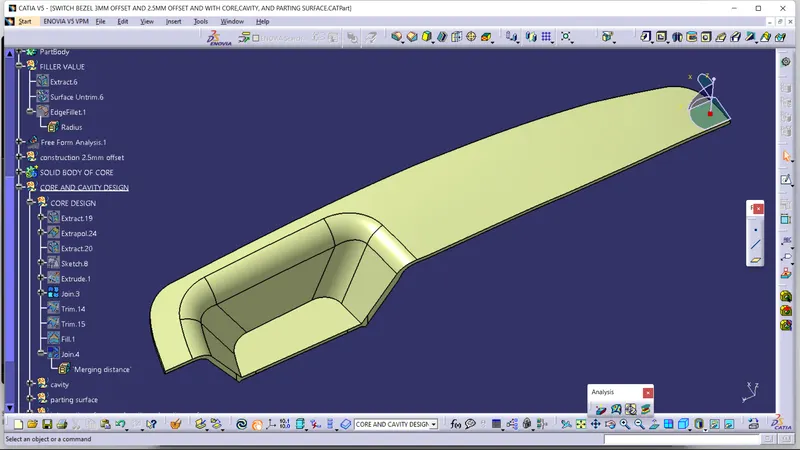

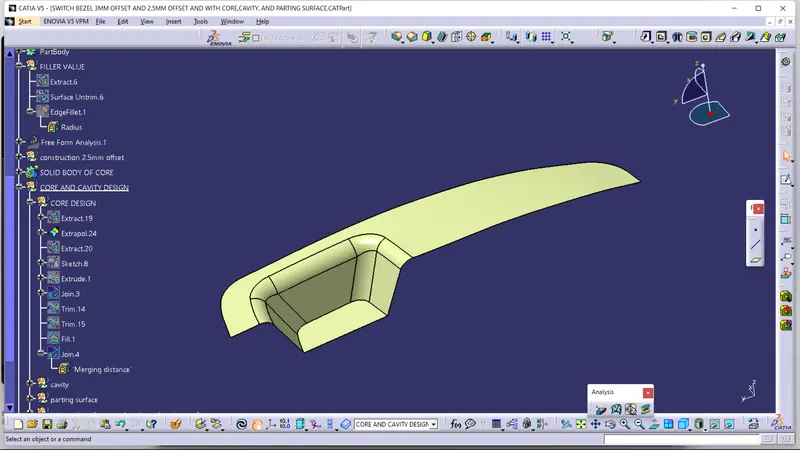

THE CORE IMAGES...ARE BELOW

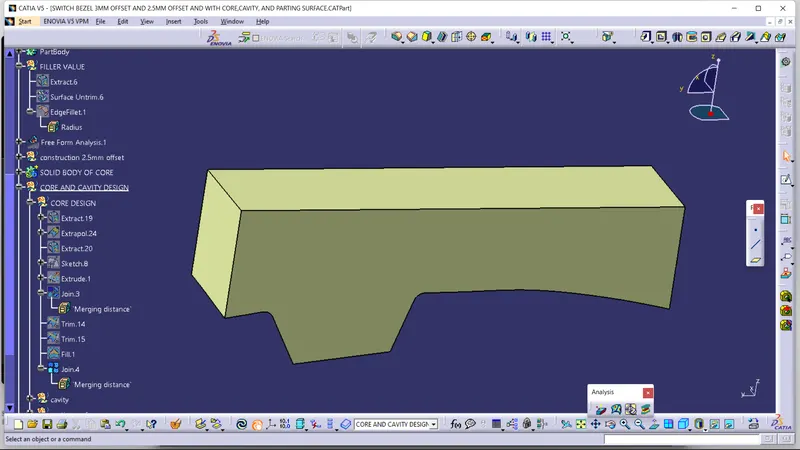

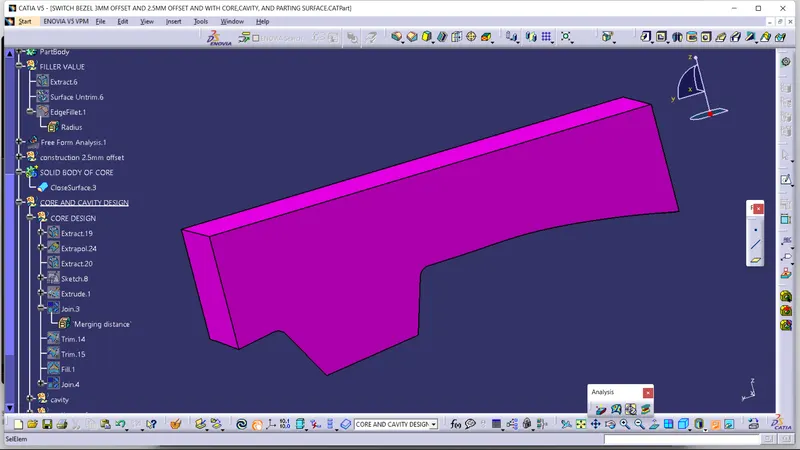

solid part of the core
How to make Core
*The core design is started with extracting the parking surface that become the date of the core and cavity the parting surface is most of the class cases is kept at the B class surface to avoid close and tight contact between the core and cavity.
*At first the a class surface is extrapolated with some length and later it is trimmed with a class c surface.
*This a and c surface again trimmed with the be surface to form the core face.
*Now the final core block is made by drawing the boundary sketch excluding it along the tooling access direction followed by the feeling and thickening.

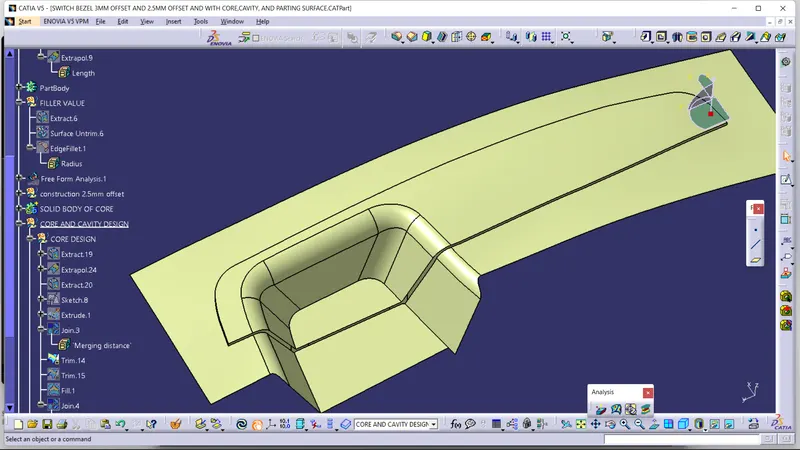

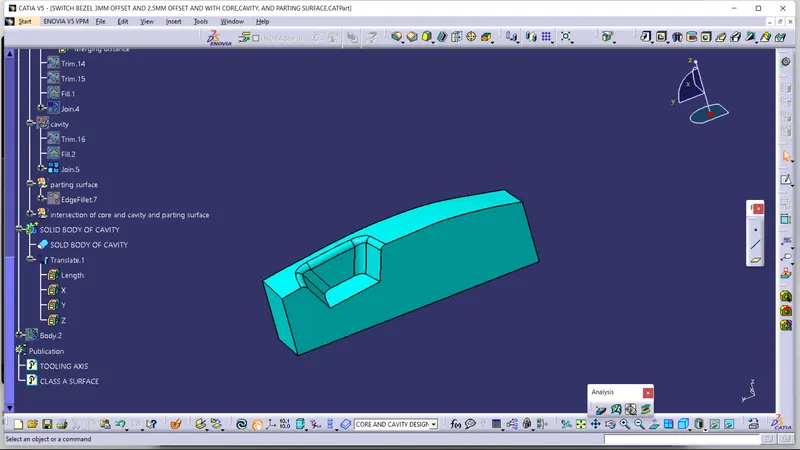

THE CAVITY IMAGES ARE GIVEN BELOW....

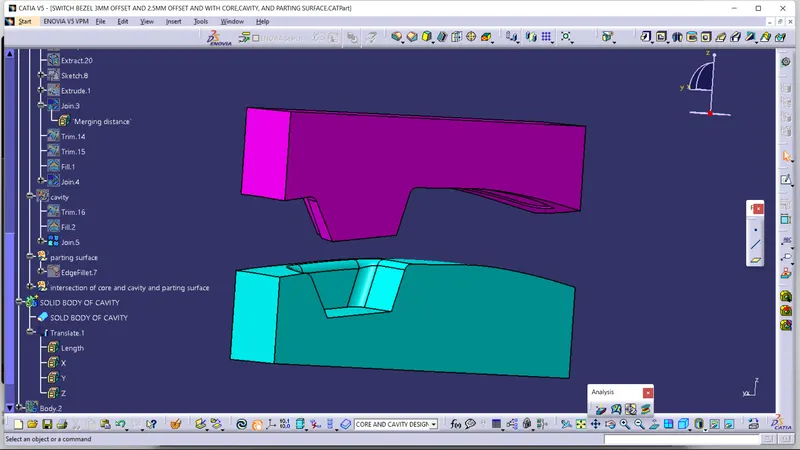

thr movement of cavity part in the downward direction....by 100mm....
How to make cavity.....
*Cavity is the part where the injector and filling of the molten plastic happens.
*the cavity block is prepared by the first extruding the outer boundary along the tooling direction.
*The outer surface is trimmed with the class be surface and then it is filled and thickend.
Parting line and parting surface....
*The parting line in the industrial casting of molds is the border line in which draft angles change direction that is it is the dividing line that splits the core and cavity halves of the molded part it it is sometimes is starting point for the mold parting surface.
*Here the intersecting, the parting surface, Core and cavity across the ZX plane gives the intersecting line that tells the parting line.

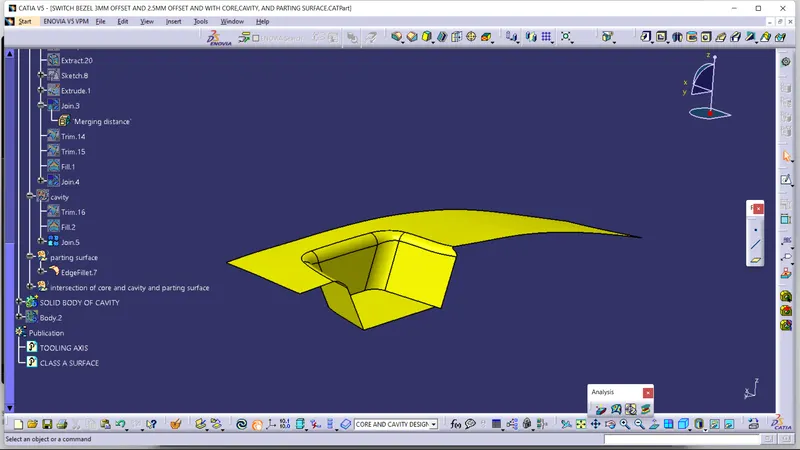

Parting surface
*The parting surface of a mould are those surfaces of both mould plates and adjacent to the impression which butt together to form a seal and prevent the loss of plastic material from the Impressions...

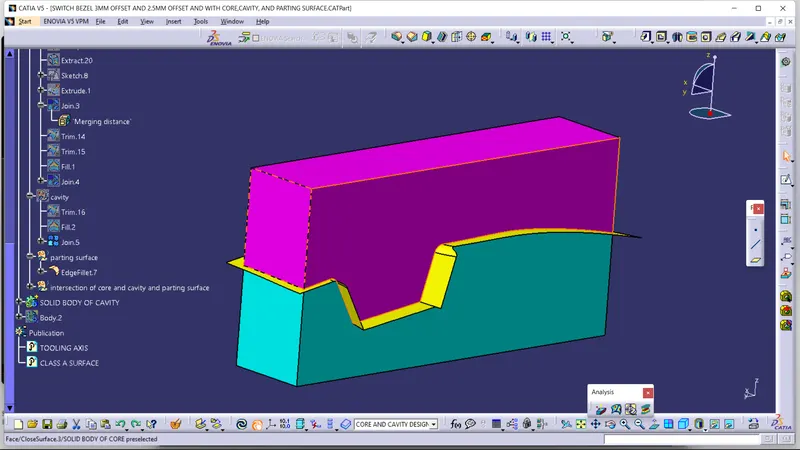

COMBINATION OF CORE CAVITY AND THE PARTING SURECE,

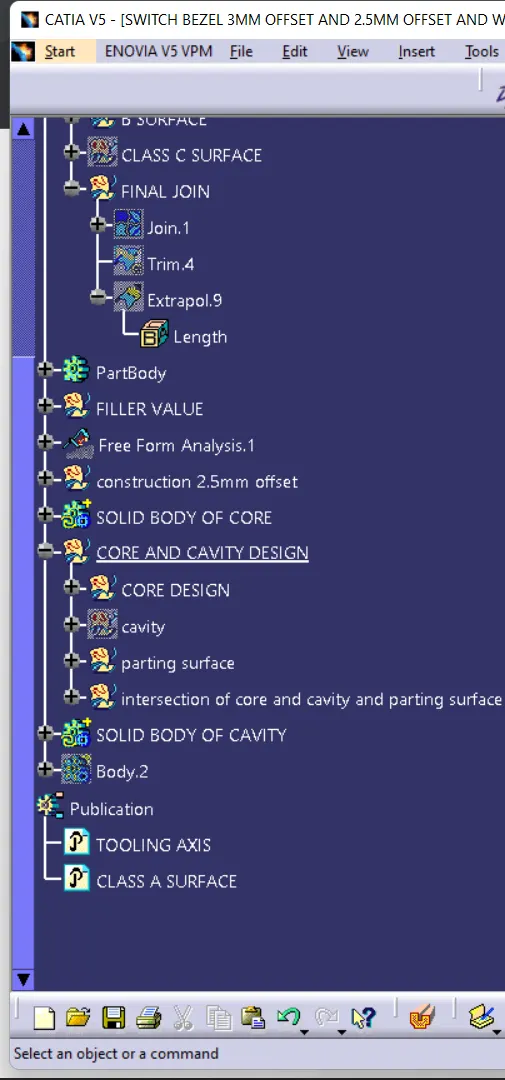

Tree structure
