Week 8 - Challenge 3 - Coin Holder Design

Aim: Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Objective:

First, you will need to generate the requisite proper Tooling axis, and then you will execute the Draft analysis on the class A surface that has been provided. By utilising the surface modelling tools, you may create the class-B surface as well as the class-C surface. Additionally, the closed surfaces of classes A, B, and C should be combined into a single solid body. In addition to this, carry out the Draft analysis on the solid model.

The Tooling Axis is as follows:

In injection moulding, the Class-A surface is initially evaluated to determine the tooling axis, also known as the tooling direction, along which moulds pull apart. Tooling direction is critical for the design of plastic products because it determines the path that mould separation will take.

Draft Analysis:

For moulded or cast pieces, the degree of taper that runs perpendicular to the parting line is referred to as the Draft angle. The temperature can be expressed in degrees. In order to decrease the possibility of the parts being damaged and to guarantee their ejection, a functional part for injection moulding needs to have draughts facing both the cavity and the core sides. In order for the part to detach from its housing in the correct manner, it is essential to beat the vacuum forces by allowing air to enter the space between the metal and the plastic. incorporating while keeping a respectable cosmetic appearance. For both the production and the plastic product, there should be a draught included in the design. At the very beginning of the design process, the designer ought to be aware of its necessity. Because of this, design requirement factors can be taken into account.

Nominal values for Draft angle:

The Draft angle is generally considered to be 3 degrees. 7 degrees for a surface with a texture. Producing an angle of at least 0.5 degrees requires the use of specialised equipment. However, this will result in a rise in the cost of production.

Class A surface:

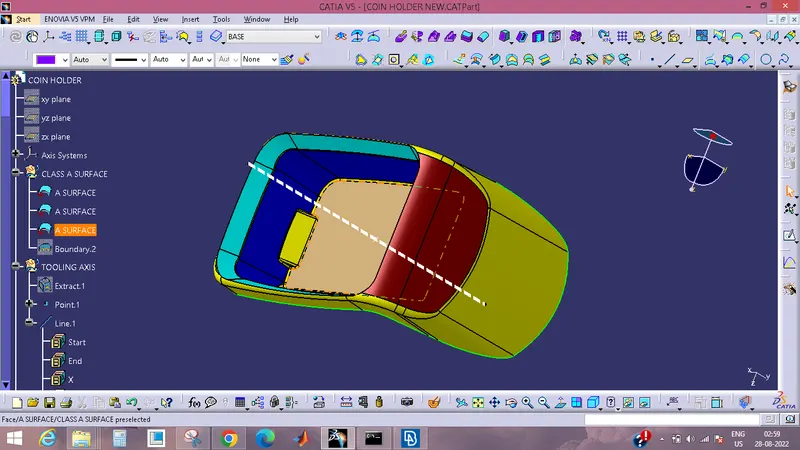

Creation of the tooling axis:

The following is the technique for tooling axis:

• In order to manufacture a plastic item using injection moulding, a Core, a Cavity, and Sliders are required.
• The Core, the Cavity, and the Slider all move and sideways in a specific direction that is referred to as the Tooling Axis.
• Either the Bisection technique or using a Plane as a reference can be utilised for constructing the tooling axis.

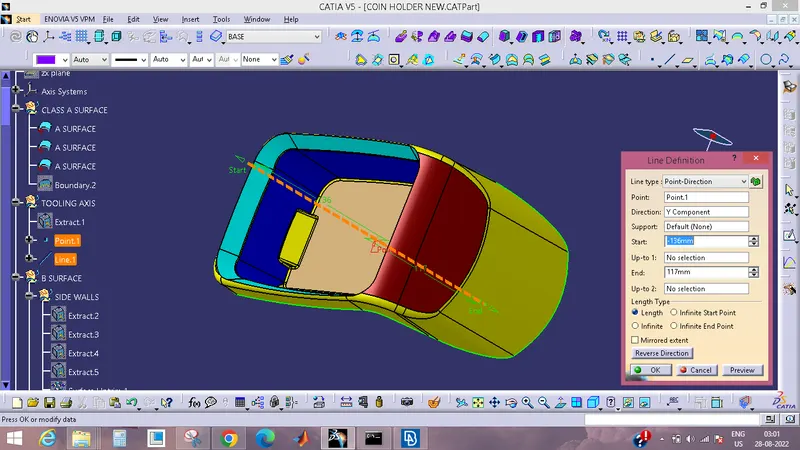

In most cases, the tooling axis is conceived of by employing the method of bisecting a line or plane. On the other hand, the tooling axis is assumed to be a line that is normal to the base surface of the bin in those components where it is present. The same approach is taken with regard to this component. Drawing a line that is parallel to the base surface will result in the creation of a tooling axis. The number of offelemts that are allowed should be as low as possible.

In order to determine whether or not a component may be manufactured along the tooling axis, a drafts analysis is run on the class A material. During the process of doing a draught analysis, it was discovered that the bin walls make an angle of ninety degrees with the foundation. There is not a predetermined minimum draft that the walls must adhere to. We are not permitted to make any modifications to the class A surface; however, we are able to notify the class A designer that the walls should have a minimum drafting.

Draft analysis of Class A:

After defining an axis for the instrument, we go on to the drafting analysis. Before we can begin the drafting process, we need to make certain that the materials are selected in the view mode.

After selecting the feature drafting analysis tool, we move the compass from where it was to where the tool axis is located by dragging it. The compass must then be locked. After that, select any part of the component, and it will provide the result to you.

We adjust the component's minimum drafting requirement to three degrees.

Checking the component's angle can be accomplished through the usage of the running point option.

We even have the ability to change the hue to better suit our tastes.

CLASS B SURFACE CREATION:

Using the Extract Command, a collection of surfaces were extracted from the Class A surface in order to produce the Class B surface. This is demonstrated in the image below.
It is possible for us to produce a Class B surface by first using the extract command for all of the surfaces that are necessary, and then using the untrim command to restore the surface up to the limit.
Class B Surface refers to the surface at which features such as side walls, base walls, top walls, outer walls, and other such elements are made to accommodate external mountings.

To create a Class B Surface, one must first extract an A Surface, then offset it to the necessary thickness, and finally trim the two surfaces together.

Considering that this is a complex component, we first establish the class B surface, and then we separate some surfaces in accordance with that by assigning some colours to the surfaces for our convenience.

Wall

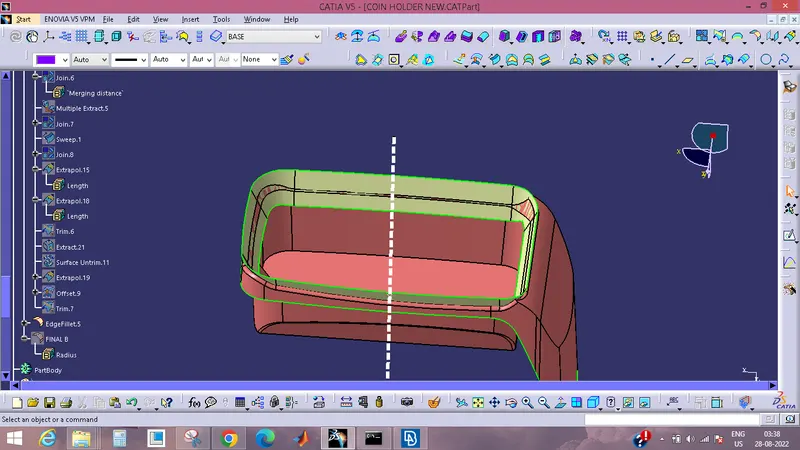

• After that, make a surface of class B.
• First, in class B, establish the base of class B using the class A information. Insert the geometrical set that will be defined as class B, which will serve as the class B base.
• Employ the extract command to pull a base out of the class A data. After that, use the untrim tool to acquire the base's full body. The extrapolate tool should then have its base extended, followed by an offset of 2.5 mm.

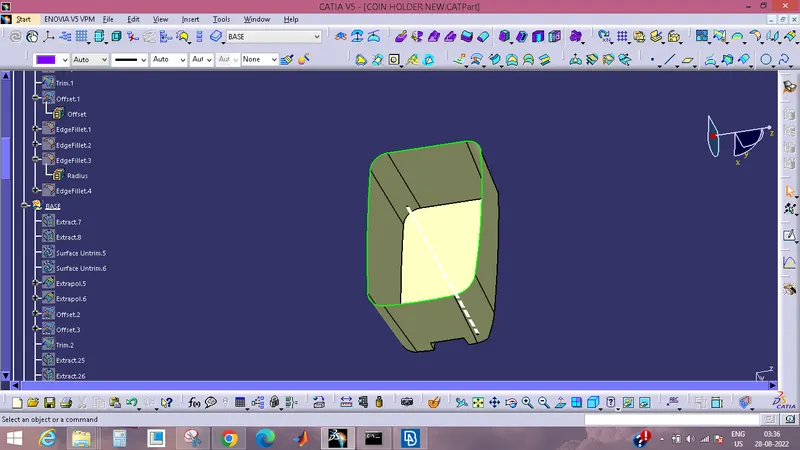

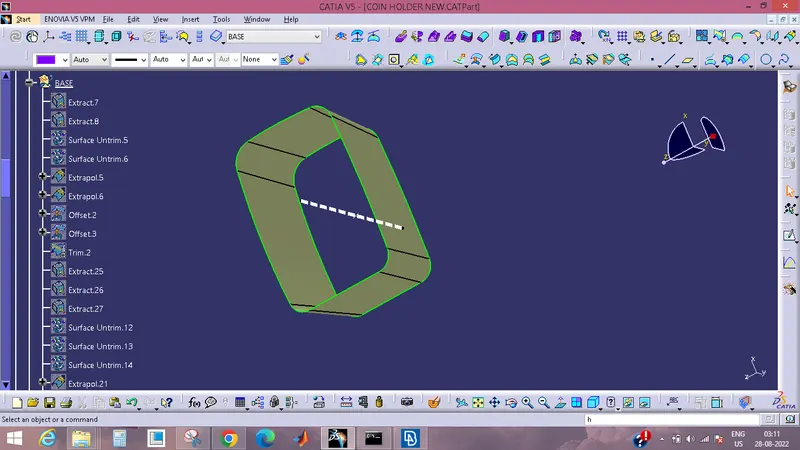

BASE

• Add a new geometry set to the wall, and be sure to specify it as a class B surface.
• Since we extracted from a class A surface using the extract tool, we obtained an untrim body by using the untrim tool on the extract body, and by using the extrapolate tool on the untrim body, we obtained the correct form for the sheet.
• After that, trim the ribs so that you end up with the correct wall form and offset for the trim. This particular offset set constitutes the last ribs.

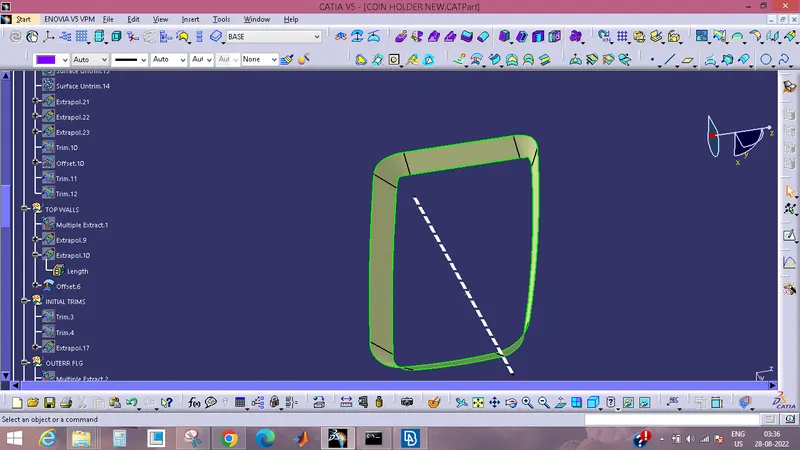

TOP WALL

• Now, extract a top wall from class A, and then make use of extropolte on the extract body. After that, shape the body.

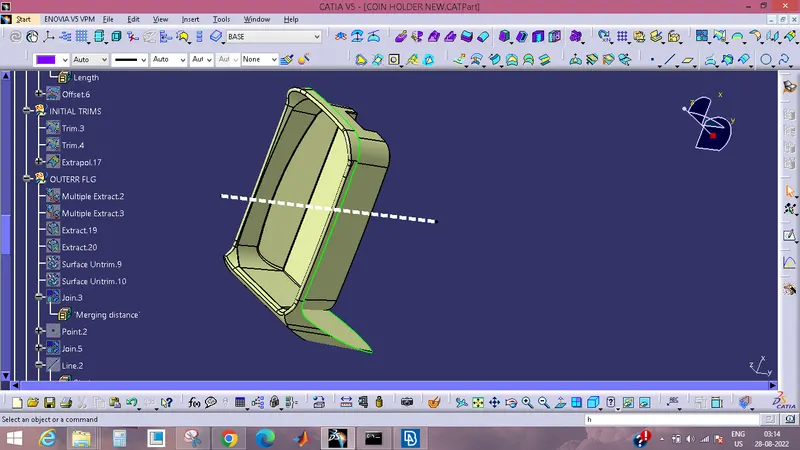

OUTSIDE FLANGE

• First, remove a necessary part from class A, and then undrim a part that was removed.
• Next extrpolte some distance. After that, a part should be trimmed, and then offset.
• Now finish trimming the foundation, then obtain the last piece of the inside, and assemble it with the remaining components.

SURFACE OF CLASS C:

The Class C surface is an intermediate surface that connects the Class A surface and the Class B surface.

When making a Class C surface, the Draft angle and Tooling direction are both taken into consideration.

Because of the way classes A and B are constructed, class C of this model will lie on a plane that is perpendicular to the horizontal plane.

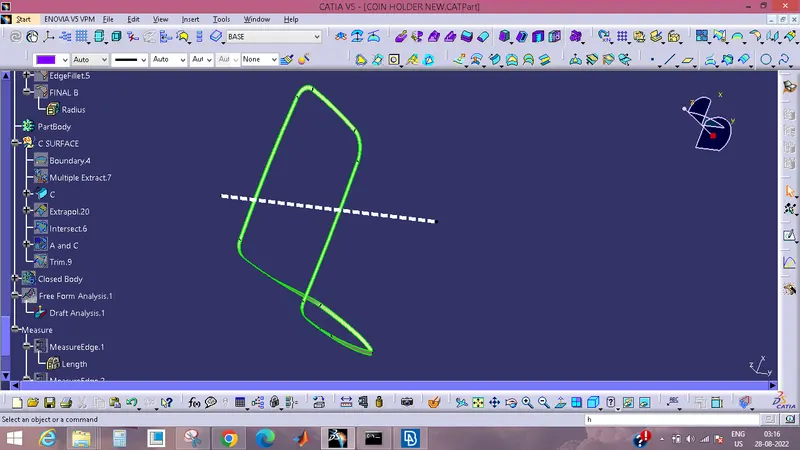

We begin by removing the borders of the Class A surface, which allows us to generate the route for the sweep of the Class C surface. After that, we remove the surfaces that are near to the Class A surface so that we can utilise it as a reference plane.
Consequently, we will select the sweep tool, and inside that, we will select the reference surface option. Following that, we will adjust the angle so that it is 90 degrees, which will make it horizontal.

Now Join C & A Surface:

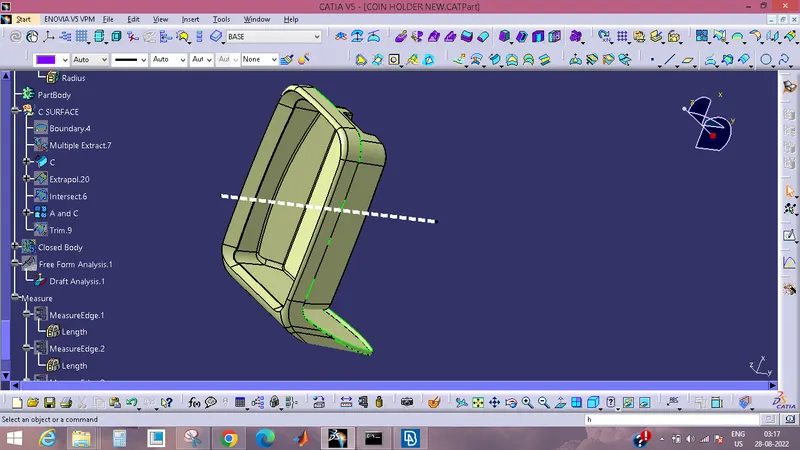

PART BODY:

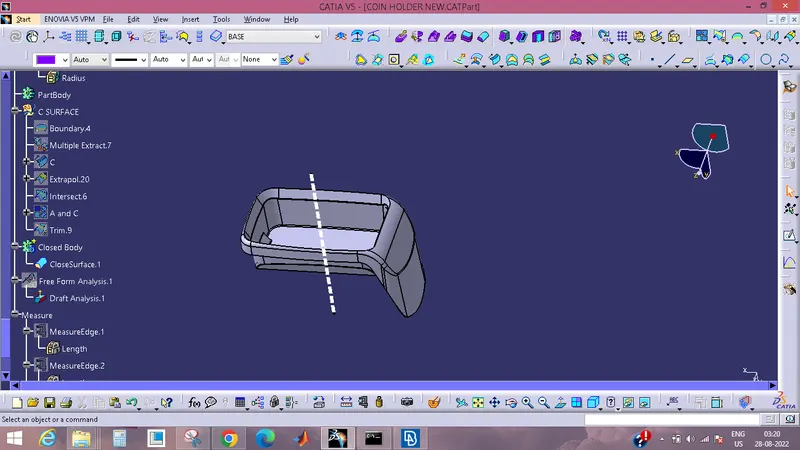

After constructing a closed body, the next step is to construct a solid body by using the closed surface as a starting point. Proceed now to the part workbench in order to create the sloid body by utilising the closed surface command.

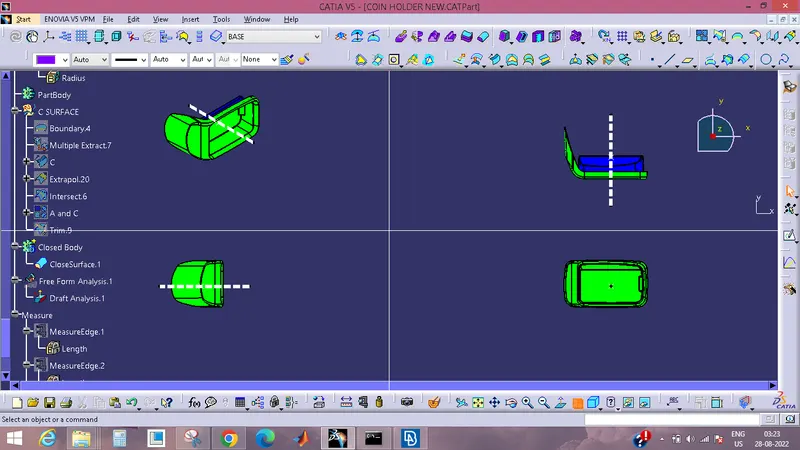

DRAFT ANALYSIS:

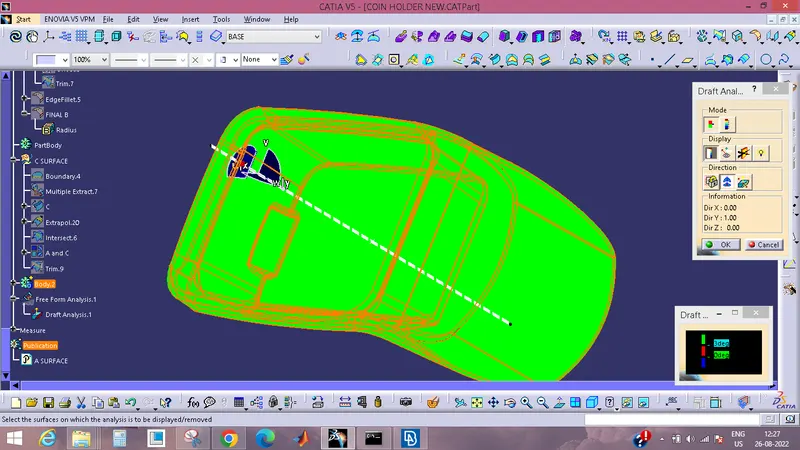

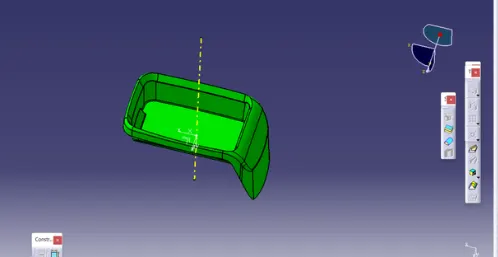

The highlighted drafting analysis command is used to do the drafting analysis once the development of the solid body has been completed. Simply click on the compass icon, and then drag the compass till it is aligned with the tooling. if the surface is a green colour, the drafting angle is larger than 2.9 degrees (the limit for the green colour is 2.9 degrees), and if the surface is a red colour, the draught angle is less than 0 degrees.
