Week 8 - Challenge 3 - Coin Holder Design

AIM :

Create the Coin Holder Plastic component through the given Class-A surface.

INTRODUCTION :

CLASS A: Class A surface which is made by a Class A designer mostly made in Autodesk Alias. Through which a plastic modelor makes the component. It is the aesthetic surface which is scene by the custromer.

CLASS B: CLASS B is the surface which has the engineering aspects. It is below some thickness from CLASS A surface.

CLASS-C SURFACE: Class-C surface is a surface that connects Class A and Class B surfaces.

METHODOLOGY :

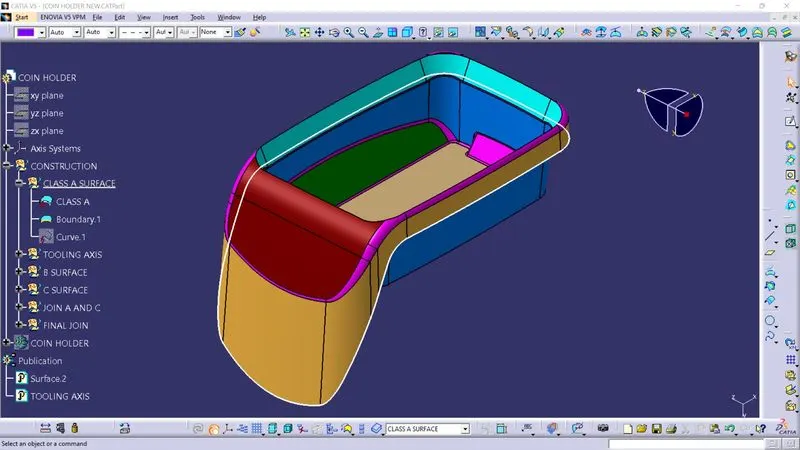

Before starting first we have to check the A Surface is not having any gaps. For that i have used close boundry to check if there is any gap or not, As a result the A surface has a close boundry.

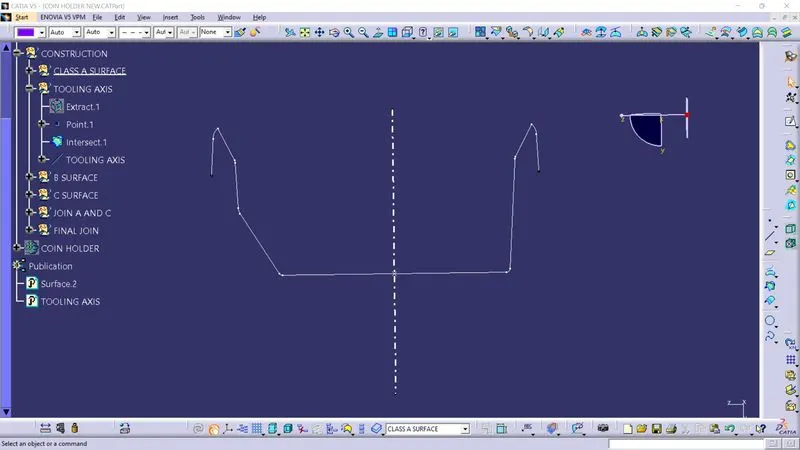

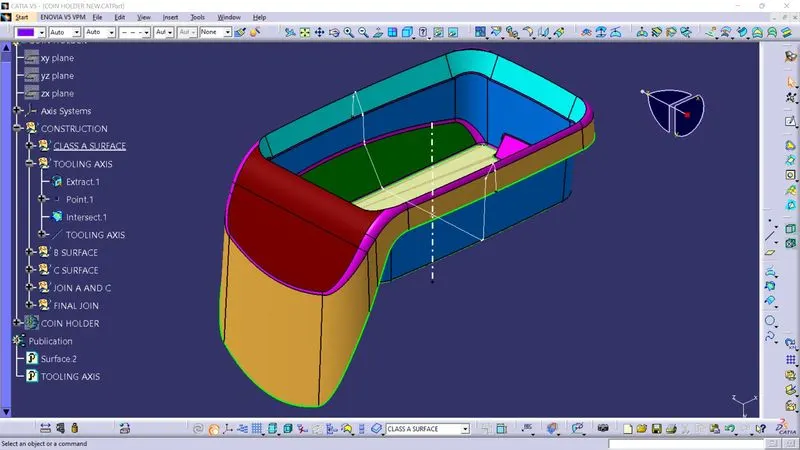

Tooling axis: To start the making of the component first we have to make a tooling axis.

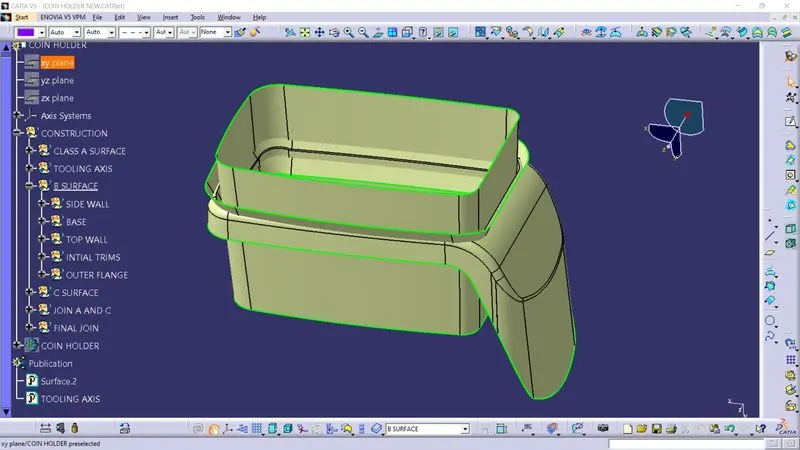

B surface creation :

To make the B surface we have divided the A surface into base, side walls, inside side walls and outer flange and worked on them one by one.

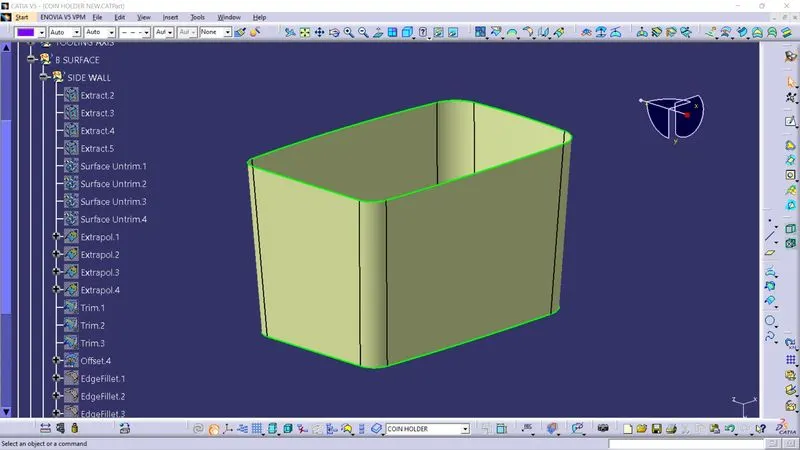

• SIDE WALL

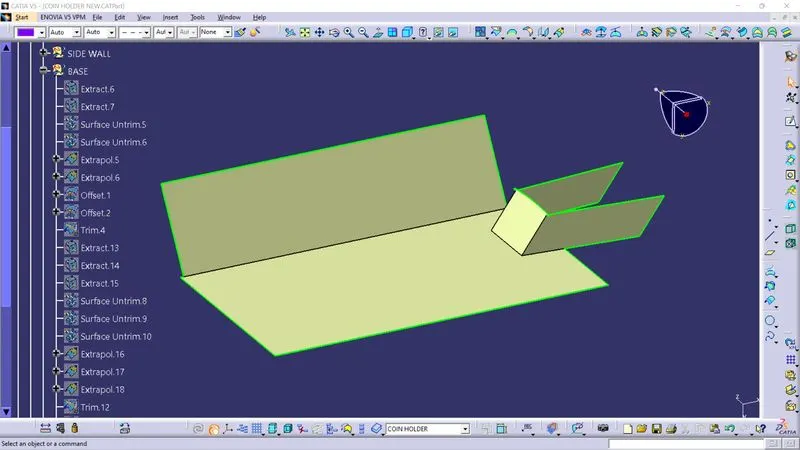

• BASE WALL

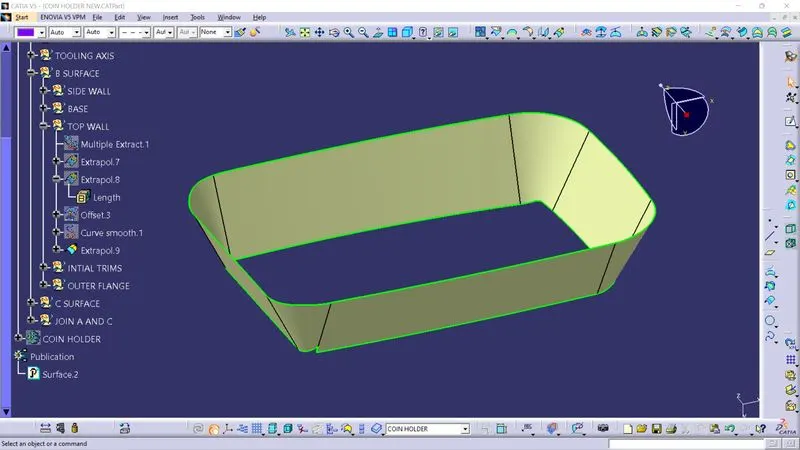

• TOP WALL

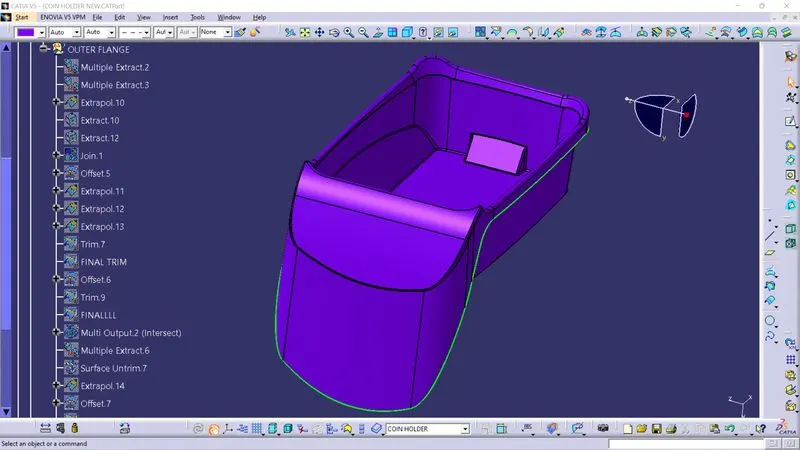

• OUTER FLANGE

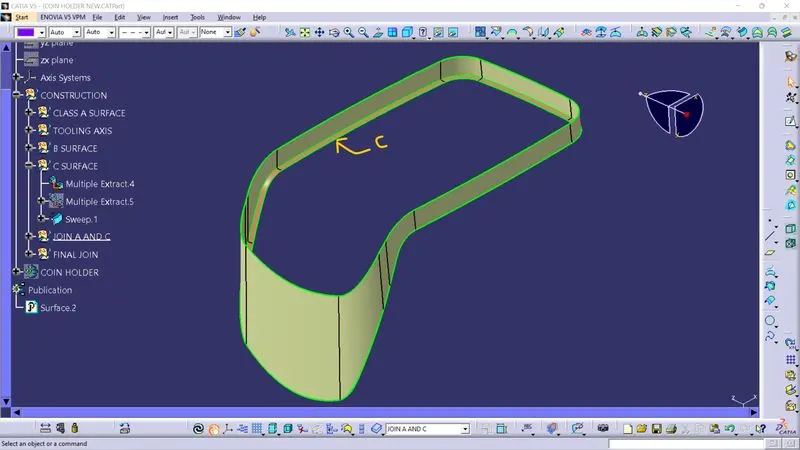

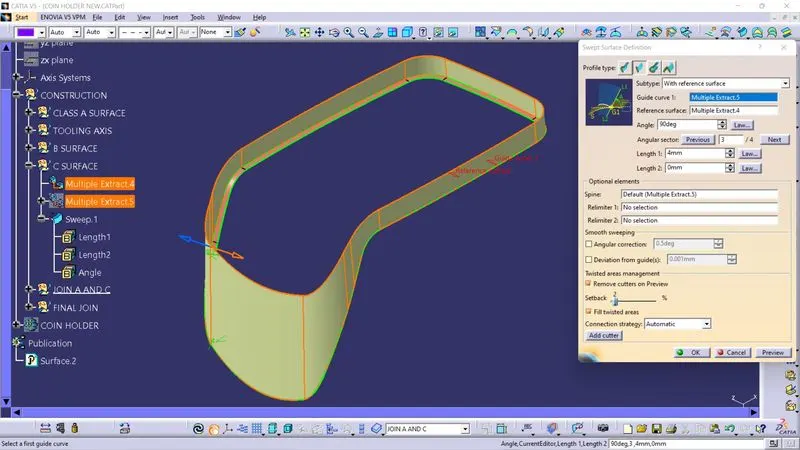

C SURFACE CREATION :

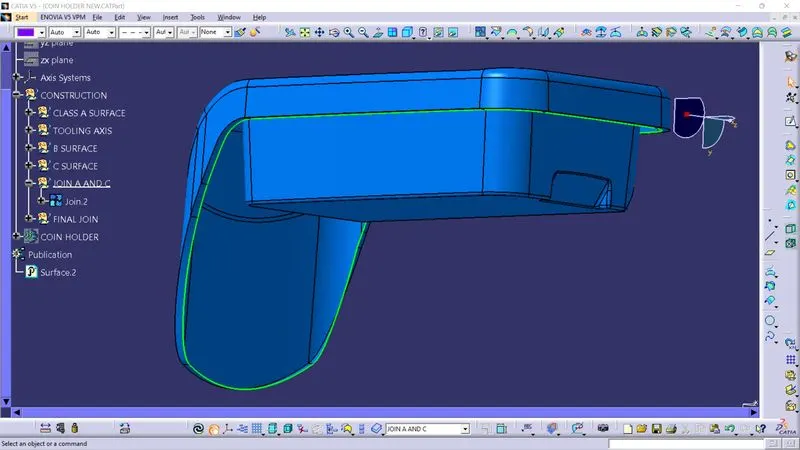

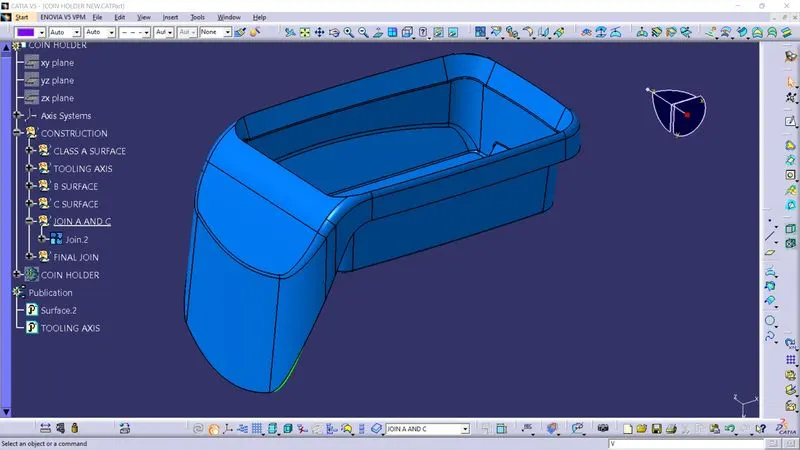

JOINING A AND C SURFACE

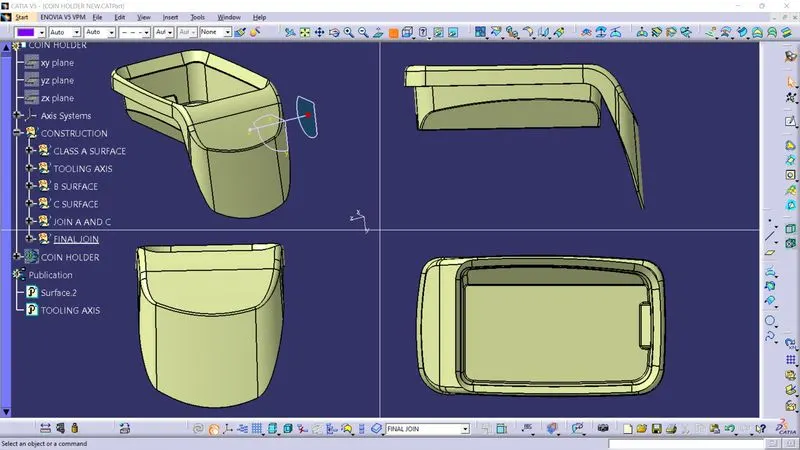

FINAL JOIN

Joining all the surfaces.

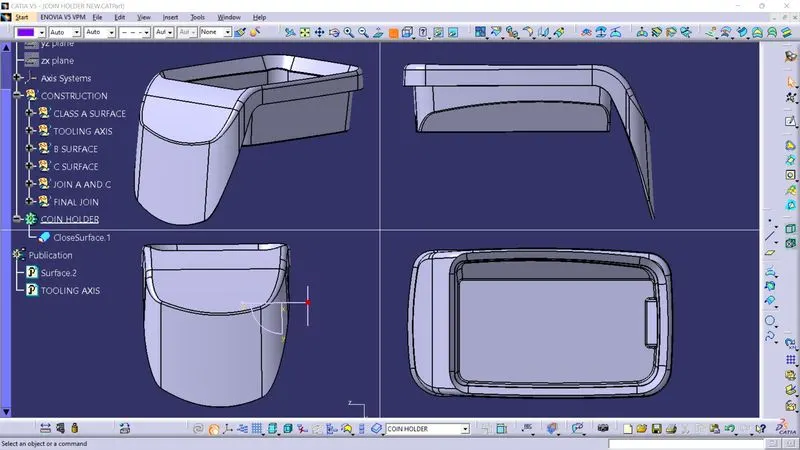

CLOSE SURFACE :

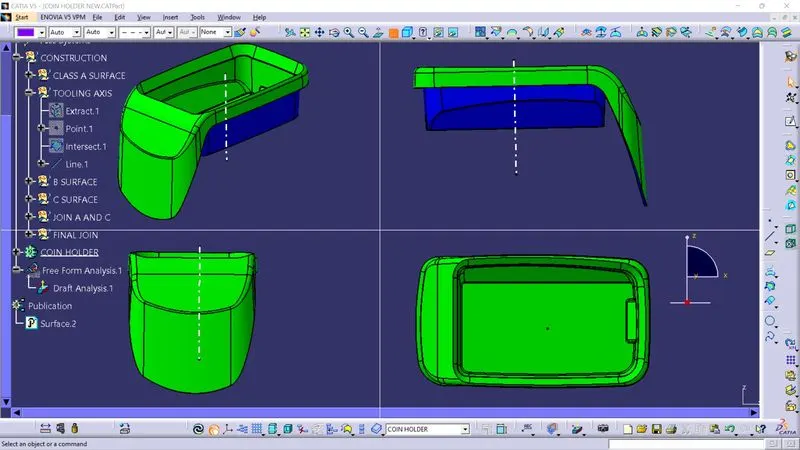

DRAFT ANALYSIS :
