Week 8 - Challenge 2 - Switch Bezel Design

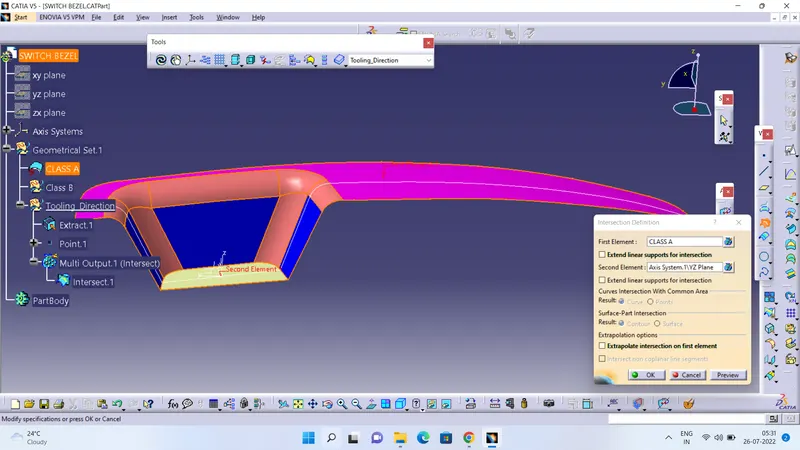

Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 2.5 mm.

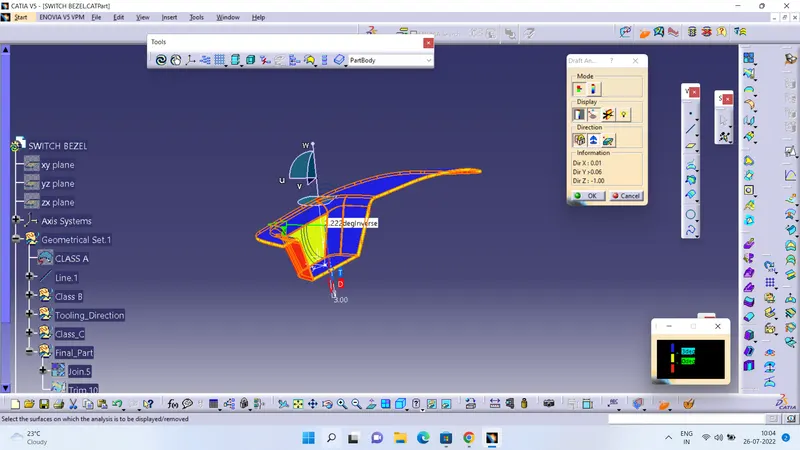

Draf Analysis for 3Deg. Wasn't satisfied for the class A Surface

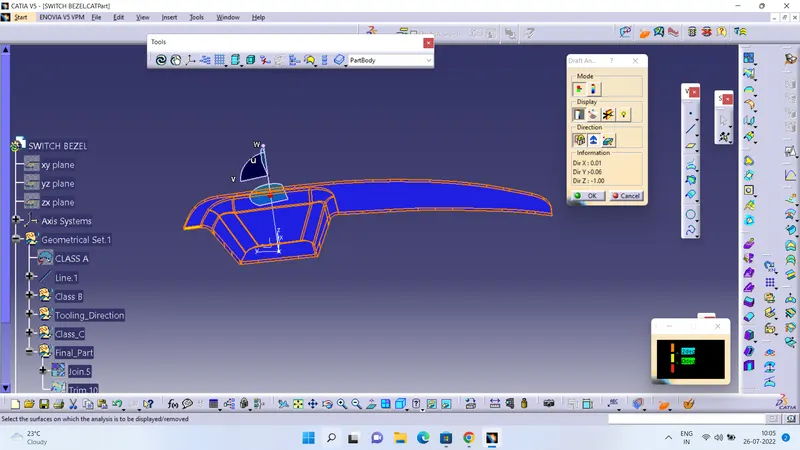

Draft Analysis for 2.9 Deg.
