Week 8 - Challenge 2 - Switch Bezel Design

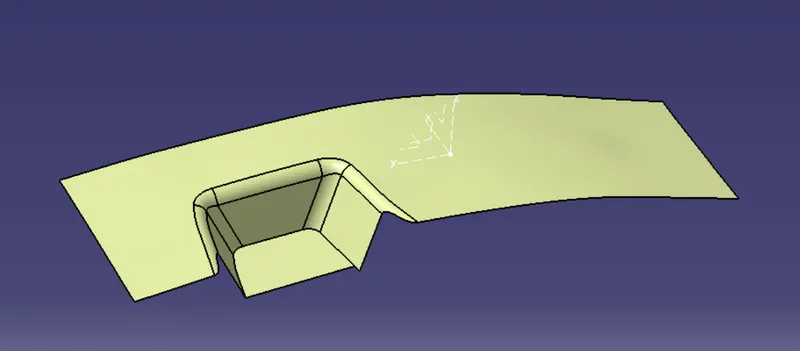

AIM: The aim of this project is to develop the product design of the switch bezel with the help of the class A surface following the OEM standards.

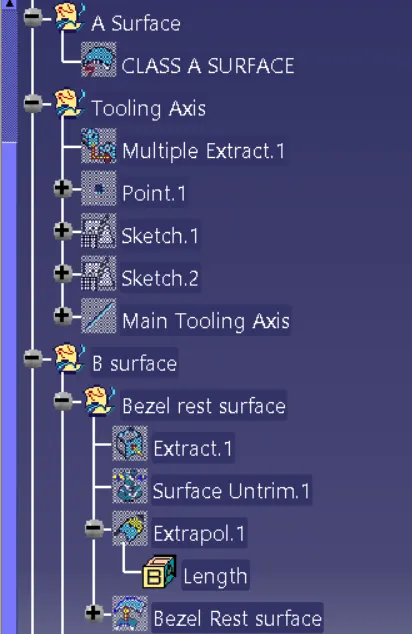

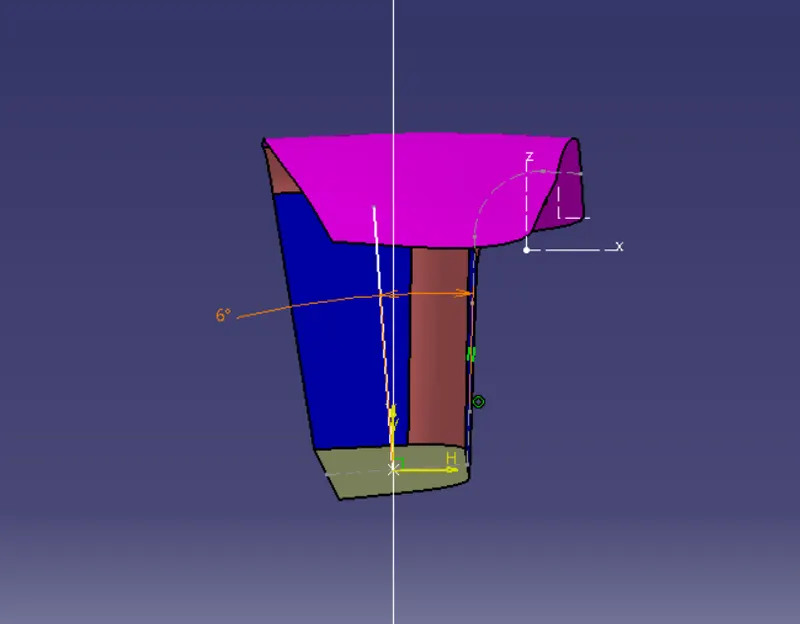

TOOLING AXIS

It is nothing but the direction in which the mold opens and closes the draft angle needed to be provided by considering this tooling axis.We can create a tooling axis by using the bisecting method.This method is used for the generation of the tooling axis for that purpose first we need to decide the direction of molding and then we create one dummy tooling axis for the reference to the purpose.In this method, we select the surfaces which can create problems and take intersections in the x and y-direction. By using these curves we draw two lines and then draw a bisecting line from these two lines in the x-direction and y-direction.If it is done in x-direction then it is called a tooling axis clearing x-direction and if in y then tooling axis clearing y-direction.After completing this we need to draw a final line bisecting this two tooling axis in the X and Y directions to get our final output.

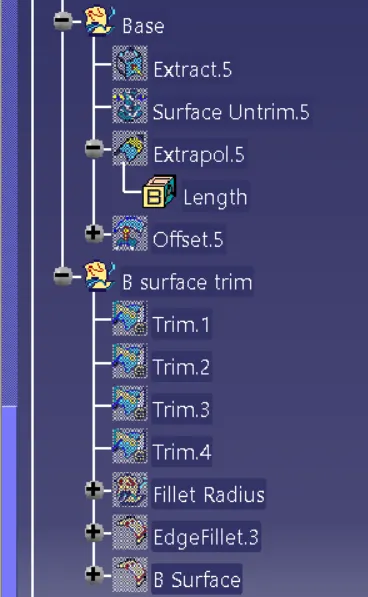

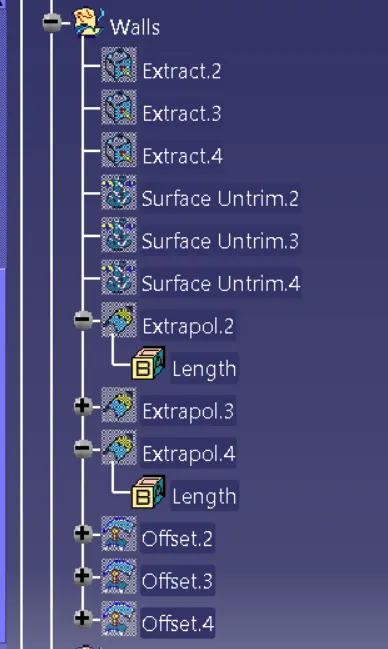

Creation of Class B Surface:

• The class B surface is created by extracting each surface of class A surface and then un trimming them.

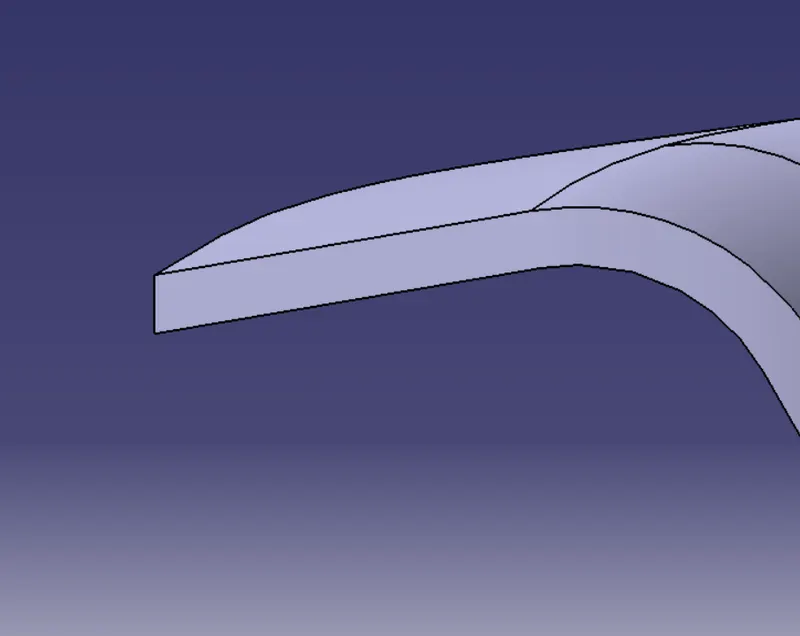

• After the an offset of 2.5mm is given in the downward direction to generate the class B surface
• The surface are then extrapolated with a certain distance in order to create cross section among the surfaces to perform trim operation.Surface trim option was used to give the class B surface required shape.

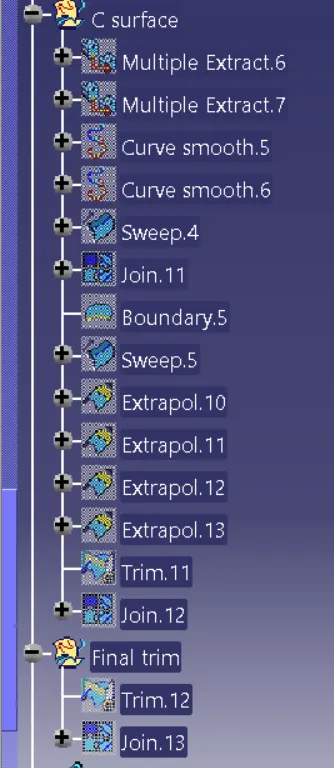

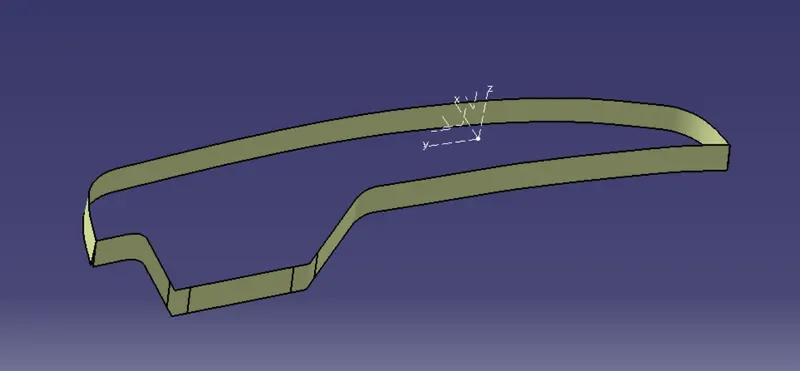

Creation of Class C Surface for switch bezel:

• For the creation of class B surface first the boundary of the class A surface is extracted using multiple extract feature
• After the sweep option is used to create the sweep along the tooling axis direction.

Class B Surface and the Class C Surface are then joined together to get desired shape

After this operation class B and class C surface are trimmed together to give the plastic product a mouldable shape.

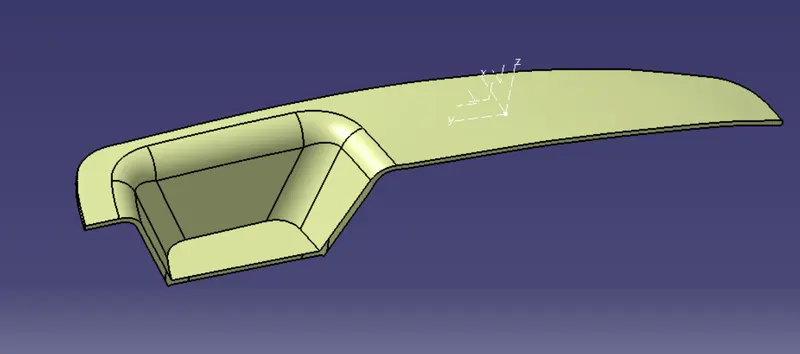

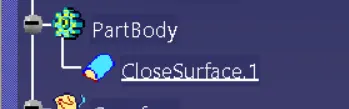

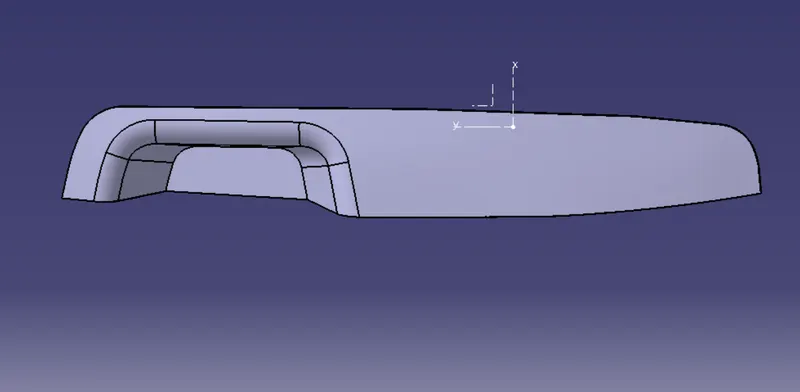

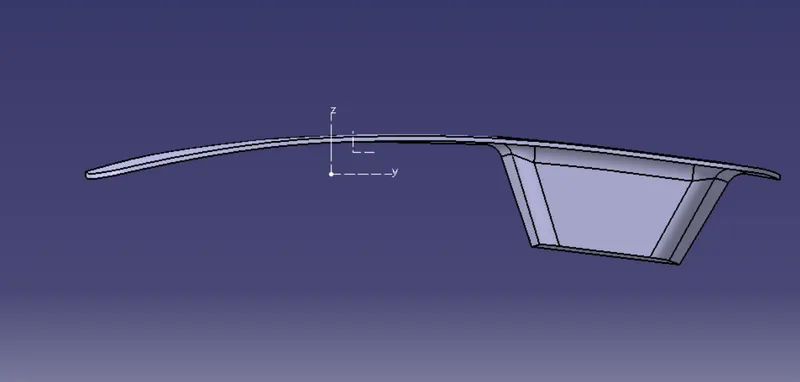

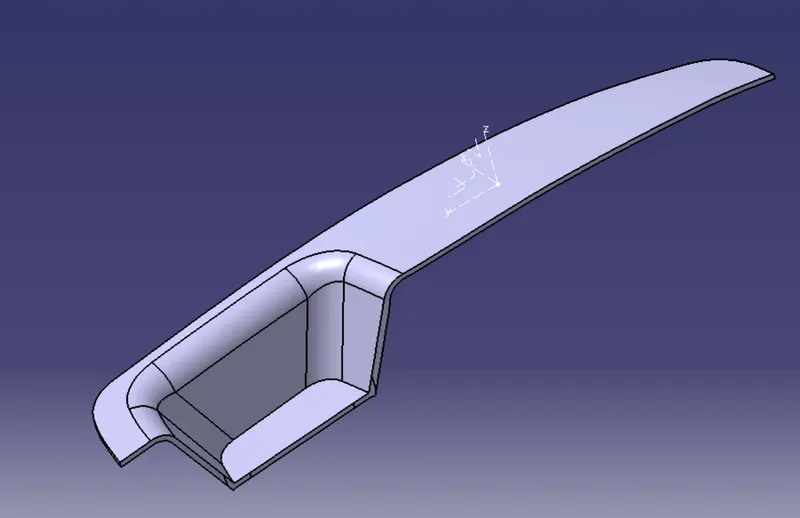

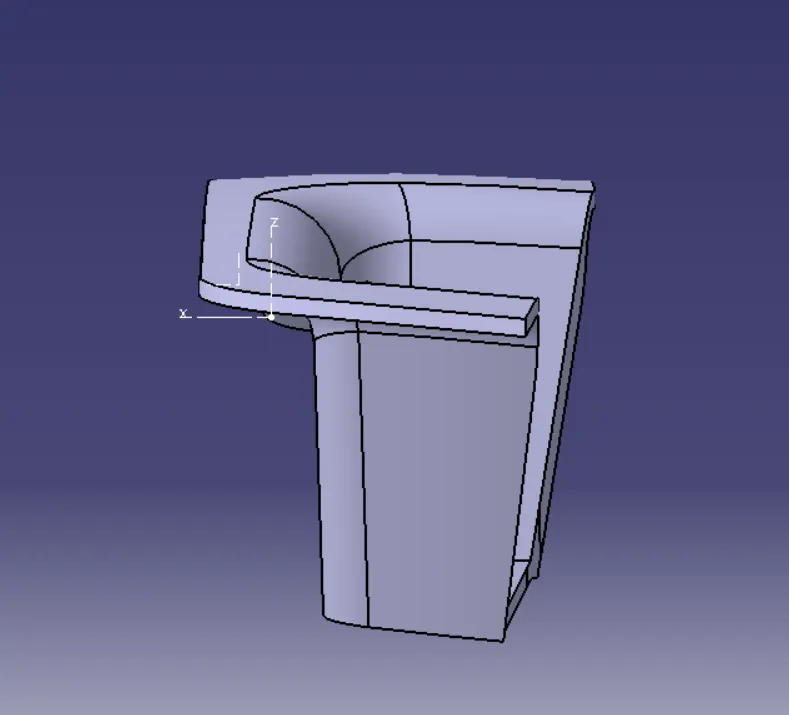

After ensuring that the surfaces formed are completely closed, the closed surface feature is used to create the solid mould of the switch bezel.

Draft Analysis of the Switch Bezel

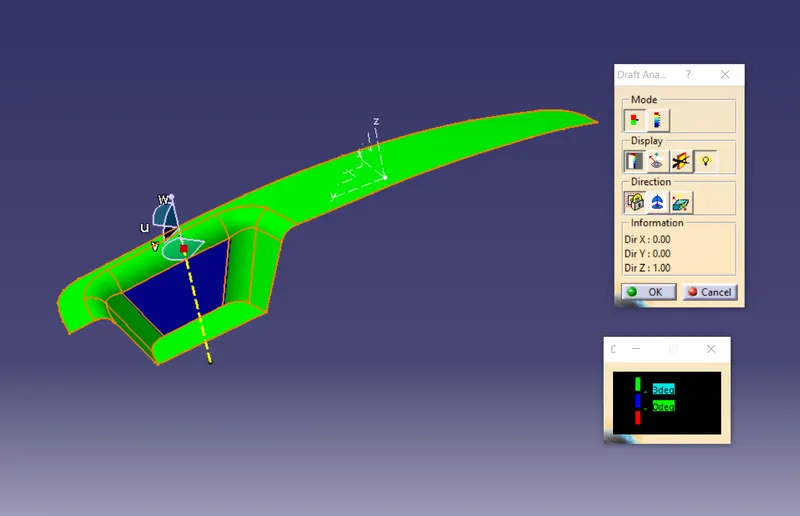

Class A surface draft analysis:

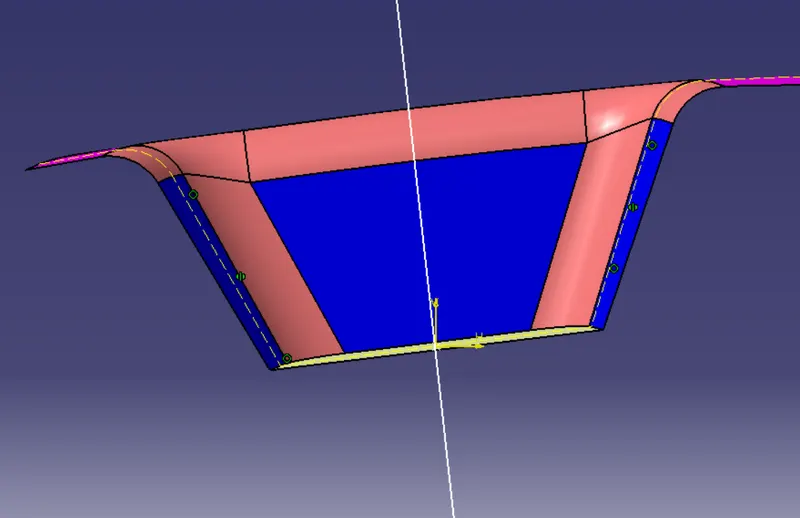

The above image shows the draft analysis in which green color surfaces shows that they are having an angle of more than 3 degrees but the surface in red color shows it is less than 3 degree. These are the results of the draft analysis which are very crucial for determining the feasibility of the product.

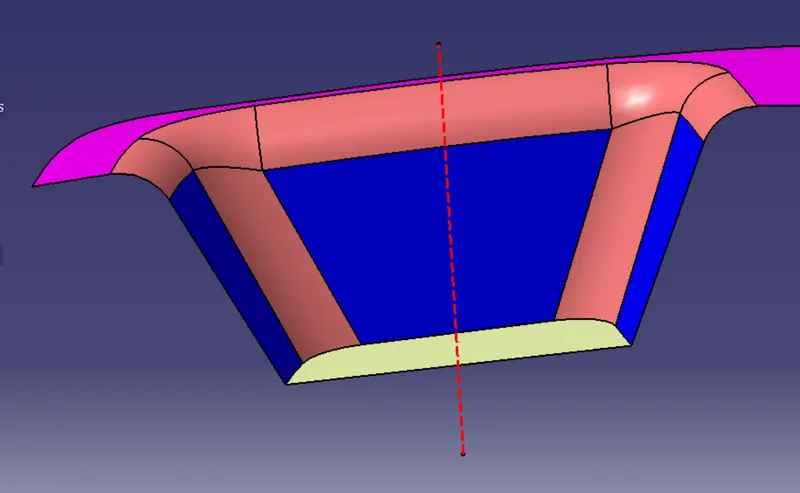

Solid component draft analysis:

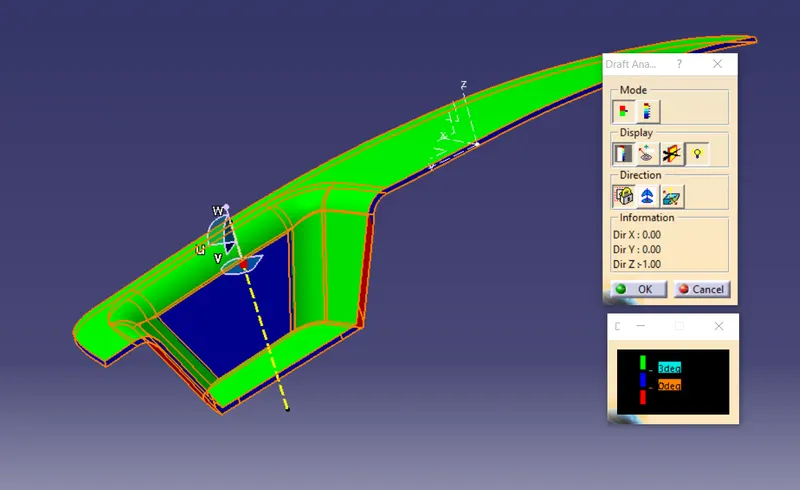

DRAFT ANALYSIS: The draft analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour range identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values. After draft analysis done we can observe that the green colour shows that the drafted walls of the switch bezel are above 2.9 degrees which is a permissible criteria to manufacture in injection moulding.

using 3 degrees

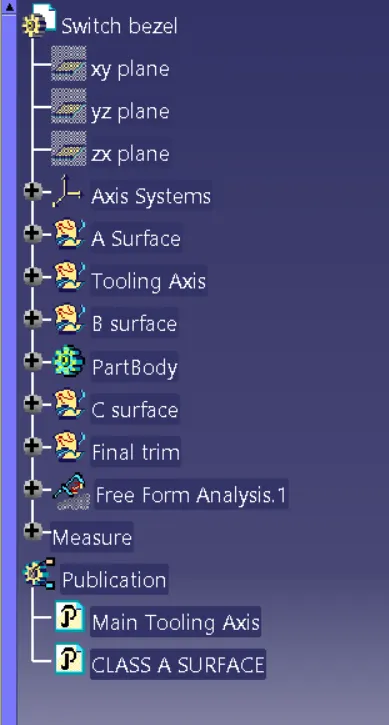

Conclusion:

1. Class A, Class B and Class C surfaces are created following standards of automotive industry using Catia V5 software
2. Draft analysis was performed on the switch bezel and it was observed that draft was under permissible limit for the manufacturing of the component using injection moulding process.
