Week 8 - Challenge 2 - Switch Bezel Design

Switch Bezel Design

Aim

Create the Switch Bezel Plastic component through the given Class - A surface

Objective

The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method

Introduction

The control panel bezel is the frame part of the window switch that holds its switch covers and buttons into a place. moulding is the method used to manufacture the plastic trims of an automotive by most OEM's hence by considering the manufacturing consideration the switch bezel is designed.

Design Consideration

1. Class - A surface should be aesthetically smooth and good.

2. Class - B surface should have all the supporting features like ribs.

3. Parting line should coincide with the B surface since flashing couldn't affect the aesthetic of Class - A.

4. Class - C surface should also pass the draft analysis.

Procedure For Creating the Switch Bezel

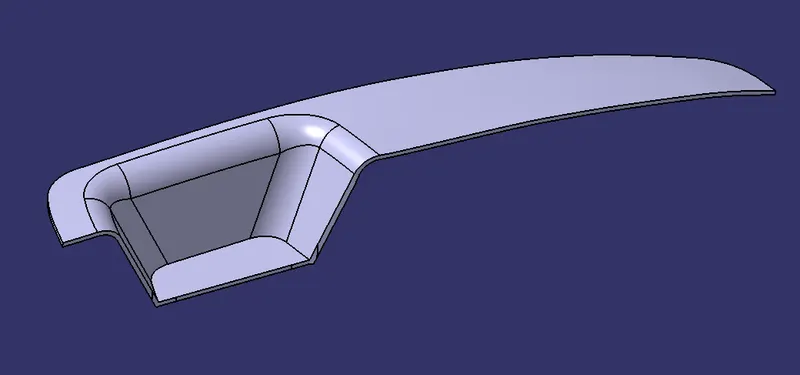

Class A Surface :

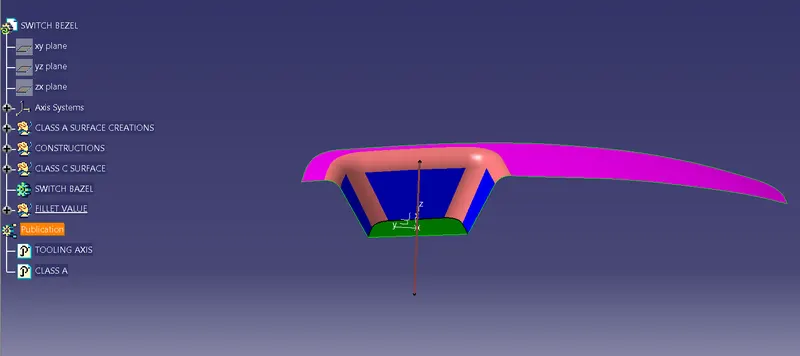

Tooling Direction :

Creation of Tooling Direction:

1. considering the ejection from the cavity of the mound after manufacturing the interior trim(switch bezel0 must have the nominal 3- degree draft angle

2. Hence the tooling direction is created by considering the above factor and bisecting method is used.

3. The base surface of the class - A was extracted and a point at the centre is created and an axis system was inserted to the point with the current feature is disabled.

4. Then,usingproject intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.

5. Then bisecting lines with the two iclined lines were drawn

6. Now thw same procedures is done along the xz plane but on one side we don't have iclined lines so the centre point is used to extrude a line along the z- direction and gave a measurement of 5 degree (Tentatively).

7. With these two lines frm sketches 1 and 2, the bisecting line is created and published as tooling axis( tooling direction)

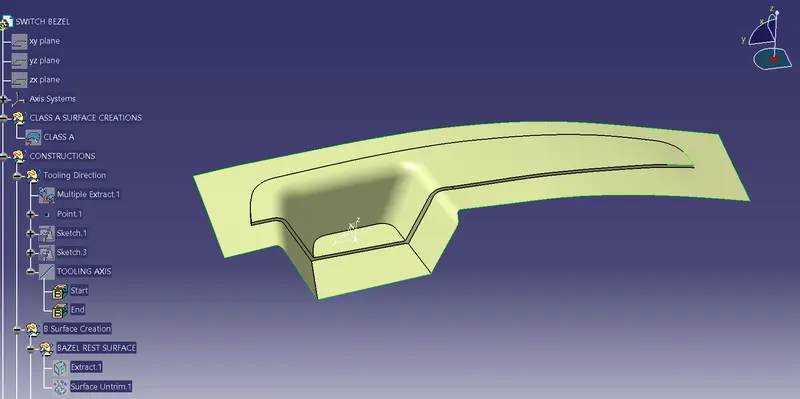

Class B Surface :

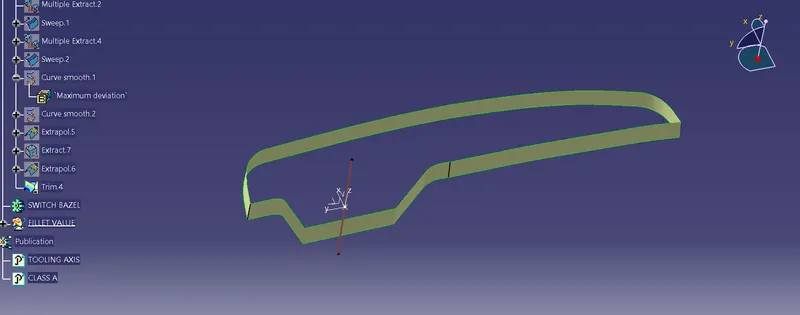

Class C surface :

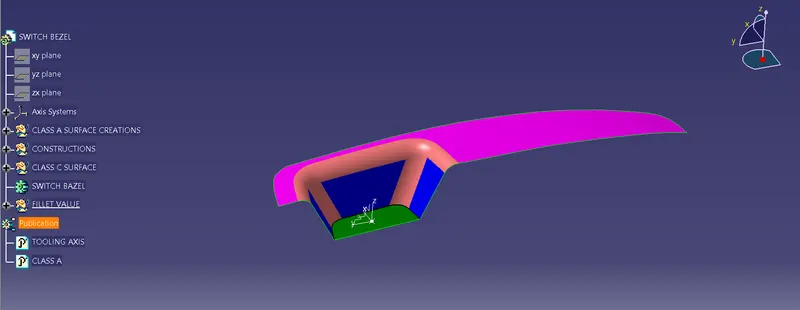

Class A+C surface :

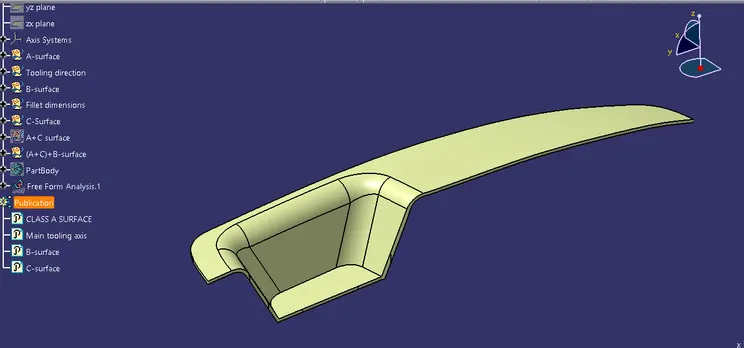

Class (A+C)+B surface :

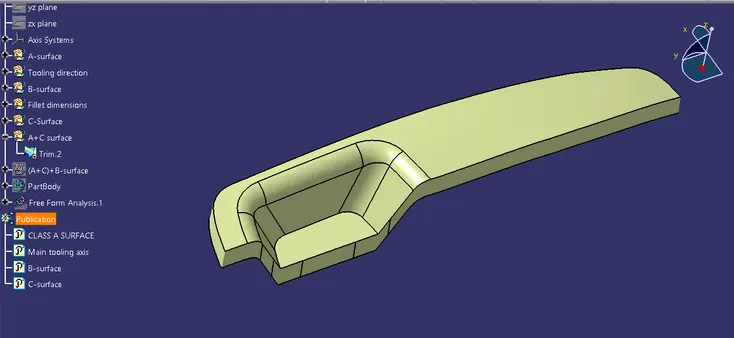

Switch Bezel Final Plastic Component:

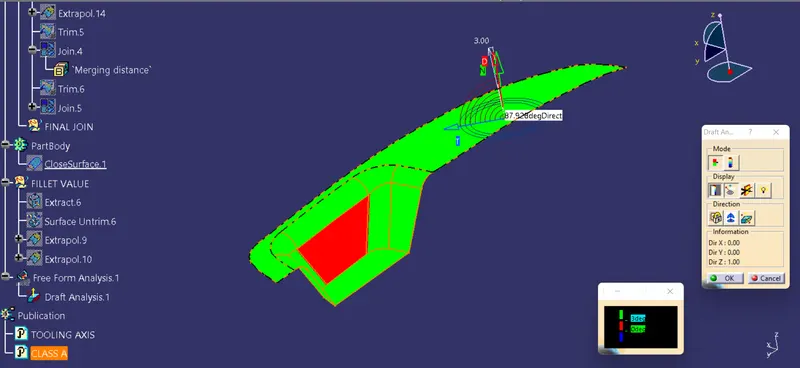

Procedure For Draft Analysis:

• First the class - A surface is checked before creating the Class - B & C surface and finally the solid body must be analysed . Both can be done by following the below procedures.

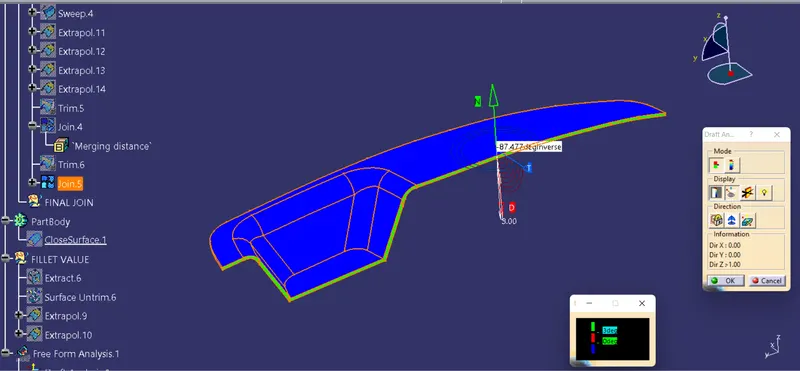

• By changing the view mode to custom view parameters - Material mode then the feature draft analysis is enabled.
• Then the compass was activated and placed with the tooling axis by dragging the redpointer and then lockes it
• Then, by selecting the quick analysis mode, the nominal value will be 3 degrees and checked for the component's draft angle
• The green colour area shows that it satisfies the 3 degree draft angle. If not satisfied then by using the Runnind point the area is measured and then altered to get a succesful draft for the created tooling direction.

RESULT:

Switch Bezel plastic component using class-A surface successfully created and performed the draft analysis on the class-A surface and final plastic component.
