Week 8 - Challenge 1 - Base Bracket Design

Week 8 - Challenge 1 - Base Bracket Design

AIM

Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Requirements

• Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component
• Image of the complete Draft analysis
• Images of the color scale variant
• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
• CATpart should be submitted as an attachment

REPORT

Class A Surface

Class A surface is a outer styling surface on which design engineer starts designing components.

Class B Surface

This surface is created by offsetting the Class A surface. The offset value is equal to the thickness of the component. On this surafce all the engineering features are provided.

Class C Surafce

The surface joining Class A and Class B in the tooling direction is known as Class C surface.

Tooling Axis

Tooling axis is a direction in which core and cavity opens and closes. Draft angle is provided with respect to the tooling axis. While creating mold component from Class-A surface, we need to decide the tooling direction. It can be decided by visual inspection, deciding complex surfaces and bisecting method.

Tooling Axis Creation- Bisecting Method

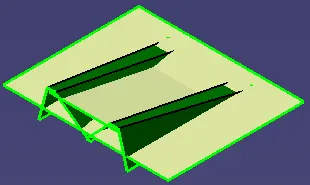

• First check for the discontinuity of the surface received by join or boundary command. Then visual observation is done to decide which direction will be more feasible to create component. In this case it is Z-axis more suitable to create tooling axis.

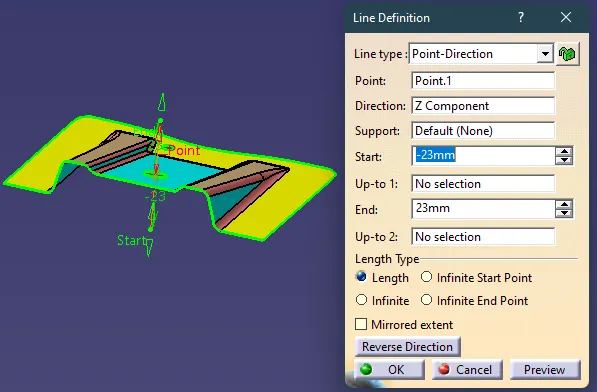

• Then a dummy axis is created on the surfaces which are flat or contains holes. Here it is created at the center of the circle in z-axis direction.

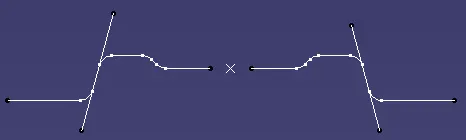

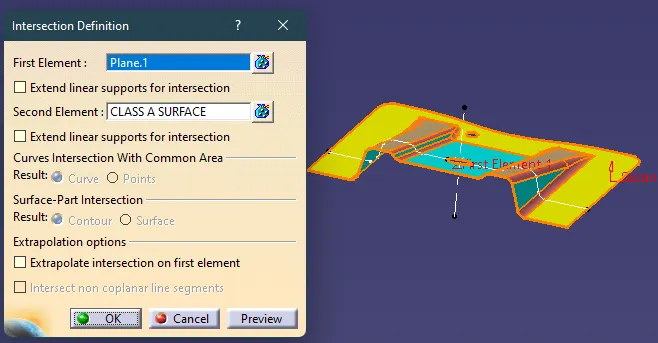

• Few surfaces are identified which can create concern over draft angle and cross section profile is formed using intersection with plane.

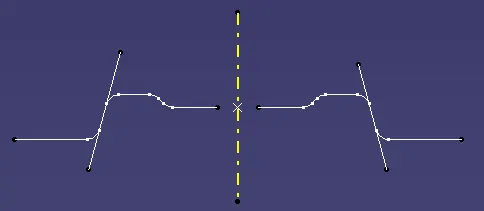

• Lines are drawn on the concerned boundary surface. Then another line is drawn bisectiong these two lines. This line refered as Tooling axis line. This is Bisecting method to create tooling axis.





Draft Analysis

To reduce the risk of damage to parts and tool while ejecting from mold a draft angle is provided to walls which are parallel to the tooling direction. It assists with releasing the part from mold.

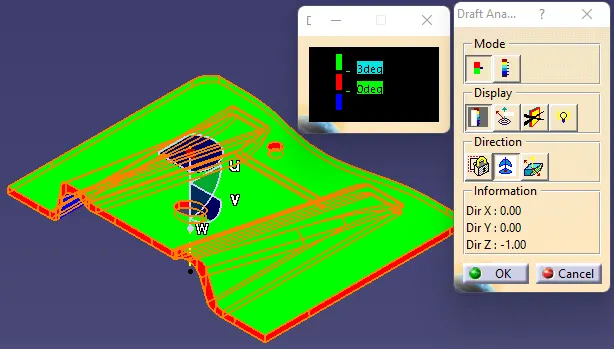

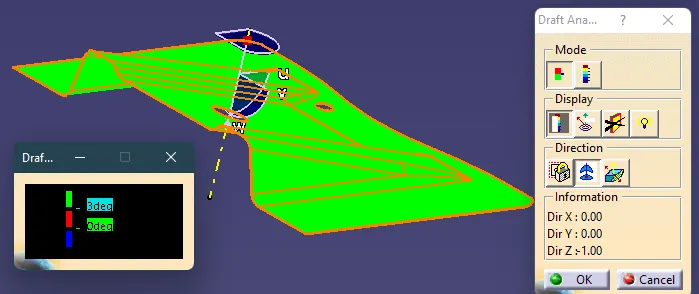

To perform Draft analysis in Catia, Draft analysis feature is used. For that First tooling Direction decided. Then make sure material view mode is used. After opening the window, align the compass with the tooling axis by dragging it on the axis. Then click on the surface or the body on which draft analysis is need to perform. In the bottom black colour window provide the minimum draft angle and then match the body color with this color scale. Green indicated draft angle is more than minimum draft angle. If it is red then it is between 0 to minimum draft angle. And blue denotes it is less than zero. By this way we can identify the areas with draft angle less than minimum draft angle on work on that.

Procedure

• Check for Discontinuity
• Creation of Dummy Tooling Axis
• Create final Tooling axis

• Perform Draft analysis on Class A surface in the Tooling Direction
• Create Class B surface by offseting Class A surface and join them by trimming. Fillet Edges.

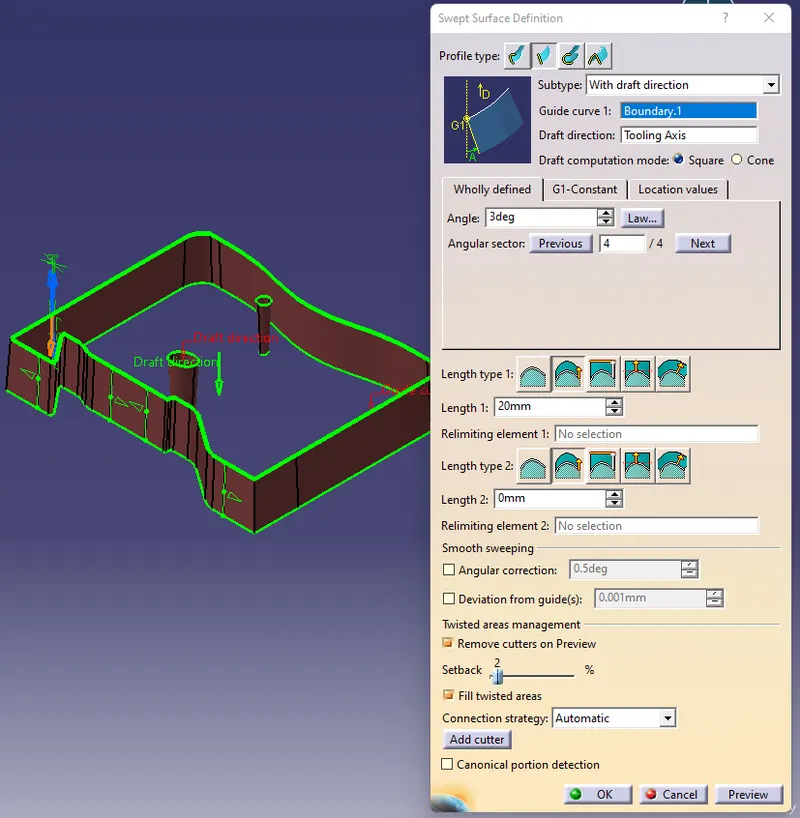

• Create Class C surface by extracting boundary of class A surface and sweep it in the tooling direction.

• To create final closed surface body, join and trim all three surface together

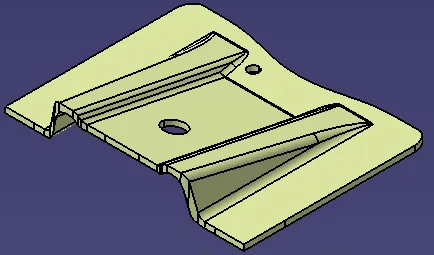

• Convert this surface body into Solid body by Close Surface Tool


RESULTS

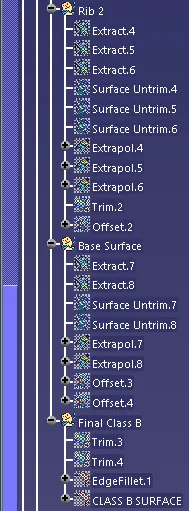

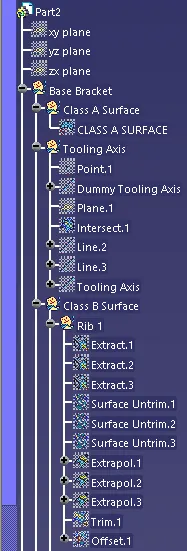

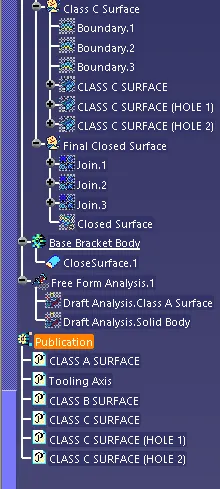

Expanded Tree

Draft Analysis

1. Class A Surface

   Class A surface Draft angle more than 3 degrees with respect to tooling direction.

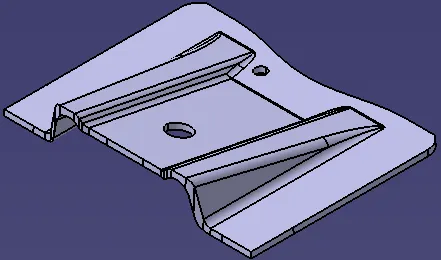

2. Solid Body

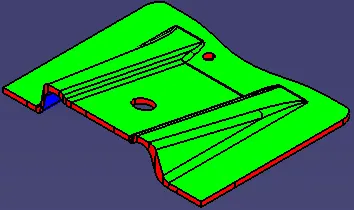

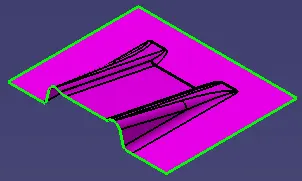

   In Solid body Draft Analysis, The top surface shows the Positive Draft angle more than 3 degrees. While Bottom surface has negative draft angle and Thickness (Class C) has draft angle between 0-3 with respect to tooling direction.

Draft Analysis Views

Front	Side
Top	Isometric

Conclusion

Plastic compponent is created from given Class A surface in CATIA V5. The Tooling Axis created for the Class A surface meets the requirement of Draft angle. And Draft analysis is performed on Solid Plastic Component too.
