Week 7 - Simulation of a 1D Supersonic nozzle flow simulation using Macormack Method

AIM: -

In this challenge you are going to simulate the isentropic flow through a quasi 1D subsonic-supersonic nozzle. You will derive both the conservation and non-conservation forms of the governing equations and solve them using the MacCormack's technique. You need to determine the steady-state temperature distribution for the flow-field variables and investigate the difference between the two forms of governing equations by comparing their solutions.

You need to show the following plots inside your report

<!-- [if !supportLists]-->1.      <!--[endif]-->Steady state distribution of primitive variables inside the nozzle.

<!-- [if !supportLists]-->2.      <!--[endif]-->Time wise variation of the primitive variables.

<!-- [if !supportLists]-->3.      <!--[endif]-->Variation of mass flow rate distribution inside the nozzle at different time steps during the time marching process.

<!-- [if !supportLists]-->4.      <!--[endif]-->Comparison of normalized mass flow rate distributions of both forms.

Expected Results:

• Perform a grid independence test on the solution and explain all your findings.
• The code must be modular. You need to write separate functions to solve both forms.
• Discuss all the plots you are providing with observed inferences.



 CODE.

 Main program: -

clear all

close all

clc



% solving Quasi 1-D super sonic nozzle flow equations

% In put parameter

% No. of grid points

n=31;'



gamma = 1.4

x=linspace(0,3,n);

dx = x(2)-x(1);



% No. of timeste

nt = 1400

% courant number

c = 0.5;



% function for non conservative form

tic;

[mass_flow_rate_nc, pressure_nc, mach_number_nc, rho, v, t, rho_throat_nc, v_throat_nc, temp_throat_nc, mass_flow_rate_throat_nc, pressure_throat_nc, mach_number_throat_nc] = non_conservative_form(x,dx,n,gamma,nt,c);

time = toc;

fprintf('Simulation time for non conservative form = %0.4f',time);

hold on



% plotting

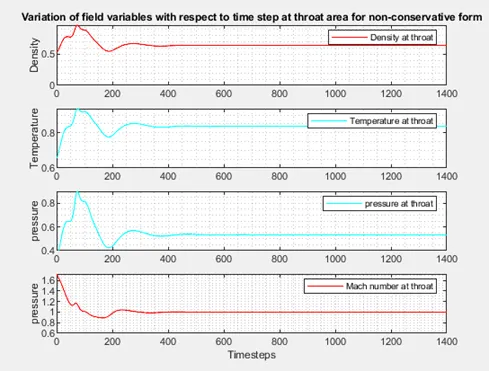

% Timestep variation of properties at the throat area in non conservative

% form



figure(2)



�nsity

subplot(4,1,1)

plot(rho_throat_nc,'color','r')

ylabel('Density')

legend({'Density at throat'});

axis([0 1400 0 max(rho_throat_nc)]);

grid minor;

title('Variation of field variables with respect to time step at throat area for non-conservative form')



% Temperature

subplot(4,1,2)

plot(temp_throat_nc,'color','c')

ylabel('Temperature')

legend({'Temperature at throat'});

axis([0 1400 0.6 max(temp_throat_nc)]);

grid minor;



% Pressure

subplot(4,1,3)

plot(pressure_throat_nc,'color','c')

ylabel('pressure')

legend({'pressure at throat'});

axis([0 1400 0.4 max(pressure_throat_nc)]);

grid minor;



% Mach number

subplot(4,1,4)

plot(mach_number_throat_nc,'color','r')

xlabel('Timesteps')

ylabel('pressure')

legend({'Mach number at throat'});

axis([0 1400 0.6 max(mach_number_throat_nc)]);

grid minor;

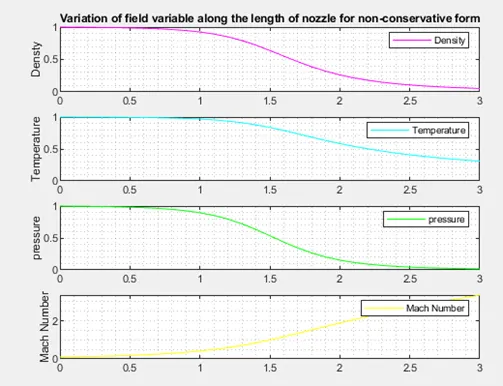

% Steady state simulation for primitive values for non conservative form

figure(3);



�nsity



subplot(4,1,1)

plot(x,rho,'color','m')

ylabel('Densty')

legend({'Density'});

axis([0 3 0 max(rho)])

grid minor;

title('Variation of field variable along the length of nozzle for non-conservative form')



% Temperature

subplot(4,1,2)

plot(x,t,'color','c')

ylabel('Temperature')

legend({'Temperature'});

axis([0 3 0 max(t)])

grid minor;



% pressure

subplot(4,1,3)

plot(x,pressure_nc,'color','g')

ylabel('pressure')

legend({'pressure'});

axis([0 3 0 max(pressure_nc)])

grid minor;



% Mach number

subplot(4,1,4)

plot(x,mach_number_nc,'color','y')

ylabel('Mach Number')

legend({'Mach Number'});

axis([0 3 0 max(mach_number_nc)])

grid minor;



% function for conservative form

tic;

[mass_flow_rate_c, pressure_c, mach_number_c, rho_c, v_c, temp_c, rho_throat_c, v_throat_c, temp_throat_c, mass_flow_rate_throat_c, pressure_throat_c, mach_number_throat_c] = conservative_form(x,dx,n,gamma,nt,c);

time = toc;

fprintf('Simulation time for conservative form = %0.4f',time);

hold on



% plotting

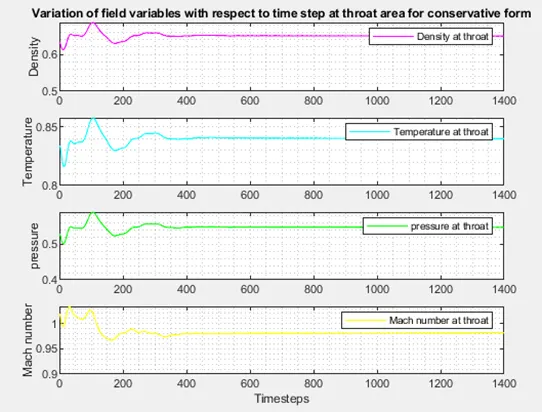

% Timestep variation of properties at the throat area in conservative form



figure(5)



�nsity

subplot(4,1,1)

plot(rho_throat_c,'color','m')

ylabel('Density')

legend({'Density at throat'});

axis([0 1400 0.5 max(rho_throat_c)]);

grid minor;

title('Variation of field variables with respect to time step at throat area for conservative form')



% Temperature

subplot(4,1,2)

plot(temp_throat_c,'color','c')

ylabel('Temperature')

legend({'Temperature at throat'});

axis([0 1400 0.8 max(temp_throat_c)]);

grid minor;



% Pressure

subplot(4,1,3)

plot(pressure_throat_c,'color','g')

ylabel('pressure')

legend({'pressure at throat'});

axis([0 1400 0.4 max(pressure_throat_c)]);

grid minor;



% Mach number

subplot(4,1,4)

plot(mach_number_throat_c,'color','y')

xlabel('Timesteps')

ylabel('Mach number')

legend({'Mach number at throat'});

axis([0 1400 0.9 max(mach_number_throat_c)]);

grid minor;

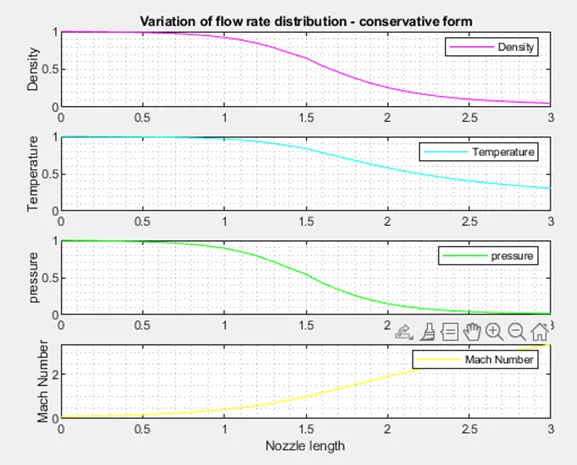

% Steady state simulation for primitive values for non conservative form

figure(6);



�nsity

subplot(4,1,1)

plot(x,rho_c,'color','m')

ylabel('Density')

legend({'Density'});

axis([0 3 0 max(rho_c)])

grid minor;

title('Variation of flow rate distribution - conservative form')



% Temperature

subplot(4,1,2)

plot(x,temp_c,'color','c')

ylabel('Temperature')

legend({'Temperature'});

axis([0 3 0 max(temp_c)])

grid minor;



% pressure

subplot(4,1,3)

plot(x,pressure_c,'color','g')

ylabel('pressure')

legend({'pressure'});

axis([0 3 0 max(pressure_c)])

grid minor;



% Mach number

subplot(4,1,4)

plot(x,mach_number_c,'color','y')

xlabel('Nozzle length')

ylabel('Mach Number')

legend({'Mach Number'});

axis([0 3 0 max(mach_number_c)])

grid minor;

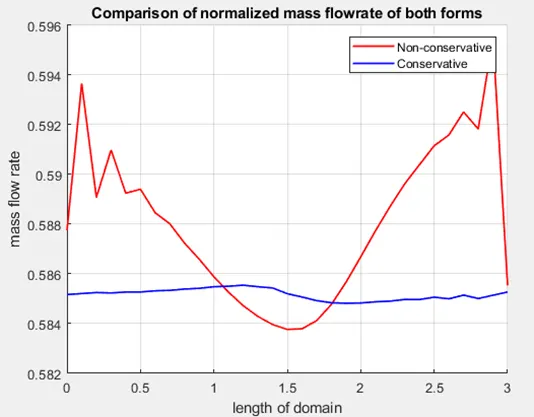

% Comparison plot of normalized mass flow rate of both forms

figure(7)

hold on

plot(x,mass_flow_rate_nc,'r','linewidth',1.25)

hold on

plot(x,mass_flow_rate_c,'b','linewidth',1.25)

hold on

grid on



legend('Non-conservative','Conservative');

xlabel('length of domain')

ylabel('mass flow rate')

title('Comparison of normalized mass flowrate of both forms')



% Conservative form



function [mass_flow_rate_c, pressure_c, mach_number_c, rho_c, v_c, temp_c, rho_throat_c, v_throat_c, temp_throat_c, mass_flow_rate_throat_c, pressure_throat_c, mach_number_throat_c] = conservative_form(x,dx,n,gamma,nt,c)



�termining initial profile of density or temperature

for i=1:n



    if (x(i) >=0 && x(i) <=0.5)

        rho_c(i) = 1;

        temp_c(i) = 1;

    elseif (x(i) >=0.5 && x(i) <= 1.5)

        rho_c(i) = 1-0.366*(x(i)-0.5);

        temp_c(i) = 1 - 0.167*(x(i)-0.5);

    elseif (x(i) >=1.5 && x(i) <= 3)

        rho_c(i) = 0.634-0.3879*(x(i)-1.5);

        temp_c(i) = 0.833 - 0.3507*(x(i)-1.5);

    end

end





a = 1+2.2*(x-1.5).^2;

throat = find(a==1);



�lculate initial profiles

v_c = 0.59./(rho_c.*a);

pressure_c = rho_c.*temp_c;



�lculate the initial solution vectors(U)

U1 = rho_c.*a;

U2 = U1.*v_c;

U3 = U1.*((temp_c./(gamma-1))+(gamma/2).*(v_c.^2));



% Outer time loop

for k =1:nt

    % Time-step control

    dt = min(c.*dx./(sqrt(temp_c) + v_c));

%     Dt = temp_c.^0.5;

%     dt = min(c*(dx./(Dt + v_c)));





    %saving a copy of old values

    U1_old = U1;

    U2_old = U2;

    U3_old = U3;



    �lculating the flux vector(F)

    F1 = U2;

    F21 = (U2.^2)./(U1);

    F22 = (gamma-1)/(gamma);

    F23 = U3 - ((gamma/2).*F21);

    F2 = F21 + F22 * F23;





    F31 = (U2.*U3)./(U1);

    F32 = (gamma*(gamma-1))/2;

    F33 = (U2.^3)./(U1.^2);

    F3 = gamma.*F31 - (F32.*F33);



    % predictor method

    for j= 2:n-1



        �lculating the source term(J)

        J2_P(j) = (1/gamma)*(rho_c(j)*temp_c(j))*((a(j+1)-a(j))/dx);



        % continuity equation

        dU1_dt_P(j) = -((F1(j+1)- F1(j))/dx);



        % Momentum equation

        dU2_dt_P(j) = -((F2(j+1)- F2(j))/dx)+J2_P(j);



        % Energy Equation

        dU3_dt_P(j) = -((F3(j+1) - F3(j))/dx);





        % Updating new values

        U1(j) = U1(j)+ dU1_dt_P(j)*dt;

        U2(j) = U2(j)+ dU2_dt_P(j)*dt;

        U3(j) = U3(j)+ dU3_dt_P(j)*dt;



    end



    % Updating flux vectors

    rho_c =  U1./a;

    v_c = U2./U1;

    temp_c = (gamma-1)*((U3./U1 - (gamma/2)*(v_c).^2));



     �lculating the flux vector(F)

    F1 = U2;

    F21 = (U2.^2)./(U1);

    F22 = (gamma-1)/(gamma);

    F23 = U3 - ((gamma/2).*F21);

    F2 = F21 + F22 * F23;





    F31 = (U2.*U3)./(U1);

    F32 = (gamma*(gamma-1))/2;

    F33 = (U2.^3)./(U1.^2);

    F3 = gamma.*F31 - (F32.*F33);





    %corrector Method

    for j = 2:n-1



        % updating the source term(J)

        J2(j) = (1/gamma)*rho_c(j)*temp_c(j)*((a(j)-a(j-1))/dx);



        %Simplifying the Equation's spatial terms

        dU1_dt_C(j) = -((F1(j)-F1(j-1))/dx);

        dU2_dt_C(j) = -((F2(j)-F2(j-1))/dx)+J2(j);

        dU3_dt_C(j) = -((F3(j)-F3(j-1))/dx);

    end



    % Compute Average time derivative

    dU1_dt = 0.5*( dU1_dt_P +  dU1_dt_C);

    dU2_dt = 0.5*( dU2_dt_P +  dU2_dt_C);

    dU3_dt = 0.5*( dU3_dt_P +  dU3_dt_C);



    % Final solution update

    for i = 2:n-1

        U1(i) = U1_old(i) + dU1_dt(i)*dt;

        U2(i) = U2_old(i) + dU2_dt(i)*dt;

        U3(i) = U3_old(i) + dU3_dt(i)*dt;

    end



    % Applying Boundary conditions

    % At Inlet

    U1(1) = rho_c(1)*a(1);

    U2(1) = 2*U2(2)-U2(3);



    v_c(1) = U2(1)./U1(1);

    U3(1) = U1(1)*((temp_c(1)/(gamma-1))+((gamma/2)*(v_c(1)).^2));



    % At Outlet

    U1(n) = 2*U1(n-1)-U1(n-2);

    U2(n) = 2*U2(n-1)-U2(n-2);

    U3(n) = 2*U3(n-1)-U3(n-2);

    % Final primitive value update

    rho_c =  U1./a;

    v_c = U2./U1;

    temp_c = (gamma-1)*((U3./U1 - (gamma/2)*(v_c).^2));



    �fining Mass flow rate, pressure and Mach number



    mass_flow_rate_c = rho_c.*a.*v_c;

    pressure_c = rho_c.*temp_c;

    mach_number_c = (v_c./sqrt(temp_c));



    �lculating Variables at throat section

    rho_throat_c(k) = rho_c(throat);

    temp_throat_c(k) = temp_c(throat);

    v_throat_c(k) = v_c(throat);

    mass_flow_rate_throat_c(k) = mass_flow_rate_c(throat);

    pressure_throat_c(k) = pressure_c(throat);

    mach_number_throat_c(k) = mach_number_c(throat);



    % plotting

    % comparison of non-dimensional mass flow rates at diferent time

    % steps

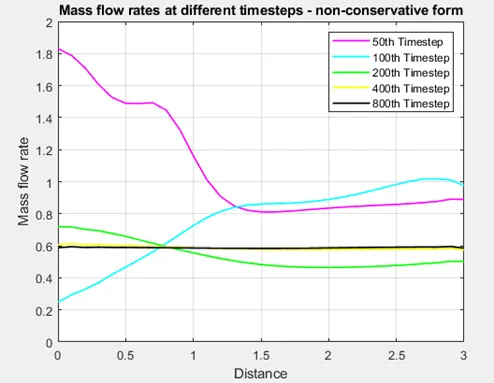

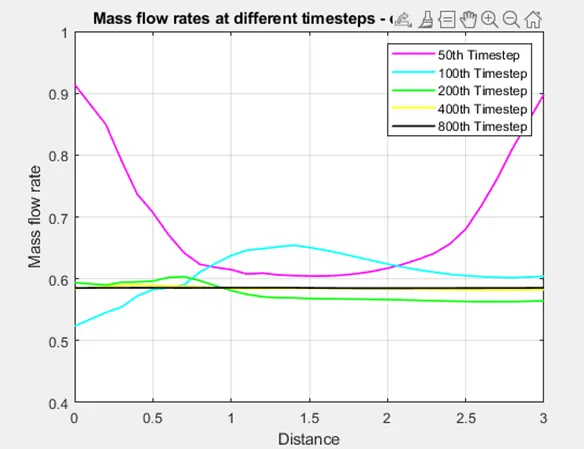

    figure(8)

    if k==50

        plot(x, mass_flow_rate_c,'m','linewidth',1.25);

        hold on

    elseif k == 100

        plot(x, mass_flow_rate_c,'c','linewidth',1.25);

        hold on

    elseif k == 200

        plot(x, mass_flow_rate_c,'g','linewidth',1.25);

        hold on

    elseif k == 400

        plot(x, mass_flow_rate_c,'y','linewidth',1.25);

        hold on

    elseif k == 800

        plot(x, mass_flow_rate_c,'k','linewidth',1.25);

       hold on

    end



    % Labelling

    title('Mass flow rates at different timesteps - conservative form')

    xlabel('Distance')

    ylabel('Mass flow rate')

    legend({'50th Timestep','100th Timestep','200th Timestep','400th Timestep','800th Timestep'})

    axis([0 3 0.4 1])

    grid on



    end

end

function [mass_flow_rate_nc, pressure_nc, mach_number_nc, rho, v, t, rho_throat_nc, v_throat_nc, temp_throat_nc, mass_flow_rate_throat_nc, pressure_throat_nc, mach_number_throat_nc] = non_conservative_form(x,dx,n,gamma,nt,c);



�lculate initial profiles

rho = 1-0.3146*x;

t = 1-0.2314*x;              % t is a temperature

v = (0.1+1.09*x).*t.^(1/2);



% Area

a = 1+2.2*(x-1.5).^2;

throat = find(a==1)



% outer time loop

for k=1:nt



    %Time step control

    dt = min(c.*dx./(sqrt(t) + v));



    % Saving a copy of old values

    rho_old = rho;

    v_old = v;

    t_old = t;



    % predictor method

    for j = 2:n-1

        dvdx = (v(j+1)-v(j))/(dx);

        drhodx = (rho(j+1)-rho(j))/(dx);

        dtdx = (t(j+1)-t(j))/(dx);

        dlogadx = (log(a(j+1))-log(a(j)))/(dx);



        %continuity equation

        drhodt_p(j) = -rho(j)*dvdx - rho(j)*v(j)*dlogadx-v(j)*drhodx;



        %momentum equation

        dvdt_p(j) = -v(j)*dvdx - (1/gamma)*(dtdx+(t(j)/rho(j))*drhodx);



        % Energy equation

        dtdt_p(j) = -v(j)*dtdx -(gamma-1)*t(j)*(dvdx + v(j)*dlogadx);



        %solution update

        rho(j) = rho(j)+drhodt_p(j)*dt;

        v(j) = v(j)+dvdt_p(j)*dt;

        t(j) = t(j)+dtdt_p(j)*dt;

    end



     % corrector method

    for j = 2:n-1

        dvdx = (v(j)-v(j-1))/(dx);

        drhodx = (rho(j)-rho(j-1))/(dx);

        dtdx = (t(j)-t(j-1))/(dx);

        dlogadx = (log(a(j))-log(a(j-1)))/(dx);



        %continuity equation

        drhodt_c(j) = -rho(j)*dvdx - rho(j)*v(j)*dlogadx-v(j)*drhodx;



        %momentum equation

        dvdt_c(j) = -v(j)*dvdx - (1/gamma)*(dtdx+(t(j)/rho(j))*drhodx);



        % Energy equation

        dtdt_c(j) = -v(j)*dtdx -(gamma-1)*t(j)*(dvdx + v(j)*dlogadx);



    end



    % compute the average time derivation

    drhodt = 0.5*(drhodt_p + drhodt_c);

    dvdt = 0.5*(dvdt_p + dvdt_c);

    dtdt = 0.5*(dtdt_p + dtdt_c);



    % Final solution update

    for i=2:n-1

       v(i) = v_old(i) +dvdt(i)*dt;

       rho(i) = rho_old(i) +drhodt(i)*dt;

       t(i) = t_old(i)+dtdt(i)*dt;

    end



    %Apply boundary conditions

    % Inlet

    v(1) = 2*v(2) - v(3);



    %Outlet

    v(n) = 2*v(n-1)- v(n-2);

    rho(n) = 2*rho(n-1)- rho(n-2);

    t(n) = 2*t(n-1)- t(n-2);





    �fining Mass flow rate, pressure and Mach number



    mass_flow_rate_nc = rho.*a.*v;

    pressure_nc = rho.*t;

    mach_number_nc = (v./sqrt(t));



    �lculating Variables at throat section

    rho_throat_nc(k) = rho(throat);

    temp_throat_nc(k) = t(throat);

    v_throat_nc(k) = v(throat);

    mass_flow_rate_throat_nc(k) = mass_flow_rate_nc(throat);

    pressure_throat_nc(k) = pressure_nc(throat);

    mach_number_throat_nc(k) = mach_number_nc(throat);



    % plotting

    % comparison of non-dimensional mass flow rates at diferent time

    % steps



    figure(4)

    if k==50

        plot(x, mass_flow_rate_nc,'m','linewidth',1.25);

        hold on

    elseif k == 100

        plot(x, mass_flow_rate_nc,'c','linewidth',1.25);

        hold on

    elseif k == 200

        plot(x, mass_flow_rate_nc,'g','linewidth',1.25);

        hold on

    elseif k == 400

        plot(x, mass_flow_rate_nc,'y','linewidth',1.25);

        hold on

    elseif k == 800

        plot(x, mass_flow_rate_nc,'k','linewidth',1.25);

        hold on

    end



    % Labelling

    title('Mass flow rates at different timesteps - non-conservative form')

    xlabel('Distance')

    ylabel('Mass flow rate')

    legend({'50th Timestep','100th Timestep','200th Timestep','400th Timestep','800th Timestep'})

    axis([0 3 0 2])

    grid on



end

end

Output:

Figure:2

From the graph it is clear that the flow field variables are almost reached the steady state solution after the 400th iteration.

Figure:3

In the above graph it is clear that the flow field variables such as density, pressure, temperature decreases and mach number increases with a increase in length of the nozzle.

Figure:4

The above figure shows that the variation of mass flow rate with respect to time step for non-conservation form. From the graph it is clear that the mass flow rate is almost stable after the 400th time step.

Figure:5

From the graph it is clear that the flow field variables are almost reached the steady state solution after the 400th iteration.

Figure:6

In the above graph it is clear that the flow field variables such as density, pressure, temperature decreases and mach number increases with a increase in length of the nozzle.

Figure:7

From the graph it is clear that the mass flow rate of conservative forms produces a stable result when compare to that of non-conservative form. We can also find that the mass flow rate is minimum at the throat then it expands in the non-conservative form. From figure the average mass flow rate of conservative form is 0.585

Figure:8

From the graph it is clear that the mass flow rate is almost stable after the 400th time step.

Grid dependence test:

Type of Form	No. of Grids(n)	Primitive variables
		Density	Pressure	Temperature	Mach Number
Non-Conservative from	31	0.6387	0.5342	0.8365	0.9994
	61	0.6376	0.5326	0.8354	0.9997
Conservative form	31	0.6504	0.5463	0.84	0.9818
	61	0.6383	0.5330	0.8351	0.9993
Expected output		0.634	0.528	0.833	1



Conclusion:

Simulation of isentropic flow through a quasi 1D subsonic-supersonic nozzle by deriving both conservative and non-conservative forms of governing equation and solve them by using McCormack Method in MATLAB is successfully compiled and the results are discussed at the output. Between conservative and non-conservative forms, in order to get a smooth solution conservative form is preferred because non-conservative form may lead to shocks at the shock flow region.
