Week-7 Challenge: DC Motor Control

HEV Live batch challenge

Answer 1 :

a)

Bipolar Junction Transistor (BJT) :

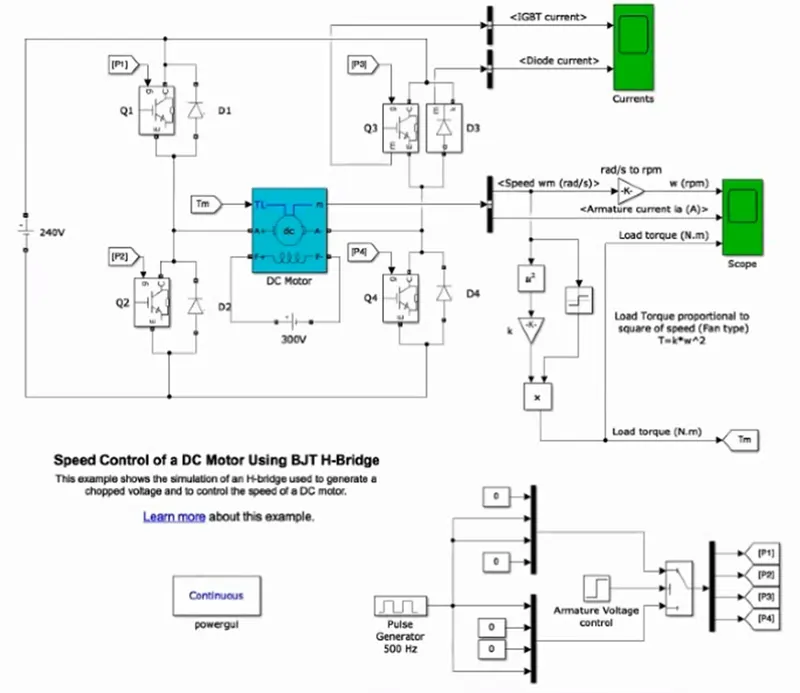

The H-bridge consists of four BJT/Diode pairs (BJT simulated by IGBT models).

Two transistors are switched simultaneously:

Q1 and Q4 or Q2 and Q3. When Q1 and Q4 are fired, a positive voltage is applied to the motor and diodes D2-D3 operate as free-wheeling diodes when Q1 and Q4 are switched off. When Q2 and Q3 are fired, a negative voltage is applied to the motor and diodes D1-D4 operate as free-wheeling diodes when Q2 and Q3 are switched off.

The Bipolar Junction Transistor (BJT) when used for power switching applications, operates as an IGBT. When it is conducting (BJT operating in the saturated region), a forward voltage Vf is developed between collector and emitter (in the range of 1 V). Therefore, the IGBT block can be used to model the BJT device.

b) Scope to examine the 'shoot up' in armature current when the poles are reversed.

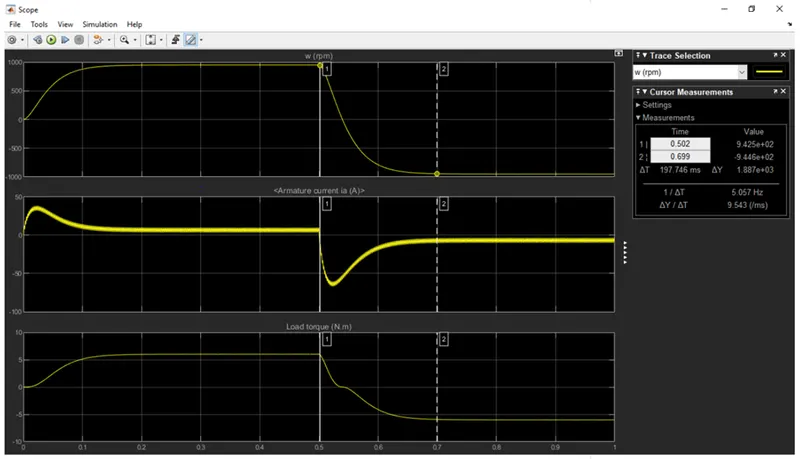

The motor starts in a positive direction with a duty cycle of 75% (mean DC voltage of 180V). At t= 0.5 sec., the armature voltage is suddenly reversed and the motor runs in a negative direction. 'Scope' shows motor speed, armature current, and load torque and 'Currents' shows currents flowing in BJT Q3 and diode D3.

c) Referring to help section of ‘The Four-Quadrant Chopper DC Drive (DC7) block’. Comparing it with the H-bridge model.

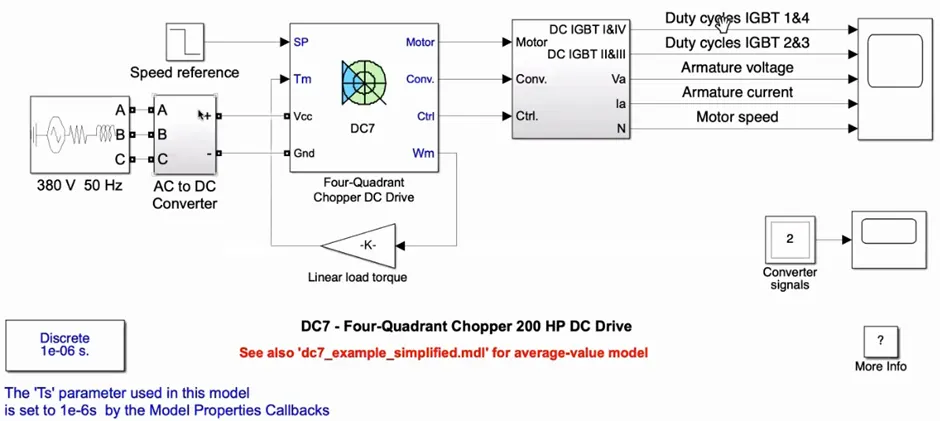

The 200 HP DC motor is separately excited with a constant 150 V DC field voltage source. The armature voltage is provided by an IGBT converter controlled by two PI regulators. The converter is fed by a 515 V DC bus obtained by rectification of a 380 V AC 50 Hz voltage source. In order to limit the DC bus voltage during dynamic braking mode, a braking chopper has been added between the diode rectifier and the DC7 block.

The first regulator is a speed regulator, followed by a current regulator. The speed regulator outputs the armature current reference (in p.u.) used by the current controller in order to obtain the electromagnetic torque needed to reach the desired speed. The speed reference change rate follows acceleration and deceleration ramps in order to avoid sudden reference changes that could cause armature over-current and destabilize the system. The current regulator controls the armature current by computing the appropriate duty ratios of the 5 kHz pulses of the four IGBT devices (Pulse Width Modulation). For proper system behavior, the instantaneous pulse values of IGBT devices 1 and 4 are opposite to those of IGBT devices 2 and 3. This generates the average armature voltage needed to obtain the desired armature current. In order to limit the amplitude of the current oscillations, a smoothing inductance is placed in series with the armature circuit.

H-BRIDGE

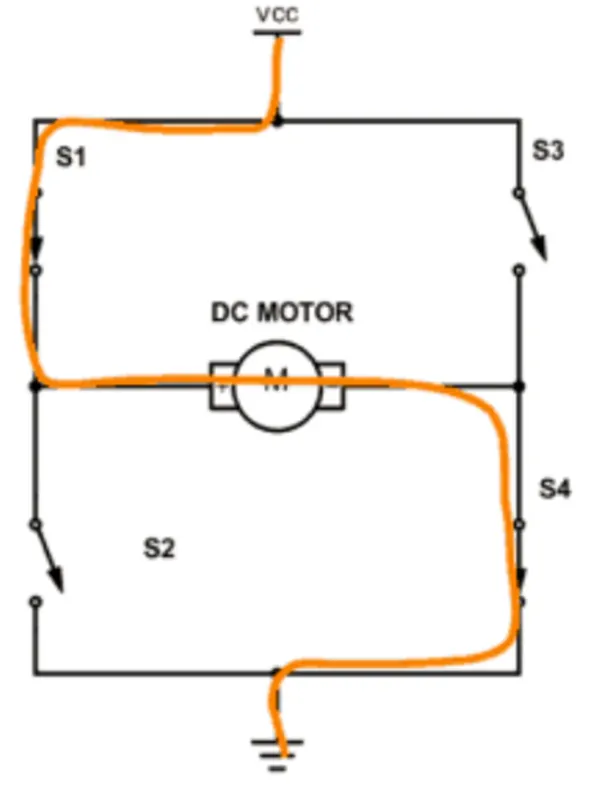

An H-bridge is a simple circuit that lets you control a DC motor to go backward or forward. If you close switch 1 and 4, you have plus connected to the left side of the motor and minus to the other side. And the motor will start spinning in one direction.

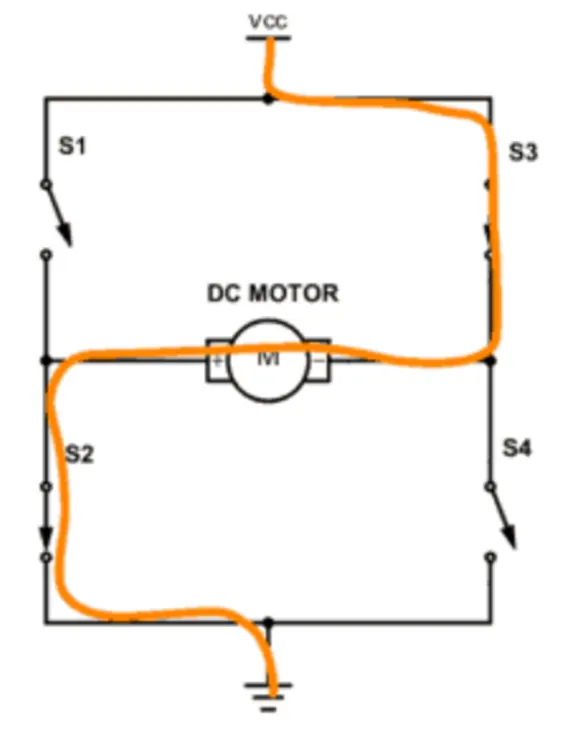

If you instead close switch 2 and 3, you have plus connected to the right side and minus to the left side. And the motor spins in the opposite direction.

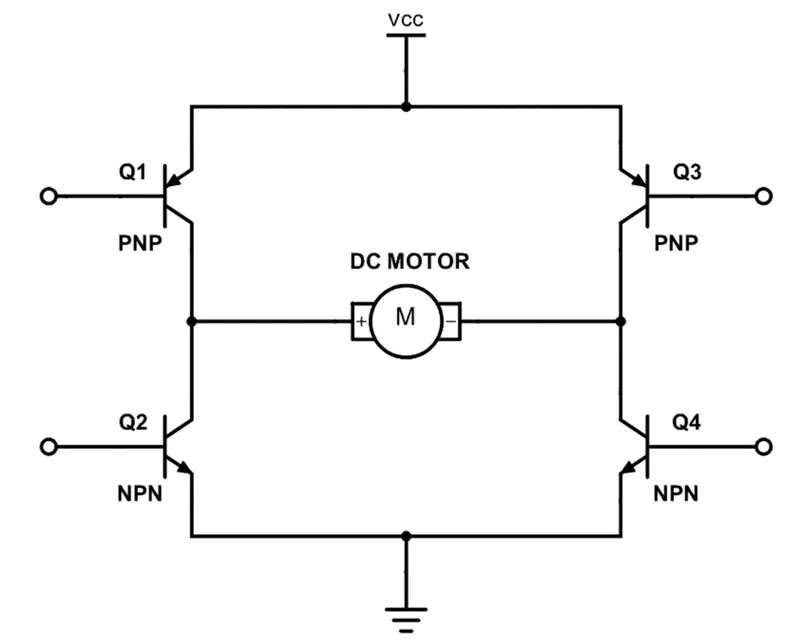

circuit diagram of H- Bridge

Comparison
Four-Quadrant Chopper DC Drive	H-bridge model
To change the motor direction the polarity is changed	To change the motor direction the current signal has to be interrupted
It has broader torque and power output ranges	It uses single pulse generator which gives narrow torque and power output range.
Up to 400v can be achieved.	Up to 350v can be achieved.
In this the current has chopped values	In this the current has continuous values.
Regenerative braking is possible	Regenerative braking is not possible

Answerr 3)

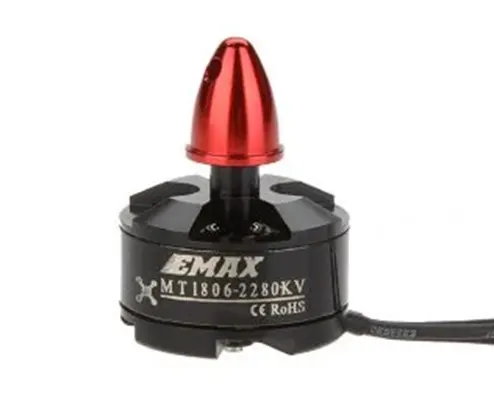

Brushless Dc Motor :

Brushless DC electric motors also known as electronically commutated motors (ECMs, EC motors).

Primary efficiency is a most importent feature for BLDC motors. Because the rotor is the sole bearer of the magnets and it doesn't require any power. i.e. no connections, no commutator and no brushes. In place of these, the motor employs control circuitry. To detect where the rotor is at certain times, BLDC motors employ along with controllers, rotary encoders or a Hall sensor.

The main design difference between a brushed and brushless motors is the replacement of mechanical commutator with an electric switch circuit. A BLDC Motor is a type of synchronous motor in the sense that the magnetic field generated by the stator and the rotor revolve at the same frequency.

Brushless motor does not have any current carrying commutators. The field inside a brushless motor is switched through an amplifier which is triggered by the commutating device like an optical encoder.

Working Principle of Brushless DC motor

BLDC motor works on the principle similar to that of a Brushed DC motor. The Lorentz force law which states that whenever a current carrying conductor placed in a magnetic field it experiences a force. As a consequence of reaction force, the magnet will experience an equal and opposite force. In the BLDC motor, the current carrying conductor is stationary and the permanent magnet is moving.

When the stator coils get a supply from source, it becomes electromagnet and starts producing the uniform field in the air gap. Though the source of supply is DC, switching makes to generate an AC voltage waveform with trapezoidal shape. Due to the force of interaction between electromagnet stator and permanent magnet rotor, the rotor continues to rotate.

With the switching of windings as High and Low signals, corresponding winding energized as North and South poles. The permanent magnet rotor with North and South poles align with stator poles which causes the motor to rotate.

Advantages of Brushless DC motor

• Less overall maintenance due to absence of brushes
• Reduced size with far superior thermal characteristics
• Higher speed range and lower electric noise generation.
• It has no mechanical commutator and associated problems
• High efficiency and high output power to size ratio due to the use of permanent magnet rotor
• Smaller motor geometry and lighter in weight than both brushed type DC and induction AC motors.
• Less electromagnetic interference
• Low noise due to absence of brushes

Limitations of Brushless DC motor

• These motors are costly
• Electronic controller required control this motor is expensive
• Requires complex drive circuitry
• Need of additional sensors

Applications of Brushless DC motor

• Computer hard drives and DVD/CD players
• Electric vehicles, hybrid vehicles, and electric bicycles
• Industrial robots, CNC machine tools, and simple belt driven systems
• Washing machines, compressors and dryers
• Fans, pumps and blowers.
