Week-3 Challenge: ADVISOR Tool

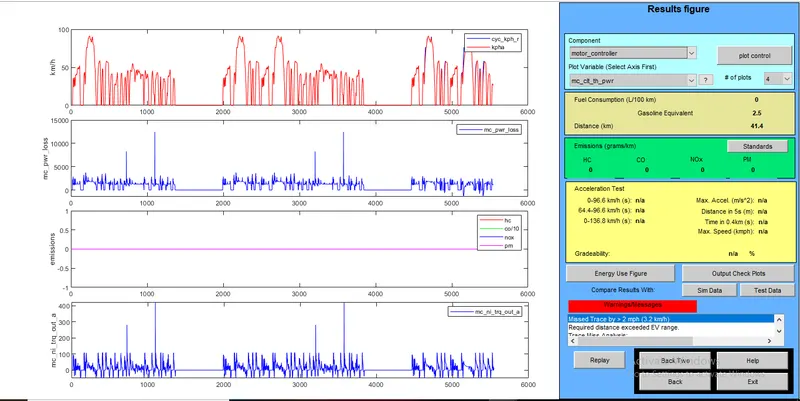

1.By changing the cargo mass and drive cycle

• Cargo mass is changed to 500kg.
• Drive cycle is modified to the FTP drive cycle.
• In FTP drive cycle the max.speed is 17.7 kmph.
• So it is modified to the 4 number of cycles,and now it reaches 41.4km which is near to the 45kms.
• And there is no emission.

2.By changing the battery capacity

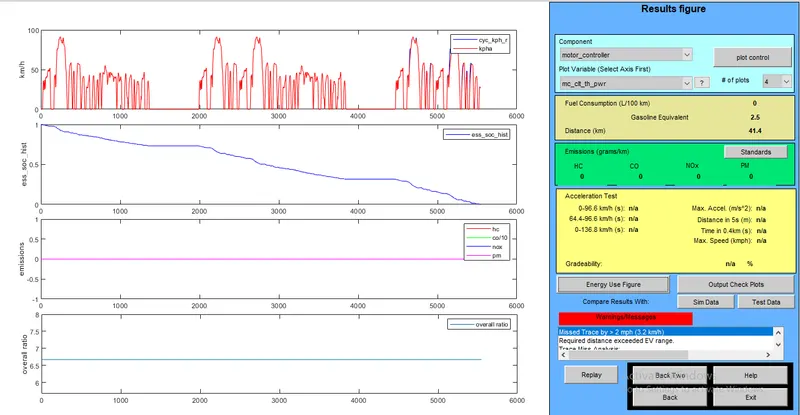

Battery capacity is at 25

• Battery is at the full state and it reduces its charge at the middle of 5000 & 6000,its distance is 41.4kms.

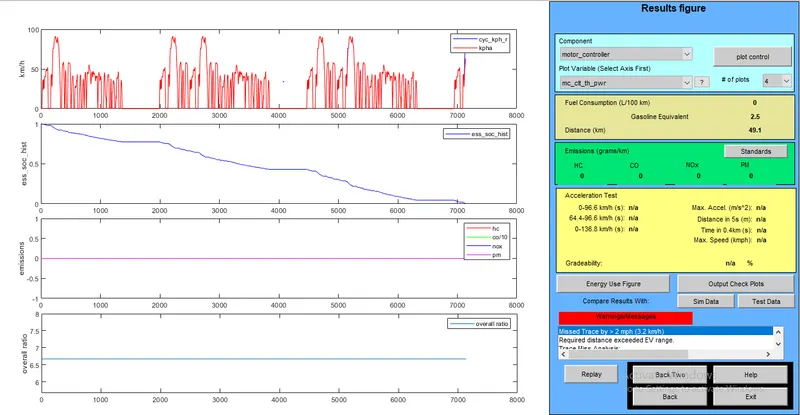

Battery capacity is at 30

• Battery is at the full state & it reduces to the 7000,distance is 49.1.

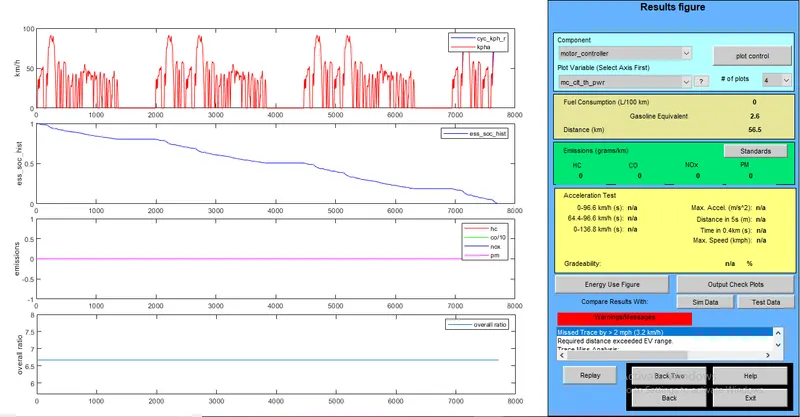

Battery capacity is at 35

• Battery is at the full state & it reduces nearly to the 8000,distance is 56.5.

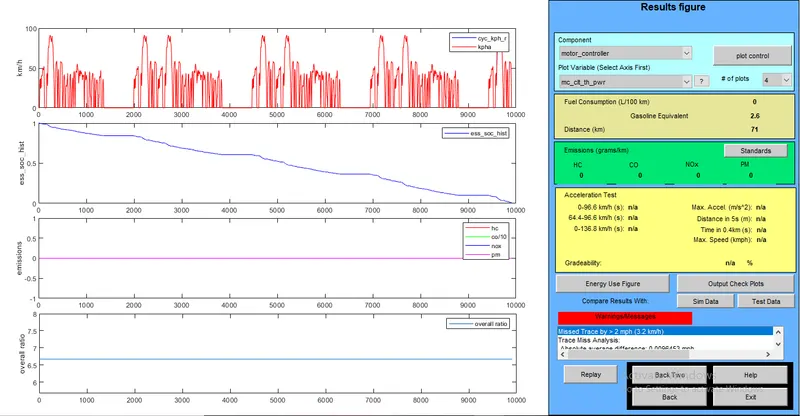

Battery capacity is at 45

• Battery is at the full state & it reduces at nearly 10000 & its distance is 71 kms.

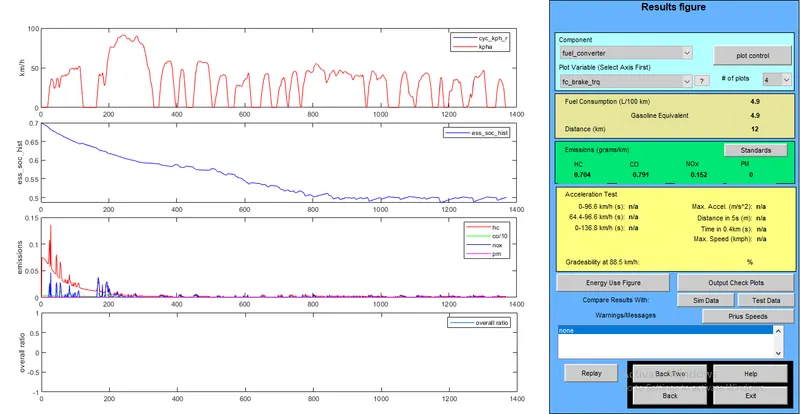

3.Gradeability in prius_jpn:

• Gradeability at 88.5km/h is 2%.
