Project - Data Handling and Interpolation

INTERPOLATION WITH VOLTAGE AND CURRENT

There are 2 type of interpolation:

1. Interpolation
2. Exterpolation

This project is completely done by interpolation.

There are 3 types of interpolation.

1. Linear interpolation
2. Spline interpolation
3. Dynamic interpolation

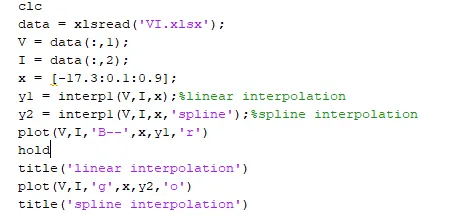

Script file:

• xlsread is a command which is used to run a file from xl.
• Here V is voltage and I is current from 'VI.xlsx' file.
• And x is the time duration.
• interp1 command is used for the interpolation.
• It interpolates the V,I & x .
• First linear interpolation is done.
• Next spline interpolation is done.
• And then plots are ploted.
• Output of the script is pressented.

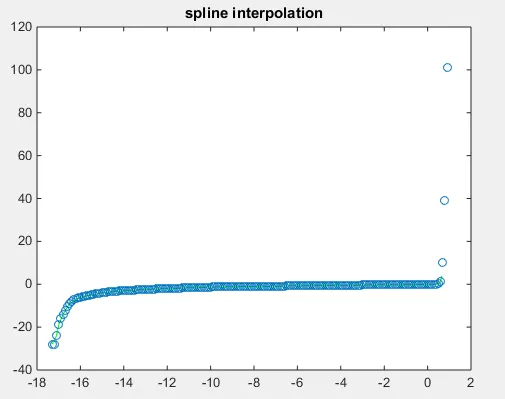

Graph:
